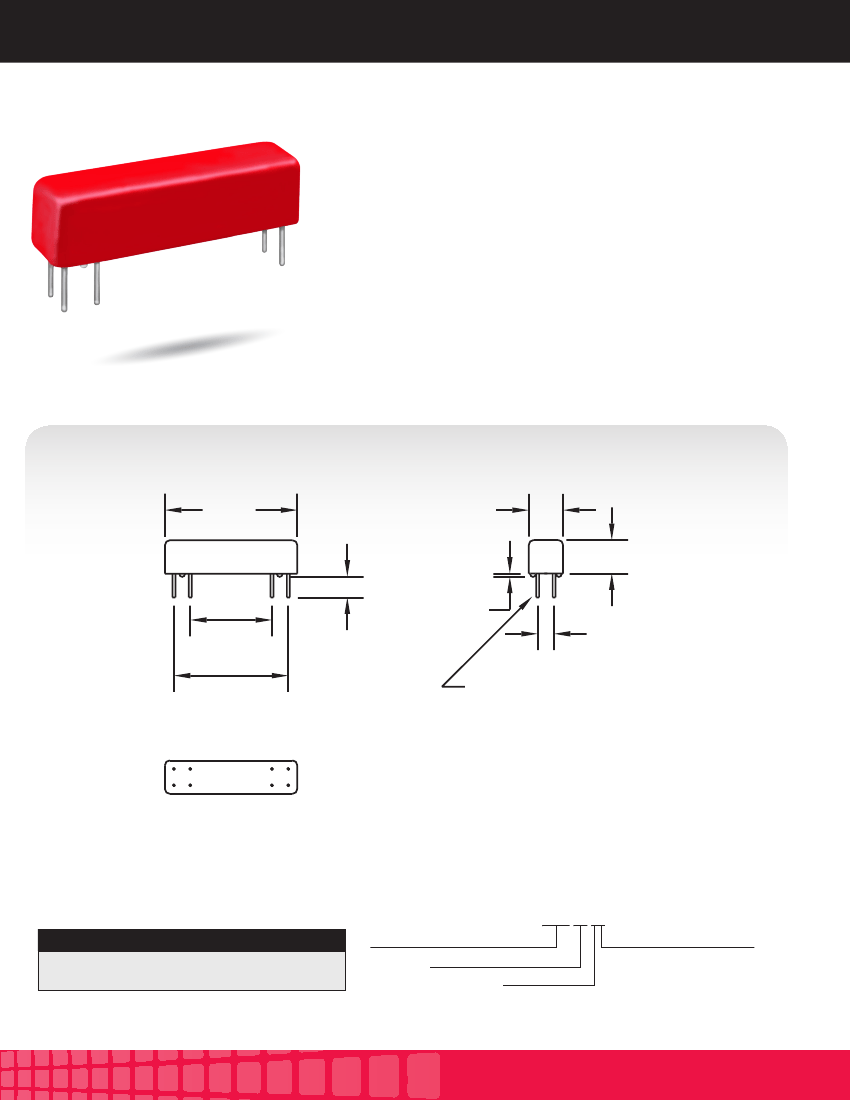

2200 SERIES REED RELAYS
2200 Series Reed Relays
Ideally suited to the needs of Automated Test Equipment and RF requirements. The
specification tables allow you to select the appropriate relay for your particular ap-
plication. If your requirements differ, please consult your local representative or Coto’s
Factory.
2200 Series Features
u
Very small footprint (0.17 in
2
), high reliability reed relays
u
High Insulation Resistance - 10
12
Ω
available with model 2204
u
High speed switching compared to electromechanical relays
u
Hermetically sealed contacts for long life
u
Epoxy coated steel shell provides magnetic shielding
u
Optional Electrostatic Shield for reducing capacitive coupling
u
Optional Coaxial Shield for 50Ω impedance and switching of fast rise time digital
pulses offered on Form A
u
Relay models 2200-2301, 2200-2302 are ATE industry standards
u
Specifically engineered for OEM designs and maintenance of existing
production fixtures
u
RoHS compliant
DIMENSIONS
in Inches (Millimeters)
.810
(20.57)
.210
(5.33)
.225 (5.72)
.500
(12.7)
.700
(17.78)
1 2
8 7
3 4
6 5
.020
(0.51)
.125
(3.18)
.018 Dia. pins
(0.46)
.100
(2.54)
Bottom View
Ordering Information
NOTE
u
Model #’s 2200-2301 & 2200-2302 represent
complete part numbers.
Part Number
Model Number
2204
Coil Voltage
2211
05=5 volts
12=12 volts
XXXX-XX-XX1
Coil Options
3=use for Model #2204 (12 volt coil)
and Model #2211 (5 & 12 volt coil)
4=use for Model #2204 (5 volt coil)
Shielding Options
2
0=No Shielding
1=Electrostatic Shield
(N/A on Model #2211)
2=Coaxial Shield
(N/A on Model #2211)
07082013
tel: (401) 943.2686
|
fax: (401) 942.0920
MODEL NUMBER
Parameters
COIL SPECS.
Nom. Coil Voltage
Coil Resistance
Operate Voltage
Release Voltage
+/- 10%, 25° C
Must Operate by
Must Release by
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Signal Level 1.0V, 10mA
VDC
Ω
VDC - Max.
VDC - Min.
Volts
Amps
Amps
Watts
x 10
6
Ops.
x 10
6
Ops.
50mV, 10mA
0.5V, 50mA
at 100 Hz, 1.5 msec
Between all Isolated Pins
at 100V, 25°C, 40% RH
Shield Floating
Shield Guarding
Between Contacts
Contacts to Shield
Contacts/Shield to Coil
At Nominal Coil Voltage,
30 Hz Square Wave
Ω
Ω
2204
Test Conditions
Units
1 Form A
2211
1 Form C
2200-
2301
1 Form A
Electrostatic
Shield
5
150
3.6
0.5
150
0.5
1.0
10
500
5
0.150
0.200
Coaxial Shield
2200-
2302
1 Form A
5 12
370 1500
3.8 9.0
0.4 1.0
200
0.5
1.0
10
500
5
0.100
0.200
5 12
230 1500
3.8 9.0
0.4 1.0
100
0.25
0.5
3
100
5
0.150
0.200
5
150
3.6
0.5
150
0.5
1.0
10
500
5
0.150
0.200
CONTACT RATINGS
Switching Voltage
Switching Current
Carry Current
Contact Rating
Life Expectancy-Typical
1
Rated Loads
Static Contact
Resistance (max. init.)
Dynamic Contact
Resistance (max. init.)
RELAY SPECIFICATIONS
Insulation Resistance
(minimum)
Capacitance - Typical
Across Open Contacts
Dielectric Strength
(minimum)
Operate Time -
including bounce
Release Time - Typical
Ω
pF
pF
VDC/peak AC
VDC/peak AC
VDC/peak AC
msec.
msec.
Top View:
Dot stamped on top of relay refers to pin #1 location
Grid = .1”x.1” (2.54mm x 2.54mm)
5
6
10
12
0.9
0.2
250
250
1500
0.5 (typ.)
0.1
4
3
5
6
10
11
0.9
N/A
200
N/A
1500
1.0 (typ.)
2.0
4
3
5
6
10
11
0.9
0.2
250
250
1500
0.55 (max.)
0.1
4
3
5
6
10
11
0.9
0.2
250
250
1500
0.55 (max.)
0.1
4
3
7
8
2
1
7
8
2
1
7
8
2
1
7
8
2
1
Notes:
1
2
Consult factory for life expectancy at other switching loads.
Model 2204, pin #7 is tied to optional electrostatic shield, pins #6 & #7 are tied to optional coaxial shield.
Environmental Ratings:
Storage Temp:
-35°C to
+
100°C;
Operating Temp:
-20°C to
+
85°C;
Solder Temp:
270°C max; 10 sec. max
All electrical parameters measured at 25°C unless otherwise specified.
Vibration:
20 G’s to 2000 Hz;
Shock:
50 G’s
07082013
For most recent data visit www.cotorelay.com
