218ANS-1088Z datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> 218ANS-1088Z

Preview

218ANS-1088Z: DescriptionVariable Coils; CategoryPassive components inductor; File Size22KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

218ANS-1088Z Overview

Variable Coils

218ANS-1088Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Minimum inductance(L)	15 µH
Nominal inductance(L)	15 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	7PL
Number of functions	1
Number of terminals	6
Minimum quality factor (at nominal inductance)	70
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	NO
special characteristics	INDUCTANCE IS ADJUSTABLE OVER 4% FROM NOMINAL
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	2.52 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

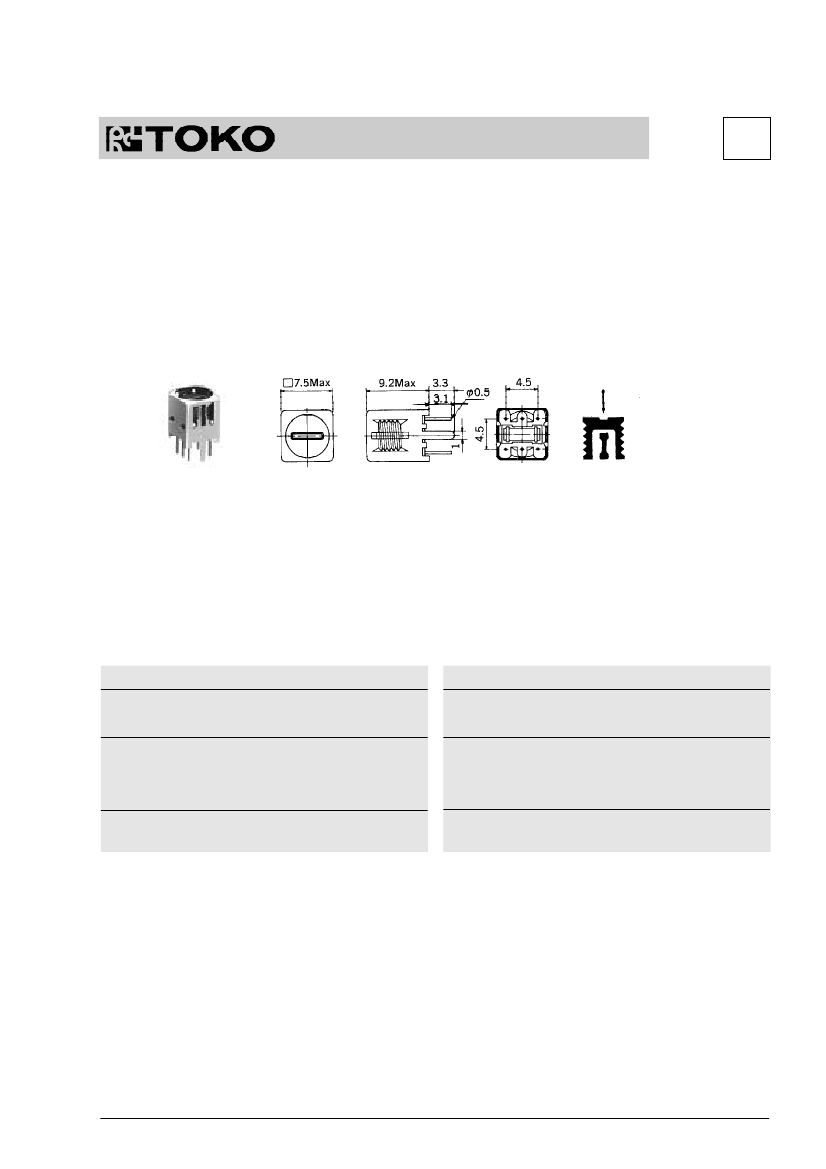

TYPE

Variable Coils

7PL

67

7mm TYPE 7PL

Frequency Range:

200kHz-2MHz

2-20MHz (High Frequency)

Inductance Range:

20–500µH

1-100µH (High Frequency)

Temperature Coefficient:

Inductor TC (L) 750±500ppm/°C

TC (L) 220±220ppm/°C (High Frequency)

With Internal Capacitor TC (F) 0±250ppm/°C

Optional Internal Capacitance Value:

150-390pF

5~100pF (High Frequency)

Unit: mm

Features

• Low profile, for a 7mm coil of only 9.2mm.

• Types 7PS for AM circuit application, and 7PS (high frequency)

for FM circuit applications, are ideal for use as IFT coils and in

OSC circuits.

STANDARD COILS SELECTION GUIDE

TYPE 7PL

TOKO

Part

Number

L7BRS-1764Z

L7BRS-1765Z

L7BRS-1766Z

L7BRS-1767Z

L7BRS-1768Z

L7BRS-1769Z

L7BRS-1770Z

Inductance

Range

(µH)

56±5%

100±5%

150±5%

220±5%

270±5%

330±5%

390±5%

Q

(min.)

40

73

81

80

82

78

Test

Frequency

2.52MHz

796kHz

TYPE 7PL High Frequency

TOKO

Part

Number

218ANS-1083Z

218ANS-1084Z

218ANS-1085Z

218ANS-1086Z

218ANS-1087Z

218ANS-1088Z

218ANS-1089Z

Inductance

Range

(µH)

2.0±4%

3.3±4%

4.7±4%

6.8±4%

10.0±4%

15.0±4%

18.0±4%

Q

(min.)

72

69

70

73

69

70

Test

Frequency

7.96MHz

2.52MHz

Recommended Resources

ME type circuit breaker motor pre-storage band energy release DC operation closing circuit

Frequency division circuit diagram of Hall integrated component DN6839

Alarm circuit with variable frequency and adjustable signal pulse width

Rotation direction detection circuit

TA-25 main technical performance
