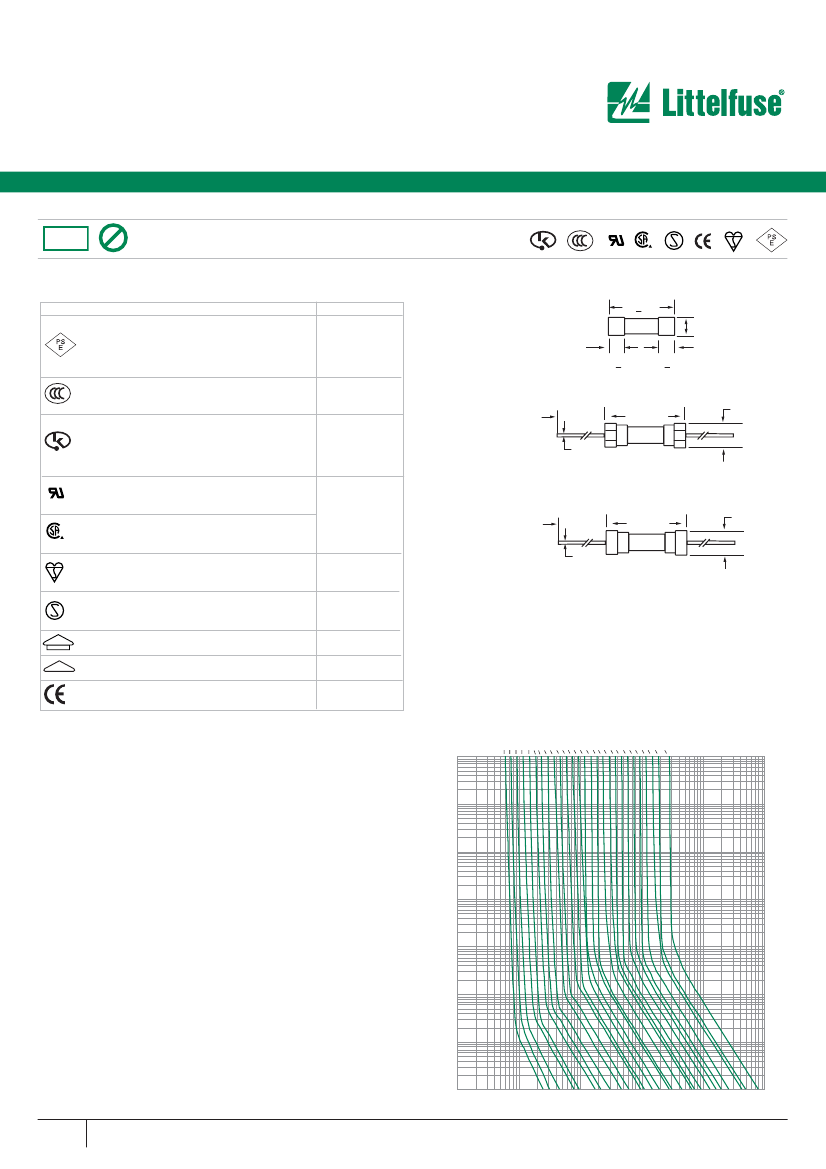

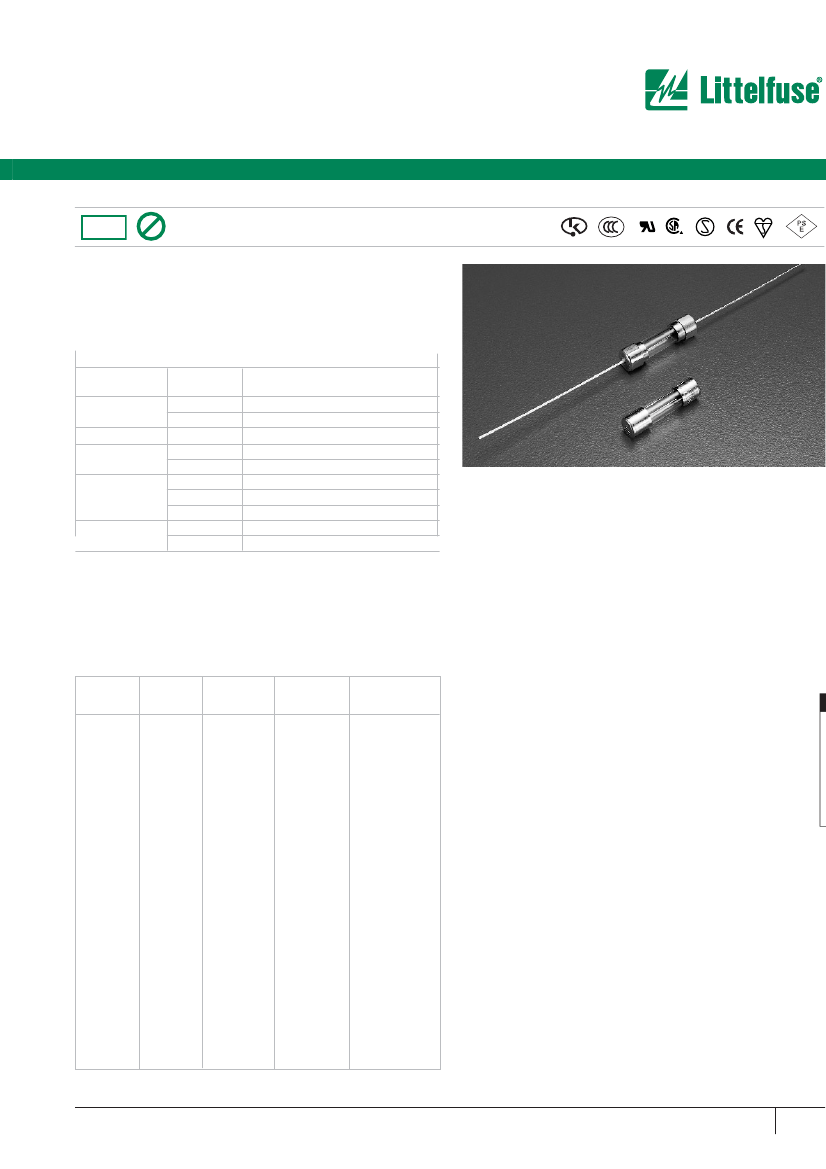

Axial Lead and Cartridge Fuses
Designed to IEC Standard
RoHS
Pb
5 x 20 mm
Fast-Acting Fuse 217P Series
®
®
• Designed to International (IEC) Standards for use globally.
• Meets the IEC 60127-2, Sheet 2 specification for Fast-Acting Fuses.
• Available in Cartridge and Axial Lead Form.
• Available in ratings of 0.032 to 15 amperes.
• RoHS Compliant and Lead-Free
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
150%
210%
275%
400%
Ampere
Rating
.032 – 6.3
8-15
.032-15
.032 – .100
.125 – 15
.032 – .100
.125 – 6.3
8 - 15
.032 – 6.3
8-15
Opening
Time
60 minutes,
Minimum
30 minutes,
Minimum
30 minutes,
Maximum
0.01 sec.,
Min.;
.5 sec.
Max.
0.05 sec.,
Min.;
2 sec.
Max.
.003 sec.,
Min.;
0.1 sec.
Max.
.01 sec.,
Min.;
0.3 sec.
Max.
.01 sec.,
Min.;
0.4 sec.
Max.
.02 second,
Maximum
.04 second,
Maximum
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature:
-55˚C to 125˚C
Thermal Shock:
MIL-STD-202F Method 107G, Test Condition B: (5
cycles –65°C to +125°C)
Vibration:
MIL-STD-202F Method 201A
Humidity:
MIL-STD-202F Method 103B, Test Condition A. high relative
humidity (95%) and elevated temperature (40°C) for 240 hours.
Salt Spray:
MIL-STD-202F Method 101D, Test Condition B
1000%
INTERRUPTING RATING:
35 amperes or 10 x rated current;
(whichever is greater) to a maximum 100 amperes @ 250VAC, unity
Power Factor.
PHYSICAL SPECIFICATIONS:
Material:
Body: Glass
ORDERING INFORMATION:
Cartridge
Catalog
Number
217.032P
217.040P
217.050P
217.063P
217.080P
217.100P
217.125P
217.160P
217.200P
217.250P
217.315P
217.400P
217.500P
217.630P
217.800P
217
001.P
217
1.25P
217
01.6P
217
002P
217
02.5P
217
3.15P
217
004.P
217
005.P
217
06.3P
217
008.P
217
010.P
217
015.P
Ampere
Rating
.032
.040
.050
.063
.080
.100
.125
.160
.200
.250
.315
.400
.500
.630
.800
1
1.25
1.6
2
2.5
3.15
4
5
6.3
8*
10*
15*
Voltage
Rating
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Nominal
Resistance
Cold Ohms
262.2
183.2
15.20
10.45
7.890
5.775
3.820
2.525
1.700
1.233
0.894
0.277
0.207
0.190
0.120
0.096
0.070
0.053
0.042
0.033
0.022
0.016
0.014
0.009
0.007
0.006
0.004
Nominal
Melting I
2
t
A
2
Sec.
0.000060
0.000085
0.000190
0.000555
0.000828
0.00450
0.00477
0.010
0.024
0.042
0.112
0.127
0.219
0.409
0.847
1.042
2.230
4.616
5.726
9.460
17.722
29.164
42.796
62.466
198.158
217.633
607.133
Cap: Nickel Plated Brass
Leads: Tin Plated Copper
Terminal Strength
:
MIL-STD-202F Method 211A,
Test Condition A
Solderability:
Reference IEC 60127 Second Edition 2003-01 Annex A
Terminal strength: MIL-STD-202F Method 211A, Test Condition A
1
Product Marking:
Cap 1: current and voltage rating.
Cap 2: Agency approval markings.
Packaging:
Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel).
w w w. l i t t e l f u s e . c o m
411
Axial Lead and Cartridge Fuses
Designed to IEC Standard
RoHS
Pb
5 x 20 mm
Fast-Acting Fuse 217P Series
Agency Approvals
Cartridge
NBK120802-E10480 A&C
Leaded
NBK120802-E10480 B&D
Ampere Range
®
®
Agency Approvals
0217
000P
20+0.5
5.2+0.1
-0.2
1A – 15A
5.1+0.6
5.1+0.6
Certificate No.
Certificate No.
2002010207007600
2002010207007599
SU05001-3004
SU05001-2005
SU05001-2006
SU05001-2007
32mA – 800mA
1A – 6.3A
32mA – 40mA
50mA – 315mA
400mA – 6.3A
8A & 10A
0217.032 XEP
to
0217.315 XEP
40
22.5 MAX
6.0 MAX
ø6.5
®
Recognised File No. E10480
Guide No.
JDYX2
32mA – 6.3A
®
File No.
Acc. Class No.
Licence No.
File No.
029862
LR1422-30
KM41462
9848103, 9931059
304518 & 304555
40014645
400mA – 6.3A
0217.400 XEP
to
0217015
XEP
40
22.5 MAX
5.8 MAX
ø6.5*
All dimensions in mm
32mA – 6.3A
32mA – 8A,
10A*
15A
32mA – 15A
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
D
V
E
Licence No.
VDE
Licence No.
40016647
*Approval for cartridge versions only
Average Time Current Curves
0.032A
0.040A
0.050A
0.063A
0.080A
0.100A
0.125A
0.160A
0.200A
0.250A
0.315A
0.400A
0.500A
0.630A
0.800A
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
8A
10A
10000
1000
100
10
1
TIME IN SECONDS
0.1
0.01
0.001
0.01
0.1
1
10
CURRENT IN AMPERES
100
1000
15A
412
w w w. l i t t e l f u s e . c o m
