Low-Power, High-Resolution

16-Bit Sensor Signal Conditioner

ZSSC3027

Datasheet

Brief Description

The ZSSC3027 is a sensor signal conditioner (SSC)

integrated circuit for high-accuracy amplification and

analog-to-digital conversion of a differential input

signal. Designed for high-resolution altimeter module

applications, the ZSSC3027 can perform offset,

span, and 1 and 2 order temperature compen-

sation of the measured signal. Developed for correc-

tion of resistive bridge sensors, it can also provide a

corrected temperature output measured with an

internal sensor.

The measured and corrected bridge values are

provided at the digital output pins, which can be

configured as I C™* (≤ 3.4MHz) or SPI (≤ 20MHz).

Digital compensation of signal offset, sensitivity,

temperature, and non-linearity is accomplished via

an 18-bit internal digital signal processor (DSP) run-

ning a correction algorithm. Calibration coefficients

are stored on-chip in a highly reliable, non-volatile,

multiple-time programmable (MTP) memory. Pro-

gramming the ZSSC3027 is simple via the serial

interface. The IC-internal charge pump provides the

MTP programming voltage. The interface is used for

the PC-controlled calibration procedure, which pro-

grams the set of calibration coefficients in memory.

The ZSSC3027 provides accelerated signal process-

ing in order to support high-speed control, safety,

and real-time sensing applications. It complements

IDT’s ZSSC30x6 products.

•

Benefits

Integrated 18-bit calibration math DSP

Fully corrected signal at digital output

One-pass calibration minimizes calibration costs

No external trimming, filter, or buffering com-

ponents required

Highly integrated CMOS design

Excellent for low-voltage and low-power battery

applications

Optimized for operation in calibrated resistive

sensor modules

Physical Characteristics

•

Supply voltage range: 1.7 to 3.6V

Operating mode current consumption:

930µA (typical)

Sleep State current: 20nA (typical)

Temperature resolution: <0.003K/LSB

Operation temperatures: –40°C to +85°C

Small die size

Delivery options: die for wafer bonding

Available Support

•

ZSSC3026 Evaluation Kit can be used to

evaluate ZSSC3027 capabilities

Support Documentation

Features

•

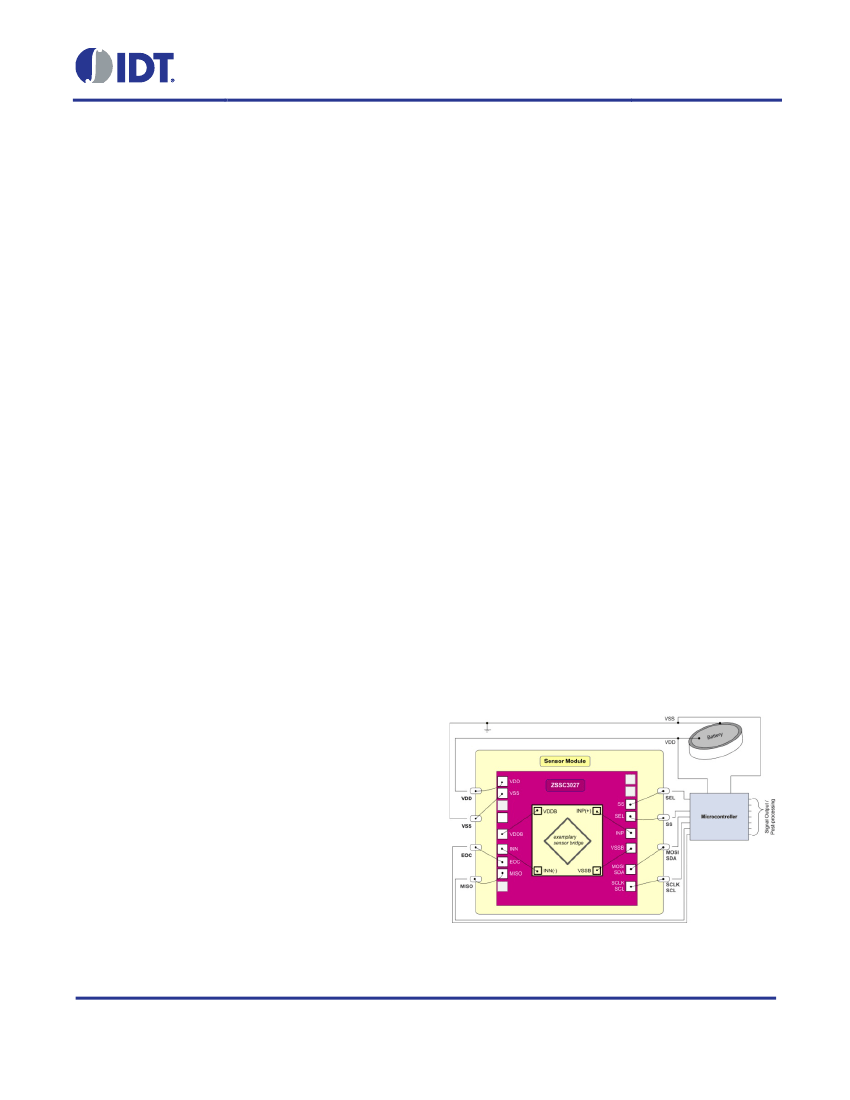

ZSSC3027 Application Example

•

Flexible, programmable analog front-end design;

up to 16-bit scalable, charge-balancing two-

segment analog-to-digital converter (ADC)

Fully programmable gain amplifier accepting

sensors from 14 to 72 (linear factor)

Internal auto-compensated temperature sensor

Digital compensation of individual sensor offset;

1 and 2 order digital compensation of sensor

gain as well as of 1 and 2 order temperature

gain and offset drift

Layout optimized for stacked-die bonding for

high-density chip-on-board assembly

Typical sensor elements can achieve accuracy of

better than ±0.10% FSO** @ -40 to 85°C

C™ is a trademark of NXP.

FSO = Full Scale Output.

April 20, 2016
