HVC Series
High Voltage Thick Film Chip Resistor
Features:
•
•
•
•
•
•
•
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Ohmic values to 50G
Available with wire bondable terminations
Tight tolerances to 0.1%
Utilizes fine film resistor deposition technology
Superior pulse handling capabilities
Low TCR to 25 ppm/ºC
Low VCR to 1 ppm/volt
Very low noise
Ultra high stability
Custom sizes available
Higher (up to 1Tohm) or lower resistance values may be
available (contact factory)
Standard HVC parts are unmarked
RoHS compliant and halogen-free

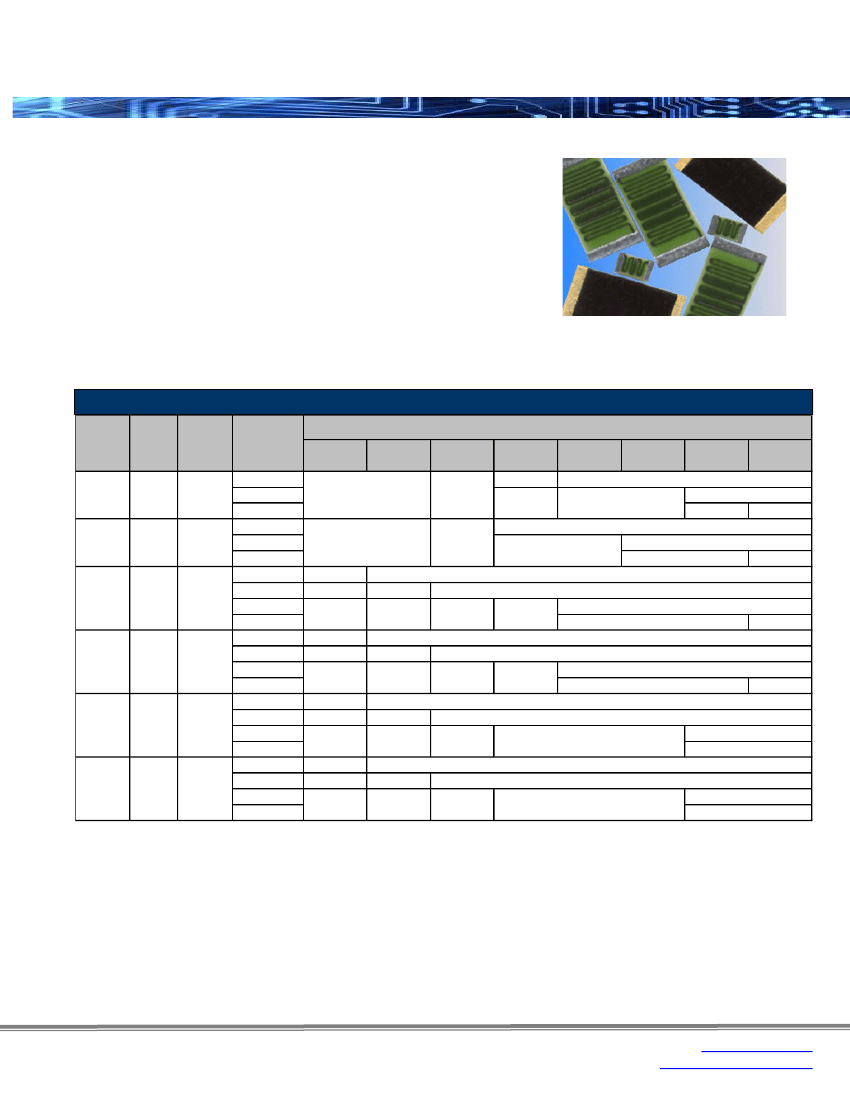

Electrical Specifications
Type /
Code
Power
Rating
(Watts)
@ 70ºC
0.06W
Maximum
Working
(1)
Voltage
Resistane
Temperature
Coefficient
± 50 ppm/ºC
HVC0603
400V
± 100 ppm/ºC
± 200 ppm/ºC
± 50 ppm/ºC
HVC0805
0.2W
600V
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
HVC1206
0.33
1500V
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
HVC2010
1W
2000V
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
HVC2512
2W
3000V
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
HVC3512
3W
3500V
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
1M - 100M
100K - 100M 100K - 100M
10K - 100M
1M - 100M
100K - 100M 100K - 100M
10K - 100M
1M - 100M
100K - 100M 100K - 500M
10K - 100M
1M - 100M
100K - 100M 100K - 500M
10K - 100M
10K - 500M
10K - 1G
10K - 500M
10K - 1G
10K - 100M
10K - 500M
10K - 1G
1M - 500M
100K - 1G
10K - 10G
1M - 500M
100K - 1G
10K - 10G
100K - 10G
100K - 50G
100K - 10G
100K - 50G
10K - 100M
10K - 500M
10K - 1G
1M - 100M
100K - 500M
10K - 1G
10K - 10G
10K - 50G
-
10K - 10M
10K - 1G
1M - 100M
100K - 500M
10K - 1G
10K - 10G
10K - 50G
-
10K - 10M
Ohmic Range (Ω) and Tolerance
0.1%
0.25%
0.5%
1%
10K - 100M
10K - 500M
10K - 1G
10K - 500M
10K - 1G
10K - 10G
10K - 50G
2%
5%
10%
20%
10K - 500M
10K - 1G
10K - 10G
10K - 50G
Proper terminal isolation is required to achieve the voltage ratings for each given size.
(1) The continuous maximum voltage applied cannot exceed the maximum power rating and is ohmic value dependent.
Note: Other case sizes and tolerances are available.
Rev Date: 04/09/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
HVC Series
High Voltage Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

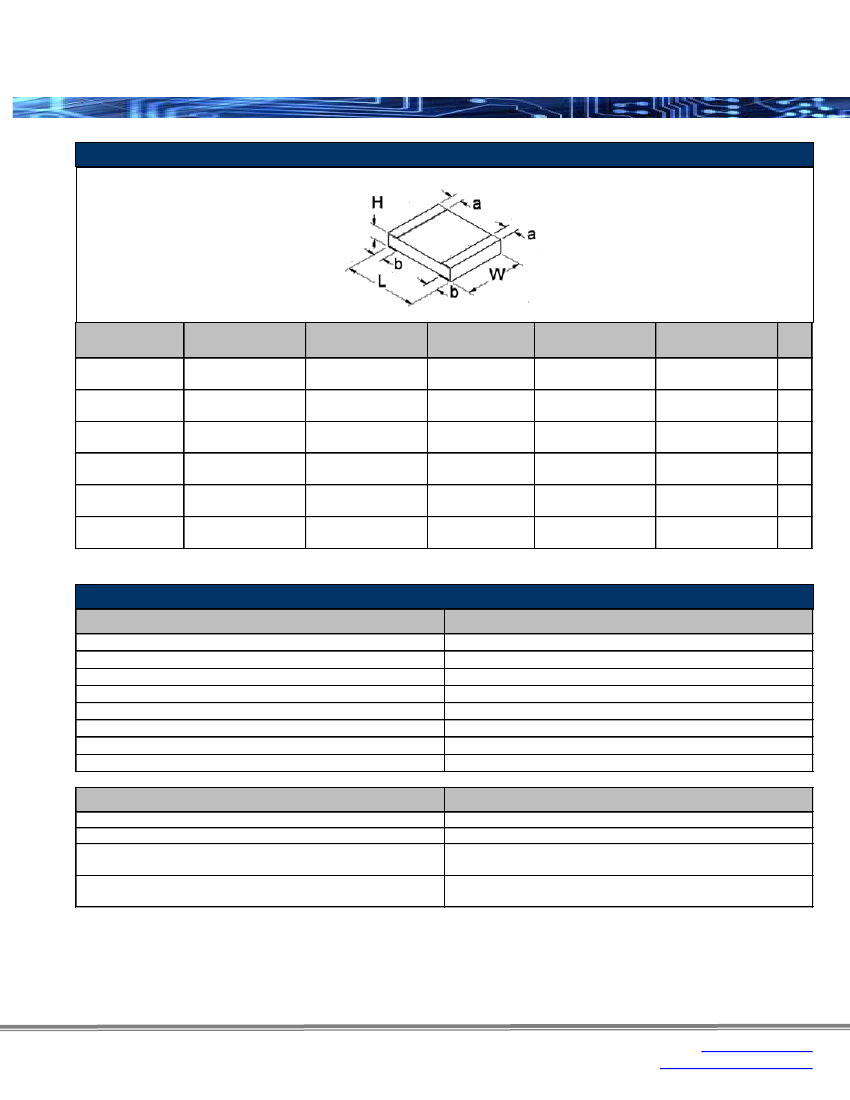

Mechanical Specifications
Type / Code
HVC0603
HVC0805
HVC1206
HVC2010
HVC2512
HVC3512
L
Body Length
0.063 ± 0.01
1.60 ± 0.25
0.079 ± 0.01
2.01 ± 0.25
0.126 ± 0.01
3.20 ± 0.25
0.200 ± 0.01
5.08 ± 0.25
0.250 ± 0.01
6.35 ± 0.25
0.350 ± 0.01
8.89 ± 0.25
W
Body Width
0.031 ± 0.005
0.79 ± 0.13
0.050 ± 0.005
1.27 ± 0.13
0.063 ± 0.005
1.60 ± 0.13
0.100 ± 0.005
2.54 ± 0.13
0.125 ± 0.005
3.18 ± 0.13
0.125 ± 0.005
3.18 ± 0.13
H
Body Height (Max.)
0.020
0.51
0.025
0.64
0.030
0.76
0.030
0.76
0.030
0.76
0.030
0.76
a
Top Termination
0.010 ± 0.005
0.25 ± 0.13
0.010 ± 0.005
0.25 ± 0.13
0.010 ± 0.005
0.25 ± 0.13
0.018 ± 0.010
0.46 ± 0.25
0.020 ± 0.010
0.51 ± 0.25
0.020 ± 0.010
0.51 ± 0.25
b
Bottom Termination
0.012 ± 0.008
0.30 ± 0.20
0.013 ± 0.008
0.33 ± 0.20
0.020 ± 0.010
0.51 ± 0.25
0.020 ± 0.010
0.51 ± 0.25
0.024 ± 0.010
0.61 ± 0.25
0.024 ± 0.010
0.61 ± 0.25
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Performance Characteristics
Test
Short Time Overload
Load Life
Temperature Cycle
Moisture Resistance
Shock
Vibration
Dielectric Withstanding Voltage
Resistance to Soldering Heat
Parameter
Operating Temperature
TCR
Pulse Capability
Resistance Value
Typical Performance
0.1%
0.1%
0.1%
0.1%
0.05%
0.05%
0.05%
0.05%
Typical
-55°C to 150°C
measured from 25°C to 75°C
10X rated wattage
Consult factory for custom pulse applications
Measured at 100V
Consult factory for custom test voltages
Rev Date: 04/09/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
HVC Series
High Voltage Thick Film Chip Resistor

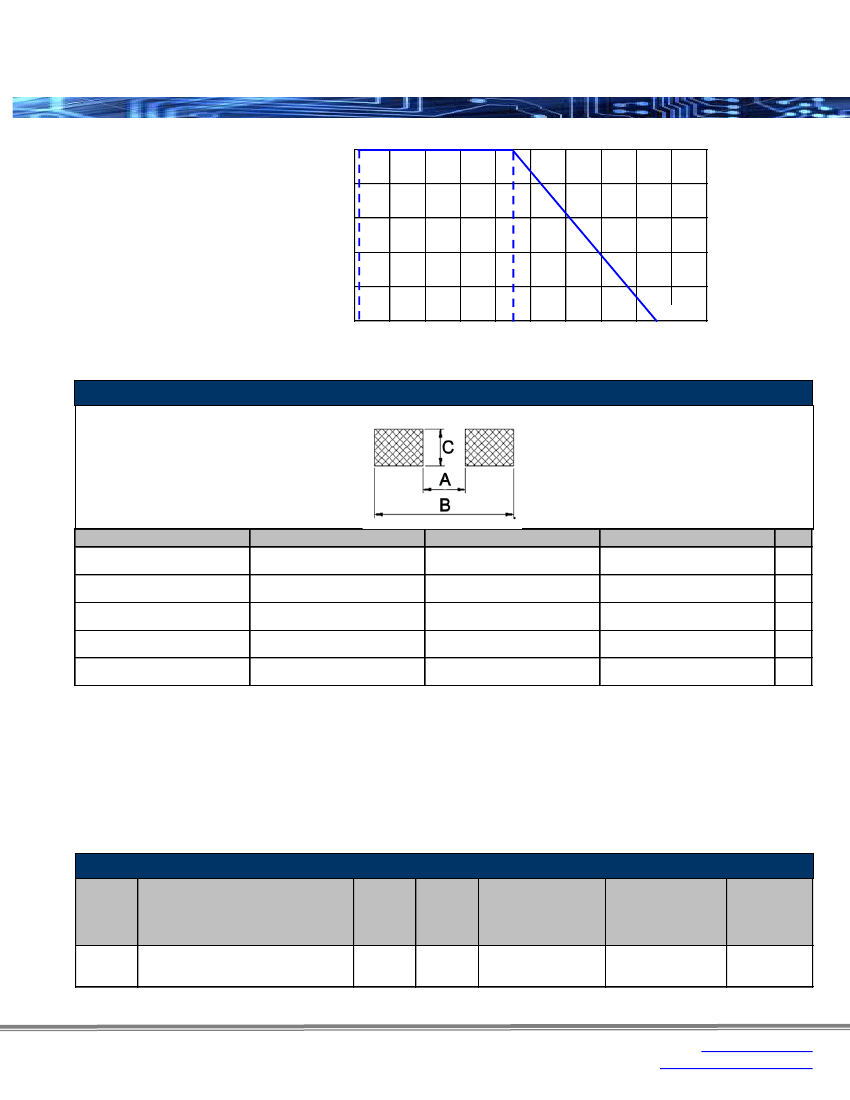

Power Derating Curve:
Percent Rated Power (%)
Stackpole Electronics, Inc.
Resistive Product Solutions
100
80
60
40
20
-55ºC
70ºC
0
-60
150ºC
0
20
40
60
80
100 120
Ambient Temperature (ºC)
140
160
180
Recommended Pad Layout
Type / Code
HVC0603
HVC0805
HVC1206
HVC2010
HVC2512
A
0.031
0.80
0.047
1.20
0.087
2.20
0.138
3.50
0.150
3.80
B
0.083
2.10
0.118
3.00
0.165
4.20
0.240
6.10
0.315
8.00
C
0.035
0.90
0.051
1.30
0.063
1.60
0.110
2.80
0.138
3.50
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
RoHS Compliance
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to
meet the various regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions
on Hazardous Substances” (RoHS 2). As part of this ongoing program, we periodically update this document with the
status regarding the availability of our compliant components. All our standard part numbers are compliant to EU
Directive 2011/65/EU of the European Parliament.
RoHS Compliance Status
Standard
Product
Series
Description
Package /
Termination
Type
Standard
Series
RoHS
Compliant
YES(1)
Lead-Free Termination
Composition
Lead-Free
Mfg. Effective Date
(Std Product Series)
Lead-Free
Effective Date
Code
(YY/WW)
Always
HVC
High Voltage Thick Film
Surface Mount Chip Resistor
SMD
100% Matte Sn ("T")
Always
Note (1): RoHS Compliant by means of exemption 7c-I.
Rev Date: 04/09/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
HVC Series
High Voltage Thick Film Chip Resistor
“Conflict Metals” Commitment
Stackpole Electronics, Inc.
Resistive Product Solutions
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region”
of the Eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals
used in the electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible
that the materials and products we supply do not contain metals sourced from this conflict region. As such, we are in
compliance with the requirements of Dodd-Frank Act regarding Conflict Minerals.
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High
Concern) free and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation,
Authorization and Restriction of Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH
Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We
continually strive to improve our effect on the environment. We observe all applicable laws and regulations regarding
the protection of our environment and all requests related to the environment to which we have agreed. We are
committed to the prevention of all forms of pollution.
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
H
V
C
B
2
5
1
2
F
K
C
1
0
M
0
HVCB
HVCG
HVCS
HVCZ
Product Series
Solderable wraparound
(100% matte tin)
Wire bondable (gold)
Solderable single surface
(Sn/Pb)
Solderable single surface
(100% matte tin)
Size
0603
0805
1206
2010
2512
3512
Power
0.06W
0.2W
0.33W
1W
2W
3W
Tolerance
Code Tol
B
0.1%
C 0.25%
0.5%
D
F
1%
G
2%
J
5%
K
10%
M
20%
Packaging
Code
T
7" Reel - Plastic Tape
K
D
B
7" Reel - Paper Tape
7" Reel - Plastic Tape
7" Reel - Paper Tape
7" Reel - Plastic Tape
Bulk
Description
7" Reel - Paper Tape
Size
0603, 0805
1206
2010
2512
0603, 0805, 1206
2010, 2512, 3512
0603, 0805, 1206
2010, 2512, 3512
All Sizes
Quantity
5,000
4,000
4,000
2,000
1,000
1,000
500
500
1,000
TCR
Code ppm
E
25
C
50
D
100
L
200
M 300
Resistance Value
Four characters with the
multiplier used as the
decimal holder.
10 Kohm = 10K0
1 Mohm = 1M00
10 Gohm = 10G0
Rev Date: 04/09/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
