2036-42-SM-RP-LF datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> 2036-42-SM-RP-LF

2036-42-SM-RP-LF: DescriptionTELECOM, SURGE PROTECTION CIRCUIT, XSS3; CategoryWireless rf/communication Telecom circuit; File Size226KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

2036-42-SM-RP-LF Overview

TELECOM, SURGE PROTECTION CIRCUIT, XSS3

2036-42-SM-RP-LF Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	ROHS COMPLIANT PACKAGE-3
Contacts	3
Reach Compliance Code	unknow
Base Number Matches	1

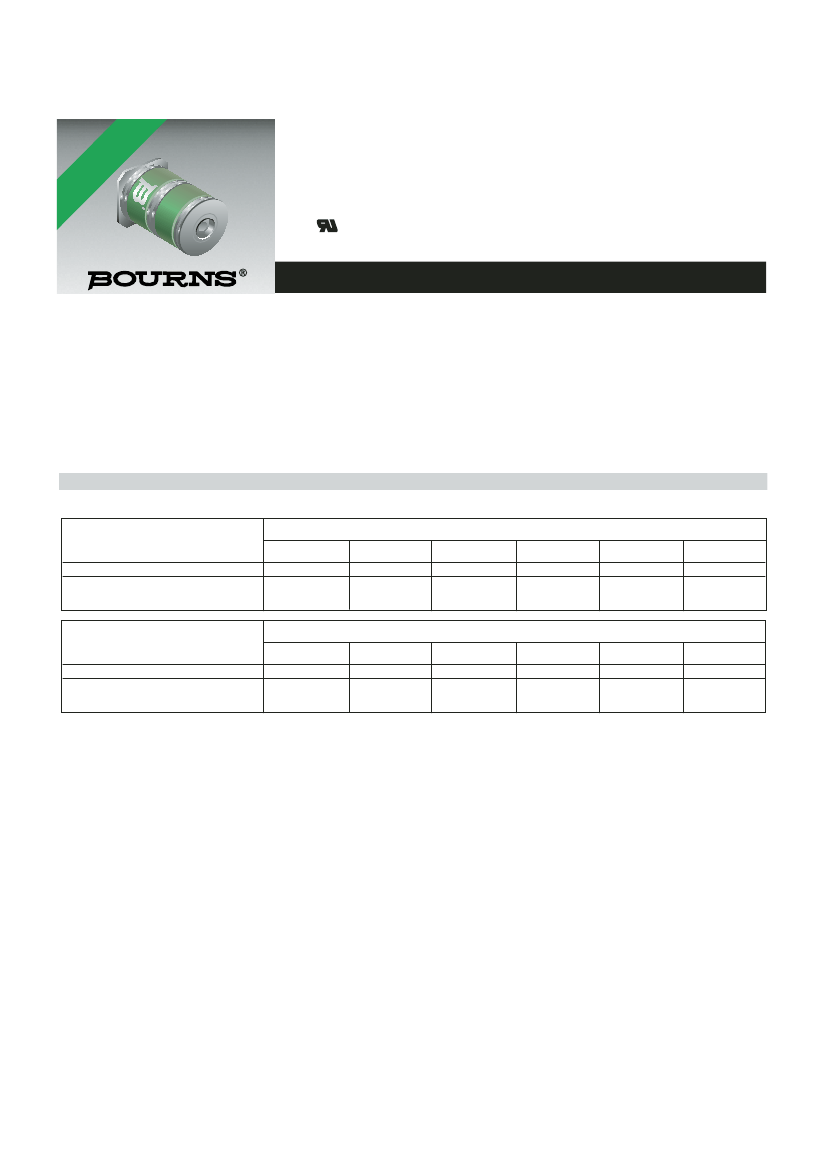

2036-42-SM-RP-LF Preview

V SC

AV ER OM

A I SIO P L

LA N IA

BL S N T

Features

■

Balanced Mini-TRIGARD™ Series (5 mm diameter, 7.5 mm length)

Ideal for board level protection of broadband circuits

Leadless, surface mount for economical assembly

High surge current rating, low insertion loss

Stable breakdown throughout life

UL Recognized

RoHS compliant* version available

2036-xx-SM Precision Gas Discharge Tube Surge Protector

Bourns now offers a surface mount (SM) 3-electrode Gas Discharge Tube (GDT) surge protection device. The industry-leading

quality and features of the Bourns

miniature 2036 TRIGARD

™

series GDT continues in this new SM version for “pick and

place” manufacturing techniques. The 2036 SM device is ideal for board level protection of high bandwidth applications such

as xDSL, cable broadband and high speed Ethernet, due to its high energy handling capability, long and stable life perfor-

mance and low capacitance of less than 2 pF. Bourns subminiature family of GDTs measure only 5 mm in diameter and are the

smallest high performance GDTs in the telecom industry. Bourns

GDTs are designed to prevent damage from transient

disturbances by acting as a “crowbar” in creating a short-to-ground circuit during conduction. When a voltage transient surge

exceeds the defined breakdown voltage level of the GDT, the device becomes ionized and conduction takes place within a

fraction of a microsecond. When the surge passes and system voltage returns to normal levels, the GDT returns to its high-

impedance (off) state.

Characteristics

Test Methods per ITU-T (CCITT) K.12, IEEE C62.31

Model No.

Characteristic

DC Sparkover

±20

% @ 100 V/s

Impulse Sparkover, 100 V/µs

1000 V/µs

2036-07

75 V

250 V

525 V

2036-09

90 V

250 V

550 V

2036-15

150 V

350 V

500 V

Model No.

Characteristic

DC Sparkover

±20

% @ 100 V/s

Impulse Sparkover, 100 V/µs

1000 V/µs

2036-30

300 V

500 V

650 V

2036-35

350 V

600 V

750 V

2036-40

400 V

650 V

825 V

2036-42

420 V

675 V

850 V

2036-47

470 V

750 V

950 V

2036-60

600 V

850 V

1100 V

2036-20

200 V

425 V

575 V

2036-23

230 V

450 V

600 V

2036-25

250 V

475 V

625 V

Impulse Transverse Delay ................................. 100 V/µs .............................................................................. < 75 ns

Insulation Resistance (IR) .................................. 100 V (50 V for Model 2036-07 & 2036-09) ......................... > 10

Ω

Glow Voltage ..................................................... 10 mA .................................................................................. ~ 70 V

Arc Voltage ........................................................ 1 A ....................................................................................... ~ 10 V

Glow-Arc Transition Current ...........................................................................................................................

0.5 A

Capacitance ...................................................... 1 MHz ..................................................................................

2 pF

DC Holdover Voltage

....................................... >135 V, (52 V for Model 2036-07, & -09, ............................. < 150 ms

80 V for Model 2036-15)

Impulse Discharge Current ............................... 20000 A, 8/20

µs

2 ..................................................................................................................

1 operation minimum

10000 A, 8/20

µs

................................................................. > 10 operations

200 A, 10/1000

µs

............................................................... > 300 operations

200 A, 10/700

µs

................................................................. > 500 operations

Alternating Discharge Current ........................... 20 Arms, 1 s

2 ...............................................................................................................................

1 operation minimum

10 Arms, 1 s ........................................................................ > 10 operations

Operating Temperature ....................................................................................................................................- 55 to +85

°C

Notes:

UL Recognized component, UL File E153537

The rated discharge current for Mini-TRIGARD™ GDTs is the total current equally divided between each line to ground.

Sparkover limits after life

±25

% (-25 %,+30 % for Model 2036-07, 2036-09 and 2036-60), IR >10

Ω

Operating characteristics per RUS PE-80 and Telcordia GR 1361 available on request.

Network applied.

DC Sparkover may exceed

±25

% but will continue to protect without venting.

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

2036-xx-SM Precision Gas Discharge Tube Surge Protector

Product Dimensions

7.2

(.283)

0.9

(.035)

5.0

DIA.

(.195)

Recommended Pad Layout

1.6

(.063)

5.0

(.195)

5.6

(.220)

4.8

DIA.

(.190)

0.5

(.020)

0.7

(.028)

6.2

DIA.

(.244)

3.3

(.130)

DIMENSIONS:

MILLIMETERS

(INCHES)

8.2

(.323)

Packaging Specifications

How To Order

The Model 2036-xx-SM ships standard bulk pack,

100 pieces per bag.

Model Number Designator

The optional reelpack (-RP) contains 1,000 pieces per reel.

Reel is 13 “ in diameter and 3/4 “ wide.

4.00

(.158)

2.00

(.079)

1.7

(.067)

2036 - xx - SM - RP LF

Voltage (divided by 10)

Surface Mount

Packaging Options

Blank = Bulk Packaging (Standard)

RP = Reelpack (Optional)

Lead Free Option

Blank = Standard Product

LF = Lead Free / RoHS Compliant Product

16.0

(.63)

7.5

(.30)

12.00

(.472)

Reliable Electronic Solutions

Asia-Pacific:

TEL +886- (0)2 25624117 • FAX +886- (0)2 25624116

Europe:

TEL +41-41 7685555 • FAX +41-41 7685510

North America:

TEL +1-951 781-5500 • FAX +1-941 781-5700

www.bourns.com

REV. D 05/05

Mini-TRIGARD™ is a trademark of Bourns, Inc.

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
