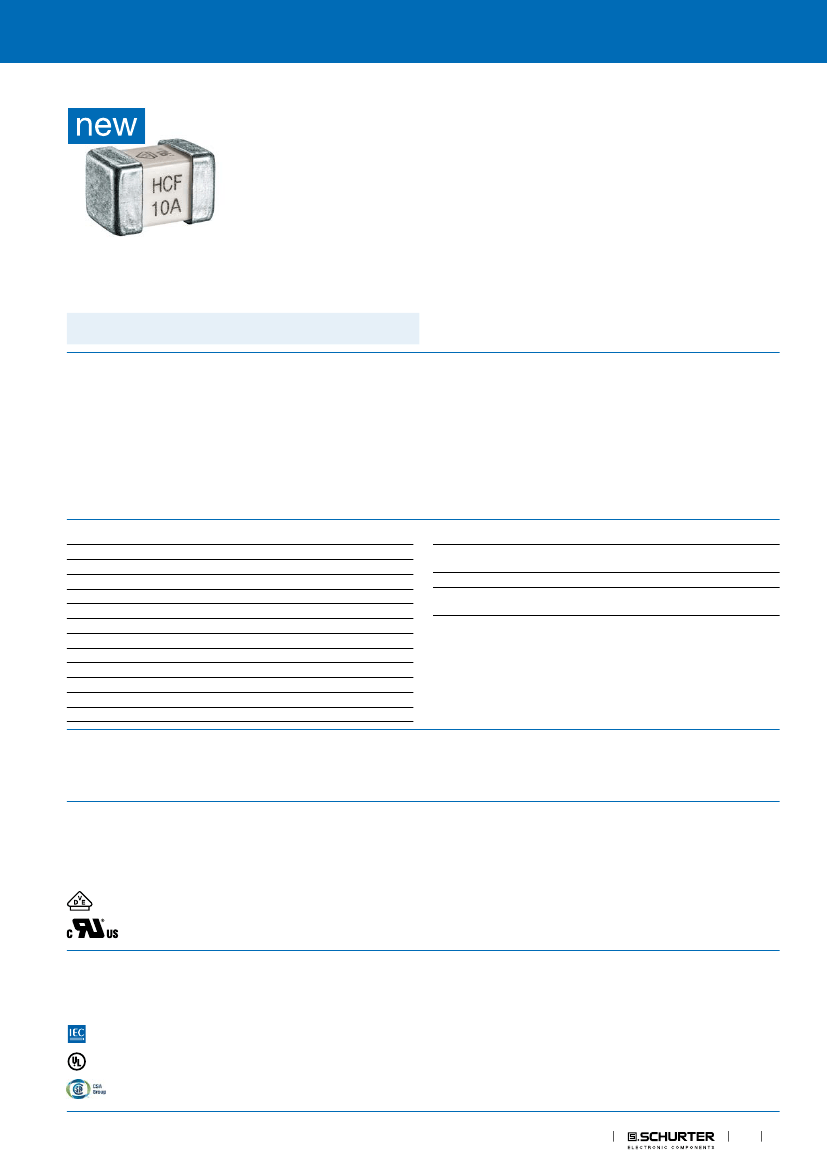

HCF
Solid State, Thin Film, SMD 3220 Fuse for High Current Application
IEC 60127-7 · 125 VAC · 125 VDC · Quick-Acting F
Description
-
-
-
-
See below:
Approvals and Compliances
Applications
-
-
-
-
-
Applications where high reliability and availability is needed
Avionics
Medical equipment
Offshore
Defense
IEC Approved
For high current applications
Max. ambient temperature 125 °C
Impermeable to potting compound used to achieve hermetic seal for
use in intrinsically safe applications according to ATEx and IECEx re-
quirements.
Unique Selling Proposition
References
Weblinks
Alternative: Space version
HCSF
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product
- Sealed and robust construction
- High breaking capacity up to 1000 A
- Smallest size
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Admissible Ambient Air Temp.
Climatic Category
Material: Housing
Material: Terminals
Unit Weight
Storage Conditions
Product Marking
125 VAC, 125 VDC
5 - 15 A
200 A - 1000 A
Quick-Acting F
PCB,SMT
-50 °C to 125 °C
55/125/56 acc. to IEC 60068-1
Ceramic
Tin-Plated Copper Alloy
0.8 g
0 °C to 60 °C, max. 70% r.h.
Variant Code, Certification marks
Soldering Methods
Solderability
Resistance to Soldering Heat
Reflow, Wave
Soldering Profile
245 °C / 3 sec acc. to IEC 60068-2-58
260 °C / 10 sec acc. to IEC 60068-2-58,
Test Td
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: HCF
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
VDE Certificate Number: 40046597
UL File Number: E41599
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60127-7
UL 248-14
CSA22.2 No. 248.14
Description
Miniature fuses - Part 7: Miniature fuse-links for special applications
Low voltage fuses - Part 14: Additional fuses
Low-Voltage Fuses - Part 14: Supplemental Fuses
Fuses
1
HCF
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
https://www.schurter.com /PG01_2
Fuses
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
SCHURTER strives to offer our customers halogen free products.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
Halogen Free
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
SCHURTER AG
Dimension [mm]
5
2.1
8.05
5
3.8
4.2
Derating Curves
140
130
Percentage of Rating [%]
120
110
100
90
80
70
60
50
40
-60
-40
-20
0
20
23
40
60
80
100
120
140
160
Ambient Temperature [°C]
Pre-Arcing Time
Rated Current In
5 A - 15 A
1.25 x In min.
>1h
2.5 x In min.
10 ms
2.5 x In max.
10 s
4.0 x In min.
2 ms
4.0 x In max.
50 ms
6.0 x In min.
1 ms
6.0 x In max.
10 ms
10.0 x In min. 10.0 x In max.
0.1 ms
2 ms
2
Fuses
7.5
Fuses
https://www.schurter.com /PG01_2
HCF
Time-Current-Curves
100000
10000
1000
100
10
1
0.1
0.01
0.001
0.0001
0.00001
1
10
All Variants
Rated Current [A]
Rated Voltage
[VAC]
Rated Voltage
[VDC]
Breaking
Capacity
Voltage Drop
1.0 In typ.
[mV]
90
90
105
86
Cold Resi-
stance typ.
[mΩ]
14.2
9.5
8.2
4.3
Melting I²t
10.0 In typ.
[A²s]
1.75
5.6
11
28
l
l
l
l
l
l
l
Order Number
5
7.5
10
15
125
125
125
125
125
125
125
125
1)
1)
1)
2)
3-101-056
3-101-050
3-101-051
3-101-062
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) 200 A @ 125 VAC, p.f. > 0.999 / 1000 A @ 125 VDC, L/R < 1 ms
2) 200 A @ 125 VAC, p.f. > 0.999 / 500 A @ 125 VDC, L/R < 1 ms
Packaging Unit
Blister Tape on 18 cm Reel in ESD Plastic Bag (300 pcs.)
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Fuses
3
06.11.2018
PCB Design
