9
8
7
6
5
4
NOTES
3
2
1
E
引き出し方向
PULL OUT
DIRECTION
½品詳細寸法については½品単½図面を参照下さい.
DETAIL DIMENSION SEE PRODUCT DRAWING.

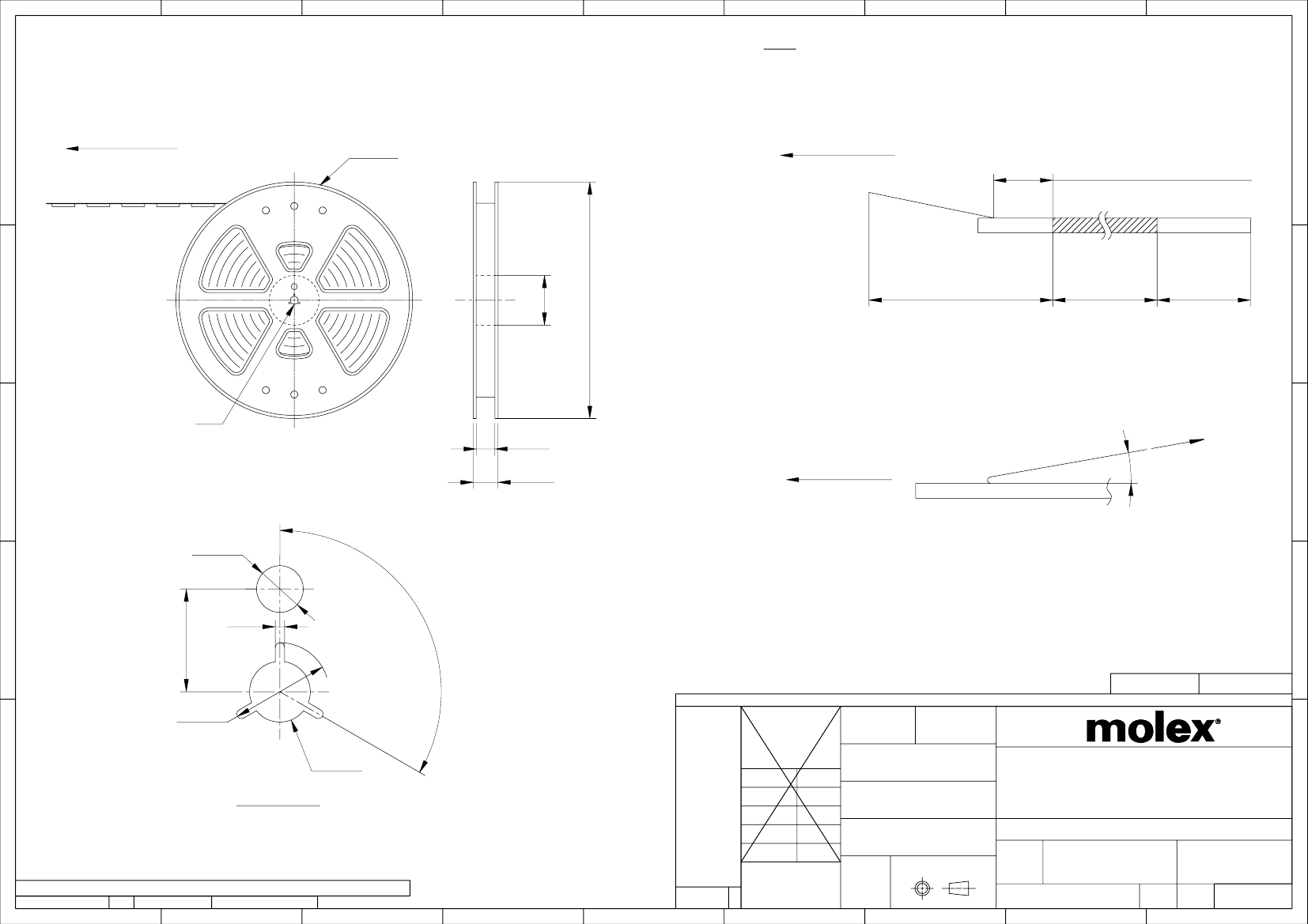

2. 梱包数量：3000個／リール
NUMBER OF CONNECTORS : 3000 PCS/REEL.
3. リードテープ長さ LEAD TAPE LENGTH.
1.
E
REEL
引き出し方向
PULL OUT
DIRECTION
20PCS.MIN.
トップテープ接着部(空エンボス)
TOP TAPE BONDED PART.(EMPTY)
⌀
330
±
2
D
(
⌀
80)
400MIN.
部品挿入部
COMPONENT
SUPPLIER
末端部
(空エンボス)
TAIL PART
(EMPTY)
40MIN.
D
"D"
4. トップテープの剥離強度：0.1N½1.3N(10gf½130gf)(剥離方向は下図参照)
尚、本規格値は出荷時に適用。(½し、輸送時に剥離が発生しないこと。)
PEELING OFF FORCE OF TOP TAPE : 0.1N½1.3N(10gf½130gf)
(PEELING DIRECTION AS SHOWN IN FOLLOWING FIG.)
THIS REQUIREMENT SHOULD BE APPLIED AT SHIPMENT.
PEEL OFF SHOULD NOT BE ALLOWED, DURING TRANSPORTATION.
B
±
1
C
剥離方向
C
±
1
引き出し方向
PULL OUT
DIRECTION
5. 材料 MATERIAL
キャリアテープ(CARRIER TAPE)：ポリスチレン (POLYSTYRENE)
トップテープ(TOP TAPE)：PET, OTHER
リール (REEL) ：ポリスチレン(PS)<リサイクル材を含む>
10
°
PEEL OFF DIRECTION
C
(
⌀
10
)
(
22
)
B
(
2
)
(
120
°
)
B
MODEL NO.
503552**80
2017/06/29
2017/06/29
2017/06/30
(
⌀
21
)
(
⌀
13
)
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
NTS
4 PLACES
±
±
±
±
±
TMIYAZAKI
CHK'D BY
DATE
2017/05/18
2017/06/08
DATE
118757
TMIYAZAKI
KTAKAHASHI
MSASAO
A
DETAIL "D"
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 B-TO-B CONN. HGT=0.7 HI-RETENTION
PLUG ASSY CHECKER TYPE EMBSTP PKG
KTAKAHASHI
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
2017/06/09
THIRD ANGLE PROJECTION
EC NO:
DRWN:
CHK'D:
APPR:
REV
THIS DOCUMENT HAS BEEN RE-ISSUED BASED ON SD-503552-008, REV 0
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2017/02/06
9
P1
RELEASE DATE
30.06.2017
8
07:11:03
7
6
5
B
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503552
DOCUMENT NUMBER
SEE SHEET 2
GENERAL
A3
3
DOC TYPE
DOC PART
SHEET NUMBER
4
5035520000
2
PSD
001
1
1 OF 2
9
8
7
6
5
4
3
2
1
E
引き出し方向
PULL OUT DIRECTION
½
1.83
½
½
0.915
½
Y
E
½
5.2
½
½
5.2
½
½
1.83
½
½
0.75
½

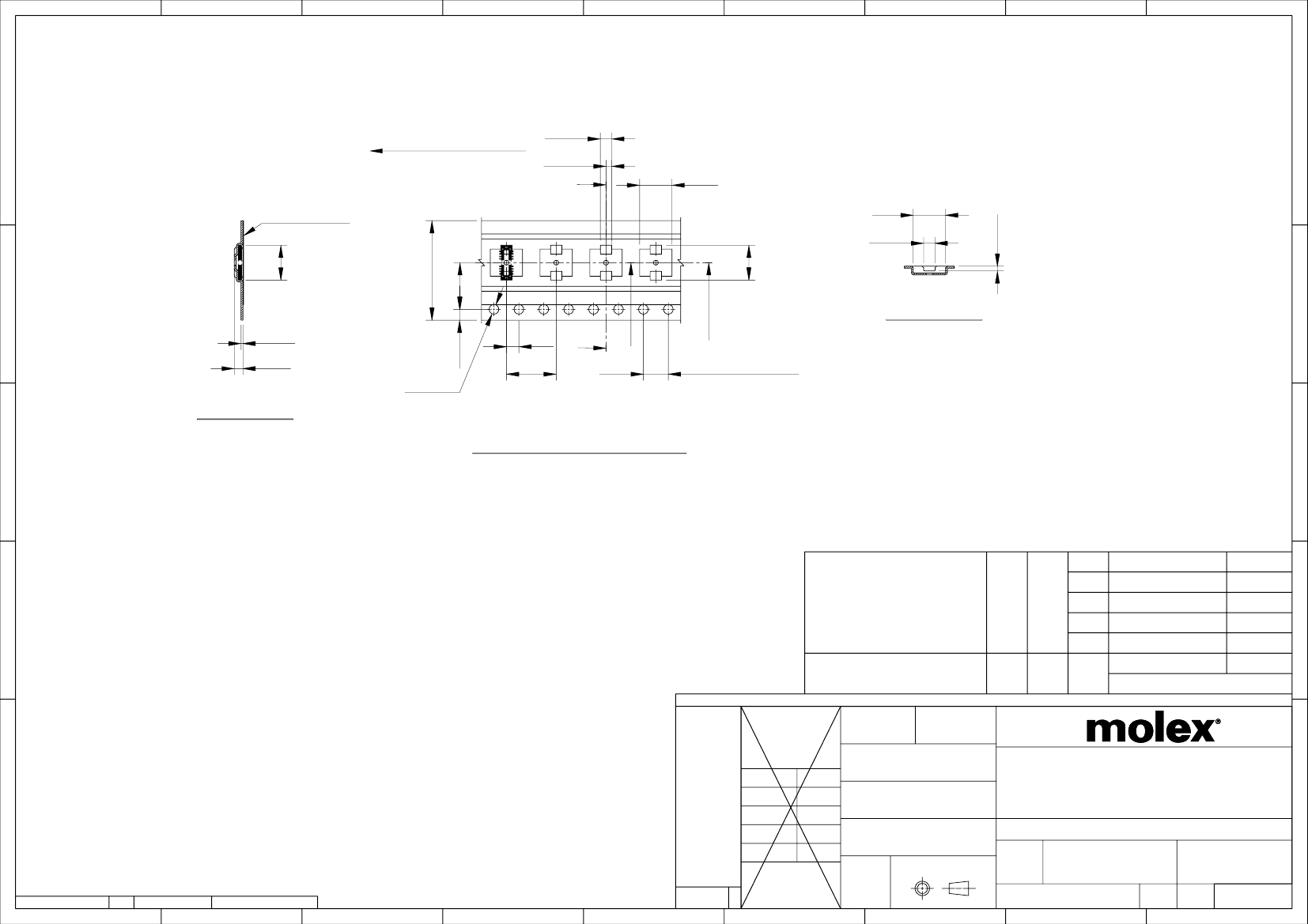

トップテープ
TOP TAPE
16
±
0.3
D
0.3
±
0.05
½
7.5
½
½
A
½
½
A
½
1.75
±
0.1
SECTION X-X
½
2
½
8
±
0.1
Y
X
X
D
½
1.4
½
4
±
0.1
累積ピッチ40
±
0.2
ACCUMULATIVE
PITCH 40
±
0.2
⌀
1.5
+0.1
0.0
SECTION Y-Y
C
16mm 幅キャリアテープ
16mm WIDTH CARRIER TAPE
C
B
16
5.21
4.81
21.4 17.4 4.41
4.01
2.81
C
B
キャリアテープ幅
CARRIER TAPE WIDTH
2017/06/29
2017/06/29
2017/06/30
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
°
DIMENSION UNITS
5035521880
18
5035521680
16
5035521480
14
B
5035521280
12
5035520680
6
MATERIAL No.
CKT.
(A)
MODEL No. 503552**80
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SCALE
MM
DRWN BY
DATE
NTS
4 PLACES
±
±
±
±
±
TMIYAZAKI
CHK'D BY
DATE
2017/05/18
2017/06/08
DATE
118757
TMIYAZAKI
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 B-TO-B CONN. HGT=0.7 HI-RETENTION
PLUG ASSY CHECKER TYPE EMBSTP PKG
KTAKAHASHI
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
2017/06/09
THIRD ANGLE PROJECTION
EC NO:
DRWN:
CHK'D:
APPR:
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2017/02/06
9
P1
RELEASE DATE
30.06.2017
8
07:11:03
7
6
5
B
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503552
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
5035520000
2
PSD
001
1
2 OF 2
9
8
7
6
5
4
3
2
1
E
A
±
0.2
B
Y
0.5
±
0.2
PICK UP
AREA
0.4
(PITCH)
0.2
3
D
0.14
±
0.05
TERMINAL
WIDTH
⌖
0.15
Y

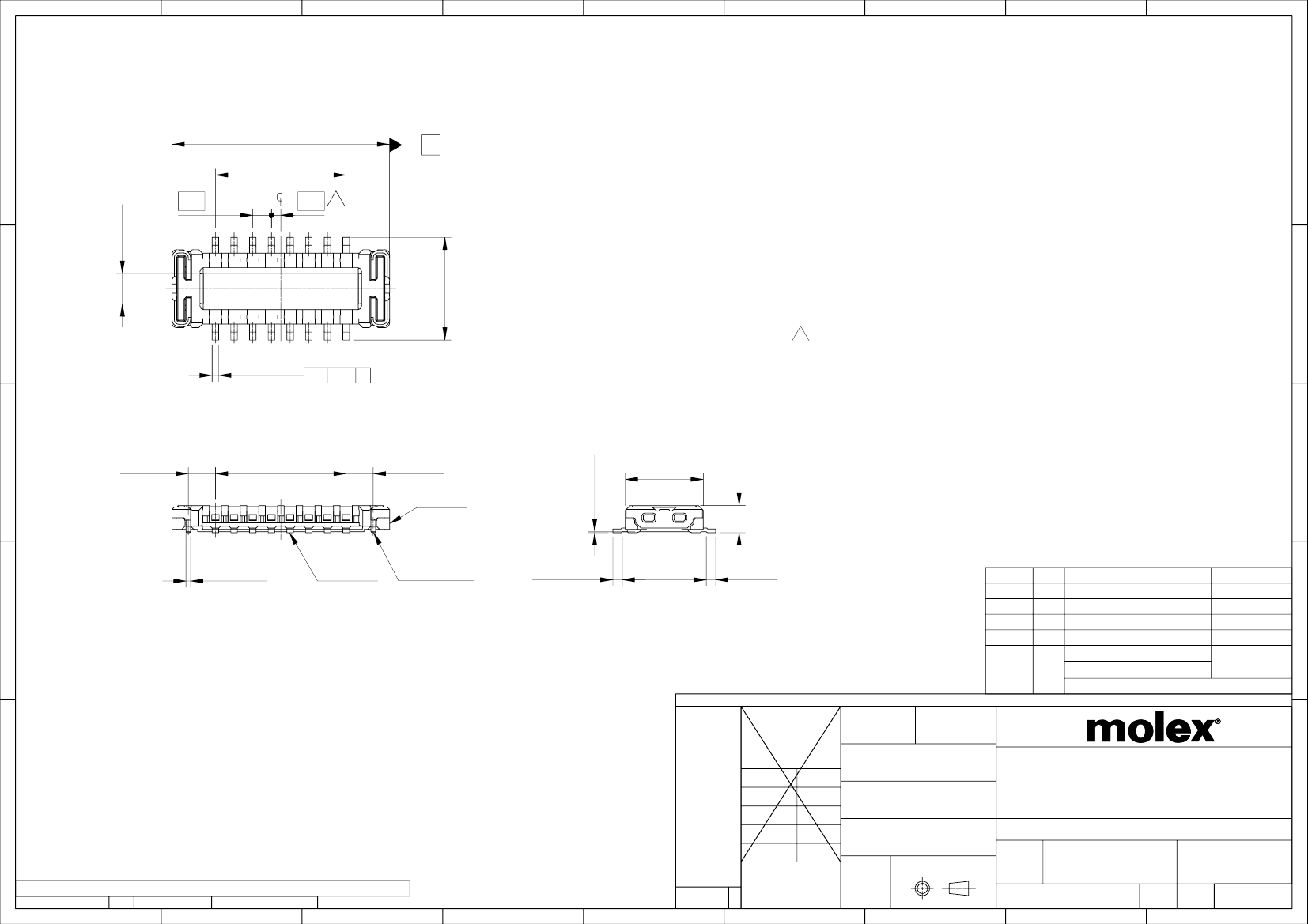

注記 NOTES
1. ½用材料 MATERIAL
ハウジング ：液晶ポリマー（LCP）UL94V-0（黒）
HOUSING:LIQUID CRYSTAL POLYMER UL94V-0 (COLOR:BLACK)
ターミナル ：銅合金
TERMINAL : COPPER ALLOY
金具：銅合金
FITTING NAIL : COPPER ALLOY
2. メッキ仕様 PLATING
ターミナル TERMINAL
金メッキ GOLD
下地メッキ：ニッケルメッキ
UNDER PLATING : NICKEL
※コンタクト部とテール部はニッケルメッキによって分断されている金メッキです。
DIVIDE INTO PARTS THE GOLD PLATING OF CONTACT
AND THE TAIL PART BY THE NICKEL PLATING
金具 FITTING NAIL
金メッキ（テール部のみ） GOLD (ONLY TAIL PART)
下地メッキ：ニッケルメッキ
UNDER PLATING : NICKEL
3
（全極数／2）＝偶数の場合に適用。
APPLY FOR (CIRCUIT/2)=EVEN.
4.
嵌合相手：503548 シリーズ
MATE WITH : 503548 SERIES.
5.
テール平坦度は、0.08 以下
テール及び金具の平坦度は、0.1 以下
TAIL COPLANARITY TO BE 0.08MAXIMUM.
TAIL AND FITTING NAIL COPLANARITY TO BE 0.1MAXIMUM.
E
2.2
±
0.2
D
0.58
±
0.1
0.58
±
0.1
HOUSING
0.02
+0.05
-0.02
C
½
B
½
0.58
±
0.1
½
1.67
½
C
0.1
±
0.03
FITTING NAIL
WIDTH
TERMINAL
FITTING NAIL
0.2
±
0.15
TERMINAL
WIDTH
½
1.8
½
0.2
±
0.15
B
3.2
±
0.2
2.8
±
0.2
2.4
±
0.2
2.0
±
0.2
0.8
±
0.1
B
5.06
4.66
4.26
3.86
2.66
A
5035521880
18
5035521680
16
5035521480
14
B
5035521280
12
5035520680
6
EMBOSSED PACKAGE
極数
CIRCUITS
オーダー番号 ORDER No.
CONNECTOR SERIES No.: 503552**89
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2017/06/29
2017/06/29
2017/06/30
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
15:1
2017/05/18
DATE
4 PLACES
±
±
±
±
±
TMIYAZAKI
CHK'D BY
118757
TMIYAZAKI
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 B-TO-B CONN. HGT=0.7 W=2.6
HI-RETENTION PLUG ASSY CHECKER TYPE
KTAKAHASHI
APPR BY
DATE
2017/06/08
2017/06/09
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
REV
THIS DOCUMENT HAS BEEN RE-ISSUED BASED ON SD-503552-007, REV 0
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2017/02/06
9
P1
RELEASE DATE
30.06.2017
8
07:11:05
7
6
5
B
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503552
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
5035521000
2
PSD
003
1
1 OF 2
9
8
7
6
5
4
3
2
1
E
E
0.63
±
0.03
0.3
±
0.03
B
±
0.03
0.63
±
0.03
0.3
±
0.03
0.5
MIN.*1
0.42
±
0.05
C
0.35
±
0.05
0.3
MIN.*1
0.5
MIN.*1
1.8
±
0.05
D
0.84
±
0.05
0.42
±
0.05
0.24
±
0.03
(PITCH)
0.35
±
0.05
0.4
±
0.03
D
½
0.8
½
C

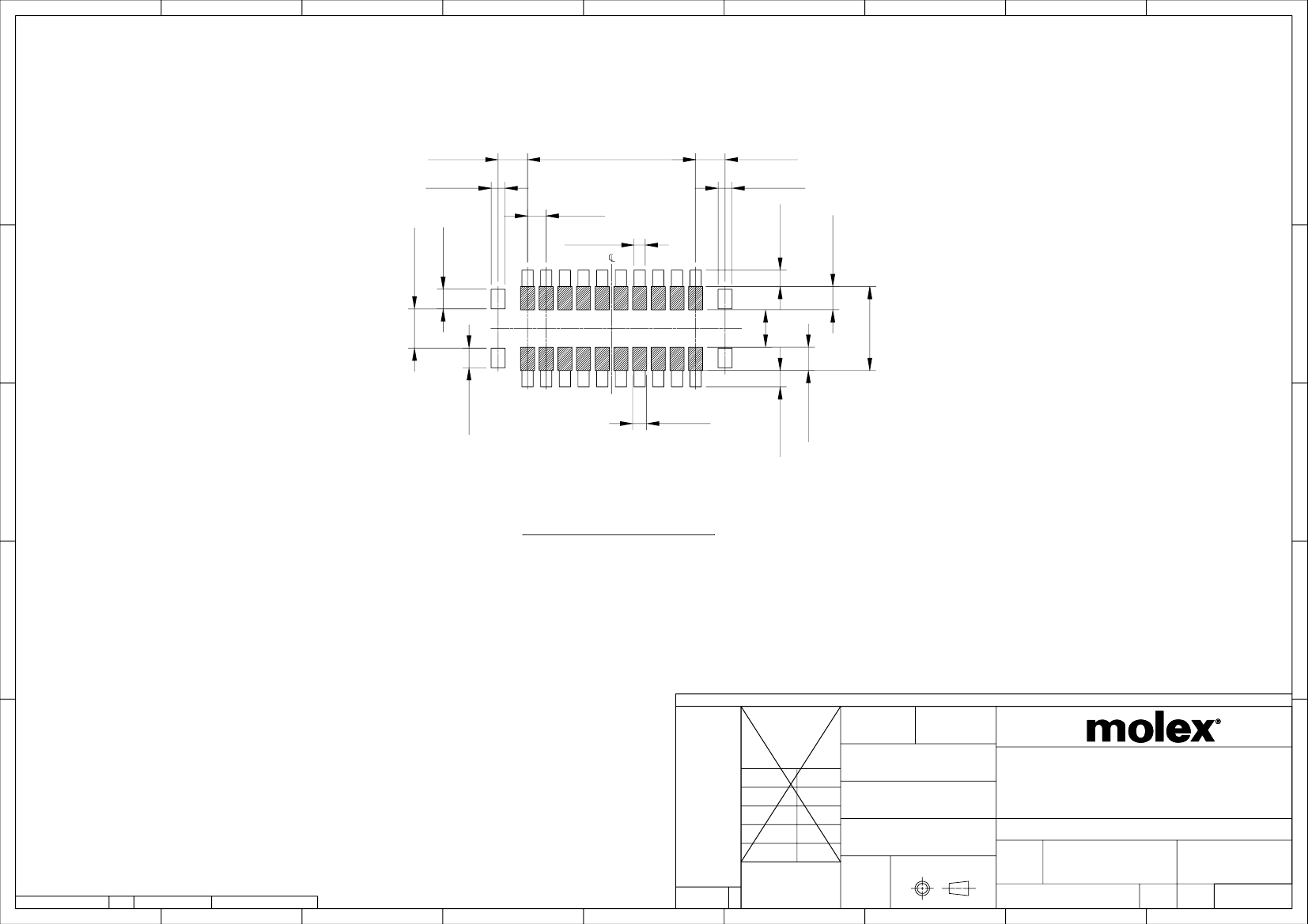

RECOMMENDED P.W. BOARD
PATTERN LAYOUT
*1 パターン引き回し、および半田禁止エリア
（½該箇所においては、これと接する回路以外の配線を禁止する。
また、接する回路を配線する場合はレジストを½し、この部分に
半田は無きこととする。）
*1 PROHIBITED AREA OF PATTERN WIRING AND SOLDER.
(FOR EACH AREA, THE WIRING THAT TOUCHES ON THE SOLDER
CAN BE ATTACHED, THEN COVERED WITH A FILM TO KEEP SOLDER OUT.)
B
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2017/06/29
2017/06/29
2017/06/30
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
15:1
2017/05/18
DATE
4 PLACES
±
±
±
±
±
TMIYAZAKI
CHK'D BY
118757
TMIYAZAKI
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 B-TO-B CONN. HGT=0.7 W=2.6
HI-RETENTION PLUG ASSY CHECKER TYPE
KTAKAHASHI
APPR BY
DATE
2017/06/08
2017/06/09
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2017/02/06
9
P1
RELEASE DATE
30.06.2017
8
07:11:05
7
6
5
B
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503552
DOCUMENT NUMBER
SEE SHEET 1
GENERAL
A3
3
DOC TYPE
DOC PART
SHEET NUMBER
4
5035521000
2
PSD
003
1
2 OF 2
