1213-344-37S-BA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1213-344-37S-BA

1213-344-37S-BA: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size330KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1213-344-37S-BA Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

1213-344-37S-BA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
body width	0.494 inch
subject depth	0.747 inch
body length	2.73 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	1213
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

http://www.tekcon.com

http://www.tekcon.com.tw

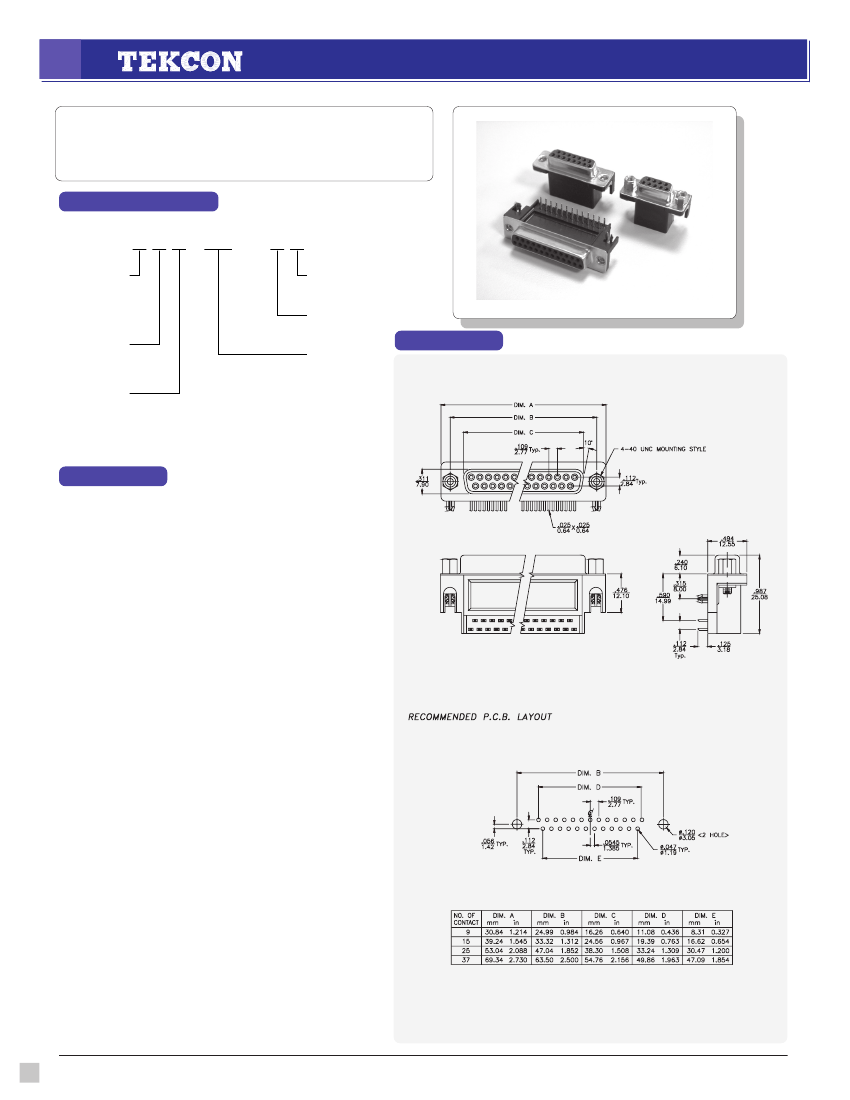

1213 Series

D-Sub Miniature Connector

0.590 Footprint, Right Angle, Receptacle

Ordering Information

1213

X X X

XX S

X X

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

Hex-Nut

Type 0,1,2,4,5,C

see Hex-Nut Table

(P.14-4, Appendix D.)

Grounding Clip

Type 1,2,3,4,7,8

see Grounding Clip Table

(P.14-2, Appendix B)

Shell Plating

A - Nickel (Std.)

B - Tin

Spacer Type

A - Open Type (Std.)

B - Close Type

NO. of Contact

09 - 9 positions

15 - 15 positions

25 - 25 positions

37 - 37 positions

Dimension

Specification

Materials:

Insulator:

Glass Fiber Reinforced Thermoplastic, UL94V-0.

Shell:

Steel with Nickel Plating (Tin on Request).

Contact:

Copper Alloy.

Plating:

Gold on Contact Area and

Tin/ Lead on Solder Tail.

Grounding Clip:

Copper Alloy with Tin/Lead Plating.

Hex-Nut:

Brass with Tin Plating.

Electrical:

Insulation Resistance:

5000 MΩ Minimum.

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

Voltage Rating:

600V.

Current Rating:

5 AMP.

Contact Resistance:

10 mΩ Maximum.

Enviromental

Temperature: -558C to +1258C

All Dimensions are shown in in/mm.

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

4-8
