8P1P014200GRF01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8P1P014200GRF01

8P1P014200GRF01: DescriptionCONN RCPT FMALE 14POS SOLDER CUP; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric Compare View All

8P1P014200GRF01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8P1P014200GRF01	-	-	View	Buy Now

8P1P014200GRF01 Overview

CONN RCPT FMALE 14POS SOLDER CUP

8P1P014200GRF01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	NorComp
Reach Compliance Code	compliant
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold Flash (Au)
Contact material	COPPER ALLOY

Preview

Download Datasheet

View All

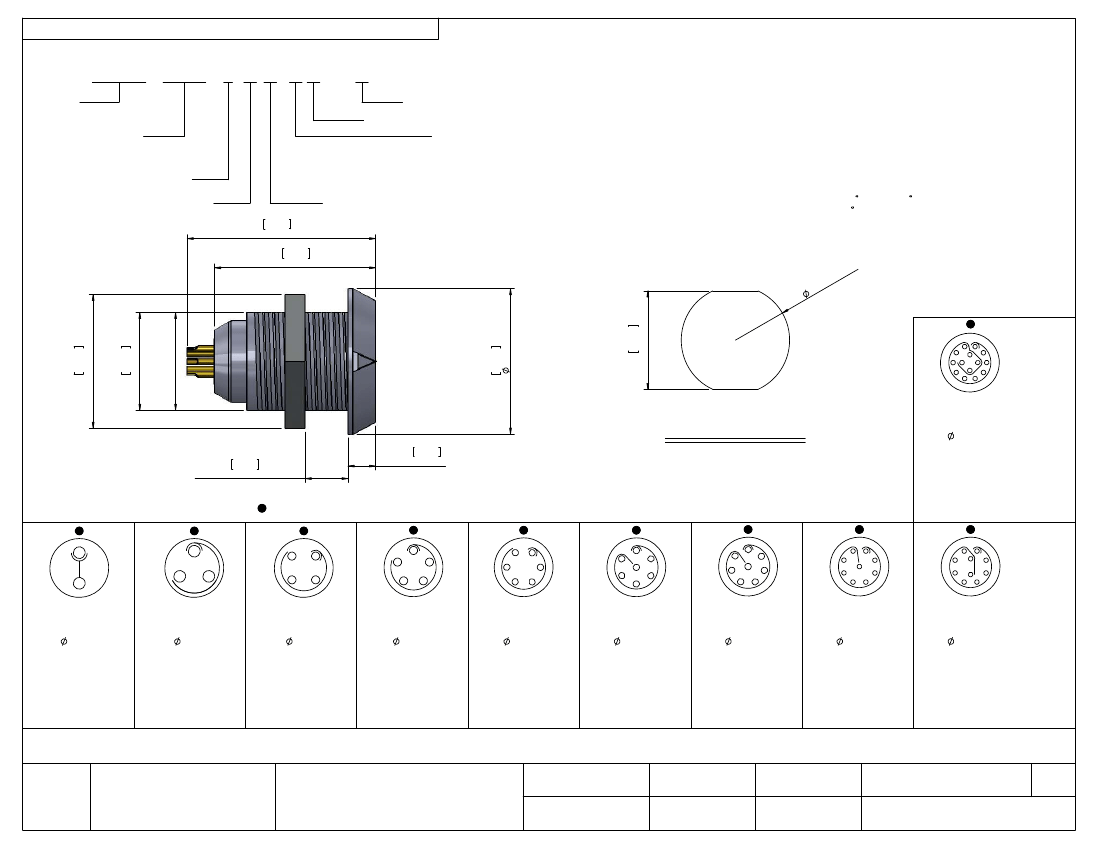

DESCRIPTION:

QUIK-LOQ - FEMALE - SOLDER CUP - FRONT PANEL MOUNT - PLASTIC

UNITS = MM [INCHES]

CHARACTERISTICS

MATERIALS

HOUSING : ABS+PC

HOUSING COLOR : GREY

NUT A : BRASS

NUT A PLATING : NICKEL

CONTACTS : COPPER ALLOY

CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.

INSULATOR : PPS (HIGH TEMPERATURE)

MECHANICAL

DURABILITY: 2000 CYCLES

OPERATING TEMP. RANGE: -20 C ~ +120 C

PROCESS TEMPERATURE : 260 C FOR 5 SECONDS

MAX. TORQUE VALUE : 0.7 Nm [6.19 IN/lbs]

IP RATING: 50

[0.

8P1P YYY 2 0 0 GRF 01

SERIES

14.00 [0.551]

# OF POSITIONS

(Ex. 002)

**SEE CHART A**

2 = FEMALE

SOLDER CUP (PANEL MOUNT)

0.955

24.25

0.797

20.25

1 = GOLD FLASH

RoHS COMPLIANT

NUT "B" COLOR

G = GREY

PLASTIC SHELL

0.496

12.60

M14*1.0

0.728

18.50

0.669

17.00

0.488

12.40

PANEL CUTOUT

0.315

8.00

MAX. PANEL THICKNESS

0.157

4.00

14 POSITION

26 AWG MAX.

3 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 m

Ω

TEST VOLTAGE

= 600V

WORKING VOLTAGE

= 333V

TOLERANCE = +0.10, -0.0

[+0.004, -0.00]

CHART A

= KEY LOCATION

**VIEW FROM TERMINATION END**

2 POSITION

22 AWG MAX.

10 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 m

Ω

TEST VOLTAGE

= 1250V

WORKING VOLTAGE

= 500V

3 POSITION

22 AWG MAX.

10 AMP MAX.

= 1.30 [0.051]

CONTACT

RESISTANCE

= 5 m

Ω

TEST VOLTAGE

= 1250V

WORKING VOLTAGE

= 500V

4 POSITION

22 AWG MAX.

8 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 m

Ω

TEST VOLTAGE

= 1250V

WORKING VOLTAGE

= 500V

5 POSITION

22 AWG MAX.

8 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 m

Ω

TEST VOLTAGE

= 1100V

WORKING VOLTAGE

= 500V

6 POSITION

24 AWG MAX.

6 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 m

Ω

TEST VOLTAGE

= 1000V

WORKING VOLTAGE

= 450V

7 POSITION

24 AWG MAX.

6 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 m

Ω

TEST VOLTAGE

= 1000V

WORKING VOLTAGE

= 450V

8 POSITION

24 AWG MAX.

5 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 875V

WORKING VOLTAGE

= 400V

9 POSITION

26 AWG MAX.

3 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 m

Ω

TEST VOLTAGE

= 600V

WORKING VOLTAGE

= 333V

10 POSITION

26 AWG MAX.

3 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 mΩ

TEST VOLTAGE

= 600V

WORKING VOLTAGE

= 333V

RoHS COMPLIANT

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF NorComp AND

SHALL NOT BE REPRODUCED, COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

NorComp

DRAWN:

DATE:

SCALE:

SHEET

REV:

M. SIGMON

CHECKED:

DATE:

10-04-16

N.T.S.

DWG NO.

8P1PYYY200GRF01

8P1P014200GRF01 Related Products

	8P1P014200GRF01	8P1P003200GRF01	8P1P005200GRF01	8P1P004200GRF01	8P1P006200GRF01	8P1P007200GRF01	8P1P008200GRF01	8P1P002200GRF01	8P1P009200GRF01	8P1P010200GRF01
Description	CONN RCPT FMALE 14POS SOLDER CUP	CONN RCPT FMALE 3POS SOLDER CUP	CONN RCPT FMALE 5POS SOLDER CUP	CONN RCPT FMALE 4POS SOLDER CUP	CONN RCPT FMALE 6POS SOLDER CUP	CONN RCPT FMALE 7POS SOLDER CUP	CONN RCPT FMALE 8POS SOLDER CUP	CONN RCPT FMALE 2POS SOLDER CUP	CONN RCPT FMALE 9POS SOLDER CUP	CONN RCPT FMALE 10POS SOLDER CUP
Connector type	CIRCULAR CONNECTOR	socket, female socket	socket, female socket	socket, female socket	CIRCULAR CONNECTOR	socket, female socket	socket, female socket	socket, female socket	socket, female socket	CIRCULAR CONNECTOR
Number of pins	-	3	5	4	-	7	8	2	9	-
Installation type	-	Panel mounting	Panel mounting	Panel mount, bulkhead style (rear nut)	-	Panel mounting	Panel mounting	Panel mounting	Panel mount, bulkhead style (rear nut)	-
Termination	-	solder cup	solder cup	solder cup	-	solder cup	solder cup	solder cup	solder cup	-
Fastening type	-	push-pull	push-pull	push-pull	-	push-pull	push-pull	push-pull	push-pull	-
towards	-	Marked	Marked	Marked	-	Marked	Marked	Marked	Marked	-
Intrusion protection	-	IP50 - Dustproof	IP50 - Dustproof	IP50 - Dustproof	-	IP50 - Dustproof	IP50 - Dustproof	IP50 - Dustproof	IP50 - Dustproof	-
Rated current	-	10A	8A	8A	-	6A	5A	10A	3A	-
Operating temperature	-	-20°C ~ 120°C	-20°C ~ 120°C	-20°C ~ 120°C	-	-20°C ~ 120°C	-20°C ~ 120°C	-20°C ~ 120°C	-20°C ~ 120°C	-
