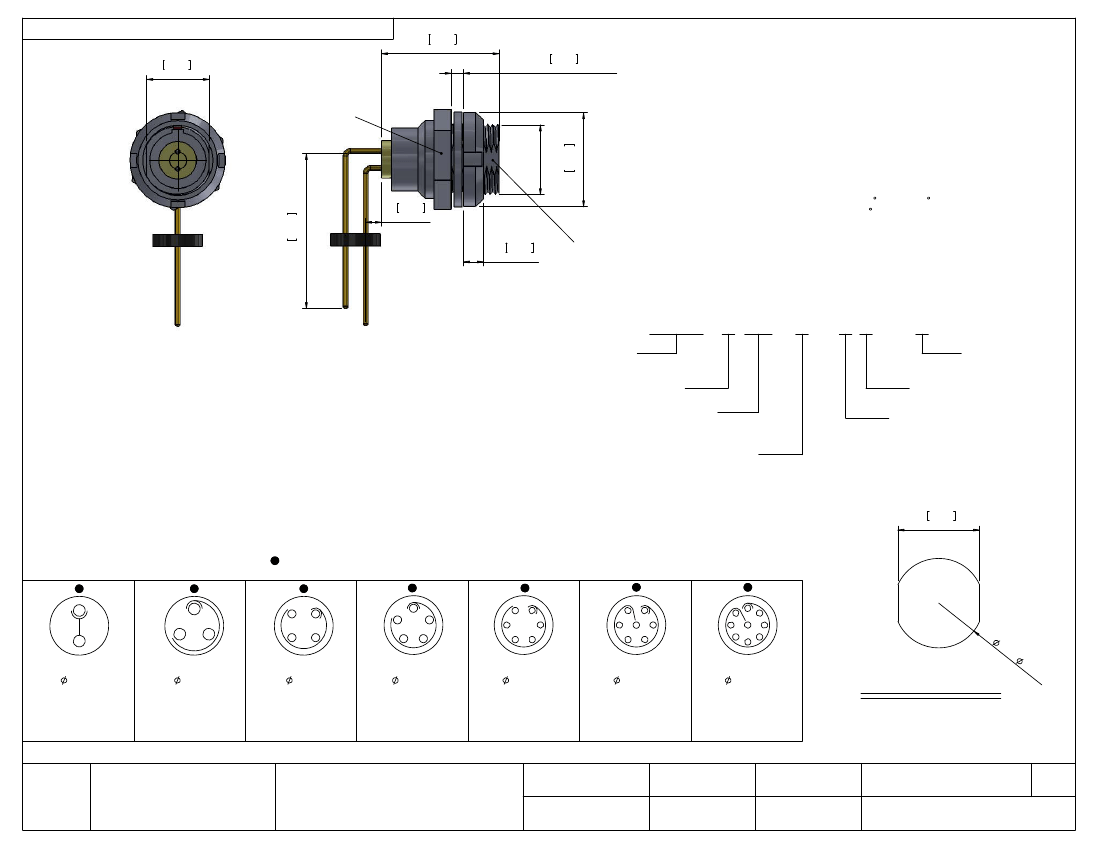

DESCRIPTION: QUIK-LOQ - FEMALE - RIGHT ANGLE - PANEL MOUNT
0.654
16.60
0.323
8.20
0.217
5.50
(MAX. PANEL THICKNESS)
11.00 [0.433]
(ACROSS FLATS)
M9*0.6
0.472
12.00
UNITS = MM [INCHES]
CHARACTERISTICS
MATERIALS
SHELL : BRASS
SHELL PLATING : NICKEL
NUT : BRASS
NUT PLATING : NICKEL
LATCH SLEEVE : BRASS
LATCH SLEEVE PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 2.5 Nm [22 IN/lbs]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 50
0.787
20.00
0.079
2.00
0.098
2.50
8.20 [0.323]
(ACROSS FLATS)
820B R YY - 2 S 3 R 00 1
SERIES
9.50 [0.374]
R = RIGHT ANGLE
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
1 = GOLD FLASH
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
**NOTE**
SEE PAGE 2 FOR BOARD LAYOUTS
CHART A
1
1
0.327
8.30
= KEY LOCATION
**VIEW FROM TERMINATION END**
1
1
1
1
1
9.
10
2 POSITION
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 m
Ω
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
3 POSITION
8 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1200V
WORKING VOLTAGE
= 400V
4 POSITION
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
5 POSITION
6.5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
6 POSITION
2.5 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
7 POSITION
2.5 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 800V
WORKING VOLTAGE
= 260V
9 POSITION
2 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 200V
[
PANEL CUTOUT
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
0.
35
8]
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
12-02-16
N.T.S.
1
DWG NO.
2
2
820BRYY-2S3R001
DESCRIPTION:
QUIK-LOQ - FEMALE - RIGHT ANGLE - PANEL MOUNT
UNITS = MM [INCHES]
BOARD LAYOUTS (TOP VIEW)
NOTE : **HOLE DIAMETERS ARE TYPICAL ALL SIZES**
= KEY LOCATION / PCB EDGE
0.200
5.08
0.100
2.54
0.200
5.08
5
4
6
7
1
1
2
2
3
1
2
0.100
2.54
0.100
2.54
3
1
2
0.100
2.54
3
4
0.100
2.54
0.100
2.54
0.100
2.54
0.100
2.54
1
2
1
5
5
4
6
3
0.138
3.50
4
3
2
0.100
2.54
HOLE DIAMETER
POS. 2-5: 0.80 [0.031]
POS. 6-9: 0.70 [0.028]
2 POS
3 POS
4 POS
5 POS
6 POS
0.100
2.54
SHEET
OF
7 POS
0.100
2.54
8
0.200
5.08
7
6
9
1
5
2
0.100
2.54
3
4
9 POS
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
REV:
M. SIGMON
CHECKED:
DATE:
12-02-16
N.T.S.
2
DWG NO.
2
2
820BRYY-2S3R001
