Sensor/actuator cable - SAC-4P-M5MS/ 1,5-PUR - 1530304
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

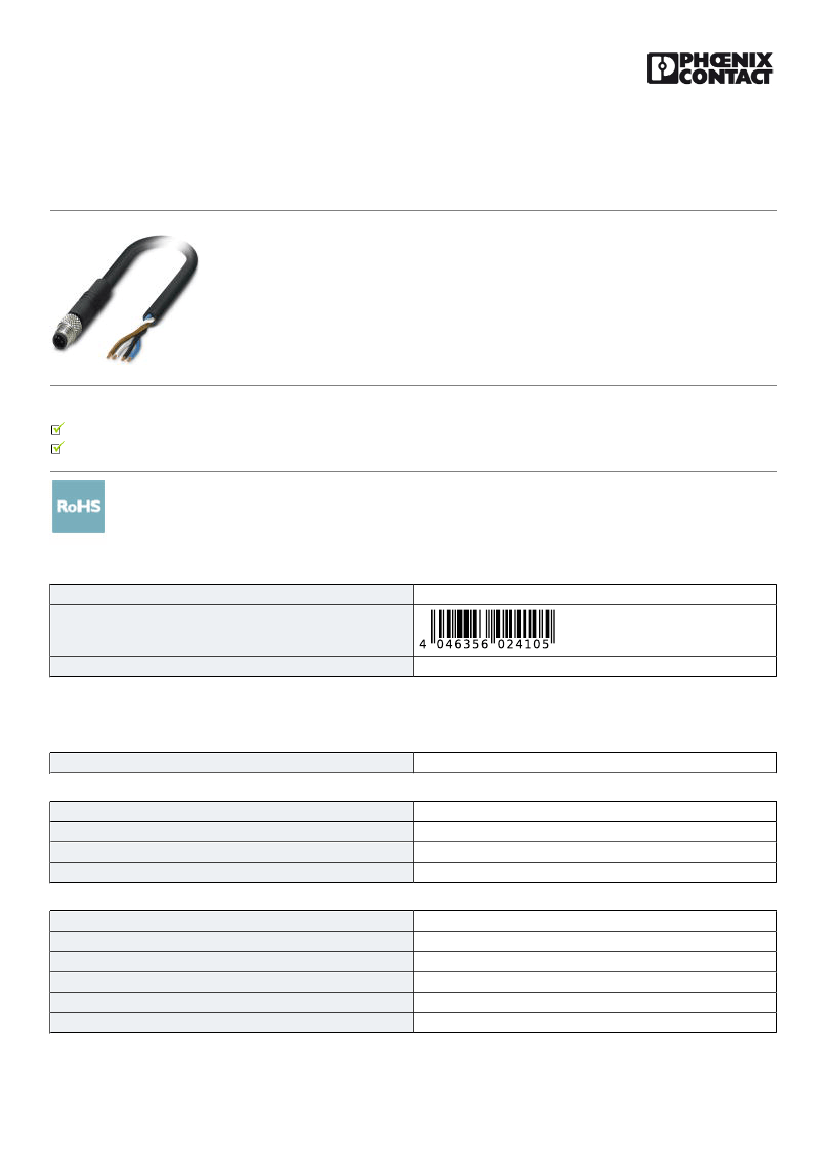

Sensor/actuator cable, 4-position, PUR, black RAL 9005, Plug straight M5, A-coded, on free cable end, cable
length: 1.5 m
Why buy this product
Easy and safe: 100% electrically tested plug-in components
Signal transmission in a confined space – with our M5 connectors
Key Commercial Data
Packing unit
GTIN
GTIN
4046356024105
1 pc
Technical data
Dimensions
Length of cable
1.5 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 80 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
Insulation resistance
1A
48 V AC
60 V DC
4
black
≥ 10 GΩ
09/30/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1530304
Sensor/actuator cable - SAC-4P-M5MS/ 1,5-PUR - 1530304
Technical data
General
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Test voltage
Insertion/withdrawal cycles
A - standard
M5 connector IEC 61076-2-105
No
Unwired
II
3
1750 V
≥ 100
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
CuZn
Au
PUR
PUR
Nickel-plated brass
Standards and Regulations
Standard designation
Standards/regulations
M5 connector
IEC 61076-2-105
Cable
Cable type
Cable type (abbreviation)
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Ambient temperature (operation)
PUR/PVC black
350
4x 0.14 mm² (Signal line)
26
18x 0.10 mm
0.92 mm ±0.02 mm
brown, white, blue, black
4 wires, twisted
black RAL 9005
3.5 mm ±0.1 mm
9 mm
18 mm
PUR
PVC
Bare Cu litz wires
100 MΩ*km
148 Ω/km
100 V
800 V
rms
-15 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
09/30/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1530304
Sensor/actuator cable - SAC-4P-M5MS/ 1,5-PUR - 1530304
Technical data
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

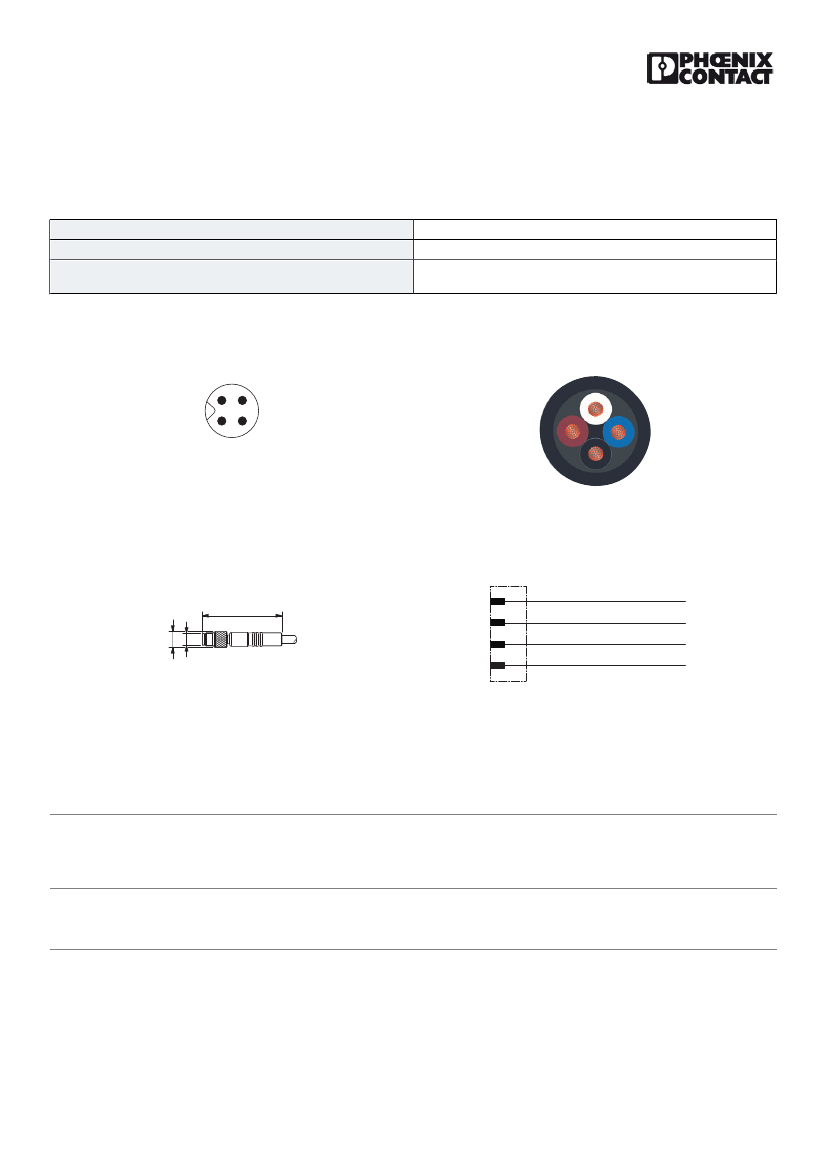

Drawings
Schematic diagram
1
4
Cable cross section
2
3
Plug M5, 4-pos.
PUR/PVC black [350]
Dimensional drawing
Circuit diagram
1
BN
WH
BK
BU
M5
30,5
2
4
3
Plug M5 x 0.5, straight
Ø6
Contact assignment of the M5 connector
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
09/30/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1530304
Sensor/actuator cable - SAC-4P-M5MS/ 1,5-PUR - 1530304
Approvals
EAC
EAC-Zulassung
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
09/30/2018 Page 4 / 4
