Customer Specification
PART NO: AW0800123
M12-A Female 90 Degree

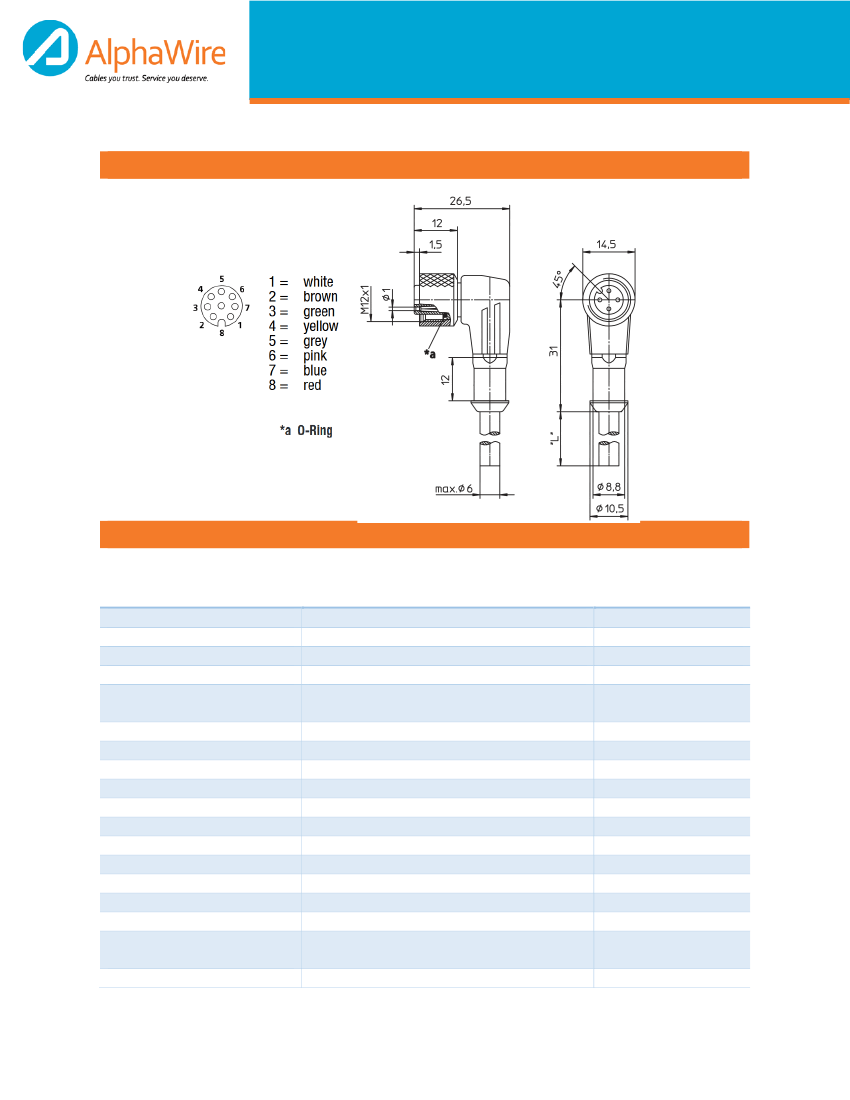

Drawings
Technical Data
Issue: 1 Issue Date: 7/29/2016 Effective Date: 7/29/2016
Cordage Construction
Cordage Part Number
Component 1
a) Conductor
b) Insulation
Insulation Colors
Jacket
a) Color(s)
Cord Configuration
End 1
End 2
Insert
Mold Color
Contact
Coupling Nut
O-Ring
Available Lengths
Applicable Specifications-
Cable
UL
Diameters (In)
123
8 COND
22 (26/36) AWG Bare Copper
0.010” Wall, Nom. mPPE
White, Brown, Green, Yellow, Grey, Pink,
Blue & Red
0.040” Wall, Nom. PUR, Zero Halogen
SLATE
M12-A Female, 90 Degree
Cut End
Black TPU
Black TPU
Copper Alloy, Gold plated
Copper Alloy, Nickel plated
FKM
0.6, 1, 3, 5, 10, 15, 20 Meters
AWM/STYLE 20549
80°C / 300 V
RMS
0.027
0.047
0.258
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: AW0800123
M12-A Female 90 Degree
CSA International
Applicable Specifications-
Cord Set
UL
CSA
AWM/STYLE 21959
C(RU) AWM I/II A/B FT1
ANSI/UL 2238, Cable Assembly Extension
RU, UL File Number E485156
CSA-C22.2 No. 182.3, Special Use
Attachment Plugs, Receptacles and
Connectors
cRU, UL File Number E485156
30 V
36 V
IP67/NEMA 6P
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
-50 to 90°C(static), -40 to 80°C (dynamic)
-25°C to +80°C
4X Cable Diameter (static), 6X Cable
Diameter (dynamic)
41 Lbs, Maximum
1.9 Amps @ 50°C
0.6 Meters
1.0 Meters
3.0 Meters
5.0 Meters
10.0 Meters
15.0 Meters
20.0 Meters
Each
90°C / 600 V
RMS
90°C / 600 V
RMS
Nominal Voltage
Rated Voltage
Ingress Protection
Environmental Compliance
CE
REACH Regulation (EC
1907/2006)
Physical & Mechanical
Properties
Temperature Range, Cord
Temperature Range,
Connector
Bend Radius
Pull Tension
Current Rating
Ordering Information
AW0800123 SL355
AW0800123 SL356
AW0800123 SL357
AW0800123 SL358
AW0800123 SL359
AW0800123 SL400
AW0800123 SL401
Standard Package
