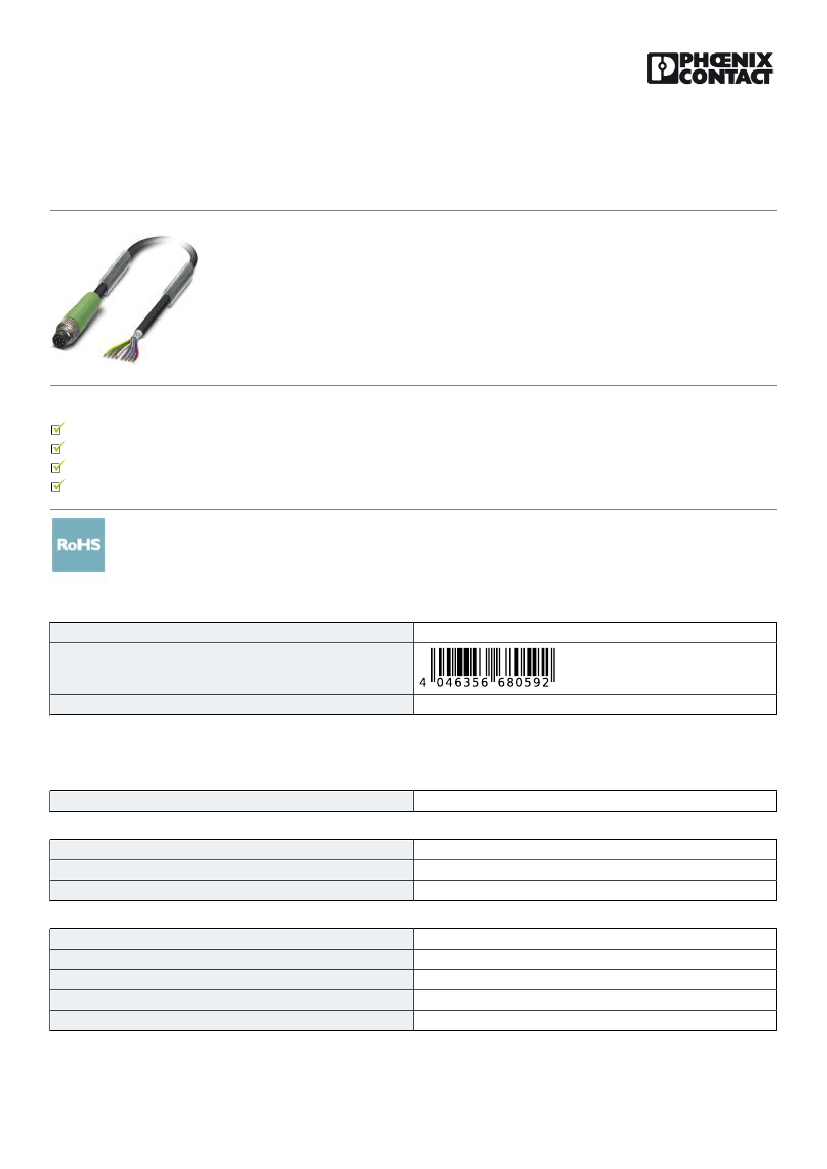

Sensor/actuator cable - SAC-8P-M 8MS/ 3,0-PUR SH - 1404140
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 8-position, PUR halogen-free, black RAL 9005, shielded, Plug straight M8, on free
cable end, cable length: 3 m
Why buy this product
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Save space – with high-pos. connectors
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Key Commercial Data
Packing unit
GTIN
GTIN
4046356680592
1 pc
Technical data
Dimensions
Length of cable
3m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
1.5 A
30 V AC
30 V DC
8
≥ 100 MΩ
09/30/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1404140
Sensor/actuator cable - SAC-8P-M 8MS/ 3,0-PUR SH - 1404140
Technical data
General
Coding
Standards/regulations
Status display
Protective circuit/component
Degree of pollution
Insertion/withdrawal cycles
Torque
A - standard
M8 connector IEC 61076-2-104
No
Unwired
3
≥ 100
0.2 Nm (M8 connectors)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M8 connector
IEC 61076-2-104
HB
Cable
Cable type
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
PUR halogen-free black
Li9YV1-C-V1-11Y
20549
8x 0.14 mm² (Signal line)
26
18x 0.10 mm
1 mm ±0.02 mm (Signal line)
≥ 0.21 mm (Signal line)
≥ 0.38 mm (Outer cable sheath)
white, brown, green, yellow, gray, pink, blue, red
8 wires around filler to the core
58 mm
Tinned copper braided shield
85 %
black-gray RAL 7021
5.9 mm ±0.2 mm
29.5 mm
59 mm
2000000
09/30/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1404140
Sensor/actuator cable - SAC-8P-M 8MS/ 3,0-PUR SH - 1404140
Technical data
Cable
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material, filler
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Test voltage Core/Shield
Flame resistance
Halogen-free
Resistance to oil
Other resistance
59 mm
10 m
3 m/s
10 m/s²
PUR
PE
PP
Bare Cu litz wires
1 GΩ*km (at 20 °C)
139 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
≥ 2000 V AC (for 60 s)
according to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
hydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
09/30/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1404140
Sensor/actuator cable - SAC-8P-M 8MS/ 3,0-PUR SH - 1404140

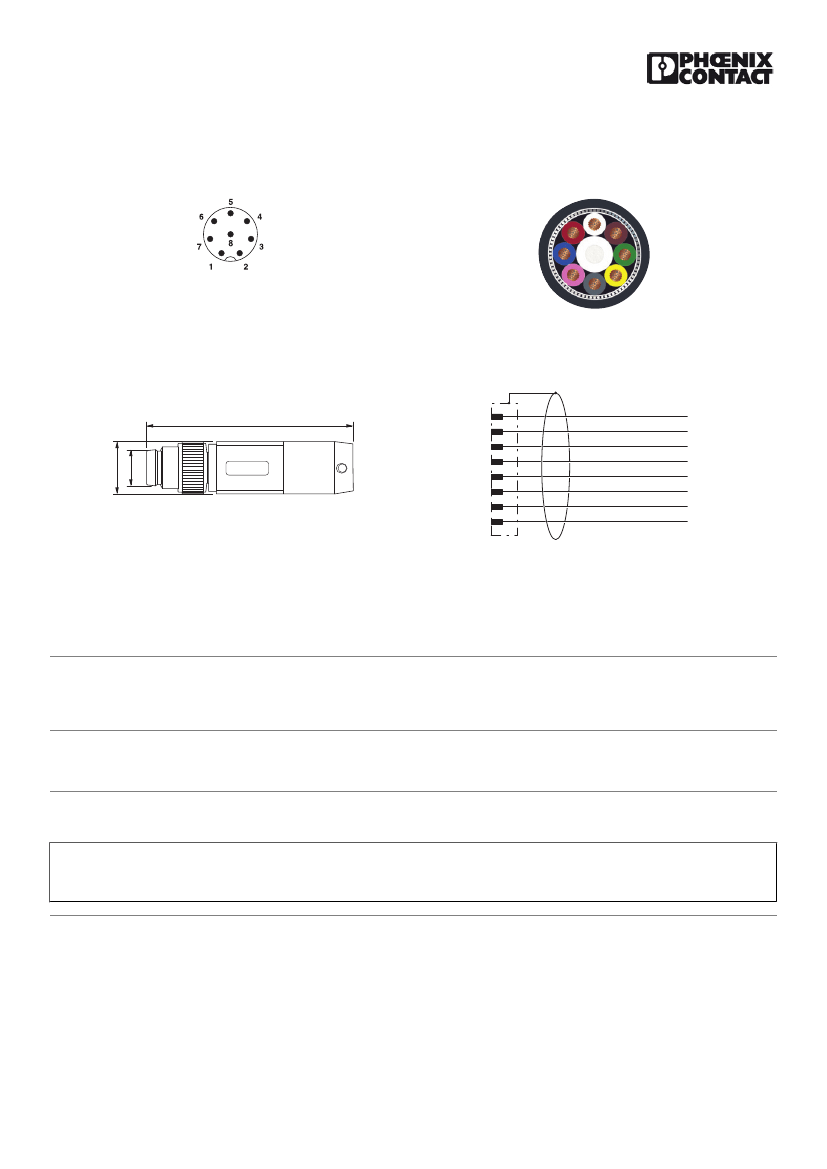

Schematic diagram
Cable cross section
M8 plug pin assignment, 8-pos., view of pin side
PUR halogen-free black [PUR]
Dimensional drawing
Circuit diagram
39,5
1
2
3
WH
BN
GN
YE
GY
PK
BU
RD
Ø10
Ø7
4
5
6
7
8
M8 x 1 male plug, straight version
Contact assignment of the M8 plug
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
RU C-
DE.AI30.B.00767
09/30/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/1404140
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
09/30/2018 Page 5 / 5
