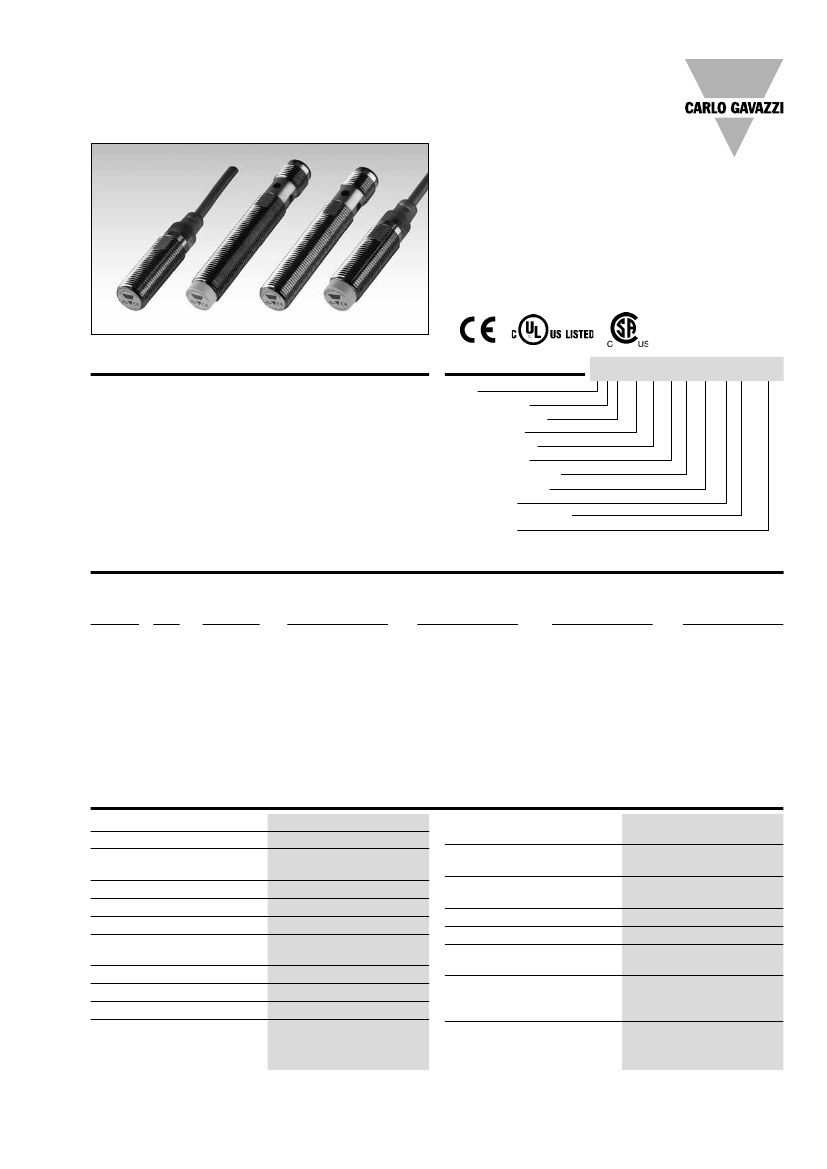

ICB, M12
Proximity Inductive Sensors
Standard Range, Nickel-Plated Brass Housing
Types ICB, M12
•
•
•
•
•
•
•
•
•
•
•
•
Sensing distance: 2 to 4 mm
Flush or non-flush types
Short or long body versions
Rated operational voltage (U
b
): 10 - 36 VDC
Output: DC 200 mA, NPN or PNP
Normally open or Normally closed
LED indication for output ON
Protection: reverse polarity, short circuit, transients
Cable or M12 plug versions
According to IEC 60947-5-2
Laser engraved on front cap, permanently legible
CSA certified for Hazardous Locations
Product Description
A family of inductive prox-
imity switches in industri-
al standard nickel-plated
brass housings. They are
able to handle applications
where high sensing range is
requested.
Output is open collector
NPN or PNP transistors.
Ordering Key
Type
Housing style
Housing material
Housing size
Housing length
Thread length
Detection principle
Sensing distance
Output type
Output configuration
Connection
ICB12S30F02NOM1
Type Selection
Connec-
tion
Cable
Cable
Plug
Plug
Cable
Cable
Plug
Plug
1)
Body
style
Short
Short
Short
Short
Long
Long
Long
Long
Rated
operating
distance S
n
2 mm
1)
4 mm
2)
2 mm
1)
4 mm
2)
2 mm
1)
4 mm
2)
2 mm
1)
4 mm
2)
Ordering no.
NPN,
Normally open
ICB12S30F02NO
ICB12S30N04NO
ICB12S30F02NOM1
ICB12S30N04NOM1
ICB12L50F02NO
ICB12L50N04NO
ICB12L50F02NOM1
ICB12L50N04NOM1
2)
Ordering no.
PNP,
Normally open
ICB12S30F02PO
ICB12S30N04PO
ICB12S30F02POM1
ICB12S30N04POM1
ICB12L50F02PO
ICB12L50N04PO
ICB12L50F02POM1
ICB12L50N04POM1
Ordering no.
NPN,
Normally closed
ICB12S30F02NC
ICB12S30N04NC
ICB12S30F02NCM1
ICB12S30N04NCM1
ICB12L50F02NC
ICB12L50N04NC
ICB12L50F02NCM1
ICB12L50N04NCM1
Ordering no.
PNP,
Normally closed
ICB12S30F02PC
ICB12S30N04PC
ICB12S30F02PCM1
ICB12S30N04PCM1
ICB12L50F02PC
ICB12L50N04PC
ICB12L50F02PCM1
ICB12L50N04PCM1
For flush mounting in metal
For non-flush mounting in metal
Specifications
Rated operational voltage (U
b
) 10 to 36 VDC (ripple incl.)
Ripple
≤ 10%
Output current (I
e
)
≤ 200 mA @ 50°C
(≤ 150 mA @ 50-70°C)
OFF-state current (I
r
)
≤ 50 μA
No load supply current (I
o
)
≤ 15 mA
Voltage drop (U
d
)
Max. 2.5 VDC @ 200 mA
Protection
Reverse polarity,
short-circuit, transients
Voltage transient
1 kV/0.5 J
Power ON delay (t
v
)
≤ 20 ms
Operating frequency (f)
≤ 2000 Hz
Indication for output ON
Activated LED, yellow
NO version
Target present
NC version
Target not present
Indication for short circuit/
overload
Assured operating
sensing distance (S
a
)
Effective operating
distance (S
r
)
Usable operating distance (S
u
)
Repeat accuracy (R)
Differential travel (H)
(Hysteresis)
Ambient temperature
Operating
Storage
Shock and vibration
LED blinking (f = 2 Hz)
0 ≤ S
a
≤ 0.81 x S
n
0.9 x S
n
≤ S
r
≤ 1.1 x S
n
0.9 x S
r
≤ S
u
≤ 1.1 x S
r
≤ 10%
1 to 20% of sensing dist.
-25° to +70°C (-13° to +158°F)
-30° to +80°C (-22° to +176°F)
IEC 60947-5-2/7.4
Specifications are subject to change without notice (10.01.17)
1
ICB, M12
Specifications (cont.)
Housing material
Body
Front
Connection
Cable
Plug
Degree of protection
Weight
(cable/nuts included)
Cable
Plug
Dimensions
Tightening torque
Approvals
c
UL
us
c
CSA
us
Nickel-plated brass
Grey thermoplastic polyester
Ø4.1 x 2 m, 3 x 0.25 mm
2
,
grey PVC, oil proof
M12 x 1
IP 67
Max. 120 g
Max. 30 g
See diagrams below
10 Nm
(UL508)
As Process Control
Equipment for Hazardous
Locations.
- Class I, Division 2,
Groups A, B, C and D.
- T5, Enclosure Type 4.
Ambient temperature
Ta: -25° to +60°C
Approvals (cont.)
EMC protection
IEC 61000-4-2 (ESD)
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-6
IEC 61000-4-8
MTTF
d
CCC is not required for
products with a maximum
operating voltage of ≤ 36 V
According to IEC 60947-5-2
8 KV air discharge,
4 KV contact discharge
3 V/m
2 kV
3V
30 A/m
750 years @ 50°C (122°F)
Note: The terminal connector
(version ...M1) was not
evaluated. The suitability of
the terminal connector should
be determined in the end-use
application.

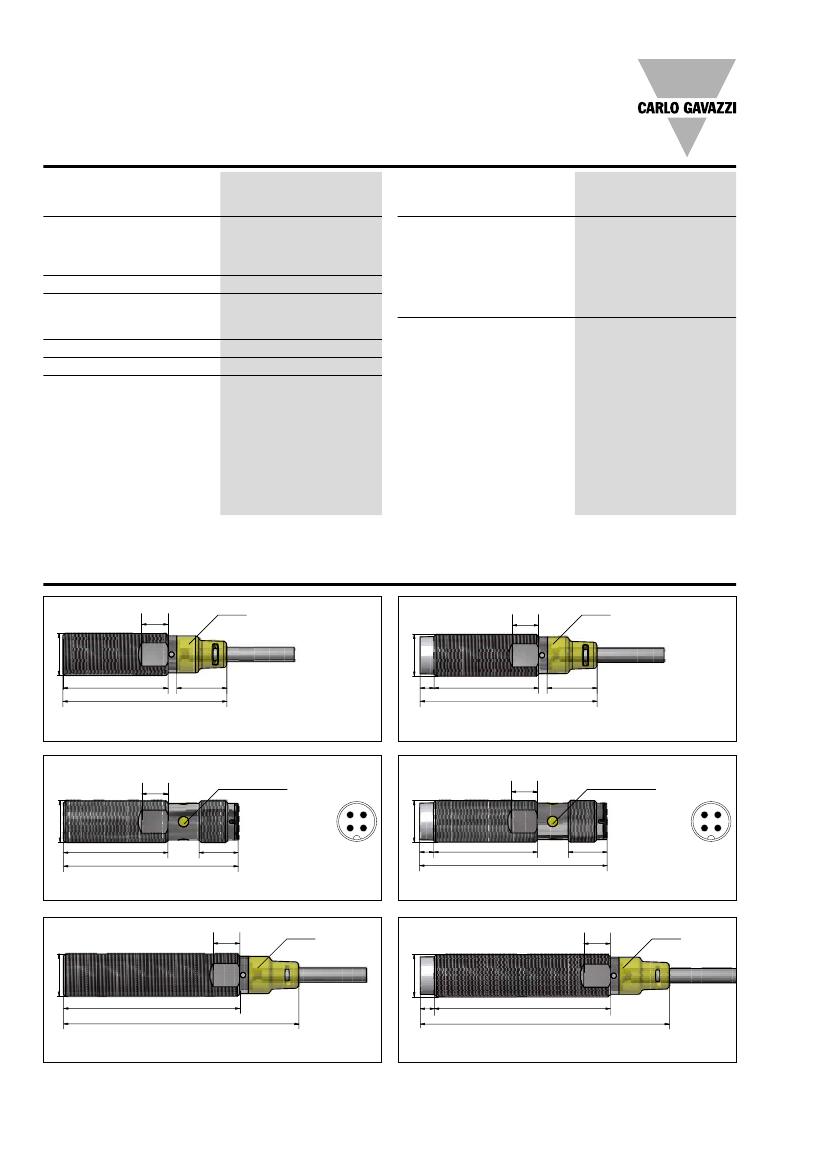

Dimensions (mm)
7.5
LED
M12x1
7.5
LED
M12x1
30.0
46.8
14.3
4.0
30.0
50.8
14.3
Short body, flush version, cable
Short body, non-flush version, cable
7.5
M12x1
LED (4 x 90°)
4
1
3
2
7.5
LED (4 x 90°)
4
1
3
2
30.0
50.2
M12x1
4.0
11.2
30.0
54.2
11.2
Short body, flush version, plug
LED
Short body, non-flush version, plug
LED
7.5
7.5
M12x1
50.0
66.8
M12x1
4.0
50.0
70.8
Long body, flush version, cable
Long body, non-flush version, cable
2
Specifications are subject to change without notice (10.01.17)
ICB, M12
Dimensions (mm) (cont.)
7.5
LED (4 x 90°)
4
1
3
2
7.5
LED (4 x 90°)
4
1
3
2
M12x1
50.0
70.2
M12x1
4.0
50.0
74.2
Long body, flush version, plug
Long body, non-flush version, plug

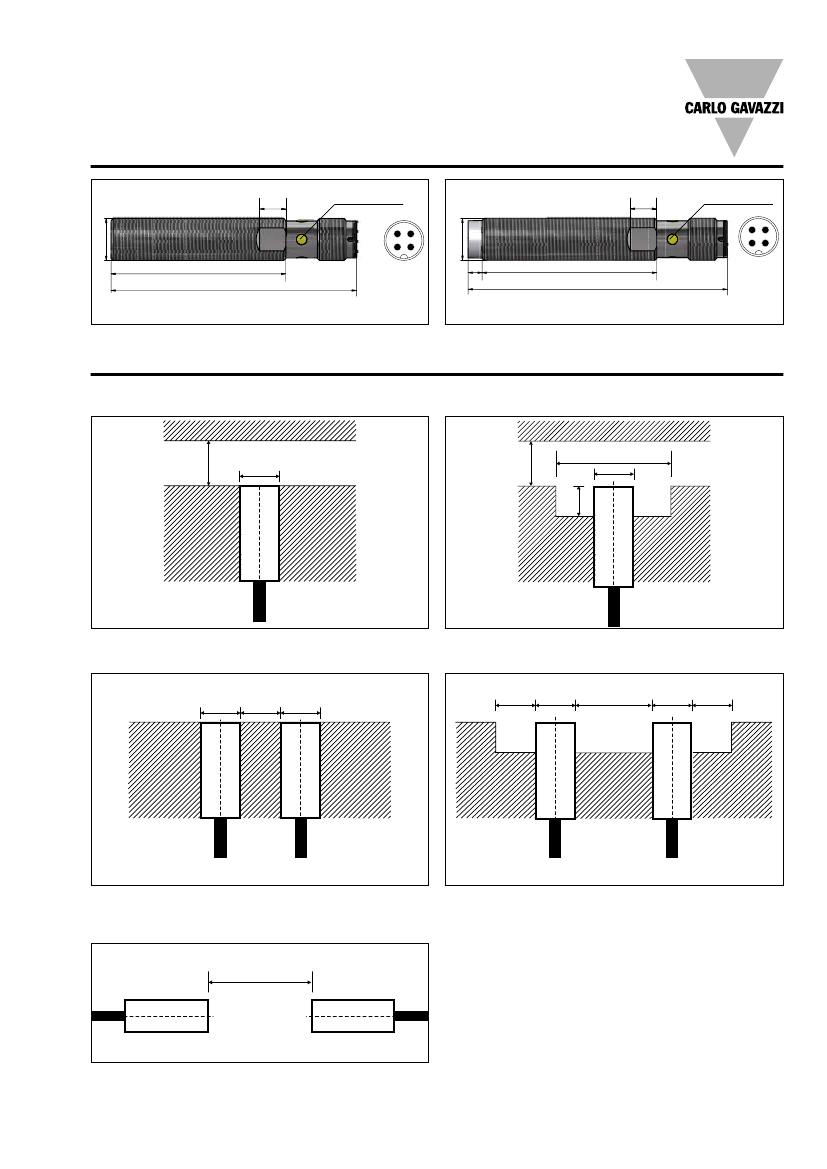

Installation
Flush sensor, when installed in damping material, must be
according to Picture 1A.
Picture 1A
≥ 3 x S
n
d
Free zone or
non-damping
material
Non-flush sensor, when installed in damping material, must
be according to Picture 1B.
Picture 1B
≥ 3 x S
n
≥ 2 x S
n
≥3xd
d
Free zone or
non-damping
material
S
n
: nominal sensing distance
d : sensor diameter (12 mm)
S
n
: nominal sensing distance
d : sensor diameter (12 mm)
Flush sensors, when installed together in damping material,
must be according to Picture 2A.
Picture 2A
d
d
d
Non-flush sensors, when installed together in damping
material, must be according to Picture 2B.
Picture 2B
d
d
2xd
d
d
d : sensor diameter (12 mm)
d : sensor diameter (12 mm)
For sensors installed opposite each other, a minimum space
of 6 x S
n
(the nominal sensing distance) must be observed
(See Picture 3).
Picture 3
≥ 6 x S
n
S
n
: nominal sensing distance
Specifications are subject to change without notice (10.01.17)
3
ICB, M12
Wiring Diagram
1 BN
+
1 BN
+
1 BN
4 BK
+
1 BN
+
2 BK
4 BK
3 BU
2 BK
-
3 BU
-
3 BU
NPN - Normally open
NPN - Normally closed
PNP - Normally open
-
3 BU
PNP - Normally closed
-
Reduction Factors
The rated operating distance
is reduced by the use of
metals and alloys other than
Fe360.
Picture 4
The most important reduc-
tion factors for inductive
proximity sensors are shown
in Picture 4.
Accessories for Plug Versions
PVC
3-wire angled connector,
2 m cable
3-wire angled connector,
5 m cable
3-wire angled connector,
10 m cable
3-wire angled connector,
15 m cable
3-wire straight connector,
2 m cable
3-wire straight connector,
5 m cable
3-wire straight connector,
10 m cable
3-wire straight connector,
15 m cable
CONB13NF-A2
CONB13NF-A5
PUR
CONB13NF-A2P
CONB13NF-A5P
Fe360 : Steel
CrNi : Chrome-nickel
CuZn : Brass
Al : Aluminium
Cu : Copper
Sr : Effective operating distance
CONB13NF-A10 CONB13NF-A10P
CONB13NF-A15 CONB13NF-A15P
CONB13NF-S2
CONB13NF-S5
CONB13NF-S2P
CONB13NF-S5P
CONB13NF-S10 CONB13NF-S10P
CONB13NF-S15 CONB13NF-S15P
For any additional information
or different options,
please refer to the
“General Accessories -
Connector Cables -Type CONB1...”
datasheets.
Delivery Contents
• Inductive proximity switch ICB.
• 2 nuts NPB
• Packaging: plastic bag
4
Specifications are subject to change without notice (10.01.17)
