MOLC-150-02-S-Q-LC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MOLC-150-02-S-Q-LC

Preview

MOLC-150-02-S-Q-LC: Description.050 X .050 4 ROW TERMINAL STRIP; CategoryThe connector The connector; File Size316KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MOLC-150-02-S-Q-LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MOLC-150-02-S-Q-LC	-	-	View	Buy Now

MOLC-150-02-S-Q-LC Overview

.050 X .050 4 ROW TERMINAL STRIP

MOLC-150-02-S-Q-LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOCKING CLIP
Board mount options	SPLIT BOARD LOCK
body width	0.32 inch
subject depth	0.22 inch
body length	2.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MOLC
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
Base Number Matches	1

Preview

Download Datasheet

View All

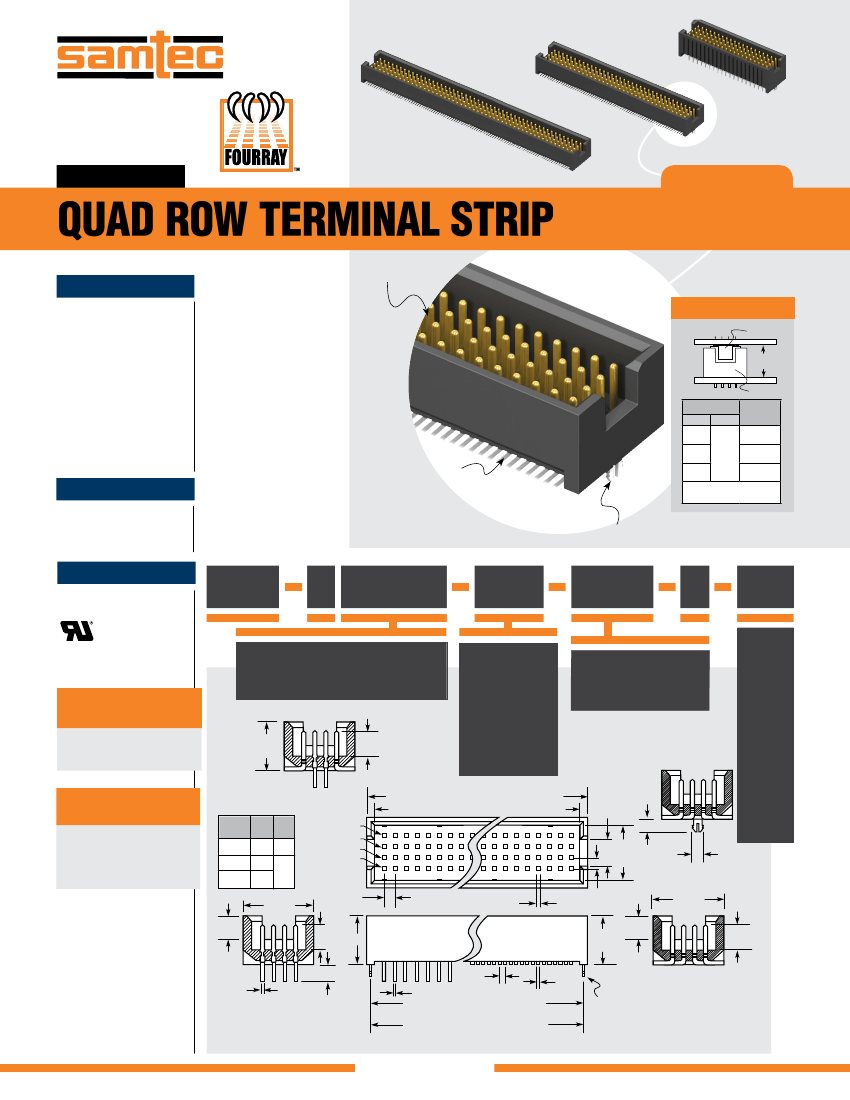

F-217

MOLC–120–01–L–Q–LC

MOLC–150–02–L–Q

MOLC–135–02–L–Q–LC

(1.27 mm) .050"

MOLC SERIES

QUAD ROW TERMINAL STRIP

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?MOLC

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating:

2.6 A per pin

(1 pin powered per row)

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

FOLC

Ultra high-density

four row design

APPLICATIONS

FOLC

MATED

HEIGHT

MOLC

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (20-25)

(0.15 mm) .006" max (30-50)

Choice of

through-hole

or surface mount

LEAD STYLE MATED

MOLC FOLC HEIGHT*

(5.97)

–01

.235

(7.75)

–11 –01

.305

(11.43)

–31

.450

*Processing conditions

will affect mated height.

Locking clip option

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

MOLC

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

Q

OPTION

20, 25, 30, 35,

40, 45, 50

OTHER

SOLUTIONS

• Surface mount design with

Tiger Buy

™

contacts (see

TOLC/SOLC Series)

(Standard sizes)

= Through-hole

(Specify from chart)

–‘X’1

–02

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

–L

= Locking

Clip

(Manual

placement

required)

–LC

= Surface Mount

(5.59)

.220

(3.38)

.133

= Mixed Technology

MIXED

TECHNOLOGY

–M1

= Pick &

Place Pad

(–02 only)

–P

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Alignment pins

• Other platings

Contact Samtec.

LEAD

STYLE

No. of positions x (1.27) .050 + (2.54) .100

No. of positions x (1.27) .050 + (0.76) .030

A

B

(3.05)

.120

(1.40)

.055

– 01

–11

–31

(5.59) (3.38)

.220 .133

(7.34)

.289

(3.66)

(11.05) .144

.435

A1

B1

C1

D1

(1.27)

.050

TYP

= Tape &

Reel

(–02 only)

–TR

(6.35)

.250

(1.42)

.056

–LC OPTION

(8.26)

.325

(2.59)

.102

(8.13)

.320

(0.46) .018

DIA TYP

(1.27)

.050 TYP

(5.59)

.220

(2.59)

.102

B

A

(0.64)

(0.25)

.025

.010

(0.36) .014 TYP

TYP

Through-hole = No. of positions x

(1.27) .050 + (1.65) .065

Surface Mount = No. of positions x

(1.27) .050 + (1.52) .060

(3.30)

.130

SURFACE

MOUNT

(0.25)

.010

THROUGH-

HOLE

(1.90)

.075

Optional

Locking

Clip (–LC)

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

WWW.SAMTEC.COM

Due to technical progress, all designs, specifications and components are subject to change without notice.
