B653-2

Description
THYRISTOR MODULE
Categorysemiconductor    Discrete semiconductor
File Size705KB,4 Pages
ManufacturerSensata
Environmental Compliance
Download Datasheet Parametric View All

B653-2 Online Shopping

Suppliers Part Number Price MOQ In stock
B653-2 - - View Buy Now

B653-2 Overview

THYRISTOR MODULE

B653-2 Parametric

Parameter NameAttribute value
structure1 Phase Controller - All SCR
SCR number, diode2 SCRs
Voltage - Off state800V
Voltage - Gate Trigger (Vgt) (Maximum)3V
Current - Gate Trigger (Igt) (maximum)80mA
Current - Non-repetitive surge 50, 60Hz (Itsm)600A @ 60Hz
Operating temperature-40°C ~ 125°C (TJ)
Installation typeBase installation
Package/casingmodule
DataSheet

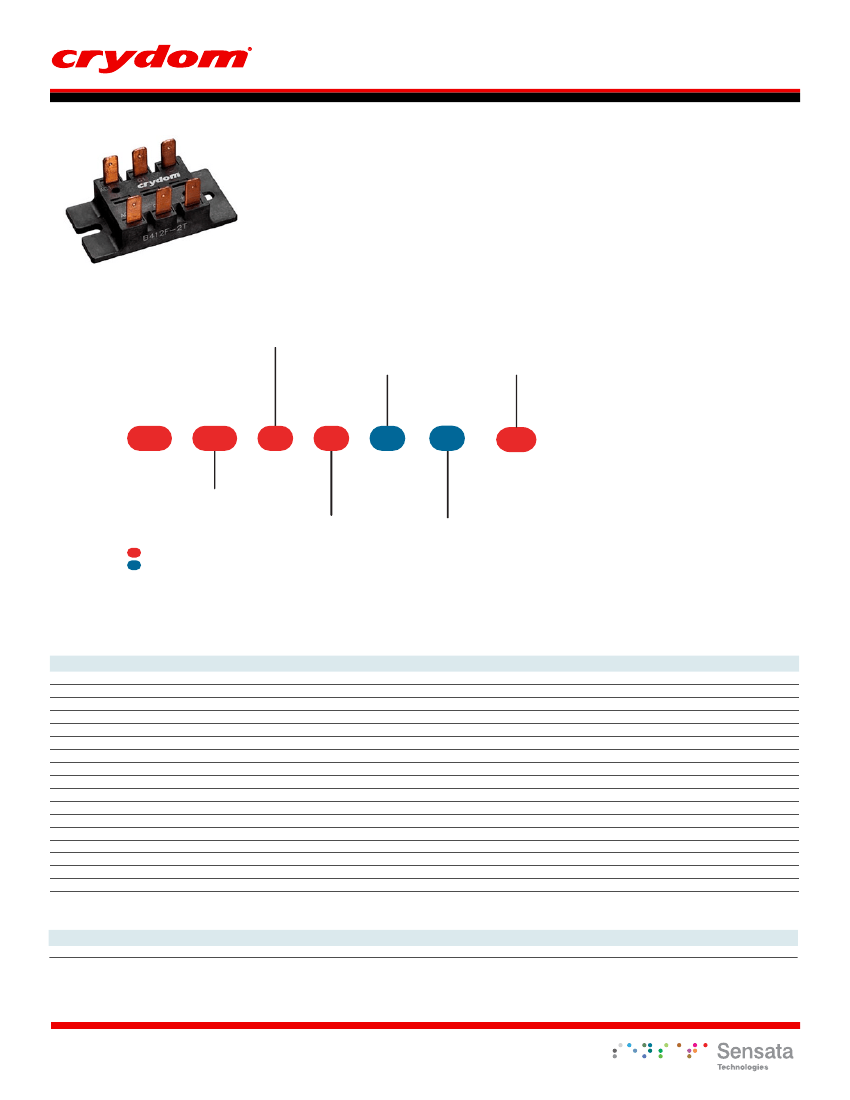

B-2T, B-2 Series
Eight Circuits to Choose from
For AC or DC Variable Voltage Output Up to 15KW
UL Recognized E72445
Power Modules
AVAILABLE OPTIONS
Circuit Type
1 2 3 4
5 6 7 8

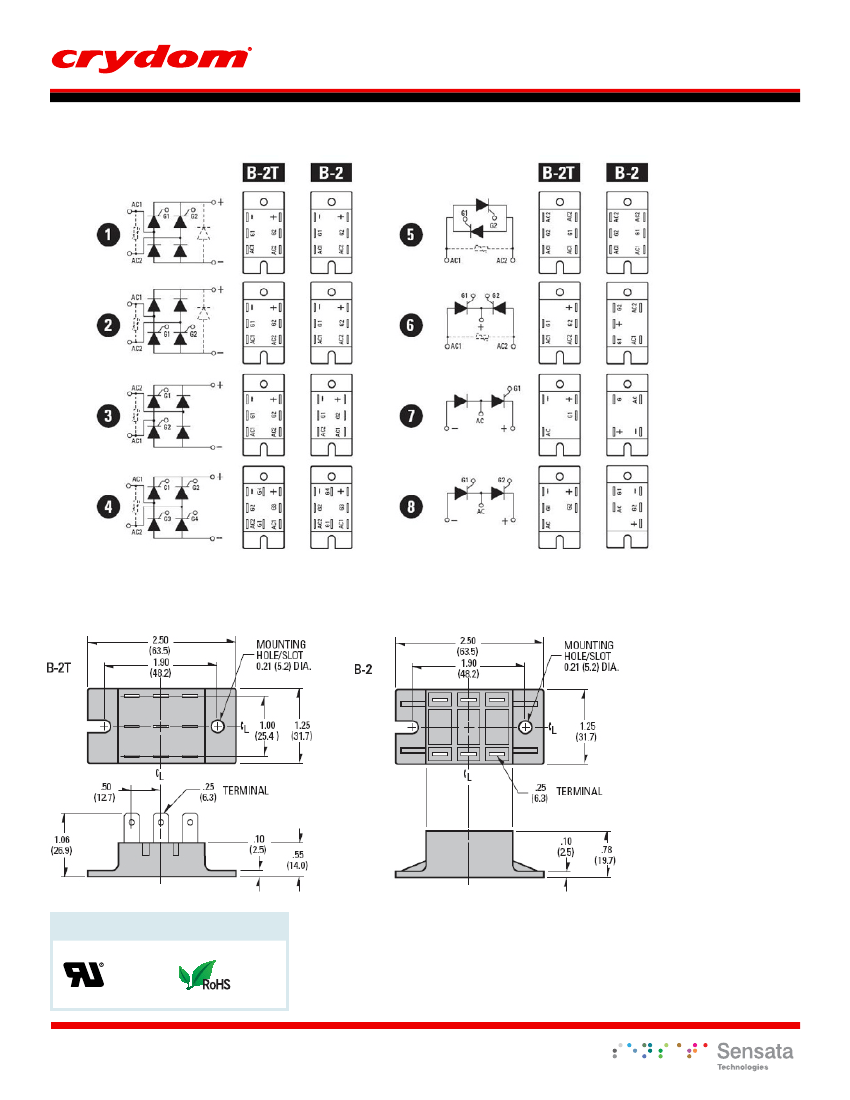

(see schematic
diagrams)
Free Wheeling Diode
Blank:
Not Included
F:
Included
(For circuits 1 & 2 only)
Case Style
-2T:
Standard
-2:
With Isolation Barriers
Series
B
5
Current
5:
25 Amps
6:
42.5 Amps
1
2
F
AC Line Voltage
1:
120 VAC
2:
240 VAC
3:
280 VAC
4:
480 VAC
SE
-2T
External Suppressor
Blank:
Not included
SE:
Included
(-2T only, Circuits 1-6 only)
Required for valid part number
For options only and not required for valid part number
Note: Not all combinations available
ELECTRICAL SPECIFICATIONS
Symbol
Maximum DC Output Current (Tc = 85°C)
Maximum Voltage Drop @ Amps Peak
Operating Junction Temperature Range
Critical Rate of Rise of On-State Current @ TJ=125°C
Critical Rate of Rise of Off-State Voltage [V/ s]
AC Line Input Voltage (Repetitive Peak Reverse Voltage)
AC Line Input Voltage (Repetitive Peak Reverse Voltage)
AC Line Input Voltage (Repetitive Peak Reverse Voltage)
AC Line Input Voltage (Repetitive Peak Reverse Voltage)
Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz)
Maximum I²T for Fusing (t=8.3ms) [A²sec]
Minimum Required Gate Current to Trigger @ 25°C
Minimum Required Gate Voltage to Trigger @ 25°C
Average Gate Power
Maximum Peak Reverse Gate Voltage
Maximum Thermal Resistance, Junction to Ceramic Base per Chip
Isolation Voltage
I
D
V
F
T
J
di/dt
dv/dt
V
RMS
V
RMS
V
RMS
V
RMS
I
TSM
I
2
T
I
GT
V
GT
P
G(AV)
V
GM
R
JC
V
ISOL
B5
25A
1.65V @ 25A
-40 - 125°C
100A/ s
500V/ s
120 (400V
RMS
)
240 (400V
RMS
)
280 (400V
RMS
)
480 (400V
RMS
)
250A
260
60mA
2.5V
0.5W
5.0V
0.9°C/W
2500 Vrms
B6
42.5A
1.65V @ 42.5A
-40 - 125°C
100A/ s
500V/ s
100 (400V
RMS
)
240 (400V
RMS
)
280 (400V
RMS
)
480 (400V
RMS
)
600A
1500
80mA
3.0V
0.5W
5.0V
0.7°C/W
2500 Vrms
GENERAL SPECIFICATIONS
Description
Weight (typical)
Parameters
1.5 oz (42.5g)
