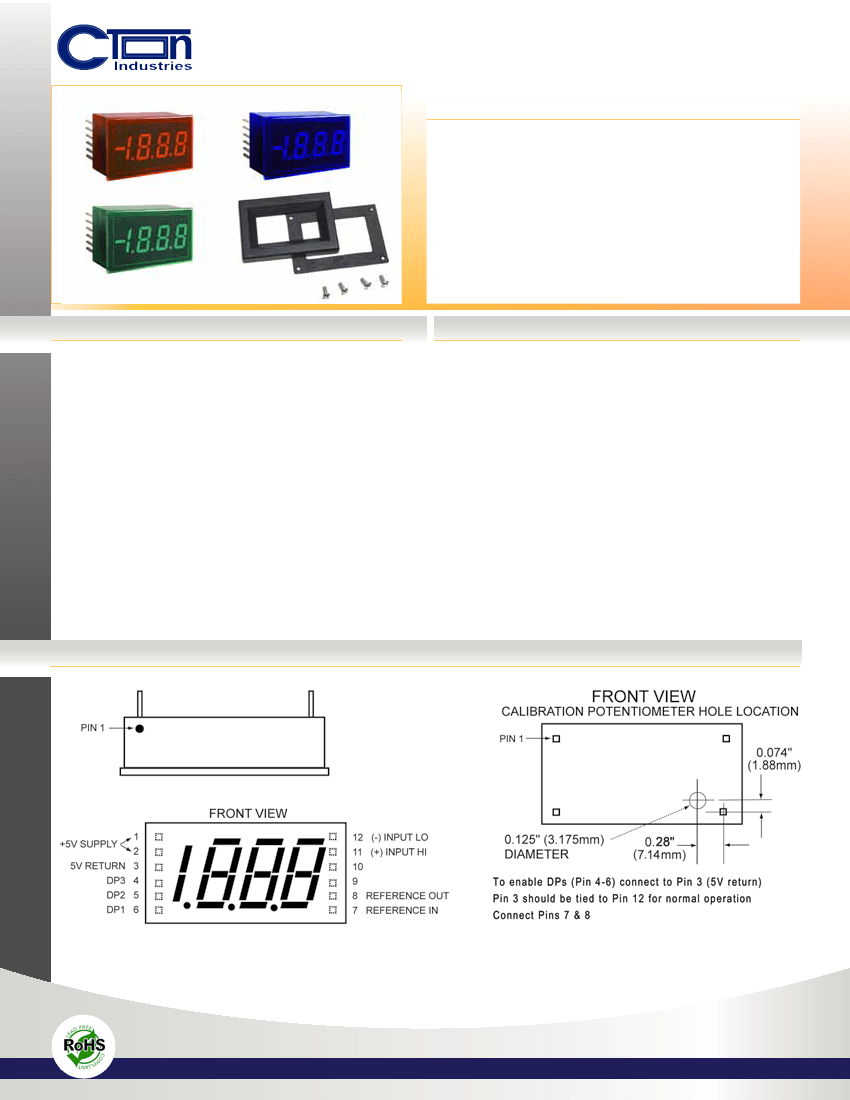

DLA-200LED
LED Digital Panel Meters
Specifications Installation and Operating Instructions
3½ Digit LED Display
FEATURES
}
}
}
}
}
}
}
}
}
}
}0.37",}3½}digit}high}intensity}LED}display
}Available}in}RED,}BLUE}or}GREEN
}User-selectable}decimal}points
Polycarbonate}case
}Optional}bezel}mount
SPECIFICATIONS
DISPLAY
Numeral Size:
Overrange:
Polarity Indication:
Supply Voltage:
Input Ranges:
Input Impedance:
Common Mode Range:
.37” (9.4 mm)
three lower order digits blank for
inputs >1999 & < -1999
automatic (-) for negative
+5 VDC @ 40 mA
±200 mV, ± 2 V, ±20 V
1000 MΩ (200 mV)
1 MΩ (other ranges)
± 1 VDC
±1% F.S. ± 2 counts
3 per second
ORDERING INFO
PART NUMBER
METER COLOR
METER INPUT
DLA-200B ...................................BLUE ............................................200mV
.
.
DLA-201B ...................................BLUE .................................................. 2V
.
.
.
.
DLA-202B ...................................BLUE ................................................ 20V
DLA-200G ................................. GREEN ...........................................200mV
.
.
DLA-201G ................................. GREEN ................................................. 2V
INPUTS
DLA-202G ................................. GREEN ............................................... 20V
.
.
DLA-200R ................................... RED .............................................200mV
.
DLA-201R ................................... RED ................................................... 2V
DLA-202R ................................... RED ................................................. 20V
.
ACCESSORIES
PERFORMANCE
Accuracy:
Sampling Rate:
ENVIRONMENT
Operating Temperature: 0 to 50 °C
Max Humidity:
95% (non-condensing)
CONNECTION
12 pin

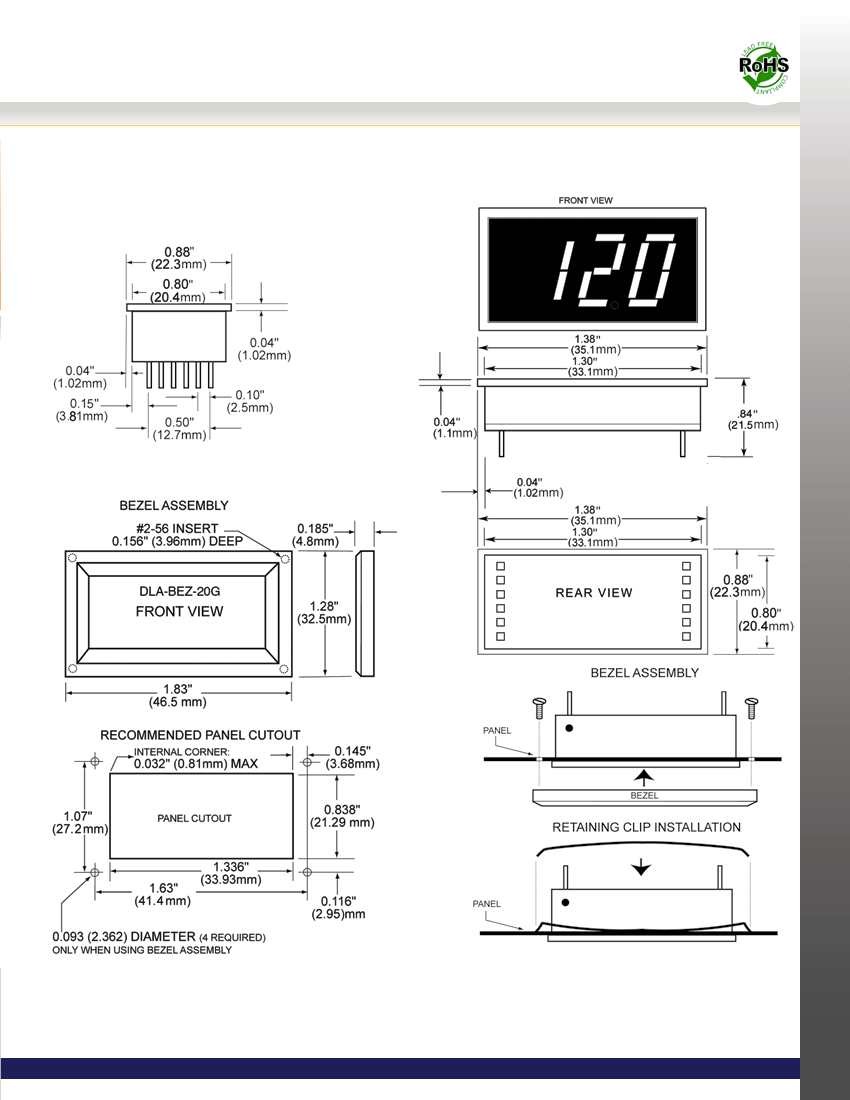

DLA-BEZ-20-G ....................................................................Bezel Assembly
PW2-5 ....................................... Regulated 120V AC to 5V DC Power Supply
CVC ..............................................................................................Calibrator
WIRING
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
