Technical Data Sheet
SMA
Termination
Plug 1 Watt
32S17B-1.0E3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

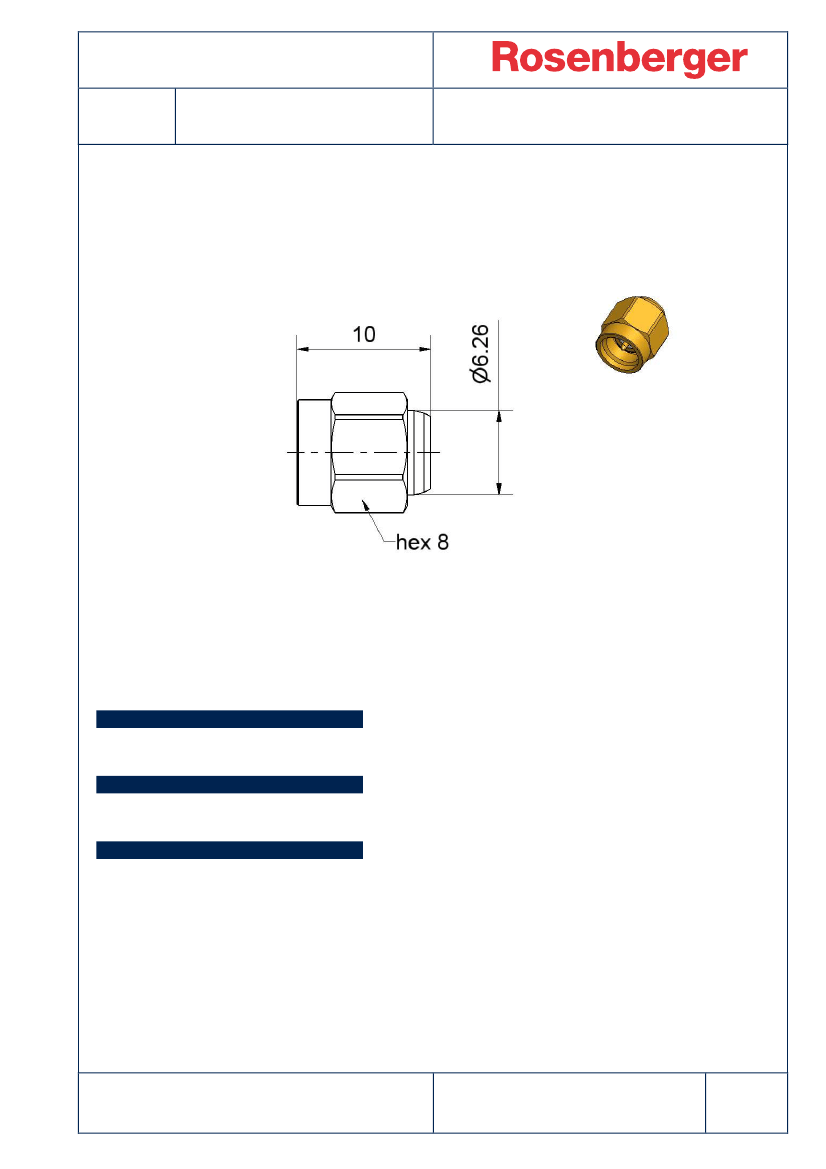

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
N/A
Material and plating
Connector parts
Center conductor
Outer conductor
Coupling nut
Dielectric
Gasket
Substrate
Material
Brass
Brass
Brass
PTFE
Silicone
Al
2
O
3
Plating
Gold, min. 1.27 µm, over nickel
Gold, min. 0.8 µm, over nickel
Gold, 0.1 µm min.
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
SMA
Termination
Plug 1 Watt
32S17B-1.0E3
Electrical data
Frequency range
Return loss
DC Resistance
Impulse Power (1µs, 1%)
Power handling
DC to 18 GHz
≥
26.4 dB, DC to 1 GHz
≥
19.1 dB, 1 GHz to 18 GHz
50
Ω ±
2.5
Ω
100 Watts at 25°C environment temperature
≤
1 W at 25°C
derated linearity to 0 Watts at 125°C
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Mechanical data
Mating cycles
Maximum torque
Recommended torque
Gauge
≥
500
1.70 Nm
0.90 Nm
0.00 mm to 0.25 mm
Environmental data
Temperature range
RoHS
-55 °C to +155 °C
compliant
Packing
Standard
Weight
100 pcs in blister
2.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Kerstin Herzog
Date
10.02.05
Approved
Markus Müller
Date
15.09.16
Rev.
b00
Engineering change number
16-1390
Name
Marion Striegler
Date
15.09.16
