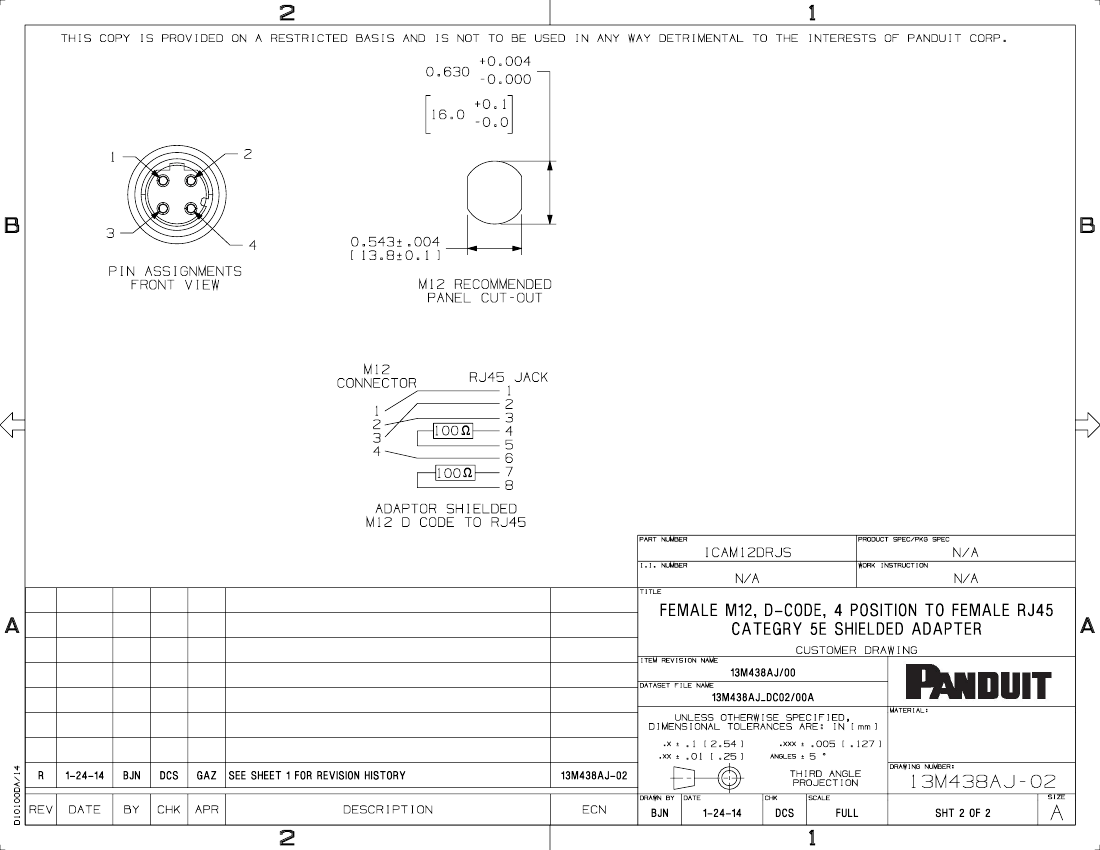

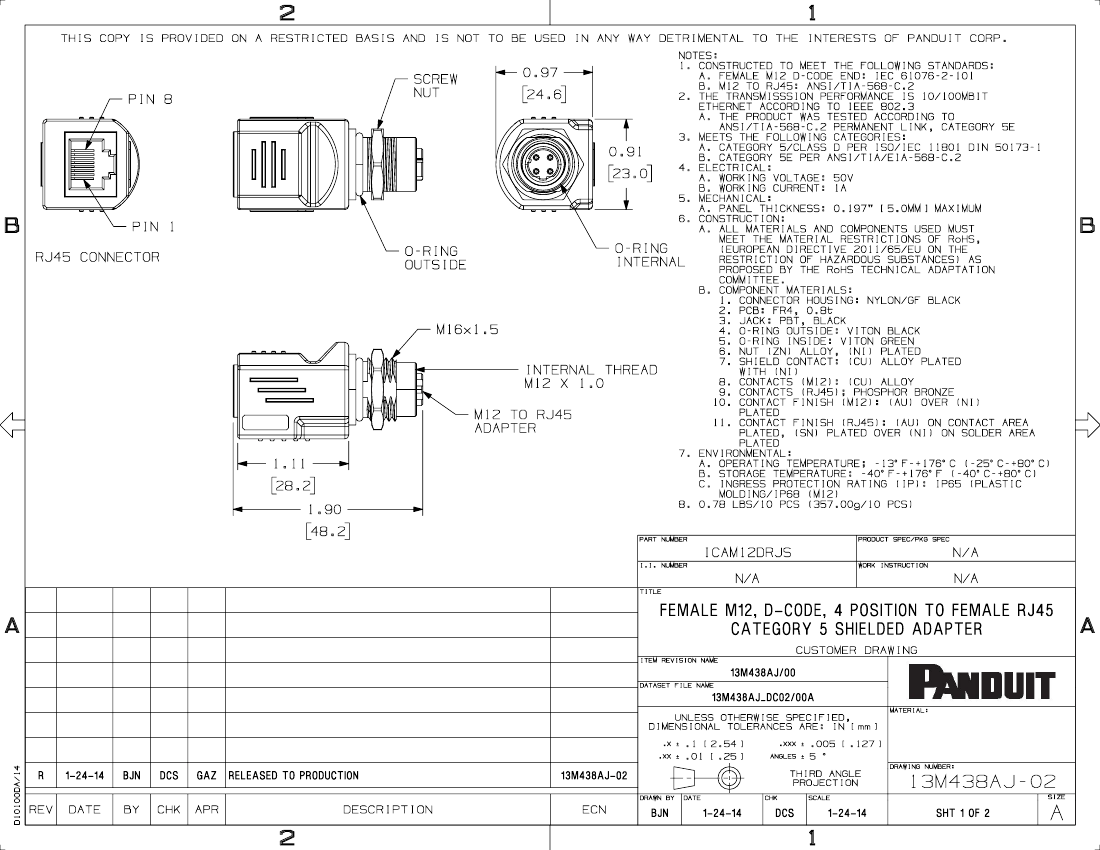

NOTES:
1. CONSTRUCTED TO MEET THE FOLLOWING STANDARDS:
0.97
A. FEMALE M12 D-CODE END: IEC 61076-2-101
SCREW
B. M12 TO RJ45: ANSI/TIA-568-C.2
NUT
24.6
2. THE TRANSMISSSION PERFORMANCE IS 10/100MBIT
ETHERNET ACCORDING TO IEEE 802.3
A. THE PRODUCT WAS TESTED ACCORDING TO
ANSI/TIA-568-C.2 PERMANENT LINK, CATEGORY 5E
3. MEETS THE FOLLOWING CATEGORIES:
A. CATEGORY 5/CLASS D PER ISO/IEC 11801 DIN 50173-1
0.91
B. CATEGORY 5E PER ANSI/TIA/EIA-568-C.2
4. ELECTRICAL:
23.0
A. WORKING VOLTAGE: 50V
B. WORKING CURRENT: 1A
5. MECHANICAL:
A. PANEL THICKNESS: 0.197" [5.0MM] MAXIMUM
6. CONSTRUCTION:
A. ALL MATERIALS AND COMPONENTS USED MUST
MEET THE MATERIAL RESTRICTIONS OF RoHS,
O-RING
(EUROPEAN DIRECTIVE 2011/65/EU ON THE
O-RING
RESTRICTION OF HAZARDOUS SUBSTANCES) AS
INTERNAL
OUTSIDE
PROPOSED BY THE RoHS TECHNICAL ADAPTATION
COMMITTEE.
B. COMPONENT MATERIALS:
1. CONNECTOR HOUSING: NYLON/GF BLACK
2. PCB: FR4, 0.8t
3. JACK: PBT, BLACK
M16x1.5
4. O-RING OUTSIDE: VITON BLACK
5. O-RING INSIDE: VITON GREEN
6. NUT (ZN) ALLOY, (NI) PLATED
7. SHIELD CONTACT: (CU) ALLOY PLATED
INTERNAL THREAD
WITH (NI)
8. CONTACTS (M12): (CU) ALLOY
M12 X 1.0
9. CONTACTS (RJ45); PHOSPHOR BRONZE
10. CONTACT FINISH (M12): (AU) OVER (NI)
PLATED
M12 TO RJ45
11. CONTACT FINISH (RJ45): (AU) ON CONTACT AREA
ADAPTER
PLATED, (SN) PLATED OVER (NI) ON SOLDER AREA
PLATED
7. ENVIRONMENTAL:
A. OPERATING TEMPERATURE; -13 F-+176 C (-25 C-+80 C)
B. STORAGE TEMPERATURE: -40 F-+176 F (-40 C-+80 C)
C. INGRESS PROTECTION RATING (IP): IP65 (PLASTIC
MOLDING/IP68 (M12)
8. 0.78 LBS/10 PCS (357.00g/10 PCS)
