DLA20-DCA-R-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> DLA20-DCA-R-6

DLA20-DCA-R-6: DescriptionAMMETER 0-19.99A LED PANEL MOUNT; CategoryTools and equipment; File Size488KB，2 Pages; ManufacturerC-TON Industries; Environmental Compliance

Download Datasheet Parametric View All

DLA20-DCA-R-6 Overview

AMMETER 0-19.99A LED PANEL MOUNT

DLA20-DCA-R-6 Parametric

Parameter Name	Attribute value
type	Current (ampere)
Measuring range	0 ~ 19.99A
display type	LED - red characters
Number of characters per line	3.5
Display characters - height	0.370"（9.40mm）
Output type	-
Voltage - Power	5 ~ 40VDC
Panel opening size	Rectangular - 33.93mm x 21.29mm
Installation type	Panel Mount - Frame
Terminal type	screw terminal
Intrusion protection	-
characteristic	-
Operating temperature	-10°C ~ 50°C

Preview

Download Datasheet

View All

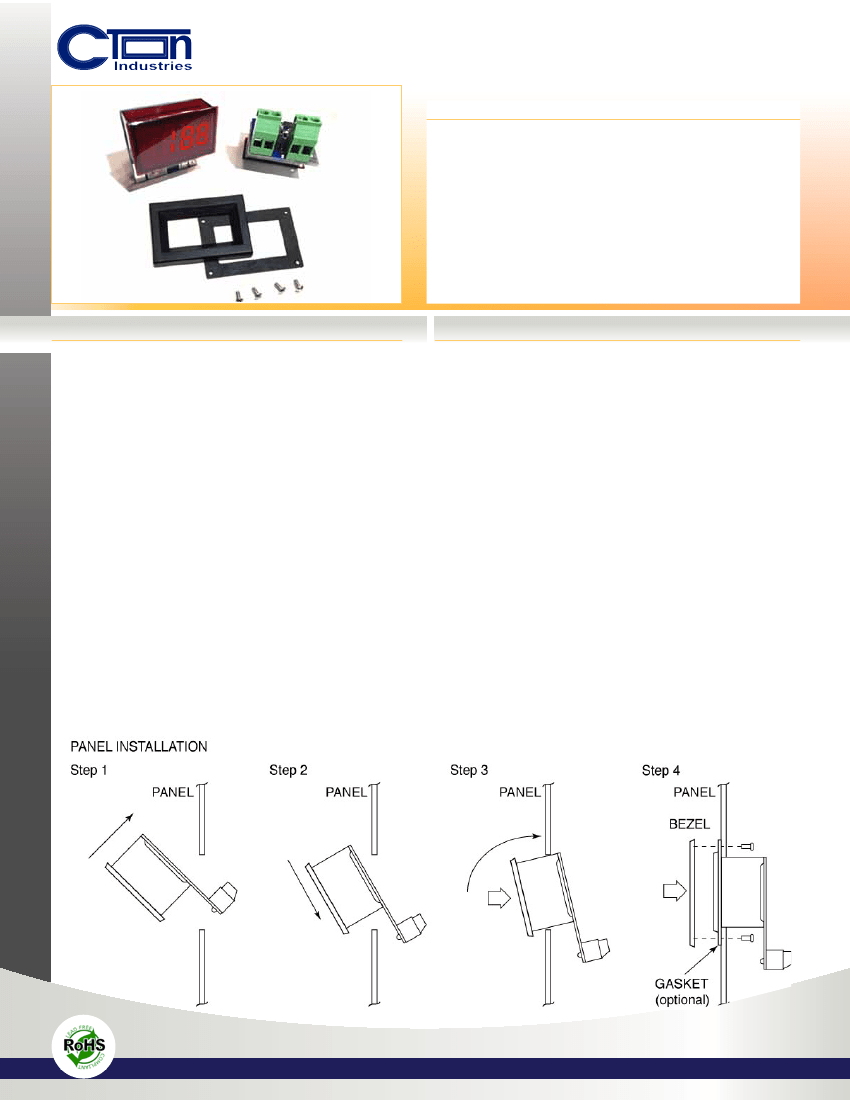

DLA20-DCA

LED Digital Panel Meters

Specifications Installation and Operating Instructions

LED Display, DC Ammeters

FEATURES

}

} Available}in}easy}to}read}RED,}BLUE}or}GREEN}LED

}

} Built}in}shunts

The DLA20-DCA Series utilizes an on-board shunt to provide

a digital read out of the monitored dc current.

SPECIFICATIONS

DISPLAY

Numeral Size:

Overrange:

Supply Voltage:

.37” (9.4 mm)

three lower order digits blank

5-40 Vdc, 10-51 mA

199.9µA, 1.999mA, 19.99mA

199.9mA, 1.999A, 19.99A

0.2% FS

2.5 per second

ORDERING INFO

PART NUMBER

METER COLOR

METER INPUT

DLA20-DCA-R-1 ........................... RED .......................................... 199.9

DLA20-DCA-B-1 ...........................BLUE ......................................... 199.9

DLA20-DCA-G-1 ........................ GREEN ........................................ 199.9

DLA20-DCA-R-2 ........................... RED ......................................... 1.999

DLA20-DCA-B-2 ...........................BLUE ........................................ 1.999

DLA20-DCA-G-2 ........................ GREEN ....................................... 1.999

DLA20-DCA-R-3 ........................... RED ......................................... 19.99

DLA20-DCA-B-3 ...........................BLUE ........................................ 19.99

DLA20-DCA-G-3 ........................ GREEN ....................................... 19.99

DLA20-DCA-R-4 ........................... RED ......................................... 199.9

DLA20-DCA-B-4 ...........................BLUE ........................................ 199.9

DLA20-DCA-G-4 ........................ GREEN ....................................... 199.9

DLA20-DCA-R-5 ........................... RED ............................................ 1.999A

DLA20-DCA-B-5 ...........................BLUE ........................................... 1.999A

DLA20-DCA-G-5 ........................ GREEN .......................................... 1.999A

DLA20-DCA-R-6 ........................... RED ............................................ 19.99A

DLA20-DCA-B-6 ...........................BLUE ........................................... 19.99A

DLA20-DCA-G-6 ........................ GREEN .......................................... 19.99A

ACCESSORIES INCLUDED

INPUTS

Input Ranges:

PERFORMANCE

Accuracy:

Sampling Rate:

ENVIRONMENT

Operating Temperature: -10 to 50 °C

Max Humidity:

95% (non-condensing)

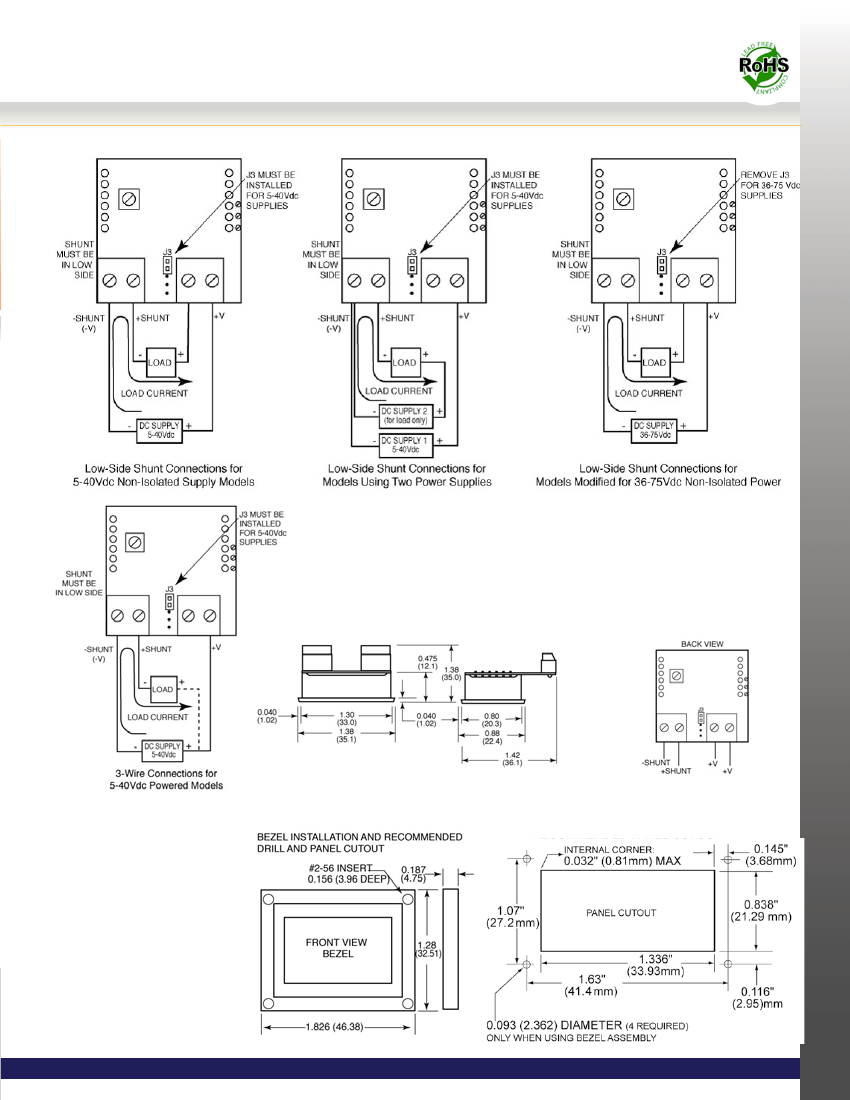

CONNECTION

4 terminal

DLA-BEZ-20-G ezel Assembly

C-TON I

NdusTrIes

• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •

INfO

CTONINdusTrIes

COm
