ODU MINI-SNAP Series L, K, B
Assembly Instructions
010.014.000.000.000
Series L (Crimp Version, Solder Version)
Unsealed Plugs (IP 50)
Unsealed Right-Angled Plugs (IP 50)
Series K (Crimp Version, Solder Version)
Sealed Plugs (IP 68)
Sealed Right-Angled Plugs (IP 68)
Series B (Crimp Version, Solder Version)
Sealed Plugs (IP 68)
Sealed Right-Angled Plugs (IP 68)
www.odu.de
ODU MINI-SNAP Series L, K, B
Assembly Unsealed Plugs, Series L (IP 50)
010.014.000.000.000
Assembly Instructions
Housing
Half-shells
Back nut (style 1)
Insert with
solder capacity
Cable collet
Back nut for
cable bend relief
(style 2)
Cable bend relief

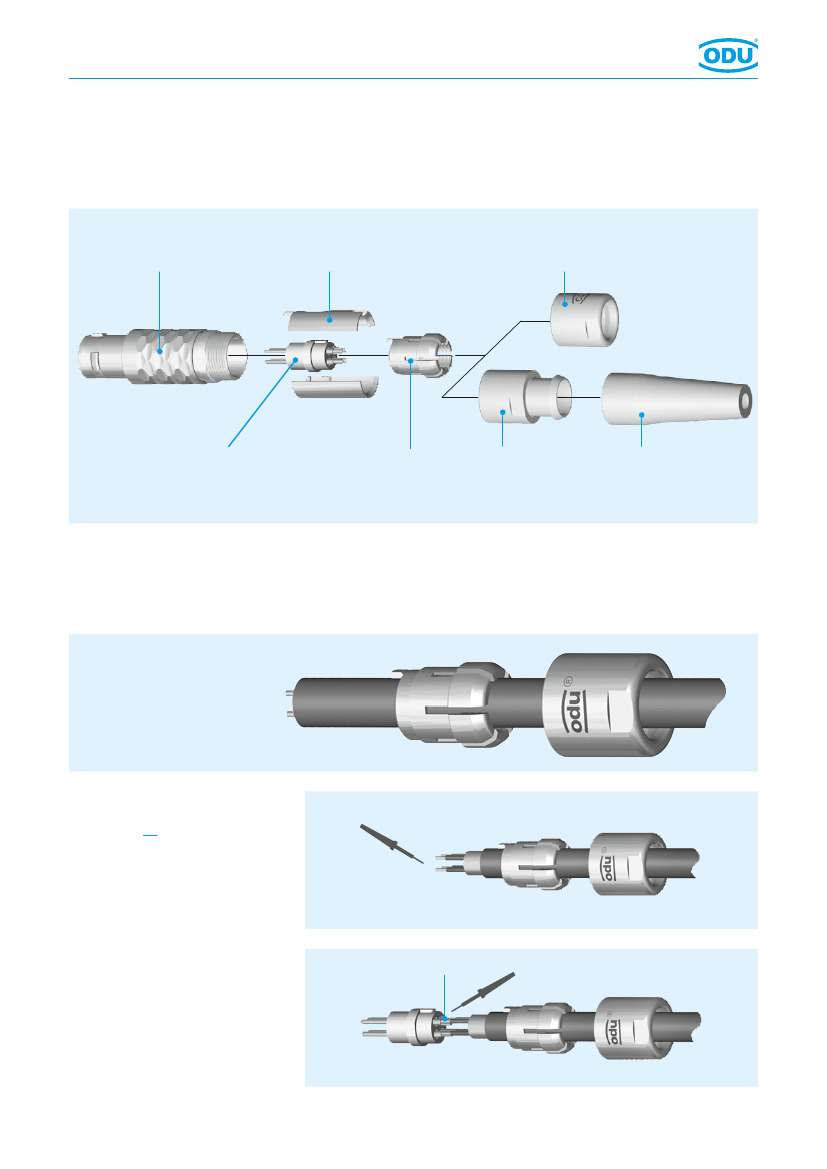

1. Slide back nut and cable collet (and possibly cable bend relief ) over the cable.
2. Strip cable and wire
corresponding the table
(see page 18).
3. Pre-tinning of strands.
A
4. Solder each wire (A) to the
corresponding contact.
Page 2
www.odu.de
ODU MINI-SNAP Series L, K, B
010.014.000.000.000
Assembly Instructions
5. Bend cable shield outwards,
assemble half-shells.
6. Slide the cable collet against the
half-shells and clamp the shield (B)
between it.
B

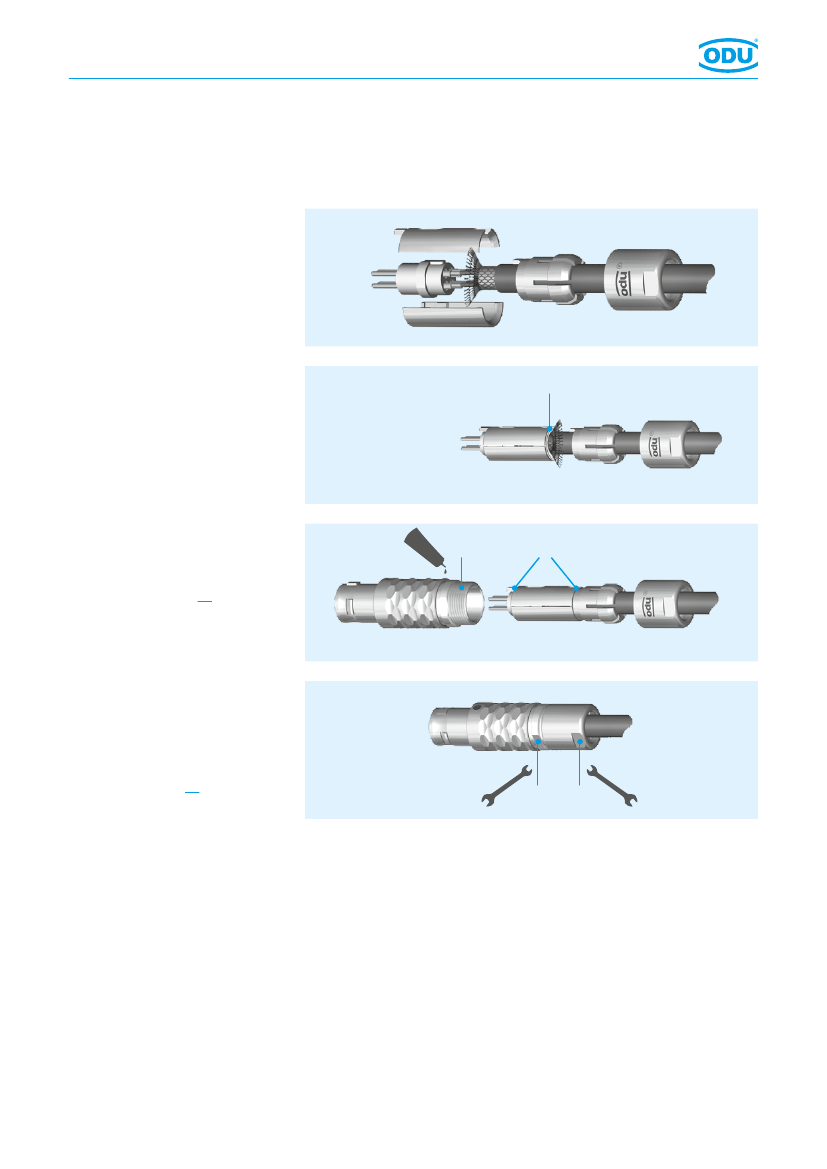

7. Now you can put the assembled
cable considering the guidings (C)
into the connector housing.
If necessary, secure thread (D) with
adhesive (see page 18).
D
C
8. Screw back nut on the assembled
plug, counterhold spanner flat (E)
and tighten to spanner flat (F) with
ODU spanner wrench.
Caution! Consider tightening
torque (see page 18).
The assembly is finished.
E
F
www.odu.de
Page 3
ODU MINI-SNAP Series L, K, B
010.014.000.000.000
Assembly Instructions
Assembly Unsealed Right-Angled Plugs, Series L (IP 50)
Back screw
Right-angled part
Housing
Insert with Sleeve
solder capacity
Cable collet
Back nut for
cable bend relief
(style 2)
Back nut
(style 1)
Cable bend relief

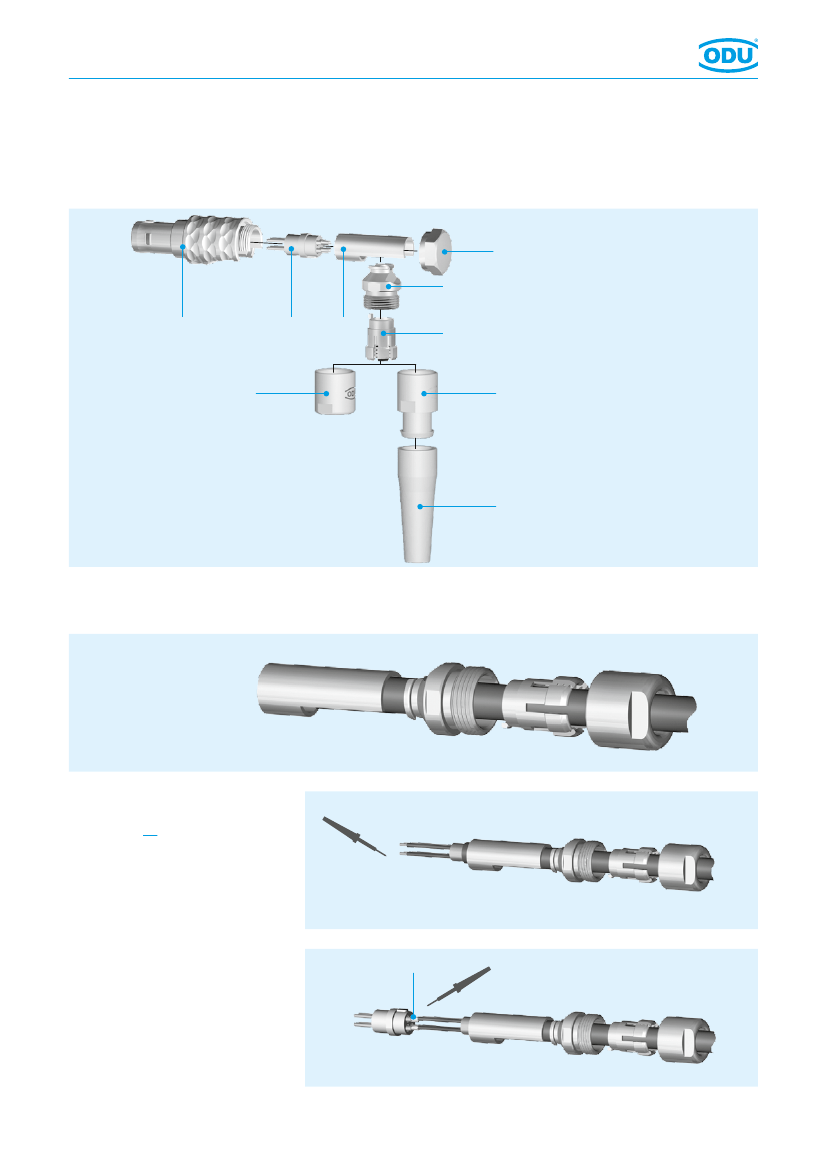

1. Slide back nut, cable collet, right-angled part and sleeve (and possibly cable bend relief ) over the cable.
2. Strip cable and wire corresponding
the table
(see page 18).
3. Pre-tinning of strands.
4. Solder each wire (A) to the
corresponding contact.
A
Page 4
www.odu.de
ODU MINI-SNAP Series L, K, B
010.014.000.000.000
Assembly Instructions
D
E
B
C

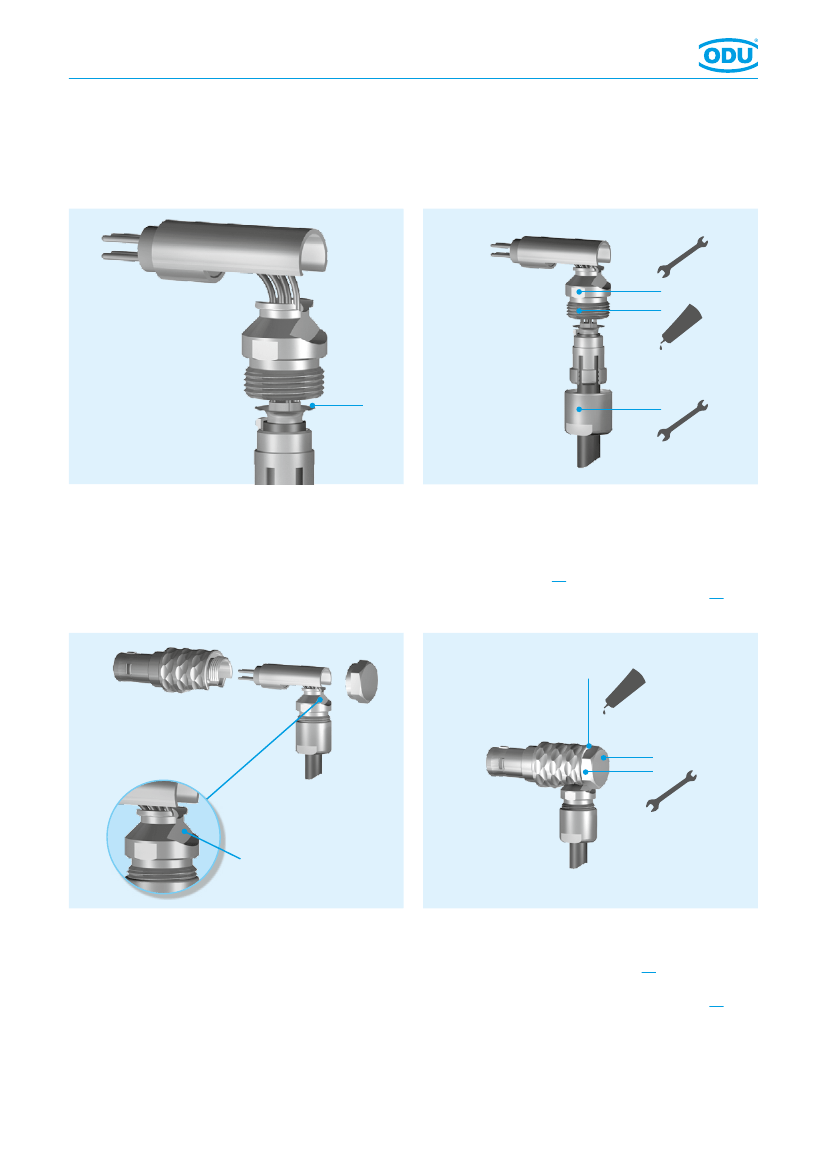

5. Pull cable back and bend 90° down. Spread the cable
shield (B) over collet ring. Slide sleeve over insulator.
6. Slide the cable collet against the right-angled part
and clamp the shield between it. Screw back nut (C) on
the right-angled part and hold against with the ODU
spanner wrench (D). If necessary, secure thread (E) with
adhesive (see page 19).
Caution! Consider tightening torque (see page 18).
H
F
G
Screw surface
7. Now you can put the assembled cable considering
the guidings into the connector housing.
8. Mount back screw (F) on the plug and fasten cable with
the ODU spanner wrench (G). If necessary, secure
thread (H) with adhesive (see page 19).
Caution! Consider tightening torque (see page 19).
The assembly is finished.
