BGA0023

Description
BGA-100 SMT ADAPTER (0.4 MM PITC
CategoryDevelopment board/suite/development tools
File Size93KB，1 Pages
ManufacturerChip Quik
Environmental Compliance
Download Datasheet Parametric View All

BGA0023 Overview

BGA-100 SMT ADAPTER (0.4 MM PITC

BGA0023 Parametric

Parameter NameAttribute value
Prototype board typeSMD to PGA
Accepted packagesBGA
Number of pins100
spacing0.016"（0.40mm）
Board thickness0.063"（1.60mm）
MaterialFR4 epoxy glass
size/dimensions1.900" x 1.900"（48.26mm x 48.26mm）

Preview

Download Datasheet
BGA0023
Datasheet revision 1.0
www.Proto-Advantage.com

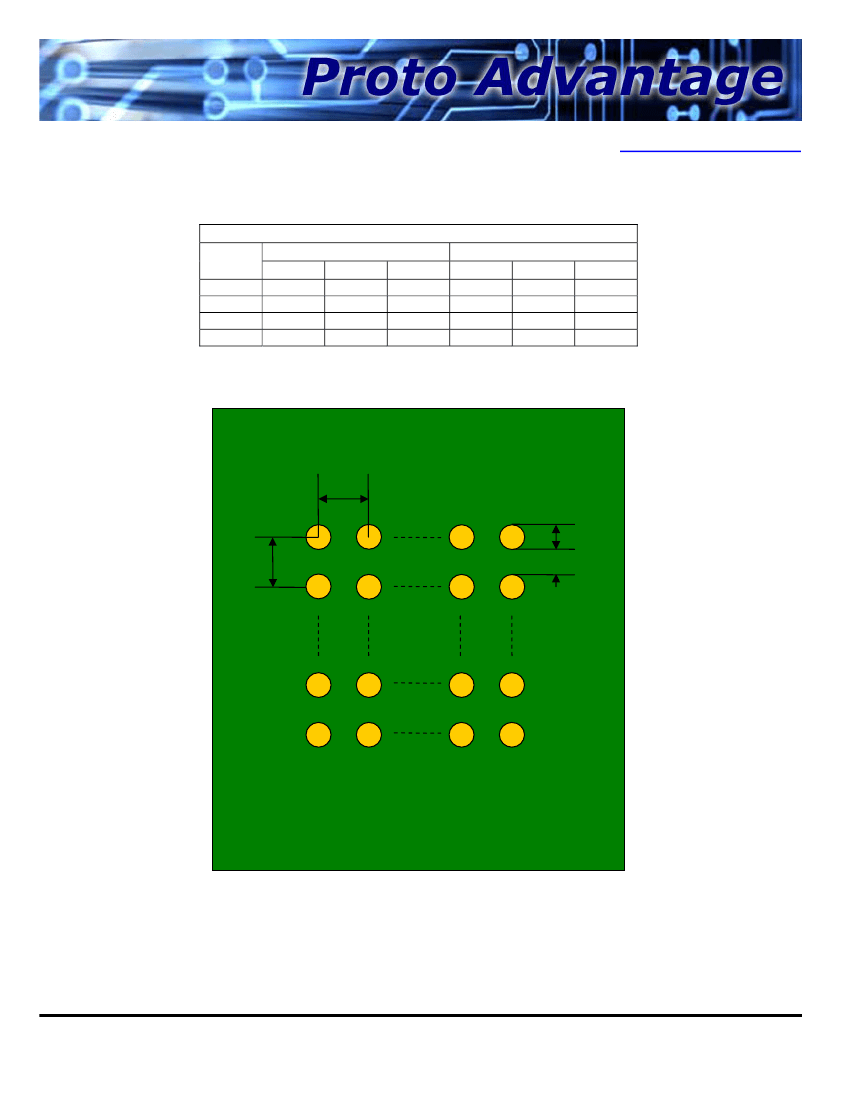

BGA-100 to PGA-100 SMT Adapter (0.4 mm pitch, 10 x 10 grid)
DIMENSIONS
REF.
C
D
E
E2
MIN.
mm
TYP.
0.254
0.146
0.400
0.400
MAX.
MIN.
inches
TYP.
MAX.
Top View (SMT Footprint)
E
E2
C
D
(Representative drawing only - not to scale)
1
© 2007-2017 Proto Advantage™
