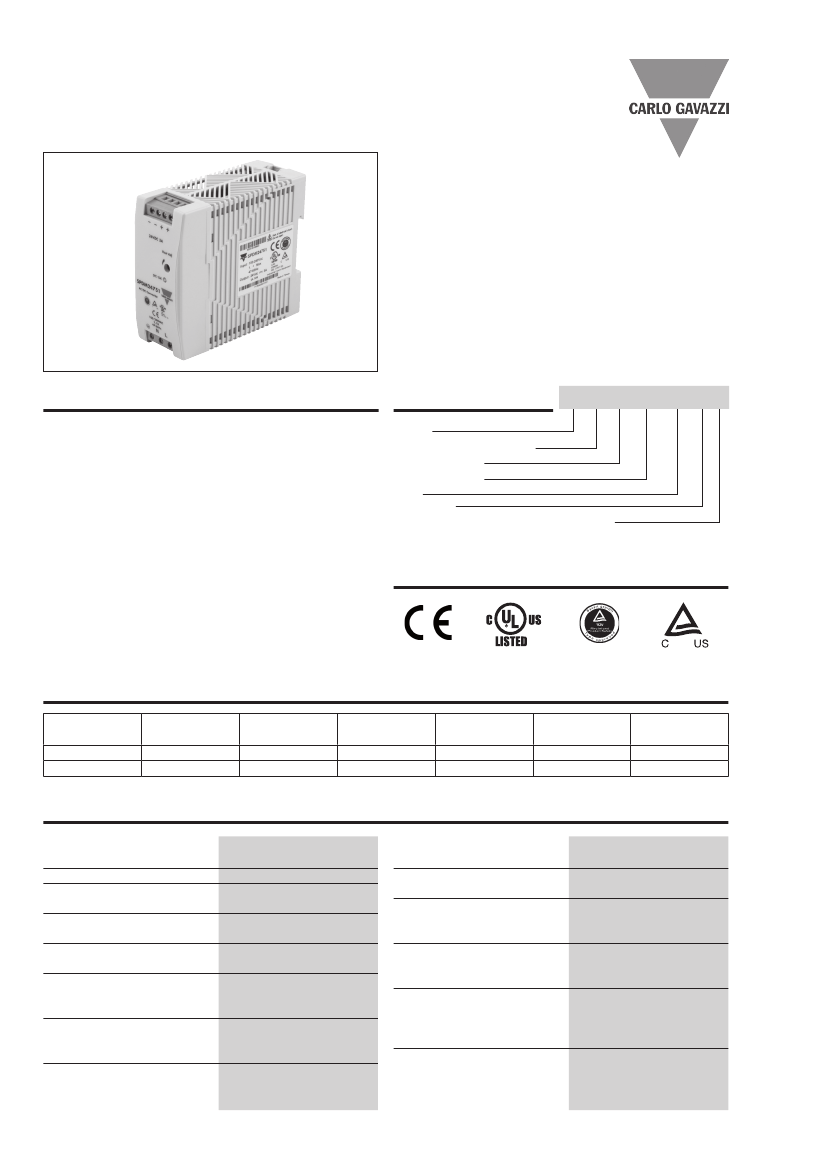

All specifications are at nominal values, full load, 25°C ( 77°F ) unless otherwise noted
Ripple & noise
Vi nom, Io nom, BW=20MHz
Minimum load
Vi nom
Voltage accuracy
Io nom, Io max
Line regulation
Vi nom, Vi min. ... Vi max.
Load regulation
Vi nom, Io min. ... Io nom.
Voltage trim range
Vi nom,
12V
0.8 Io nom,
24V
Rated continuous loading
Vi nom
12V
24V
Turn on time
Vi nom, Io nom
Vi nom, Io nom capacitor load
1
100mV
0%
+1%
±1%
±1%
11.4 ~ 15.6VDC
22.5 ~ 28.5VDC
5.5A@12VDC/4.4A@15VDC
3A@24DC/2.7A@26.4VDC
2000ms
2000ms
Hold up time
Vi: 115/230VAC, Io nom
Transient recovery time
Vi nom 1~0.5 Io nom
Power back immunity
Vi nom, Io nom
12V
I second
24V
Capacitor load
Vi nom, Io nom 12V & 24V
48V
DC ON indicator threshold
at start up (Green LED)
12V
24V
Efficiency
Vi nom, Io nom Po / Pi
10 / 50ms
2ms
22VDC
32VDC
3500μF
1000μF
9.6 ~ 10.8VDC
19.2 ~ 21.6VDC
Up to 87%, see model list
and typ efficiency curve
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 18/04/2016
Switching Power Supply
Type SPDM 75
DIN Rail Mounting
Input Data
All specifications are at nominal values, full load, 25°C ( 77°F ) unless otherwise noted
Rated input voltage Io nom
Voltage range
AC in
DC in
Line frequency
Vi nom, Io nom
AC current (max.)
Vi: 115VAC
Vi: 230VAC
Inrush current
Vi: 115/230VAC, Io nom
100VAC min
240VAC max
85 ~ 264VAC
120 ~ 375VDC
47 / 63Hz
1450mA
750mA
30 / 60A
Leakage current
Input-Ouput
Input-FG
Rated input current
Vi: 85VAC, Io nom
Power dissipation
Vi: 230VAC, Io nom
Standby power consumption
Vi nom, IO=0A
0.25mA
3.5mA
1800 mA
10.5W
0.5W
Controls and Protections
Input fuse
Internal suge voltage protection
IEC 61000-4-5
Rated over load protection
Vi nom
(see typ current limited curve)
Over voltage protection
Vi nom, 0.8 Io nom
(auto recovery)
12V
24V
All specifications are at nominal values, full load, 25°C ( 77°F ) unless otherwise noted
T3.15A / 250VAC internal
Varistor
140%
16.2 ~ 18VDC
28.8 ~ 32.4VDC
Output short circuit
Degree of protection
Hiccup mode
IP20
General Data
All specifications are at nominal values, full load, 25°C ( 77°F ) unless otherwise noted
Operating temperature
Operating at Vi nom
Ambient humidity
Vi nom, Io nom
Storage temperature
Non operational
MTBF
Bellcore issue 6@40°C, GB
12V
24V
Cooling method
Dimensions HxDxW
Weight
Packing
Single
Carton
-25 ~ +71°C (-13 ~ 159.8°F)
20 ~ 95% RH
-40 ~ +85°C (-40 ~ 185°F)
556000 Hours
580000 Hours
Free air convection
90 x 100 x 40.50mm
(3.54” x 3.937” x 1.594”)
250g (0.551lb)
270g (0,495lb)
48pcs
12kg (26.45lb)
2.16CUFT
Switching frequency
Vi nom, Io nom
Isolation voltage
Input - Output
Input - FG
Output - FG
Isolation resistance
Input - Output, @500VDC
Derating
Vi nom, from +51°C (123°F)
Temperature coefficient
Vi nom, Io min
Altitude during operation
EN60950-1
Pollution degree
Case material
40 ~ 100KHz
3000 / 4242VAC / VDC
1500 / 2121VAC / VDC
500 / 710VAC / VDC
100MΩ
2.5%/°K
±0.03%/°K
5000m
2
Plastic
2
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 18/04/2016
Switching Power Supply
Type SPDM 75
DIN Rail Mounting
Norms and Standard
UL / cUL
UL1310
cTUVus
TUV
CE
All specifications are at nominal values, full load, 25°C ( 77°F ) unless otherwise noted
L
Fuse
UL508 Listed
Class 2 (pending)
UL60950-1
EN60950-1
EN61000-6-3, EN55022
Class B, EN61000-3-2,
EN61000-3-3 EN61000-6-2,
EN55024, EN61000-4-2 Level
4, EN61000-4-3 Level 3,
EN61000-4-4 Level 4,
EN61000-4-5 L-N Level 3.L/N-
FG Level 4, EN61000-4-6
Level 3, EN61000-4-8 Level 4,
EN691000-4-11, ENV 50204
Level 2, EN61204-3
Line
Filter
Inrush Current
Limiter and
Recti er
Switching
Device
Vibration resistance
Shock resistance
Meets IEC 60068-2-6
Mounting on rail: 10-500
Hz, 2G, along X, Y, Z each
Axis, 60 min for each Axis)
Meets IEC 60068-2-27
(15G, 11ms, 3Axis, 6Faces,
3 times for each Face)
Recti er
Vo +
N
Block Diagram
Vo -
Control
Circuit
Opto/
Isolation
Reference &
Error Amp.
Output
Level
Detection
L
Fuse
Line
Filter
Inrush Current
Limiter and
Recti er
Switching
Device
Recti er
Vout ADj.
Vo +
DC ON
(Green LED)
N
V
Hiccup Mode
Output Voltage [%]
100
Vo -
Control
Circuit
Opto/
Isolation
Reference &
Error Amp.
Output
Level
Detection
Vout ADj.
DC ON
(Green LED)
50
t
Time
Diagram Curve
Hiccup Mode
100
100
85
Power Out [%]
50
Safe Operating Area
Power Out [%]
Safe Operating Area
Ta=40°C / 104°F
Ta=50°C / 122°F
0
85
100
264
t
0
-25°C
-13°F
Time
Temperature [°C]
51°C
123.8°F
71°C
159.8°F
Input Voltage [VAC]
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 18/04/2016
3
90
Power Out [
50
L
Fuse
Line
Filter
Inrush Current
Limiter and
Recti er
Switching
Device
Recti er
Safe Operating Area
Vo +
Switching Power Supply
Type SPDM 75
N
DIN Rail Mounting
Vo -
Control
Circuit
Opto/
Isolation
0
-25°C
Reference &
-13°F
Amp.
Error
51°C
123.8°F
71°C
159.8°F
Typ. Current Limited Curve
Output
Typ. Efficiency Curve
DC ON
Level
Detection
Temperature [°C]
(Green LED)
Vout ADj.
90
V
Hiccup Mode
Output Voltage [%]
88
Ef ciency [%]
100
86
50
84
t
Time
82
230VAC
115VAC
10
25
50
75
100
80
Power Out [%]
100
100
85
Pin
50
Assignement and Front Controls
Safe Operating Area
V+
0
-25°C
-13°F
Power Out [%]
Power Out [%]
Safe Operating Area
Ta=40°C / 104°F
Ta=50°C / 122°F
PIN NO.
1, 2
3, 4
5
6
7
90
Designation
V-
N
Temperature [°C]
L
DC ON
Vout ADj.
51°C
123.8°F
Description
Positive output terminal
Negative output terminal
0
71°C
Ground
159.8°F
100
264
this
85
terminal to minimize high frequency emissions
Input terminals (neutral conductor, no polarity with DC input)
Input Voltage [VAC]
Input terminals (phase conductor, no polarity with DC input)
Operation indicator LED
Trimmer-potentiometer for Vout adjustment
88
Ef ciency [%]
86
84

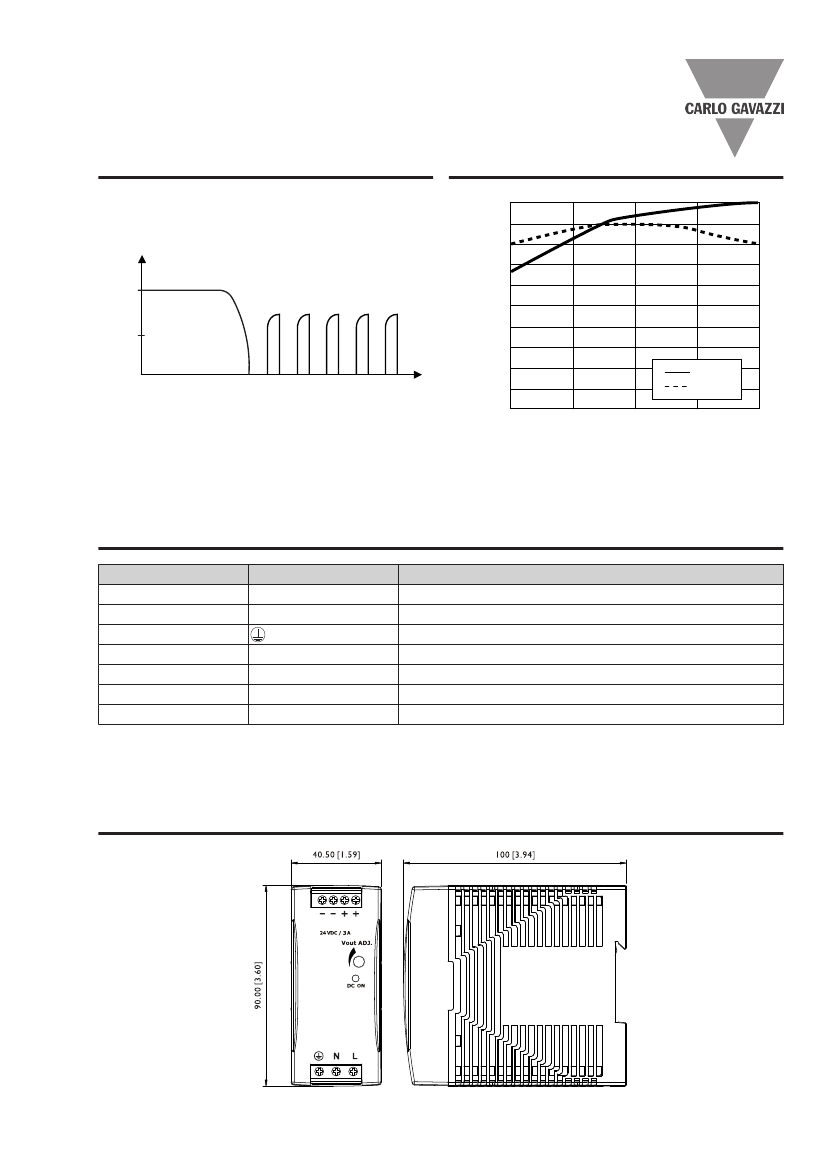

Mechanical Drawings mm (inches)
82
230VAC
115VAC
10
25
50
75
4 3 2 1
80
100
Power Out [%]
100-240VAC
1.7A
47-63Hz
5
6
7
4
