ROHS COMPLIANT

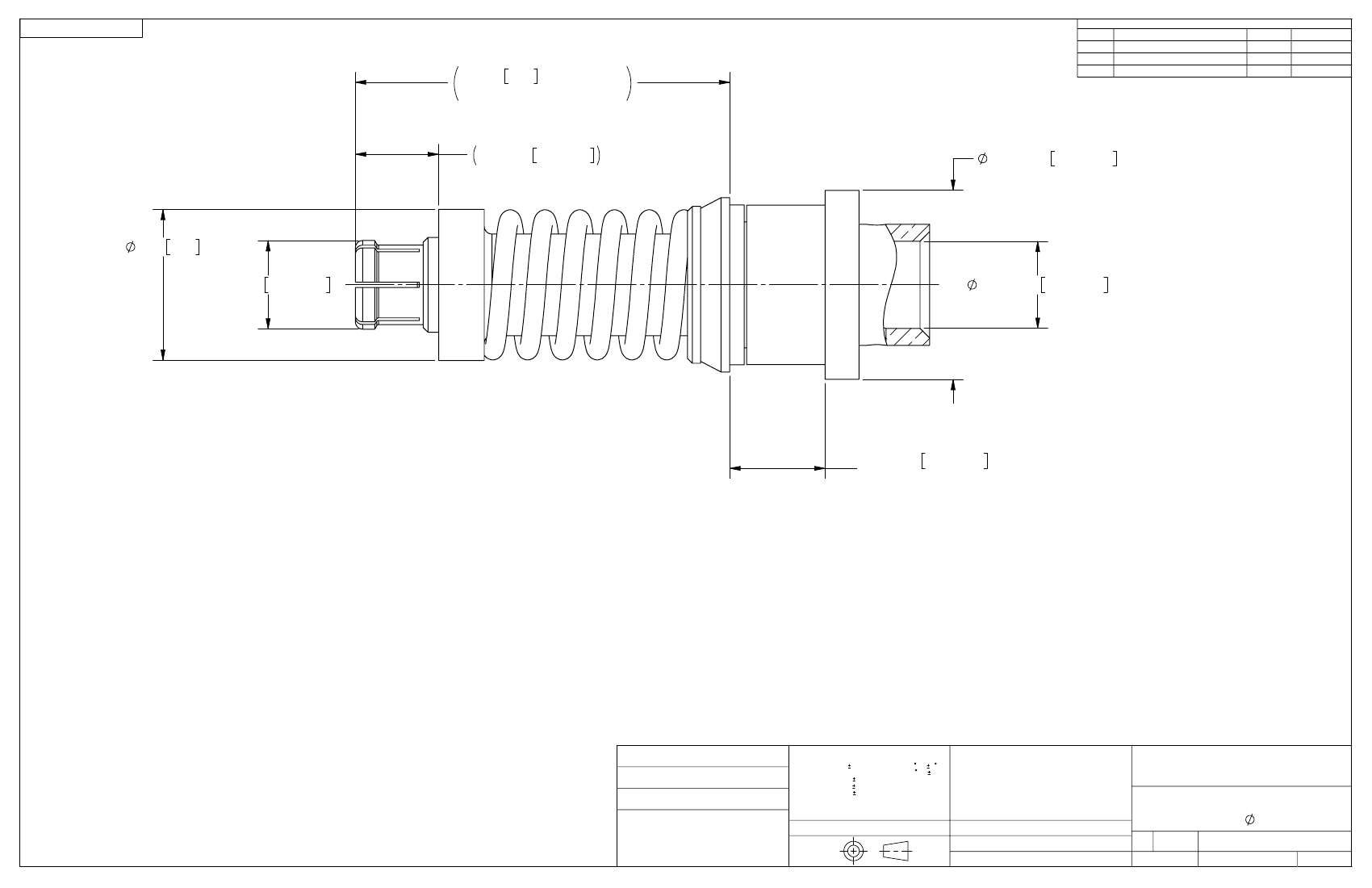

PRODUCT DATA DRAWING
.3865 9.82 EXTENDED
.3065 [7.79] COMPRESSED
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
NRN 41286
02/17
DAL
.084 MIN 2.13 MIN
.198 MAX 5.03 MAX
.156 3.96
.095 MAX 2.41 MAX
.090±.001 2.29±0.03
MATERIAL:
BODIES &
CONTACTS:
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
STAINLESS STEEL PER AMS-5678,
ALLOY UNS S17700
.093±.001 2.36±0.03
PANEL THK
INSULATORS:
SPRING & SLEEVE:
FINISH:
BODIES &
CONTACTS:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
PASSIVATED PER ASTM A967.
SPRING:
PERFORMANCE:
IMPEDANCE:
FREQ.RANGE:
VSWR:
INSERTION LOSS:
TEMP RANGE:
50 OHMS
DC TO 40.0 GHz
1.40:1 MAX, DC TO 40.0 GHz
.65 dB MAX, DC TO 40.0 GHz
-65 TO +165°C
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
FOR USE IN SF9321-60031 MODULE
REMOVAL TOOL P/N 500-32-015
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
ELA 02/15/17
DAL 02/15/17
DAL 02/15/17
SMPM COMPRESSIBLE
FEMALE FOR .085 CABLE
SIZE CAGE CODE DWG. NO.
B
95077
3221-40066
SHEET 1 OF 1
SCALE: 8:1
