PDW06038

Description
POWER DIVIDERS
CategoryTopical application    Wireless rf/communication
File Size333KB,2 Pages
ManufacturerKnowles
Websitehttp://www.knowles.com
Environmental Compliance
Download Datasheet Parametric View All

PDW06038 Online Shopping

Suppliers Part Number Price MOQ In stock
PDW06038 - - View Buy Now

PDW06038 Overview

POWER DIVIDERS

PDW06038 Parametric

Parameter NameAttribute value
Insertion loss0.8dB
frequency2GHz ~ 10GHz
Specification20dB (typ) isolation, 20dB return loss, 3° unbalance (max)
size/dimensions0.400" long x 0.250" wide x 0.020" high (10.16mm x 6.35mm x 0.51mm)
Package/casingmodule

2-10GHz 2-way Wilkinson Power Divider
PDW06038
www.dilabs.com
www.knowlescapacitors.com
DESCRIPTION
DLI’s 2-10GHz 2-way power divider / combiner offers
unmatched size and performance in a surface mount
configuration. This power divider utilizes DLI’s low loss
temperature stable materials which offer small size and
minimal performance variation over temperature.
FEATURES







Small Size
Broadband 2 to 10GHz Performance
Frequency Stable over Temperature
Solder Surface Mount Package
Excellent Repeatability
Operating Temp: -55˚C to +125˚C
Characteristic Impedance: 50Ω
SPECIFICATIONS*
Parameter
Nominal Power Splitting (dB)
Nominal Phase Shift (Deg)
Amplitude Balance (dB)
Phase Balance (Deg)
2 - 10
Excess Insertion Loss (dB)
Return Loss (dB)
Isolation (dB)
Input Power (W)
*Electrical specifications based on typical mounted performance at room temperature. Insertion loss shall vary ±0.5dB over temperature.
20
20
5
0.8
Frequency Range (GHz)
Min
Typ.
3.0
0.0
Max
± .03
± 3.0

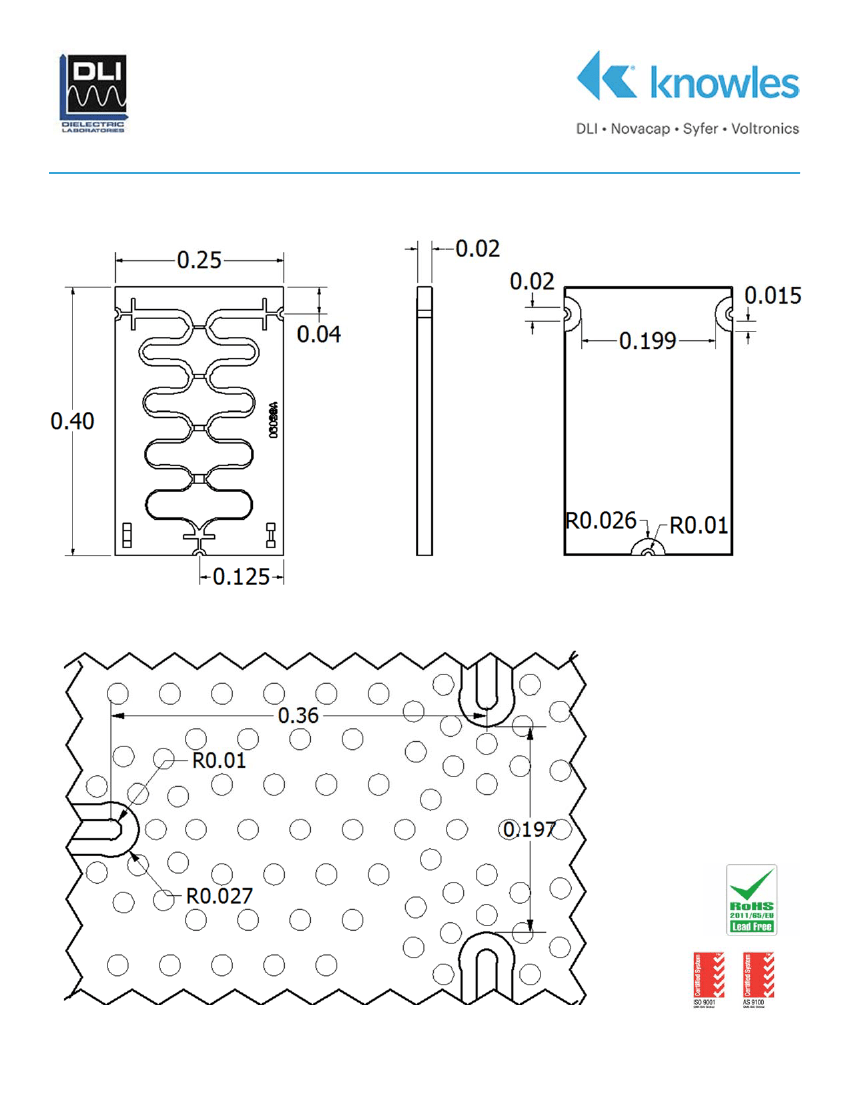

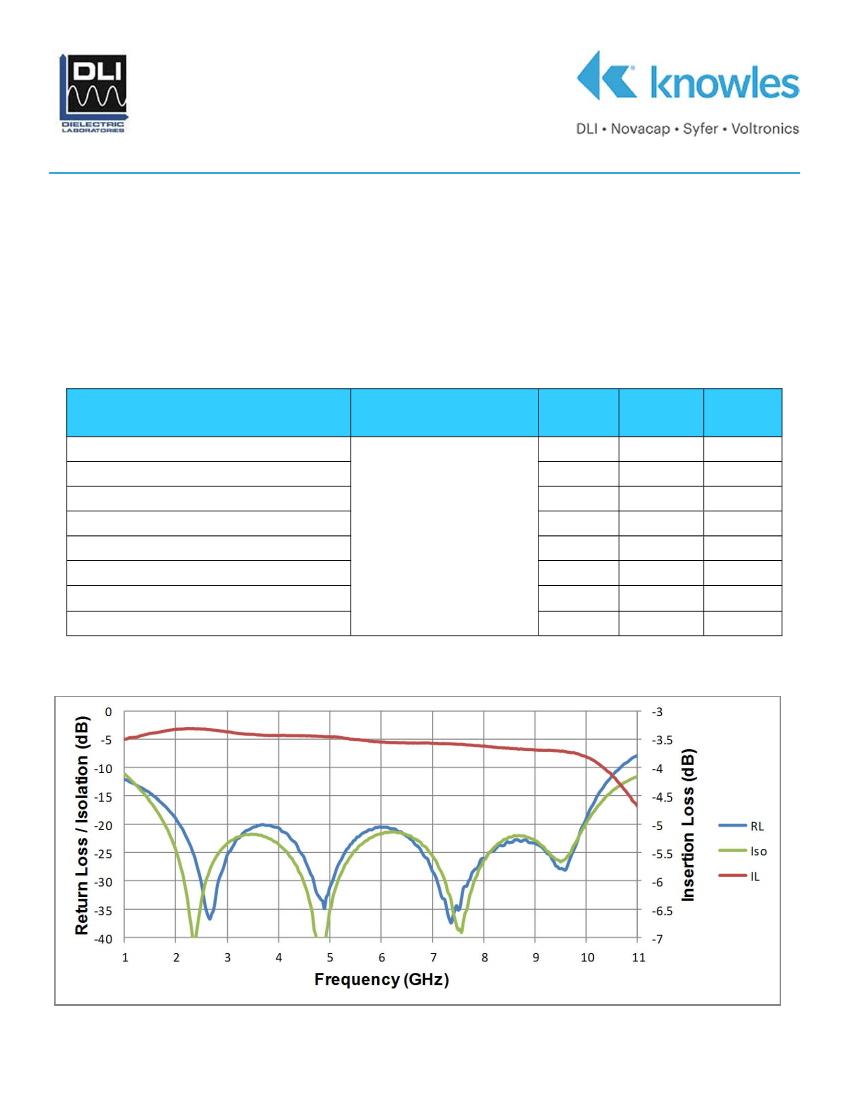

Typical Measured Performance
2777 Route 20 East, Cazenovia, NY 13035| Ph.: (315)655‐8710 | KCCSales@knowles.com

February 2015
