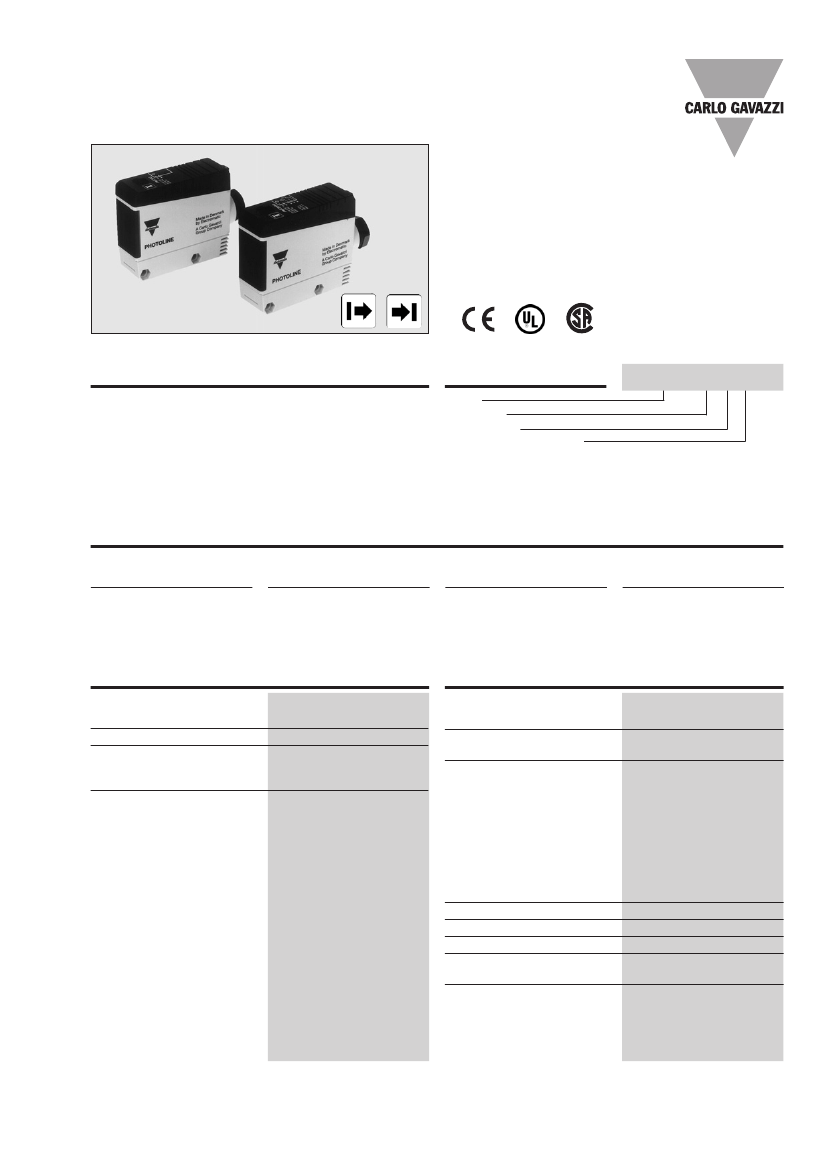

Photoelectrics
Through-beam
Type PMT
Range: 20 m
Adjustable sensitivity
Modulated, infrared light
Make or break switching function (switch selectable)
LED-indication for power supply ON (emitter)
and target detected (receiver)
• Multi supply voltage:
12 to 240 VDC and
24 to 240 VAC, 50/60 Hz
• 25 x 65 x 81 mm reinforced PC housing, IP 67
• Timer options (adjustable)
•
•
•
•
•
Product Description
Through-beam photoelectric
switch. Range up to 20 m.
Adjustable sensitivity. Immune
to ambient light. Precise de-
tection through narrow beam.
LED-indication. Output func-
tion switch selectable. Relay
output (NO/NC). Protection
degree IP 67. Screw terminal
connection. 25 x 65 x 81 mm
plastic housing. PG 13.5 or
1/2" NPT cable gland. Timer
options: Delay on operate,
delay on release, one shot
(triggered on leading or trail-
ing edge).
Ordering Key
Type
Receiver
Cable gland
Option: Timer function
PMT20 R G T
Type Selection
Housing
WxHxD
25 x 65 x 81
PG 13.5 cable gland
1/2" NPT cable gland
Ordering no.
Receiver without timer
PMT 20R G
PMT 20R I
Ordering no.
Receiver with timer
PMT 20R GT
PMT 20R IT
Ordering no.
Emitter
PMT 20 G
PMT 20 I
Specifications Emitter
Rated operational volt.
(U
B
)
AC: 45 to 65 Hz
Rated operational power
Light source
Light type
Optical angle
Indication
Power supply ON
10.8 to 264 VDC
21.6 to 264 VAC
≤
2 W (2.5 VA)
GaAIAs LED, 880 nm
Infrared, modulated
± 2°
LED, green
Specifications Receiver
Rated operational volt.
(U
B
)
AC: 45 to 65 Hz
Rated operational power
(Relay ON)
Output
Contact ratings (AgCdO)
Resistive loads
AC 1
DC 1
Small inductive loads AC 15
DC 13
Mechanical life
Electrical life
10.8 to 264 VDC
21.6 to 264 VAC
≤
2 W (2.5 VA)
µ (micro gap)
3 A/250 VAC
3 A/30 VDC
2 A/250 VAC
3 A/30 VDC
≥
40 x 10
6
operations
≥
5 x 10
5
operations
at 220 VAC - 3 A resistive
load: 360 impulses/h
2 kVAC (rms) (cont./supply)
Adjustable, single turn pot.
± 2°
20 m
20 Hz
≤
20 ms
≤
20 ms
Dielectric voltage
Sensitivity
Optical angle
Rated operating dist.
(S
n
)
(0 to 5,000 lux)
Operating frequency
(f)
Response time
OFF-ON (t
ON
)
ON-OFF (t
OFF
)
Specifications are subject to change without notice (02.03.2006)
1
PMT
Specifications Receiver (cont.)
Power ON delay
( t
v
)
Output function
Indication
Target detected (make swit.)
Target not detected (break swit.)
Optional timer
Delay on operate
Delay on release
One shot
≤
300 ms (typ. 100 ms)
Switch selectable, make or
break switching
LED, yellow
LED, yellow
0.1 to 7 s ± 2 s
0.1 to 7 s ± 2 s
0.1 to 7 s ± 2 s
Connection Diagram
Time adjustment
(optional)
Sensitivity
adjustment
LED
DIP switches
General Specifications
Environment
Overvoltage category
Pollution degree
Degree of protection
Temperature
Operating
Storage
Vibration
Shock
Rated insulation voltage
Housing material
Body
Front
Cover
Cable gland
Mounting bracket
Connection
Screw terminal
Cable gland
Weight
Emitter
Receiver
Approvals
CE-marking
III (IEC 60664/60664A,
60947-1)
3 (IEC 60664/60664A,
60947-1)
IP 67 (IEC 60529, 60947-1)
-25° to +55°C (-13° to +131°F)
-30° to +80°C (-22° to +176°F)
10 to 150 Hz, 0.5 mm/7.5 g
(IEC 60068-2-6)
2 x 1 m & 100 x 0.5 m
(IEC 60068-2-32)
250 VAC (rms)
PC, grey, reinforced
PC, black
PC, black
PA, black, reinforced
Steel, black
5 x 2 x 1 mm
2
PG 13.5 or 1/2" NPT
for cable 6 to 10 mm
110 g
115 g
UL, CSA
Yes
12 - 240 VDC
24 - 240 VAC
50/60 Hz
30 VDC
250 VAC
Max. 3 A
Selection of Function
Switch
1 2 3
PMT 20R .
1 Break switching
2 Make switching
PMT 20R .T
3 Delay on operate -
Break switching
4 Delay on operate -
Make switching
5 Delay on release -
Break switching
6 Delay on release -
Make switching
7 One shot, trailing edge -
Break switching
Truth Table
Make switching
Object present
LED
Load
Yes
OFF
Non-
active
No
ON
Active
Break switching
Yes
OFF
Active
No
ON
Non-
active
8 One shot, trailing edge -
Make switching
9 One shot, leading edge -
Break switching
10 One shot, leading edge -
Make switching
Don't care
Upper postion ON (Mode 1)
Lower position OFF (Mode 0)
2
Specifications are subject to change without notice (02.03.2006)
PMT

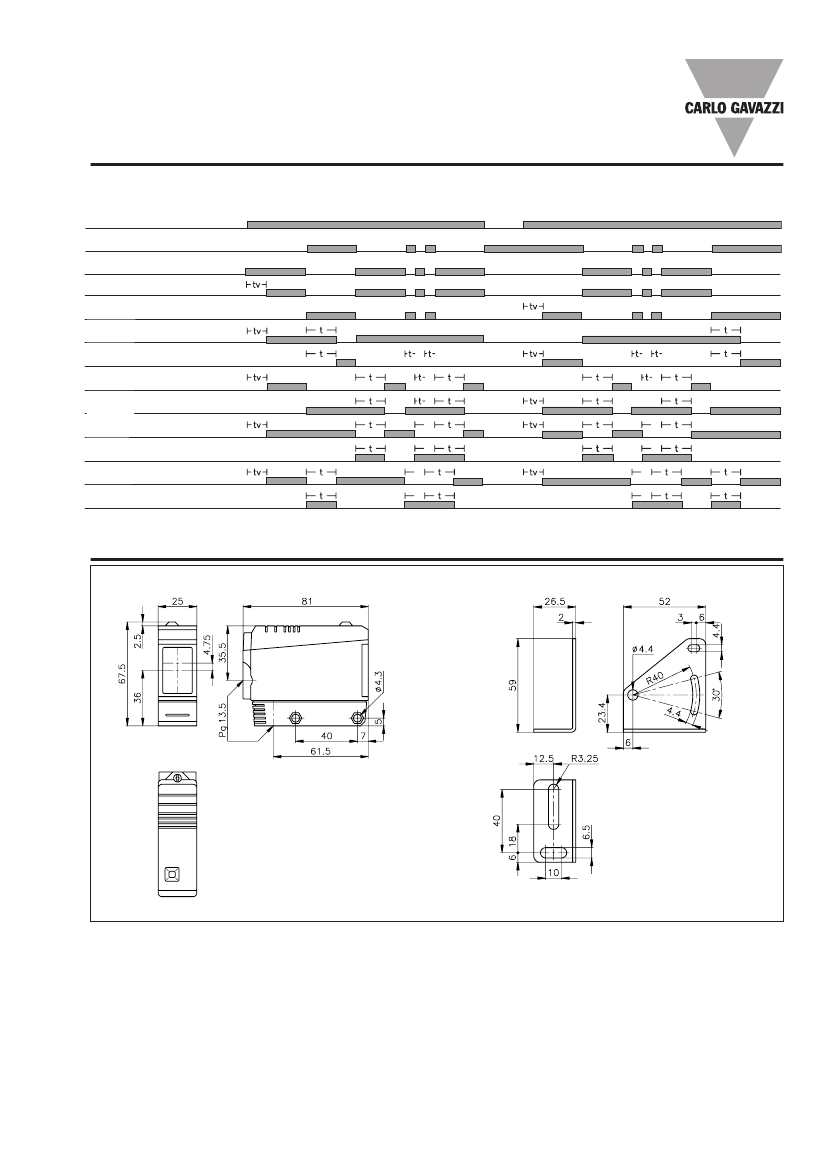

Operation Diagram
t = Time delay
tv = Power ON delay
Power supply
Target present
Object present
Func 1. Output ON
Func 2. Output ON
Func 3. Output ON
Func 4. Output ON
Func 5. Output ON
Func 6. Output ON
Func 7. Output ON
Func 8. Output ON
Func 9. Output ON
Func 10. Output ON
Dimensions
PMT 20
PMT 20 with angle bracket
or 1/2" NPT
Specifications are subject to change without notice (02.03.2006)
3
PMT
Installation Hints
To avoid interference from inductive voltage/
current peaks, separate the prox. switch pow-
er cables from any other power cables, e.g.
motor, contactor or solenoid cables
Relief of cable strain
Protection of the sensing face
Switch mounted on mobile carrier
Incorrect
Correct
The cable should not be pulled
A proximity switch should not serve as
mechanical stop
Any repetitive flexing of the
cable should be avoided
Delivery Contents
•
•
•
•
•
Photoelectric switch: PMT 20
Cable gland
Installation instruction
Mounting bracket
Packaging:
Corrugated cardboard (environmentally
friendly recycling material)
Accessories
•
MB02 (longer mounting bracket),
please refer to "Accessories"
4
Specifications are subject to change without notice (02.03.2006)
