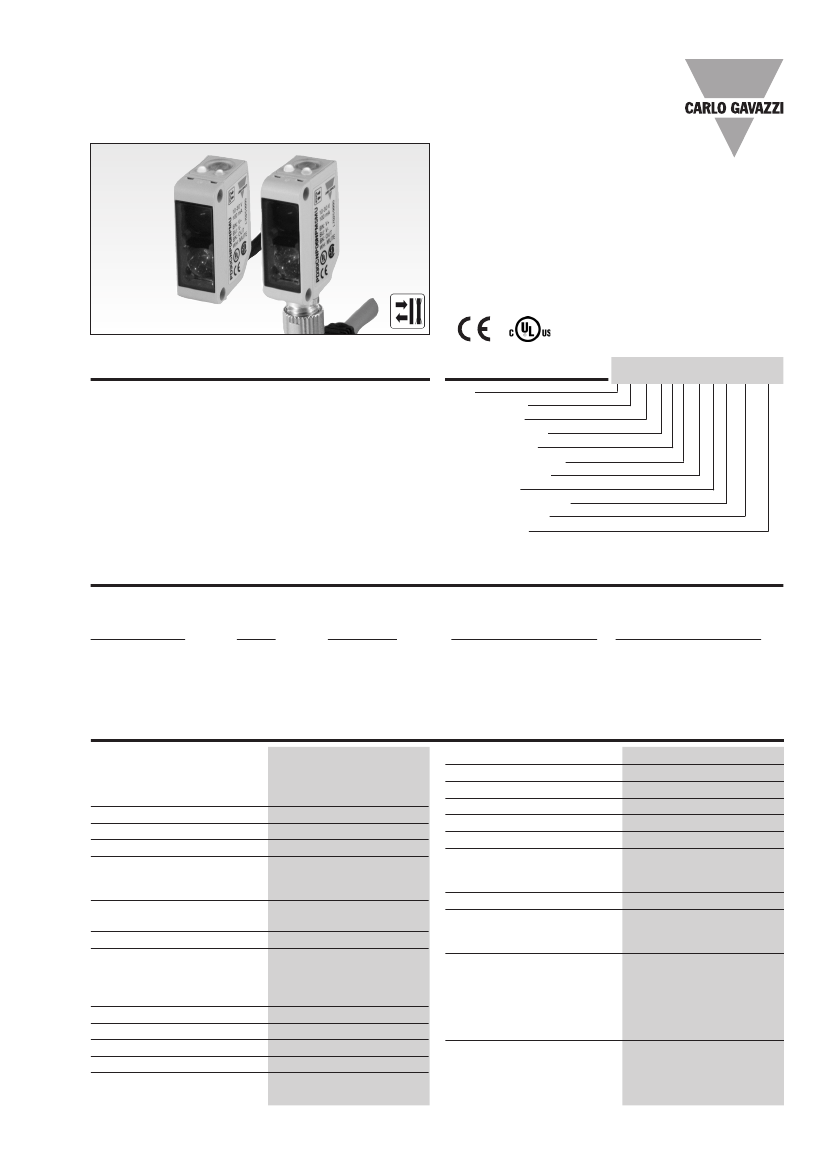

Photoelectrics
Diffuse-reflective, Background Suppression
Type PD30CNB15....RT
•
•
•
•
•
•
•
•
•
•
•
•
Miniature sensor range
Range: 150 mm
Sensitivity adjustment by Teach-In programming
Modulated, red light 660 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make or break switching function programmable
LED indication for output, stability and power ON
Protection: reverse polarity, short circuit and transients
Cable and plug versions
Excellent EMC performance
Remote teach features
Product Description
The PD30CNB15 sensor
family comes in a compact
10 x 30 x 20 mm reinforced
PMMA/ABS housing.
The sensors are useful in
applications where high-ac-
curacy detection as well as
small size is required.
Compact housing and high
power LED for excellent
performance-size ratio.
The Teach-In function for
adjustment of the sensitivi-
ty makes the sensors highly
flexible. The output type is
preset (NPN or PNP), and the
output switching function is
NO or NC output.
A remote teach feature allow
the sensor to be set up from
e.g. a PLC.
Ordering Key
Type
Housing style
Housing size
Housing material
Housing length
Detection principle
Sensing distance
Output type
Output configuration
Connection type
Remote teach
PD30CNB15PPM5RT
Type Selection
Housing
WxHxD
Range
S
n
Connection
Ordering no.
NPN
Make or break switching
PD 30 CNB 15 NPRT
PD 30 CNB 15 NPM5RT
Ordering no.
PNP
Make or break switching
PD 30 CNB 15 PPRT
PD 30 CNB 15 PPM5RT
10 x 30 x 20 mm
10 x 30 x 20 mm
150 m m
150 m m
Cable
Plug
Specifications
EN 60947-5-2
Light source
Light type
Sensing angle
Ambient light
Light spot
Operating frequency
Response time
OFF-ON (t
ON
)
ON-OFF (t
OFF
)
Power ON delay
(t
v
)
Output function
NPN and PNP
NO/NC switching function
Remote teach function
Teach on
Tamper proof
GaAlAs, LED, 660 nm
Red, modulated
± 2º
10,000 lux
110 mm @ 1.5 m
1000 Hz
≤ 0.5 ms
≤ 0.5 ms
≤ 400 ms
Preset
Set up by button
0 to 2.5 VDC (NPN)
5 to 30 VDC (PNP)
When activated more than
20 sec. the sensor goes into
a Tamper proof mode.
Rated operating distance
(S
n
) Up to 150 mm,
referece target Kodak test
card R27, white, 90%
reflective, 200 x 200 mm
Blind zone
30 mm
Sensitivity
Adjustable by Teach-In
Temperature drift
≤ 0.2%/ºC
Hysteresis
(H)
90% White
< 10%
18% Grey
< 15%
Rated operational volt.
(U
B
)
10 to 30 VDC
(ripple included)
Ripple
(U
rpp
)
≤ 10%
Output current
Continuous (I
e
)
≤ 100 mA
Short-time (I)
≤ 100 mA
(max. load capacity 100 nF)
No load supply current
(I
o
)
≤ 32 mA @ 24 VDC
Minimum operational current
(I
m
) 0.5 mA
OFF-state current
(I
r
)
≤ 100 µA
Voltage drop
(U
d
)
≤ 2.4 VDC @ 100 mA
Protection
Short-circuit, reverse polarity
and transients
Specifications are subject to change without notice (14.06.2016)
Indication
Output ON
LED, yellow
Signal stability ON and power ON LED, green
1
PD30CNB15....RT
Specifications (cont.)
Environment
Installation category
Pollution degree
Degree of protection
Ambient temperature
Operating
Storage
Vibration
Shock
III (IEC 60664/60664A;
60947-1)
3 (IEC 60664/60664A;
60947-1)
IP 67 (IEC 60529; 60947-1)
-25° to +55°C (-13° to +131°F)
-40° to +70°C (-40° to +158°F)
10 to 55 Hz, 0.5 mm/7.5 g
(IEC 60068-2-6)
30 g / 11ms, 3 pos, 3 neg
per axis
(IEC 60068-2-6, 60068-2-32)
Rated insulation voltage
Housing material
Body
Front material
Connection
Cable
Plug
Weight
CE-marking
Approvals
500 VAC (rms)
ABS
PMMA, red
PVC, black, 2 m
4 x 0.14 mm
2
, Ø = 3.3 mm
M8, 4-pin (CON. 54-series)
With cable: 40 g
With plug: 10 g
Yes
cULus (UL508)
Operation Diagram
tv = Power ON delay
Power supply
Object
Break Output (N.C.)
Make Output (N.O.)
ON
OFF
Present
Not Present
Tv
ON
OFF
ON
OFF
Operation Diagram
Tv
Wiring Diagrams
NPN
1 BN
2 WH
4 BK
3 BU
V (GND)
Remote teach input
active when connected
to GND
V
PNP
1 BN
4 BK
2 WH
3 BU
V
Remote teach
Remote teach
V (GND)
Remote teach input
active when connected
to V+
Detection Diagram
5
4
3
2
(mm)
1
0
-1
-2
-3
-4
-5
0
50
100
Sensing range (mm)
150
200
Sensing Conditions
30
25
% of sensing distance
20
15
10
90% / 90%
5
0
0
20
40
60
80
100
120
140
160
Distance (mm)
5% / 90%
Black on White
18% / 90%
Grey on White
90% / 90%
White on White
18% / 90%
5% / 90%
2
Specifications are subject to change without notice (14.06.2016)
PD30CNB15....RT

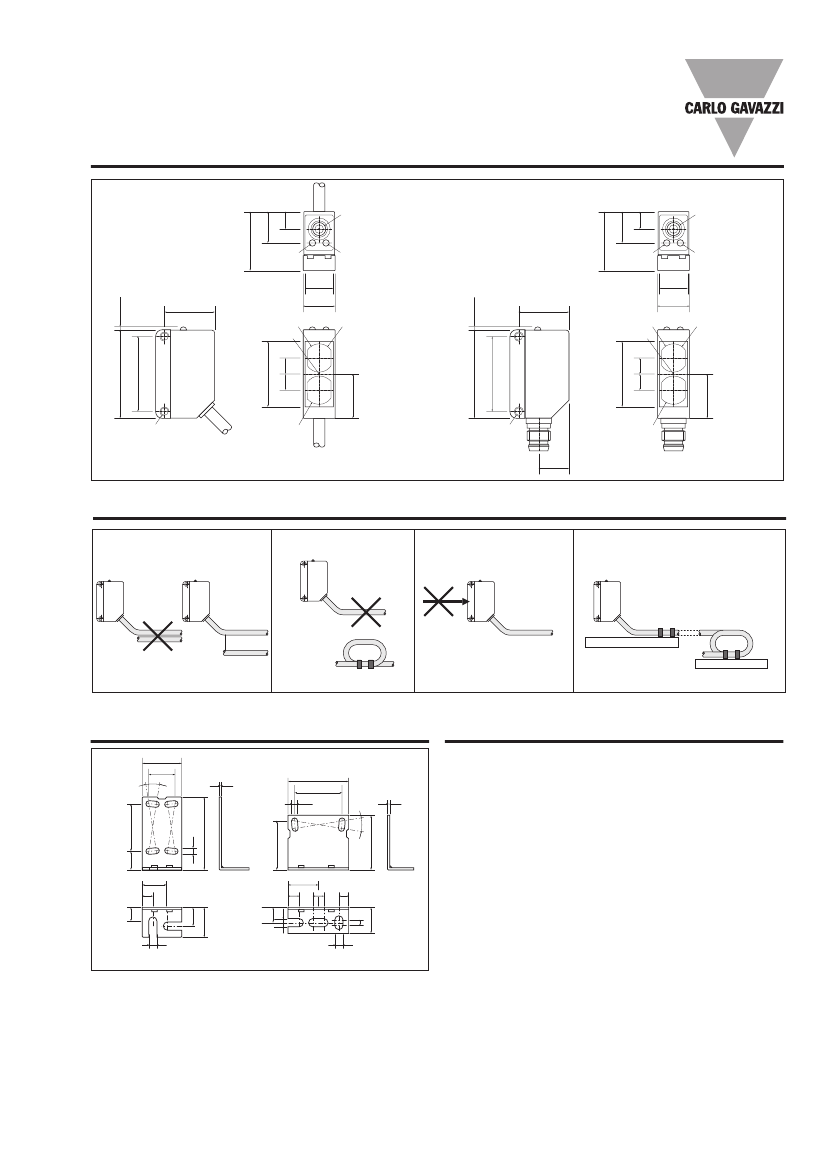

Dimensions
Cable version
Teach Button
6
10.6
20
20
10.6
6
Plug version
Teach Button
Output LED
Yellow
Power / Stability LED
Green
10.6
Output LED
Yellow
10.6
17
Receiver
Optical axis
10.8
Power / Stability LED
Green
PD30CNP
06NPM5T
10-30 V
100 mA
BN: V+
UL
BU: V-
BK: OUT
WH: ET
R
1.1
Receiver
Optical axis
Two, 9.5 dia.
Lenses
1.1
17
10.8
PD30CNP
06NPM5T
10-30 V
100 mA
BN: V+
UL
BU: V-
BK: OUT
WH: ET
R
Two, 9.5 dia.
Lenses
xxxxxxS
25.4
30
5.5 5.5
15
5.5 5.5
Incorrect
22
xxxxxxS
25.4
30
Correct
22
Two M3
Emitter
Two M3
> 100 mm
10.25
Emitter
Installation Hints
To avoid interference from inductive voltage / Relief of the cable strain
current peaks, separate the proximity switch
cables from any other power cables. E.g.
Engine, contactor or solenoid cables
Protection of the sensing face
Sensor mounted on a mobile carrier
Incorrect
Incorrect
Incorrect
Correct
Correct
> 100 mm
The cable should not be pulled
A proximity switch should not serve
as mechanical stop
Any repetitive flexing of the
cable should be avoided
Accessories
21.2
14
9°
1.2
3.2
32.4
25.4
1.2
Delivery Contents
•
•
•
•
Photoelectric switch: PD 30 CNB 15 ...
Installation instruction
Mountingbracket APD30-MB1
Packaging:
Cardboard box
25.4
39
10
13.5
5.7
26,3
16.2
6.0
6.0
5.2
7.3
10
16
8.2
4.4
4.4
4.4
Mounting bracket: APD30-MB1
Mounting bracket: APD30-MB2
•
Mounting bracket APD30-MB2 to be purchased seperately
•
Connector type CONG 5A../CON. 54NF.. series.
14
3
29.3
3.2
9°
15
Specifications are subject to change without notice (14.06.2016)
3
PD30CNB15....RT

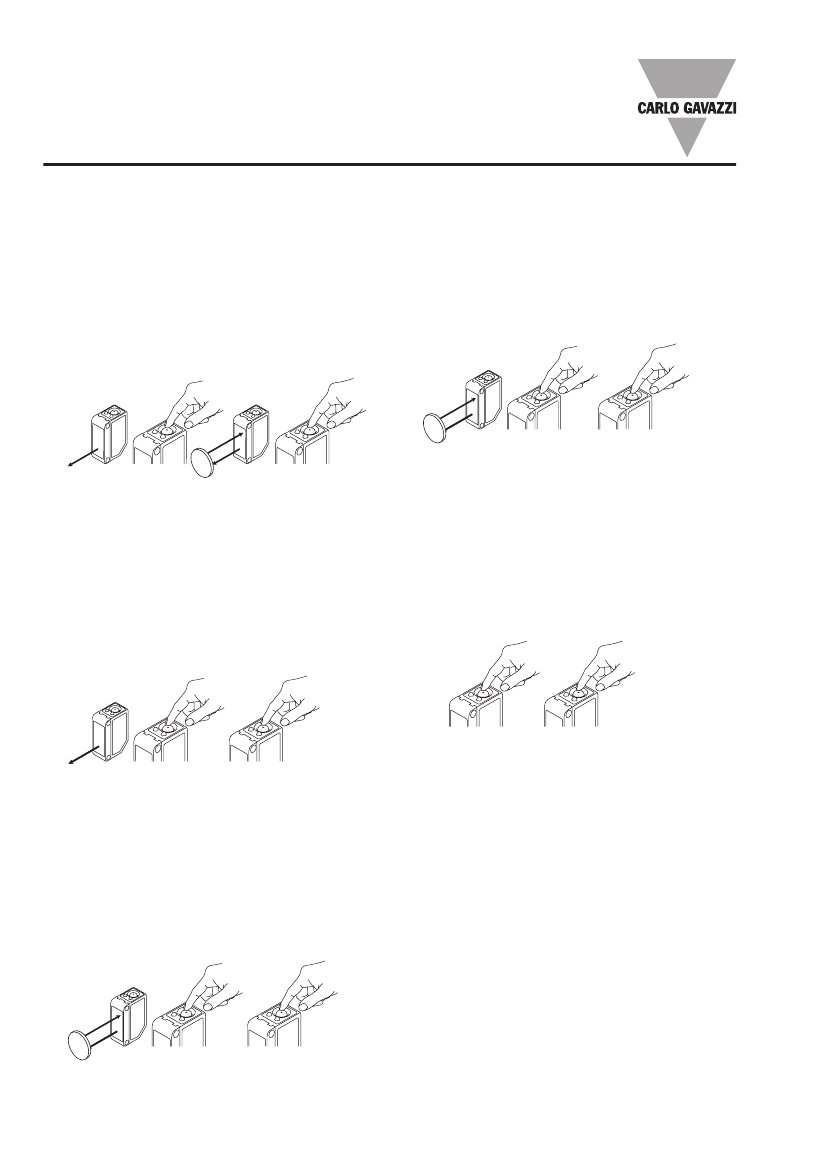

Teach functions
Normal operation, optimized switching point.
1.
Line up the sensor at the background. Yellow LED is
not important and Green LED is ON.
2.
Press the button for 3 seconds until both LEDs
flashes simultaneously.
(The first switch point is stored)
3.
Place the object in the detection zone.
4.
Press the button once and the sensor is ready to
operate (Green LED ON, Yellow LED ON)
(The second switch point is stored)
a) if the object is to close to the background the
sensor will teach both background and object as
object.
For dynamic set-up (running process)
1.
Line up the sensor at the object. Green LED is ON,
status on the yellow LED is not important.
2.
Press the button for 3 second until both LEDs
flashes simultaneously.
3.
Press the button a second time for at least one
second, both LED’s flashes fast siultainiously and
keep the button pressed for at least one process
cycle, release the button and the sensor is ready
to operate (The second switch point is stored)
1
2
3
1
2
3
4
3 sec.
3 sec.
Push once
One cycle
For maximum sensing distance
(default setting)
1.
Line up the sensor without a background. Yellow LED
is not important and Green LED is ON.
2.
Press the button for 3 seconds until both LEDs
flashes simultaneously.
(The first switch point is stored)
3.
Press the button a second time and the sensor is
ready to operate (Green LED ON, Yellow LED ON)
(The second switch point is stored)
For make or break set-up (N.O. or N.C.)
1.
Press the button for 10 seconds, until the green
LEDs flashes.
2.
While the green LED flashes, the output is inverted
each time the button is pressed. Yellow LED indi-
cates N.O. function selected.
If the button is not pressed within the next 10
seconds, the current output is stored.
1
2
1
2
3
10 sec.
3 sec.
Push once
Push once
For minimum sensing distance
1.
Line up the sensor at the object. Yellow LED is not
important and Green LED is ON.
2.
Press the button for 3 seconds until both LEDs
flashes simultaneously.
(The first switch point is stored)
3.
Press the button a second time and the sensor is
ready to operate(Green LED ON, Yellow LED ON)
(The second switch point is stored)
1
2
3
3 sec.
Push once
4
Specifications are subject to change without notice (14.06.2016)
