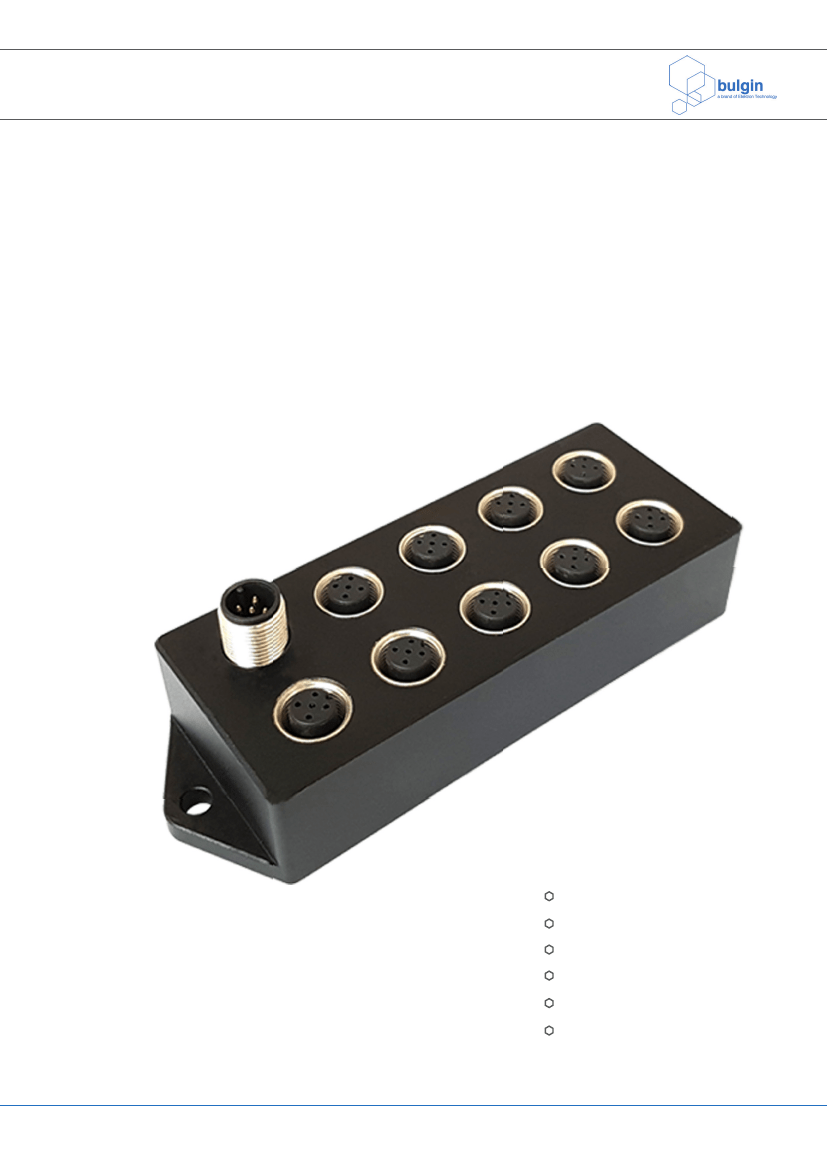

BUCCANEER
M-Series - Distribution Unit
Passive distribution boxes provide a
convenient
and
compact
connectivity solution
that can be installed quickly and easily in
the field. They offer considerable
cost saving benefits
when
compared to hard-wiring I/O connections due to their pre-wired
connector slot configurations which enables numerous
sensor
and
actuator signals
to be transmitted back to a control system
with ease.
Key features:
Anodised Aluminium housing
M12 inputs M8 outputs
Available with or without LED indicators
IP67 rated
5, 8, and 9 port configurations
Operating Temp Range -25°C to 80°C
Power Distribution
BUCCANEER
M-Series - Distribution Unit
Bulgin’s passive distribution boxes feature industry standard
M12 and M8 I/O connection ports. With a compact design
and robust aluminium housing that is IP67 sealed and fully
potted; these distribution units offer high performance and
protection against elements such as moisture, liquids and
dirt in environmentally challenging applications.
The Benefits:
Save Time
With the need to hard wire I/O connections removed and variants
coming equipped with identification labels and integrated LEDs,
Bulgin’s distribution boxes help to save on costs associated with
installation, maintenance and repair time by making it easy and
quick to troubleshoot connection faults.
Save Space
Distribution boxes save space in the field as they require less
space than more conventional distribution systems due to their
compact design. They take up far less space than loose wires
and require fewer terminal blocks/boxes, making them the ideal
solution for many machine requirements or automation systems.
Save Money
By simplifying the wiring control system and eliminating the need
for additional enclosures, distributor boxes can be installed quickly
which saves time and costs. Their ability to reduce troubleshooting
time also means that downtime can be significantly minimised
in manufacturing, food-processing and industrial automation
applications.
Power Distribution
BUCCANEER
M-Series Power Distribution
○ 5 outputs
○ Sealed using sealing caps
○ Anodised aluminium body
○ Mates with Flex Body and
Flex Inline connectors

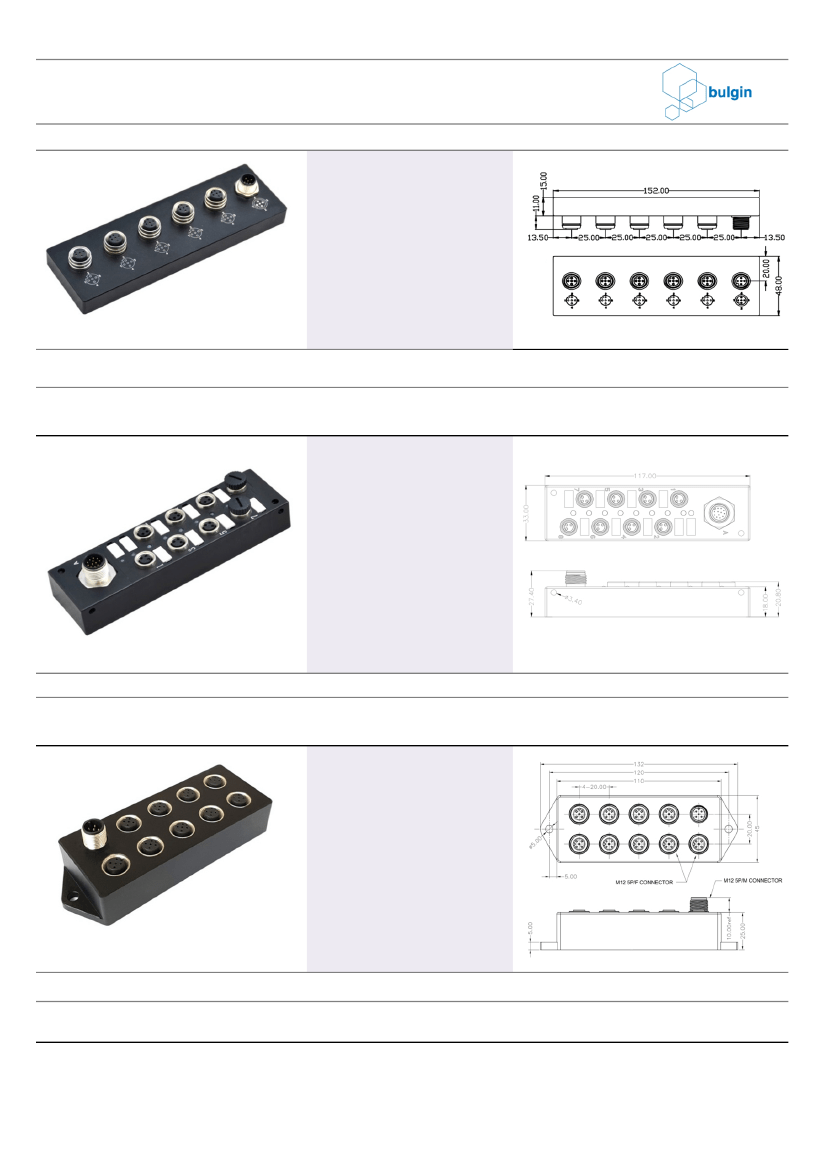

BOX1M1205MA05
Part Number
BOX1M1205MA05M805F
Input Type Input Pole Count
Output Type
Output Pole Count
Output Ports
M12
5 Contacts
○ 8 outputs
M8
5 Contacts
5 Ports
○ Sealed using sealing caps
○ Anodised aluminium body
○ Mates with Flex Body and
Flex Inline connectors
BOX1M1212MA08
Part Number
BOX1M1212MA08M803F
Input Type Input Pole Count
Output Type
Output Pole Count
Output Ports
M12
12 Contacts
M8
3 Contacts
8 Ports
○ 9 outputs
○ Sealed using sealing caps
○ Anodised aluminium body
○ Mates with Flex Body and
Flex Inline connectors
BOX1M1205MA09
Part Number
BOX1M1205MA09M805F
Input Type Input Pole Count
Output Type
Output Pole Count
Output Ports
M12
5 Contacts
M8
5 Contacts
9 Ports
Power Distribution
1
BUCCANEER
M-Series Power Distribution
Specifications:
Locking mechanism
Sealing
Screw coupling
IP67
Operating Temp Range -25°C to 80°C
Materials:
Body
Colour
Pin Contacts
Socket Contacts
RoHS
Box & Panel Mount
Anodised Aluminium
Black
Brass, Gold plating
Phosphor Bronze, Gold plating
Compliant

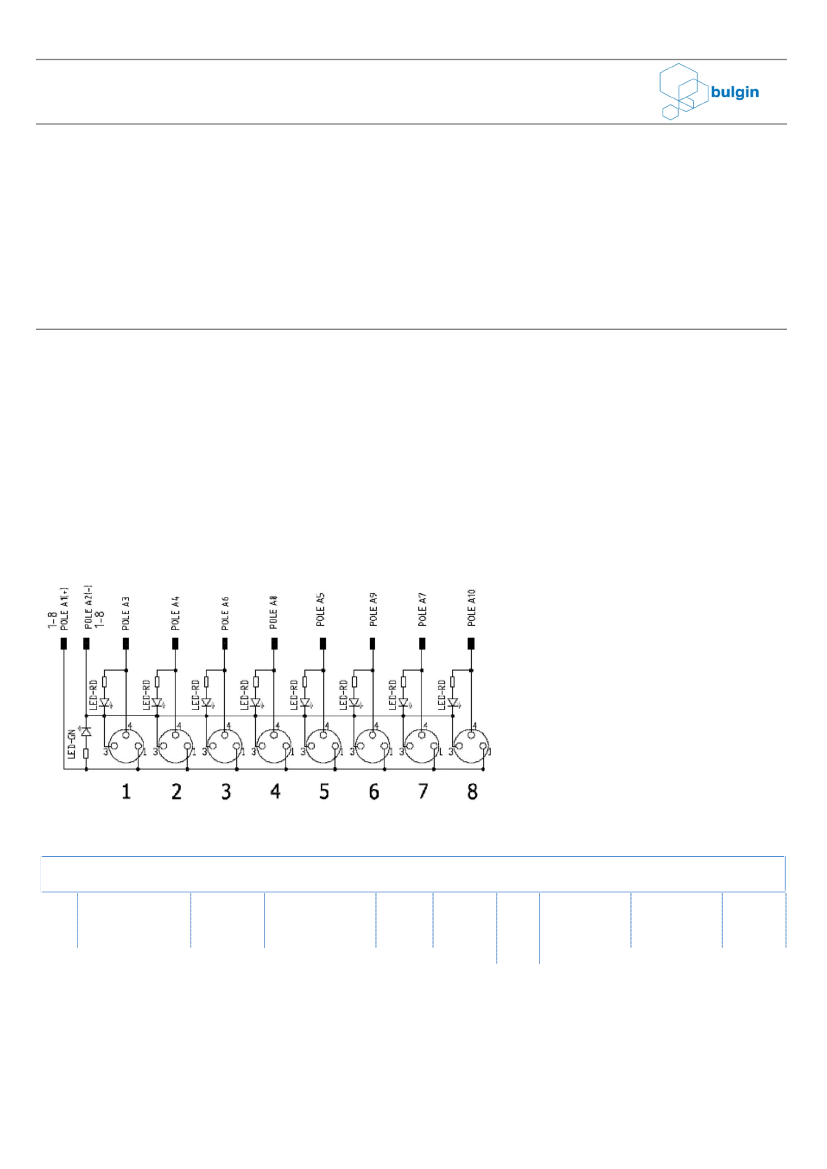

Wiring diagram for BOX1M1212MA08M803F
BOX
Series
BOX
X
Inputs
1
XX
Input Series
M12
XX
Input Poles
05
12
X
Orientation
M
X
Code
A
XX
Outputs
05
08
09
XX
Output Series
M8
XX
Output Poles
03
05
X
Orientation
F
Power Distribution
2
