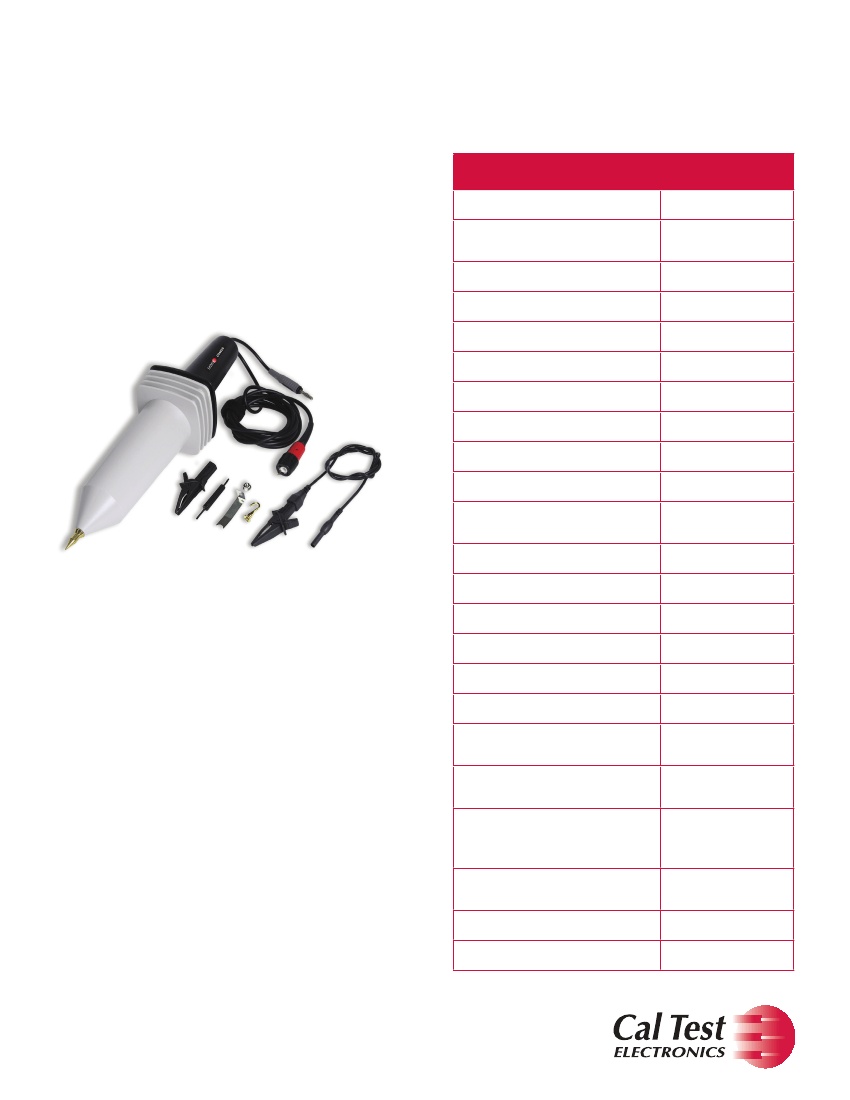

CT4025
10 kV High
Voltage Probe
Datasheet
Specifications
Operating Parameters
Maximum Input Voltage
(CAT I)
Maximum Loading Current
Division Ratio
Bandwidth
Compensation Range
Temperature Coefficient
Input Resistance
Input Capacitance
Rise Time
Signal/Noise
10 kV (DC + ACpk)
7 kVrms AC
100 µA
100:1
DC to 120 MHz
10 pF to 35 pF
≤200 ppm/ºC
100 MΩ
2.0 pF
3.0 ns
>60 dB @ 1 KHz
>50 dB @1 MHz
Accuracy
DC Volts
AC Volts
≤3%
≤3% at 1 kHz
General
Cable Length
6.6 ft (2 m)
Pollution Degree 2
14ºF to 131ºF
(-10ºC to 55ºC)
-4ºF to 158ºF
(-20ºC to 70ºC)
≤85% relative
humidity at 95ºF
(35ºC)
3.1 x 3.1 x 12.6 in
(8 x 8 x 32 cm)
1.0 lbs (460 g)
One-year warranty
Overview:
The Cal Test Electronics CT4025 is a 10 kV high
voltage divider probe for use with both digital and
analog oscilloscopes.
Designed for Use in
Operating Environment
Storage Temperature
Humidity
Dimensions
Weight
Warranty
Features:
■■
■■
■■
■■
Input voltage of 10 kV (DC+ACpk)
120 MHz bandwidth
Voltage dividing of 100:1
Frequency compensation
Technical data subject to change.
© Cal Test Electronics 2017.
caltestelectronics.com
