FG7-02.GC220.04 datasheet, PDF

Datasheet> All Categories > accessories> FG7-02.GC220.04

FG7-02.GC220.04: DescriptionFUNCTIONAL HANDLE ALUMINUM/ NYLO; Categoryaccessories; File Size434KB，2 Pages; ManufacturerDavies Molding

Download Datasheet Parametric View All

FG7-02.GC220.04 Overview

FUNCTIONAL HANDLE ALUMINUM/ NYLO

FG7-02.GC220.04 Parametric

Parameter Name	Attribute value
type	Drawer type
high	-
Length - center to center	8.661"（220.00mm）
Thread/screw/hole size	M6
Material	aluminum
Installation type	screw holes, back

Preview

Download Datasheet

View All

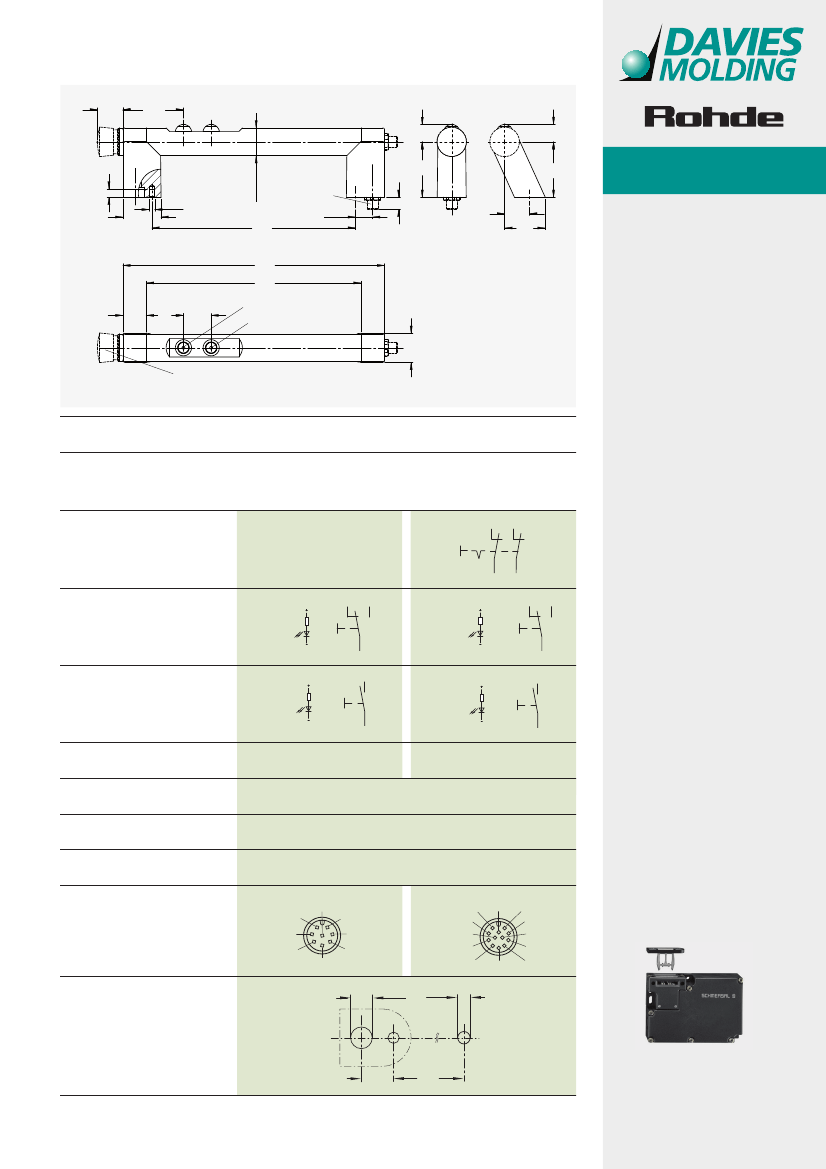

Connection

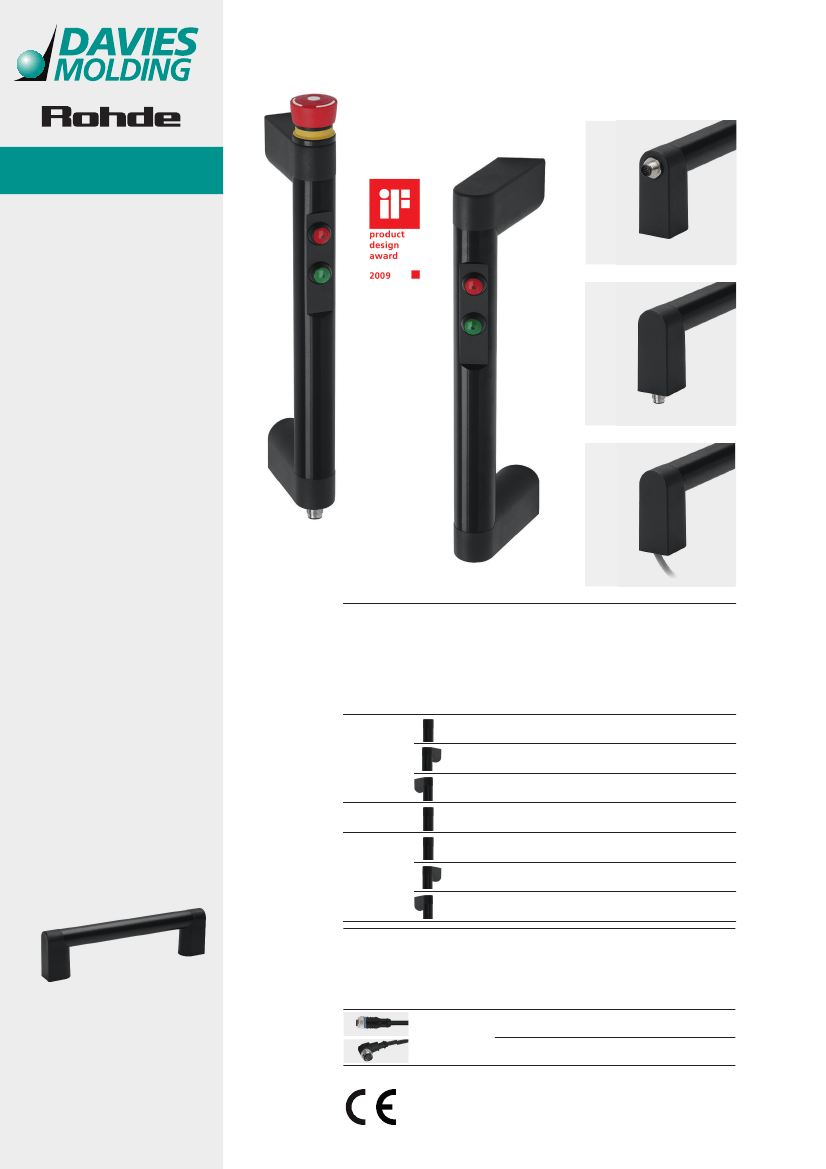

Typ FG7-02.L

Handle Series FG7

Material and surface:

Handle ledge ø 30 x 5 mm

aluminium round tube

AlMgSi 0.5; fine ground and

black anodized. Handle shanks

of polyamide PA 6, black with

fine structure.

Function elements:

2 Push buttons up to 1A with

LED. Type FG7-05 with addi-

tional emergency stop (2 NC

contacts).

Connection A:

Coupling positioned at the

tubular axle of the handle

ledge in the handle shank.

Connection B:

Coupling positioned in the

mounting surface of the handle

shank.

Connection C:

The 5 m connection cable is

guided out of the mounting

surface of the handle shank.

The connection A and C are

available with straight and

chamfer handle shanks, as left

and right-hand versions for use

with double doors.

Protection class:

IP 65 (for the connecting A and

B with screwed coupling).

Note:

Coupling with 10 m ready made

cable available as accessories.

Other handle lengths, anodized

versions and illuminated emer-

gency stop button on request.

Typ FG7-05.G

with emergency stop

Switching version

without emergency

stop, 2 push button

Connecting

straight

left

right

straight

left

right

Order no.

FG7-02.GA220.04

FG7-02.LA220.04

FG7-02.RA220.04

FG7-02.GB220.04

FG7-02.GC220.04

FG7-02.LC220.04

FG7-02.RC220.04

8-pole

(M12 x 1)

with emergency

stop, 2 push button

Order no.

FG7-05.GA220.04

FG7-05.LA220.04

FG7-05.RA220.04

FG7-05.GB220.04

FG7-05.GC220.04

FG7-05.LC220.04

FG7-05.RC220.04

12-pole

(M12 x 1)

Bestell-Nr.

Order no.

FZ-KS.G12.10

FZ-KS.W12.10

U7-30.G

Counter-handle without electri-

cal function elements s. p. 41.

10 m

Bestell-Nr.

Order no.

FZ-KS.G08.10

FZ-KS.W08.10

www.daviesmolding.com
