NOTES, UNLESS OTHERWISE SPECIFIED:
SPECIFICATIONS:
PANDUIT TOOL NO: CT-1160 and CT-1170
•
CT-1160 Controlled Cycle Ferrule Crimp Tool
Crimps ferrule with Hexagon profile for 28-5 AWG (0,08 - 16 mm2) insulated and
non-insulated single wire ferrules and 23-10 AWG (2 x 0.25mm2 - 2x 6mm2)
insulated twin ferrules. CT-1160 uses a grey locator as identifier for hex profile
terminations.
•
CT-1170 Controlled Cycle Ferrule Crimp Tool
Crimps ferrule with Square profile for 28-5 AWG (0,08 - 16 mm2) insulated and
non-insulated single wire ferrules and 23-10 AWG (2 x 0.25mm2 - 2x 6mm2)
insulated twin ferrules. CT-1170 uses a black locator as identifier for square
profile terminations.
TOOL WEIGHT: (WITHOUT FERRULES) 17.6 oz (0,50kg)
THIS TOOL’S FEATURES INCLUDE:
•
Easy handling
•
Integrated, releasable ratchet guarantees complete crimping
•
Ergonomically developed soft-grips with slip-off protection
•
Integral (and reversible) ferrule locator for easy crimping
Fully recyclable
RoHS Directive 2011/65/EU compliant

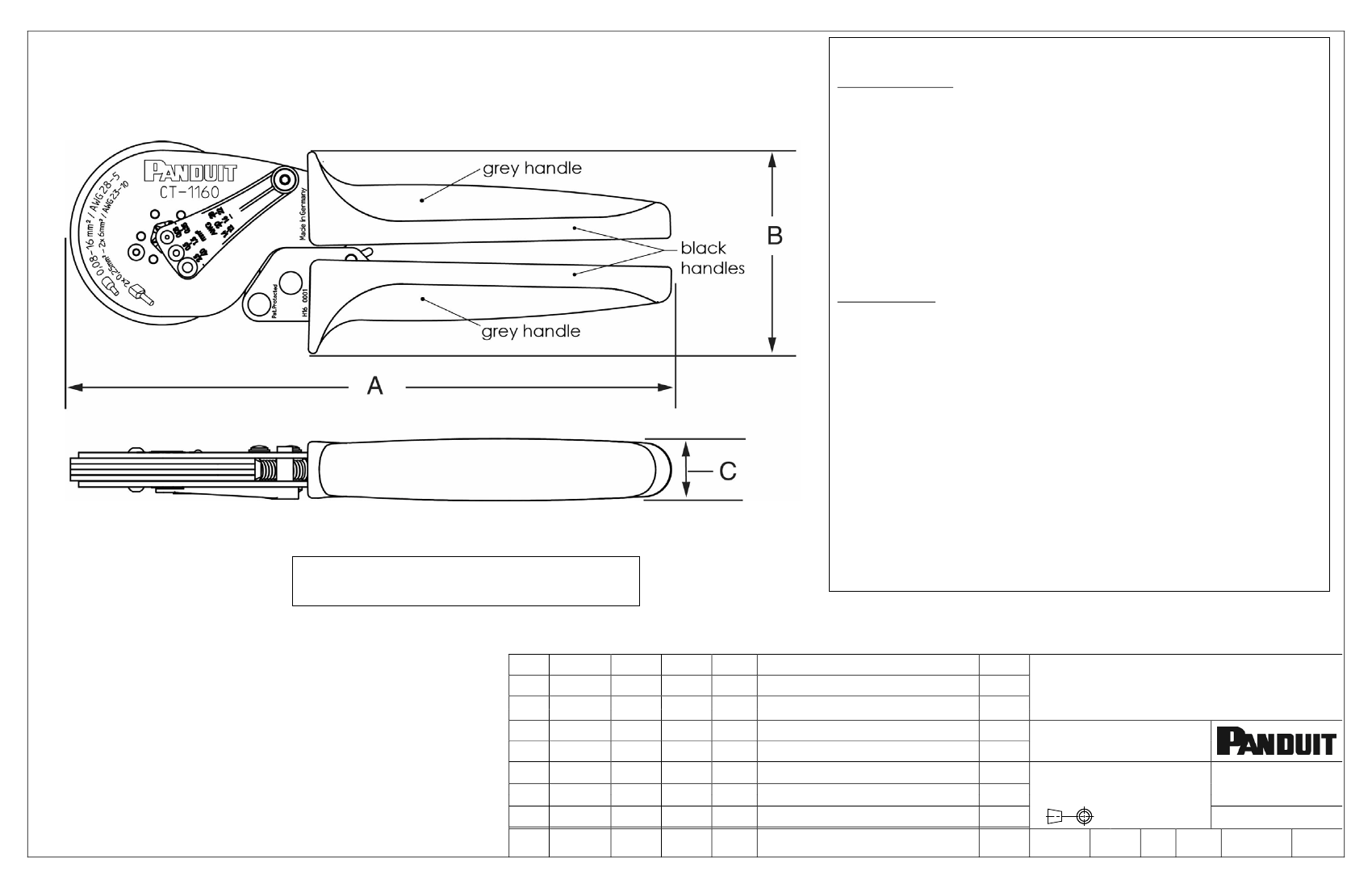

DIMENSIONS SHOWN ARE FOR BOTH THE CT-1160 and CT-1170 TOOLS;
AND ARE FOR REFERENCE ONLY.
DIMENSIONS IN PARENTHESES ARE (MM) METRIC.
A = 8.50
B = 2.95
C = 0.75
(215) OVERALL LENGTH
(75) OVERALL HEIGHT
(19) OVERALL DEPTH
CT-1160 TOOL SHOWN
