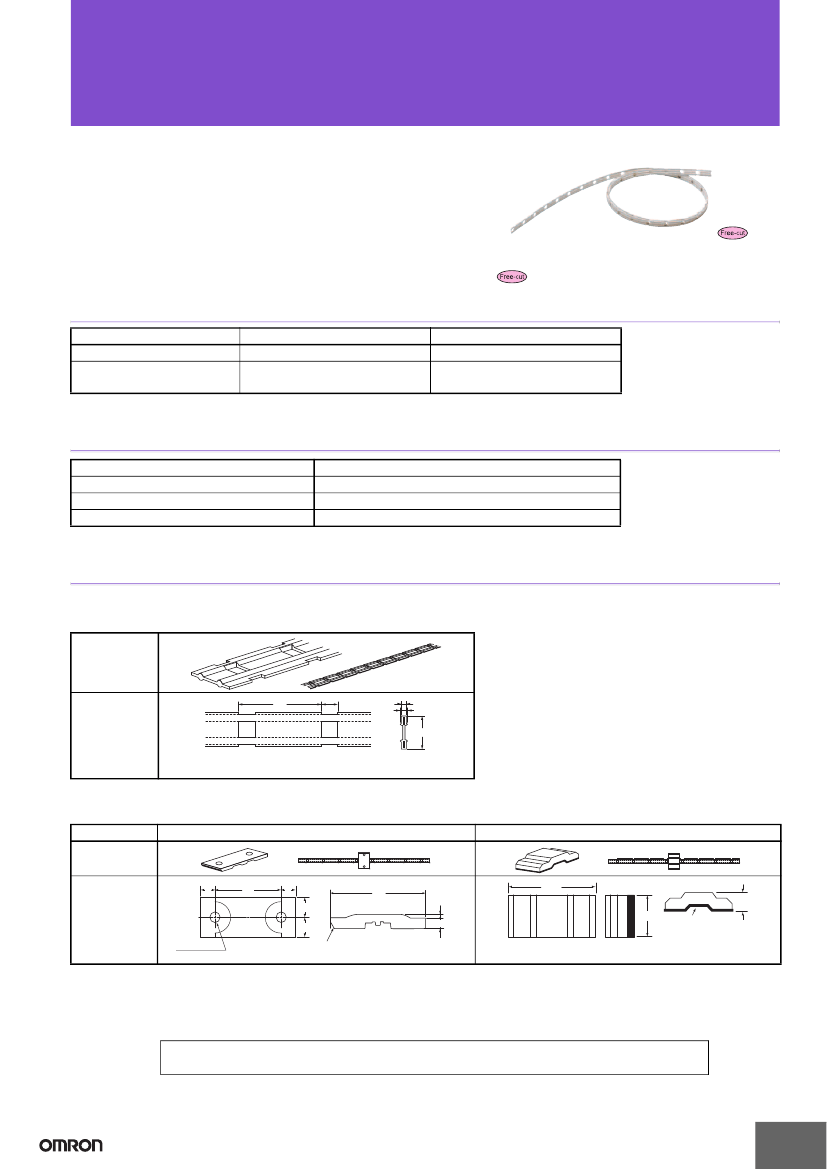

Sensing Band
F03-16PE
CSM_F03-16PE_DS_E_1_5
• SUS316 used for core and polyethylene used for sheath to en-
sure high resistance to both acidic and alkaline liquids.
• Sensing Band Stickers that use the same material as the Sens-
ing Band’s insulating resin are available in 2 types: adhesive-
tape type and screw type.
Indicates models that allow free cutting.
Ordering Information
Name
Liquid Leakage Sensing Band
Sensing Band Stickers
F03-16PE
F03-26PES
F03-26PEN
Model number
---
30 Stickers per set
30 Stickers per set
Remarks
Specifications
Sheath
Core
Ambient operating temperature
Weight
Polyethylene
SUS316 stainless steel
−10
to 55°C
Approx. 16 g (1 m)
Dimensions
(Unit: mm)
■
Sensing Band
Appearance
Structure
20
4
1.2
1.7
8
Materials: Electrodes: SUS316 stainless steel,
Sheath: Polyethylene
■
Sensing Band Stickers
F03-26PEN (screws)
Appearance
Structure
F03-26PES (adhesive tape)
5
22
5
6.5
6.5
32
1.0
3.0
Cut section
Material: Polyethylene
19.2
5
12
Adhesive tape
(See note.)
Material: Polyethylene
Two, 3.5 dia.
Note:
The shape of the adhesive tape shown above is for securing the F03-16PE.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
