0039318024

Description
CONN HEADER 2POS .312" TIN
CategoryThe connector
File Size55KB,1 Pages
ManufacturerMolex Premise Network
Environmental Compliance

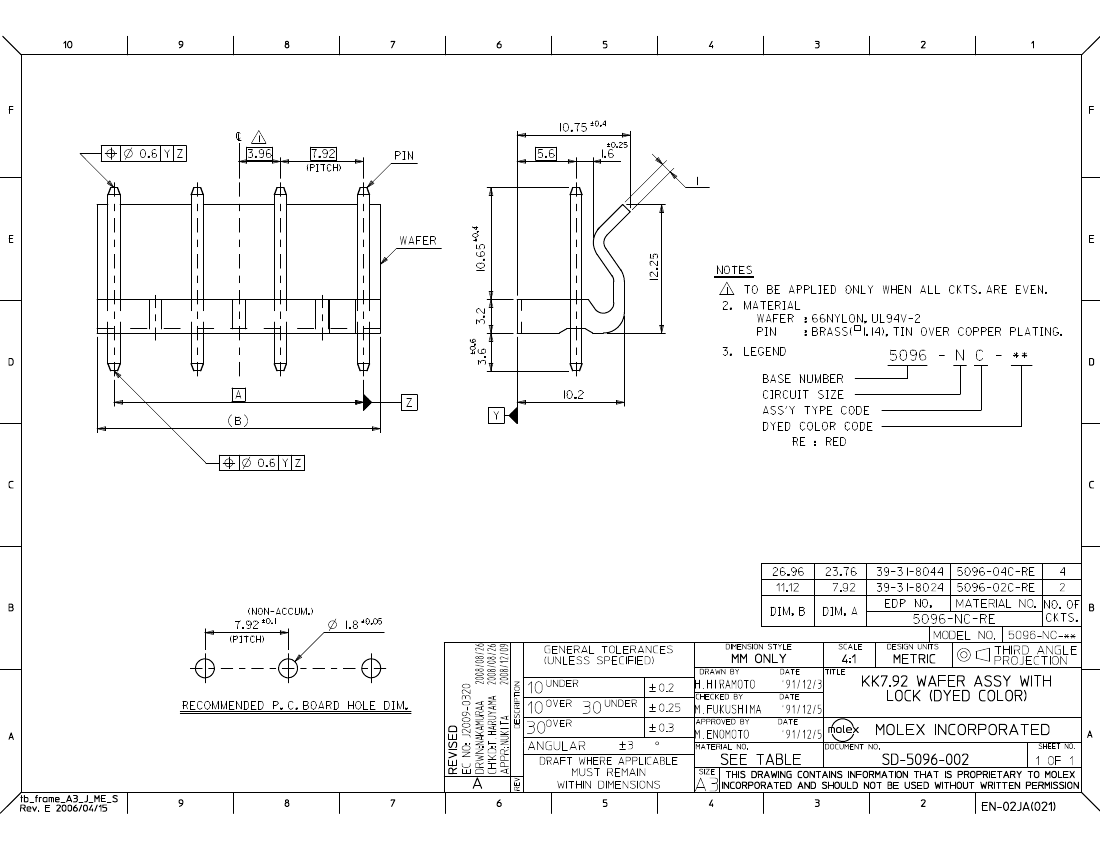

Download Datasheet Parametric Compare View All

0039318024 Overview

CONN HEADER 2POS .312" TIN

0039318024 Parametric

Parameter NameAttribute value
Connector typeConnector
Contact typeMale pin
Spacing - Mating0.312"(7.92mm)
Number of pins2
Number of rows1
Line spacing - patching-
Number of pins loadedall
styleBoard to cable/wire
shieldCovered - 1 wall
Installation typeThrough hole
Terminationwelding
Fastening typefriction lock
Contact Length - Mating0.419"(10.65mm)
Contact length - terminal0.142"(3.60mm)
Overall contact length0.687"(17.45mm)
Insulation height0.482"(12.25mm)
Contact shapeSquare
Contact surface treatment - matingtin
Contact Surface Treatment Thickness - Mating-
Contact Surface Preparation - Columntin
Contact materialbrass
Insulation MaterialsPolyamide (PA66), Nylon 66
characteristic-
Operating temperature-
Intrusion protection-
Material flammability ratingUL94 V-2
Insulation colorred
Rated current-
Rated voltage-
Joint stack height-
Contact Surface Treatment Thickness - Column-
application-

0039318024 Related Products

0039318024
Description CONN HEADER 2POS .312" TIN
Connector type Connector
Contact type Male pin
Spacing - Mating 0.312"(7.92mm)
Number of pins 2
Number of rows 1
Number of pins loaded all
style Board to cable/wire
shield Covered - 1 wall
Installation type Through hole
Termination welding
Fastening type friction lock
Contact Length - Mating 0.419"(10.65mm)
Contact length - terminal 0.142"(3.60mm)
Overall contact length 0.687"(17.45mm)
Insulation height 0.482"(12.25mm)
Contact shape Square
Contact surface treatment - mating tin
Contact Surface Preparation - Column tin
Contact material brass
Insulation Materials Polyamide (PA66), Nylon 66
Material flammability rating UL94 V-2
Insulation color red
