DV74AC10D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> DV74AC10D

DV74AC10D: DescriptionNAND Gate, AC Series, 3-Func, 3-Input, CMOS, PDSO14, PLASTIC, SOP-14; Categorylogic; File Size155KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74AC10D Overview

NAND Gate, AC Series, 3-Func, 3-Input, CMOS, PDSO14, PLASTIC, SOP-14

DV74AC10D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-14
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
series	AC
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

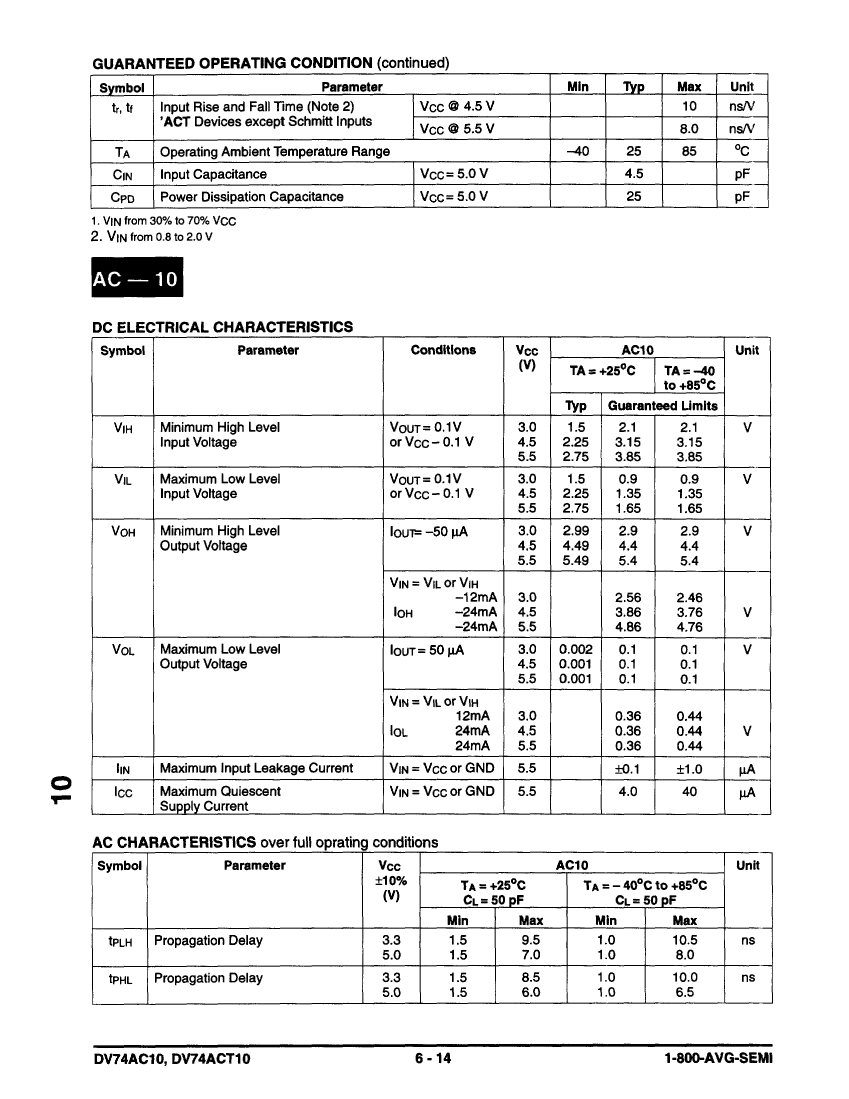

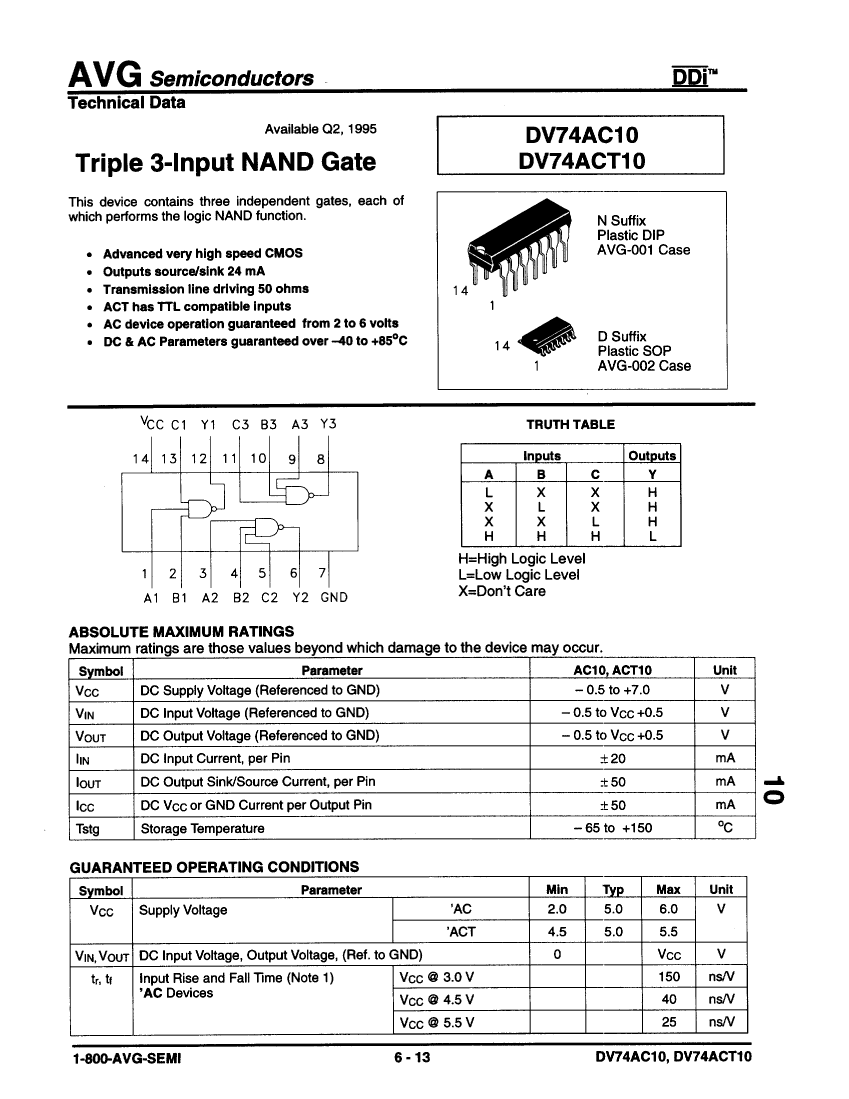

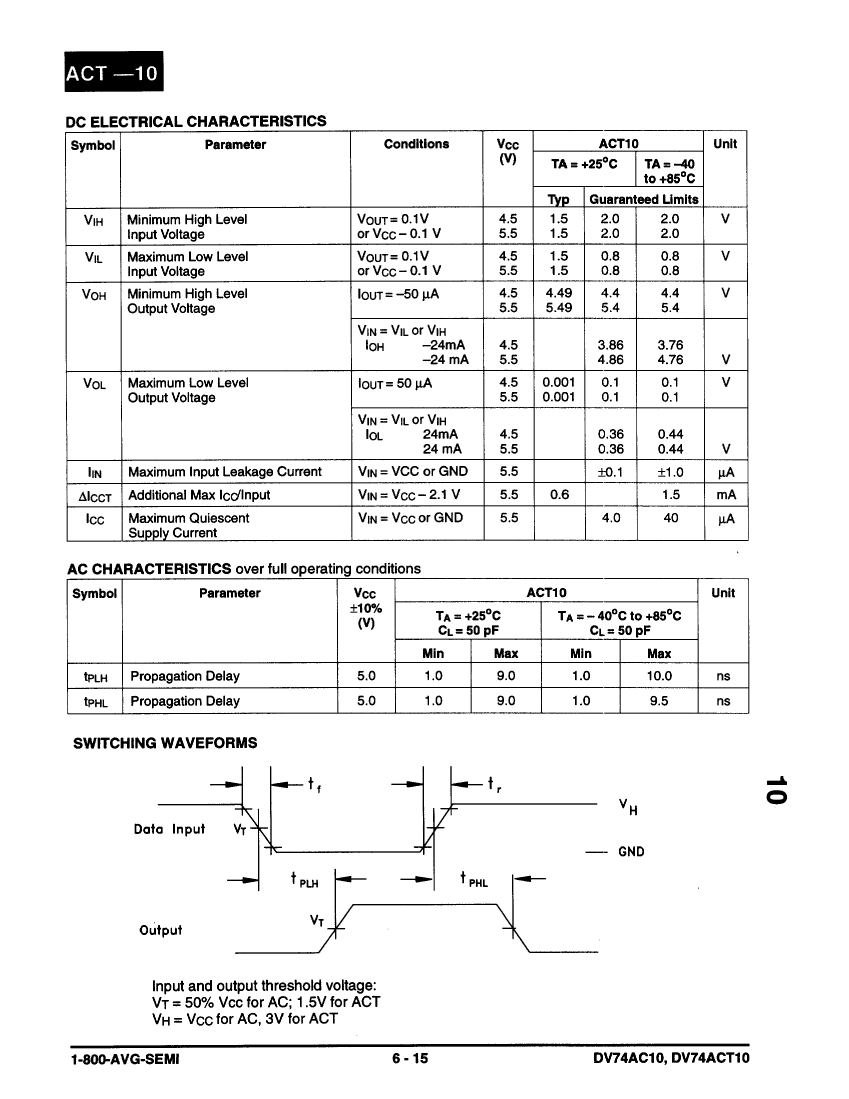

Preview

Download Datasheet

View All

DV74AC10D Related Products

	DV74AC10D	DV74AC10N	DV74ACT10N	320820768
Description	NAND Gate, AC Series, 3-Func, 3-Input, CMOS, PDSO14, PLASTIC, SOP-14	NAND Gate, AC Series, 3-Func, 3-Input, CMOS, PDIP14, PLASTIC, DIP-14	NAND Gate, ACT Series, 3-Func, 3-Input, CMOS, PDIP14, PLASTIC, DIP-14	Induktive Sensoren
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	-
Parts packaging code	SOIC	DIP	DIP	-
package instruction	PLASTIC, SOP-14	DIP,	DIP,	-
Contacts	14	14	14	-
Reach Compliance Code	unknown	unknown	unknown	-
series	AC	AC	ACT	-
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14	-
length	8.65 mm	18.86 mm	18.86 mm	-
Load capacitance (CL)	50 pF	50 pF	50 pF	-
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	-
Number of functions	3	3	3	-
Number of entries	3	3	3	-
Number of terminals	14	14	14	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SOP	DIP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	-
propagation delay (tpd)	10.5 ns	10.5 ns	10 ns	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	1.75 mm	4.69 mm	4.69 mm	-
Maximum supply voltage (Vsup)	6 V	6 V	5.5 V	-
Minimum supply voltage (Vsup)	2 V	2 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-
surface mount	YES	NO	NO	-
technology	CMOS	CMOS	CMOS	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-
width	3.9 mm	7.62 mm	7.62 mm	-
