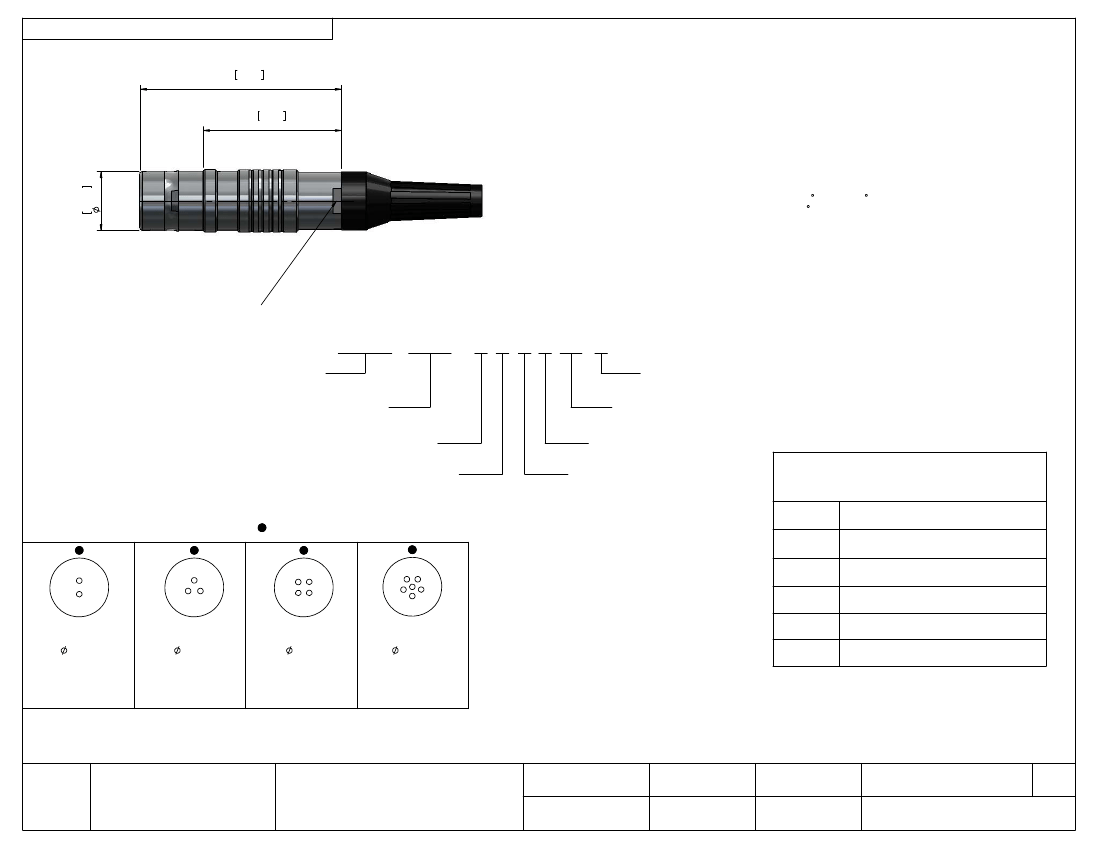

DESCRIPTION: QUIK-LOQ - MALE - CABLE MOUNT - IP67
1.969
50.00
1.339
34.00
UNITS = MM [INCHES]
CHARACTERISSTICS
MATERIALS
HOUSING : BRASS
HOUSING PLATING : 196µ" NICKEL MIN.
SHELL & COLLET NUT: BRASS, 196µ" CHROME PLATED MIN.
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
STRAIN RELIEF(BOOT) : THERMOPLASTIC POLYURETHANE
O-RING: SILICONE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TOURQUE VALUE : 2.0 Nm [17.7 IN/LBS]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 67
0.630
16.00
13.00 [0.512]
WIDTH ACROSS FLATS
822K YYY - 1 7 3 L YY 1
SERIES
16.00 [0.630]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
1 = MALE
CABLE MOUNT
1 = GOLD FLASH
COLLET SIZE
**SEE CHART B**
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
CHART B
COLLET
SIZE
50
60
70
80
WIRE DIAMETER
4.30 [0.169] ~ 5.20 [0.205]
5.30 [0.209] ~ 6.20 [0.244]
6.30 [0.248] ~ 7.20 [0.283]
7.30 [0.287] ~ 8.20 [0.323]
8.30 [0.327] ~ 9.20 [0.362]
9.30 [0.366] ~ 10.20 [0.402]
CHART A
= KEY LOCATION
2 POSITION
14 AWG MAX.
30 AMP MAX.
= 2.00 [0.079]
PIN
CONTACT
RESISTANCE
= 3 m
Ω
TEST VOLTAGE
= 2100V
WORKING VOLTAGE
= 700V
3 POSITION
18 AWG MAX.
17 AMP MAX.
PIN
= 1.60 [0.063]
CONTACT
RESISTANCE
= 4 m
Ω
TEST VOLTAGE
= 2400V
WORKING VOLTAGE
= 800V
4 POSITION
20 AWG MAX.
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1850V
WORKING VOLTAGE
= 610V
6 POSITION
20 AWG MAX.
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1350V
WORKING VOLTAGE
= 450V
90
00
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
02-19-16
N.T.S.
1
DWG NO.
1
4
822KYYY-173LYY1
