BJ79C-303 datasheet, PDF - EEWORLD Datasheet

BJ79C-303: DescriptionCONN TRB JACK STR CRIMP; CategoryThe connector; File Size235KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

BJ79C-303 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BJ79C-303	-	-	View	Buy Now

CONN TRB JACK STR CRIMP

Parameter Name	Attribute value
Connector style	TRB, biaxial/triaxial
Connector type	Jack, female socket (coaxial)
Contact termination	crimp
Protective termination	crimp
impedance	non-constant
Installation type	Panel mounting
Installation features	Bulkhead type - front side nut
cable set	Raychem 7528A5314
Fastening type	latch lock
Frequency - maximum	500MHz
Number of ports	1
characteristic	Three soldering pieces
Shell color	silver
Intrusion protection	-
include	5 pieces - 1 connector, 1 heat shrink tubing, 1 nut, 1 anti-pull fastener, 1 washer
Matrix material	brass
substrate surface	nickel
Center contact plating	gold
dielectric materials	-
Operating temperature	-65°C ~ 165°C
center contact material	copper beryllium
Rated voltage	400V
Number of patches	500
Insertion loss	-

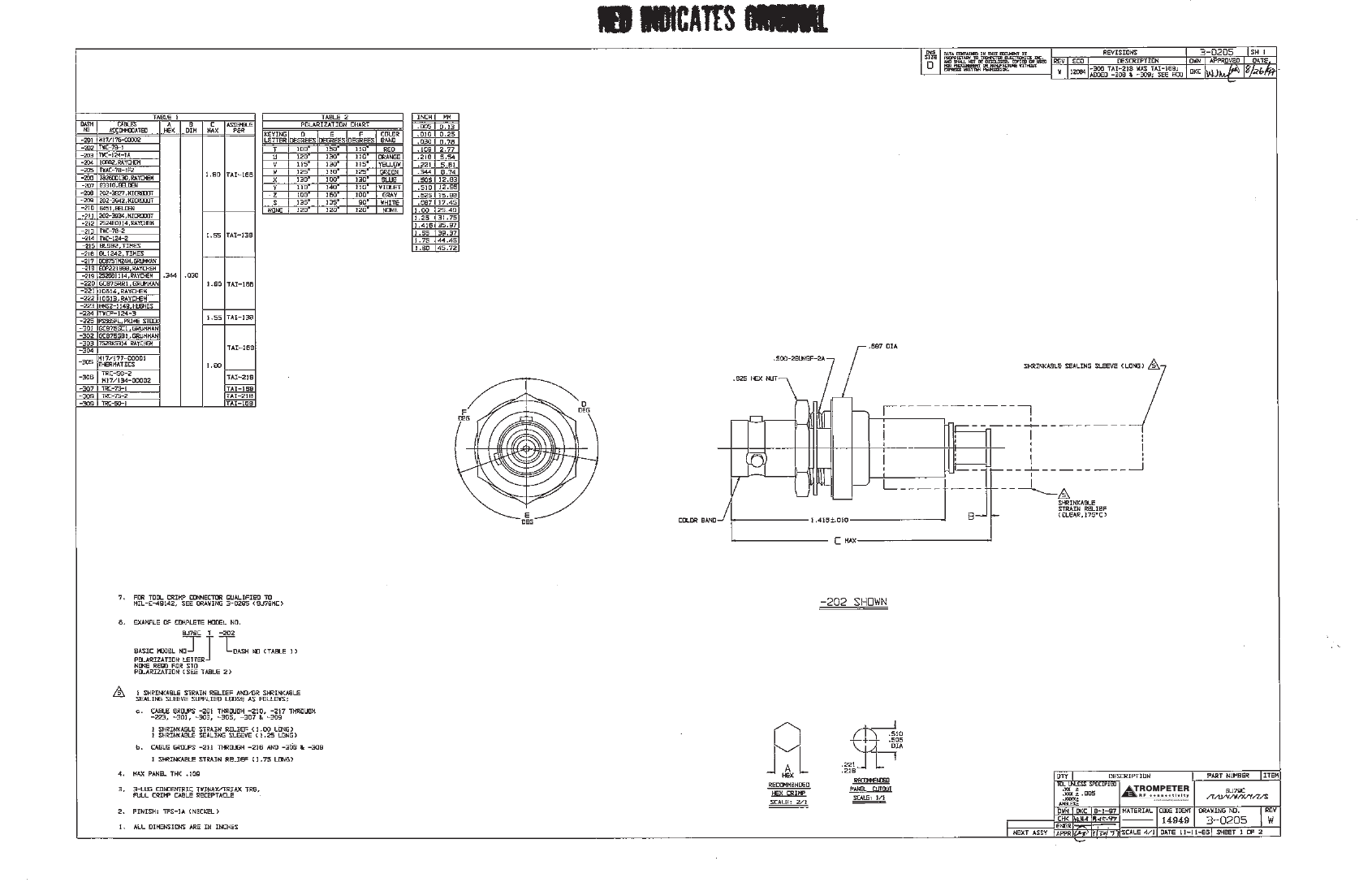

U

N

C

O

N

TR

O

LL

ED

C

O

PY

	BJ79C-303	BJ79C-212	BJ79C-201
Description	CONN TRB JACK STR CRIMP	RF Connectors / Coaxial Connectors TRB BLKD Jack STR Full CRMP 3-lug	CONN TRB JACK STR CRIMP
Connector style	TRB, biaxial/triaxial	-	TRB, biaxial/triaxial
Connector type	Jack, female socket (coaxial)	-	Jack, female socket (coaxial)
Contact termination	crimp	-	crimp
Protective termination	crimp	-	crimp
Installation type	Panel mounting	-	Panel mounting
Installation features	Bulkhead type - front side nut	-	Bulkhead type - front side nut
cable set	Raychem 7528A5314	-	M17/176-00002
Fastening type	latch lock	-	latch lock
Frequency - maximum	500MHz	-	500MHz
Number of ports	1	-	1
characteristic	Three soldering pieces	-	Three soldering pieces
Shell color	silver	-	silver
include	5 pieces - 1 connector, 1 heat shrink tubing, 1 nut, 1 anti-pull fastener, 1 washer	-	5 pieces - 1 connector, 1 heat shrink tubing, 1 nut, 1 anti-pull fastener, 1 washer
Matrix material	brass	-	brass
substrate surface	nickel	-	nickel
Center contact plating	gold	-	gold
Operating temperature	-65°C ~ 165°C	-	-65°C ~ 165°C
center contact material	copper beryllium	-	copper beryllium
Rated voltage	400V	-	400V
Number of patches	500	-	500
