104895-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 104895-3

104895-3: Description30 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

104895-3 Overview

30 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT

104895-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LATCHED
Board mount options	SPLIT BOARD LOCK
body width	0.282 inch
subject depth	0.43 inch
body length	1.13 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	16 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	300VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.7792 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	104895
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.159 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

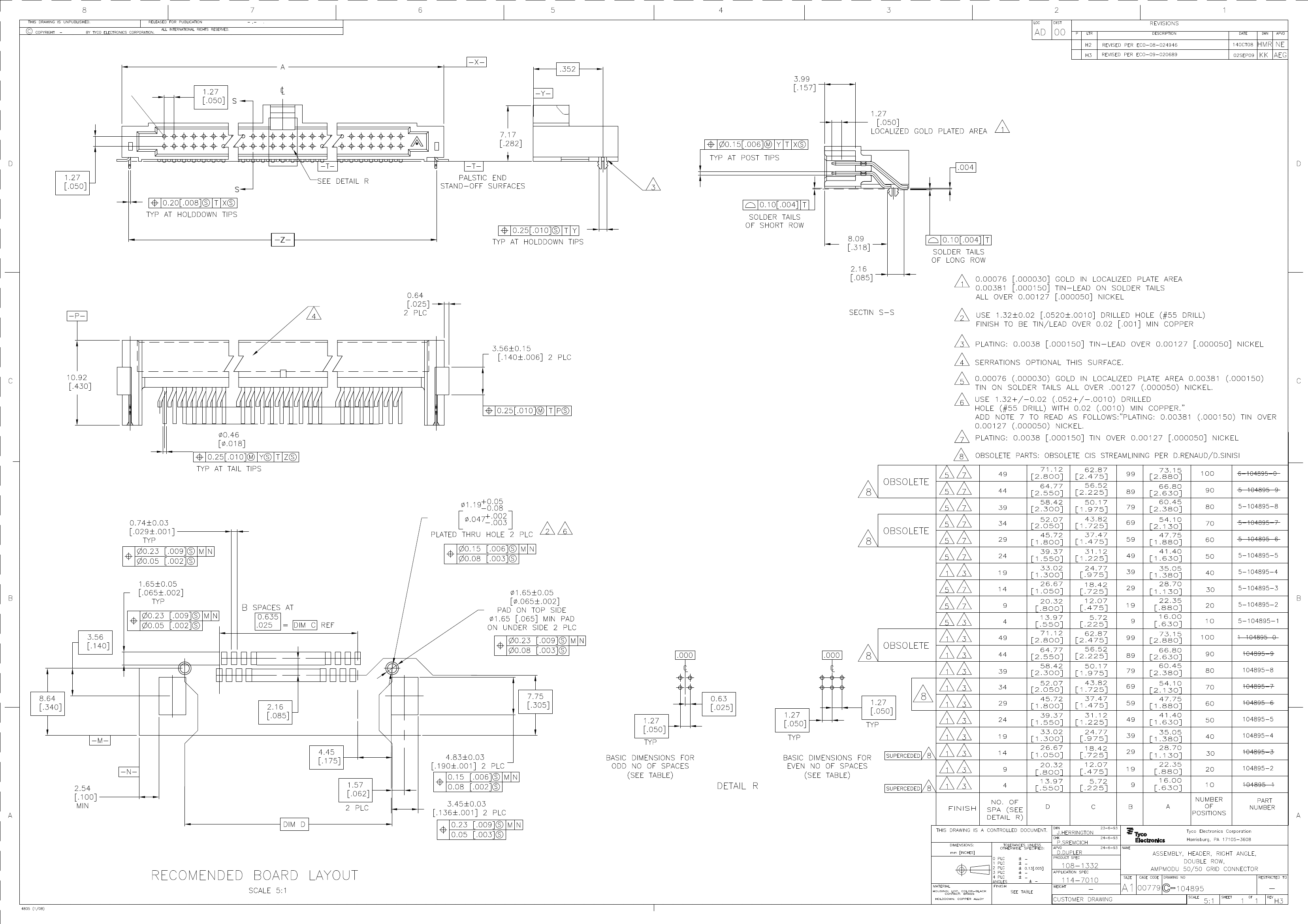

Preview

Download Datasheet

View All

104895-3 Related Products

	104895-3	1-104895-0	5-104895-9	104895-9	104895-6
Description	30 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	100 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	90 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	90 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT	60 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	compli	compliant	compliant	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	30	100	90	90	60
Is it lead-free?	Contains lead	Contains lead	Lead free	-	Contains lead
ECCN code	EAR99	EAR99	-	-	EAR99
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	-	-	SPLIT BOARD LOCK
body width	0.282 inch	0.282 inch	0.43 inch	-	0.282 inch
subject depth	0.43 inch	0.43 inch	0.192 inch	-	0.43 inch
body length	1.13 inch	2.88 inch	2.63 inch	-	1.88 inch
Body/casing type	RECEPTACLE	RECEPTACLE	-	-	RECEPTACLE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	16 mΩ	16 mΩ	-	-	16 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	-	-	RND PIN-SKT
Dielectric withstand voltage	300VAC V	300VAC V	-	-	300VAC V
Durability	200 Cycles	200 Cycles	-	-	200 Cycles
maximum insertion force	1.7792 N	1.7792 N	-	-	1.7792 N
Insulation resistance	5000000000 Ω	5000000000 Ω	-	-	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	-	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	-	LIQUID CRYSTAL POLYMER
Manufacturer's serial number	104895	104895	-	104895	104895
Plug contact pitch	0.05 inch	0.05 inch	-	-	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	-	0.05 inch
Installation option 1	LATCH	LATCH	-	-	LATCH
Installation option 2	LOCKING	LOCKING	LATCHING	-	LOCKING
Number of connectors	ONE	ONE	ONE	-	ONE
PCB row number	2	2	-	-	2
Maximum operating temperature	105 °C	105 °C	105 °C	-	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-	-65 °C
PCB contact pattern	STAGGERED	STAGGERED	-	-	STAGGERED
PCB contact row spacing	2.159 mm	2.159 mm	-	-	2.159 mm
Plating thickness	30u inch	30u inch	50u inch	-	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	-	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	3.9 A	-	0.5 A
Guideline	UL, CSA	UL, CSA	UL	-	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
UL Flammability Code	94V-0	-	94V-0	94V-0	-
Evacuation force-minimum value	.278 N	.278 N	-	-	.278 N
Objectid	-	1716612021	1716612225	1418743293	1716612074
