PPTC022LJBN-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PPTC022LJBN-RC

PPTC022LJBN-RC: DescriptionCONN FEMALE 4POS DL .1" R/A TIN; CategoryThe connector; File Size236KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

PPTC022LJBN-RC Overview

CONN FEMALE 4POS DL .1" R/A TIN

PPTC022LJBN-RC Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	female socket
style	board to board
Number of pins	4
Number of pins loaded	all
Spacing - Mating	0.100"（2.54mm）
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Insulation color	black
Insulation height	0.200"（5.08mm）
Contact length - terminal	0.124"（3.15mm）
Operating temperature	-40°C ~ 105°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	-
Rated current	3A
Rated voltage	250V
application	-
Insulation Materials	polyester
Contact shape	Square
Contact material	Phosphor bronze
Contact Surface Treatment Thickness - Column	-

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

2516

2730

DESCRIPTION

DATE

UPDATE NOTE 1 AND ADD NOTE 10 MATING PARTS 02/14/2012

UPDATED PROCESSING TEMP. FOR NYLON 6T AND

UPDATED ROW SPACING TOLERANCE 0.15 mm

(WAS 0.05 mm)

03/18/2015

B .014[ 0.35]

A±.004 [ 0.10]

.100±.002 2.54±0.05

.100 2.54

.100±.002 2.54±0.05

.040±.002 1.02±0.05

RECOMMENDED PCB LAYOUT

A±.008 [ 0.20]

.102 2.58

.124±.008 3.15±0.20

.200 5.08

.256 6.50

.335 8.50

.063±.008 1.60±0.20

.100±.006 2.54±0.15

.024(W) X .016(T)

[0.60(W) X 0.40(T)]

.100±.002 2.54±0.05

02-20, 0.20mm MAX.

21-30, 0.30mm MAX.

31-40, 0.40mm MAX.

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING.

2. CONTACT MATERIAL: PHOSPHOR BRONZE.

3. CONTACT PLATING: SEE PART NUMBER CODING.

4. CURRENT RATING: 3 AMPS

5. VOLTAGE RATING: 250V AC/DC

6. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

7. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

8. DIELECTRIC WITHSTANDING: 500V AC.

9. OPERATING TEMPERATURE: -40° C TO +105° C.

10.MATES WITH SULLINS .100 [2.54] CONTACT CENTER MALE HEADER SERIES.

(.025 [0.64] SQUARE POSTS)

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

ANGULAR:

DRAWN

DATE

2/15/2008

NAME

DECIMALS

.X= .012 [.3]

.XX= .008 [.20]

.XXX= .006 [.15]

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

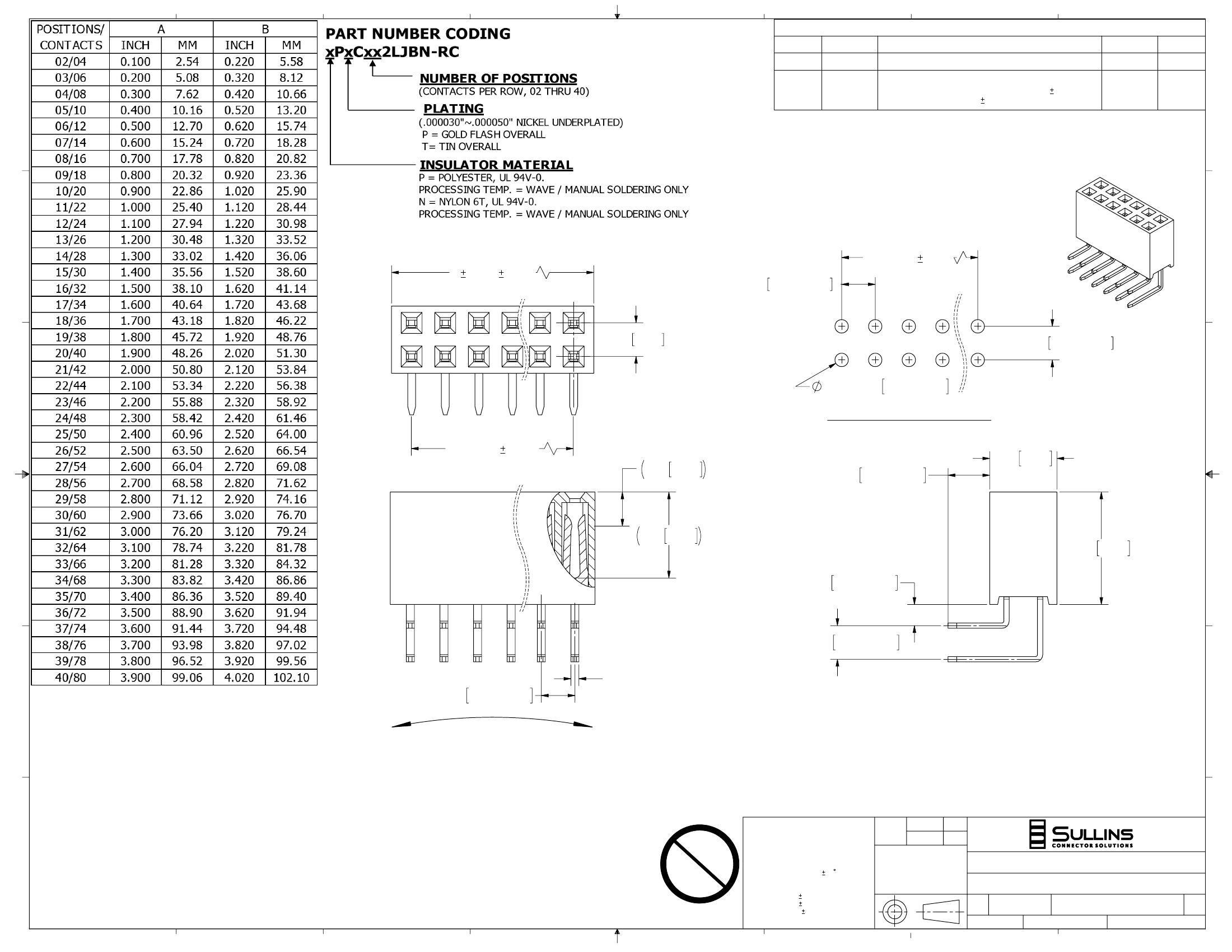

HEADER FEMALE, .100" [2.54mm] CC, 2 ROW, RA

PART NUMBER

SIZE

TITLE

SCALE: 8:1

CAGE CODE

54453

DWG. NO.

xPxCxx2LJBN-RC

10494

SHEET 1 OF 1

REV

FILE NAME: 10494, P(N)PxCxx2LJBN-RC
