2-103654-2 datasheet, PDF - EEWORLD Datasheet

2-103654-2: DescriptionHEADER CONNECTOR,CABLE MNT,23 CONTACTS,PIN,0.1 PITCH,CRIMP TERMINAL,BLACK; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

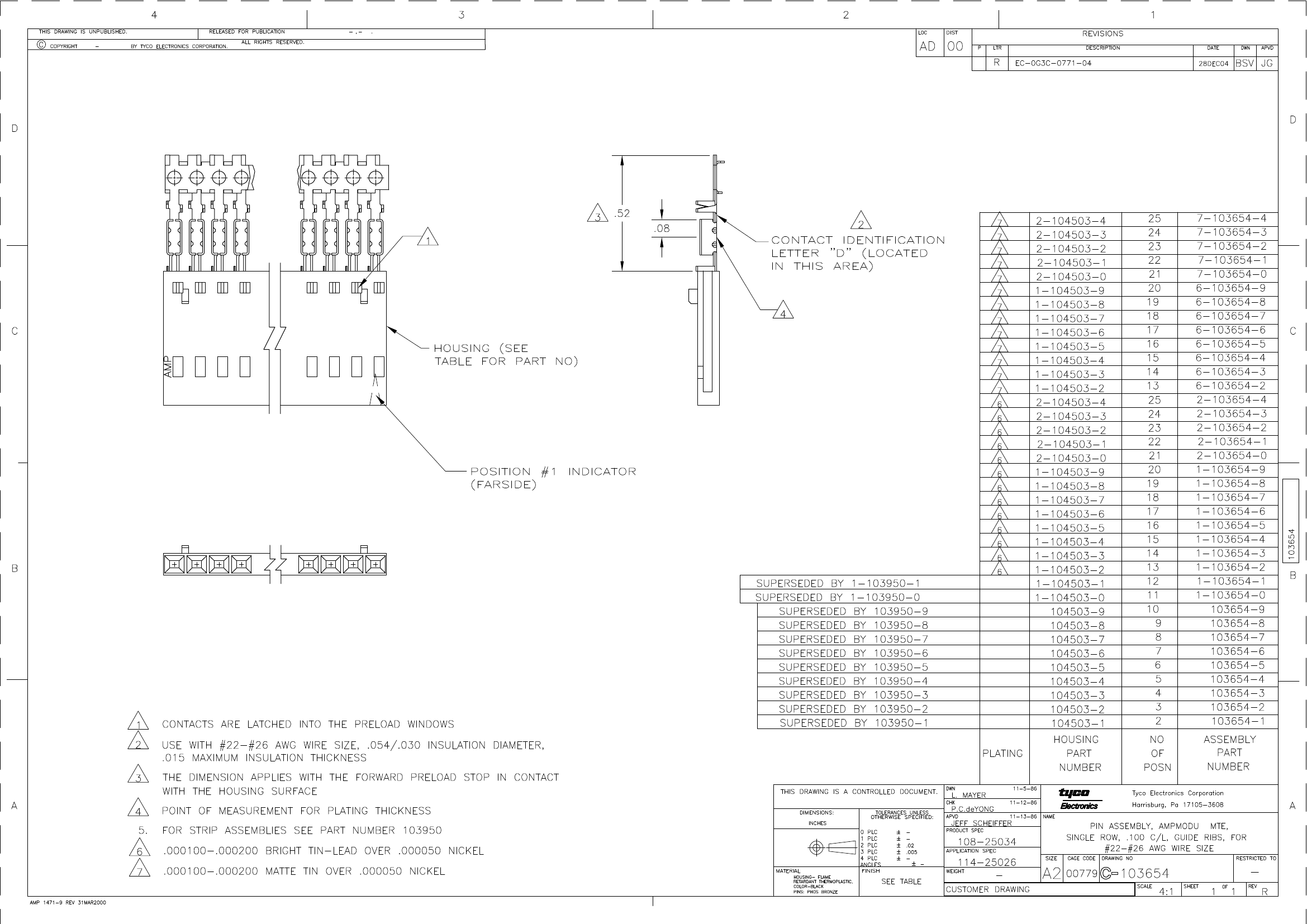

2-103654-2 Overview

HEADER CONNECTOR,CABLE MNT,23 CONTACTS,PIN,0.1 PITCH,CRIMP TERMINAL,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
body width	0.098 inch
subject depth	0.6 inch
body length	2.298 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN-PB ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Plug contact pitch	0.1 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Plating thickness	100u inch
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	23
Maximum wire diameter	22 AWG
Minimum wire diameter	26 AWG
Base Number Matches	1
