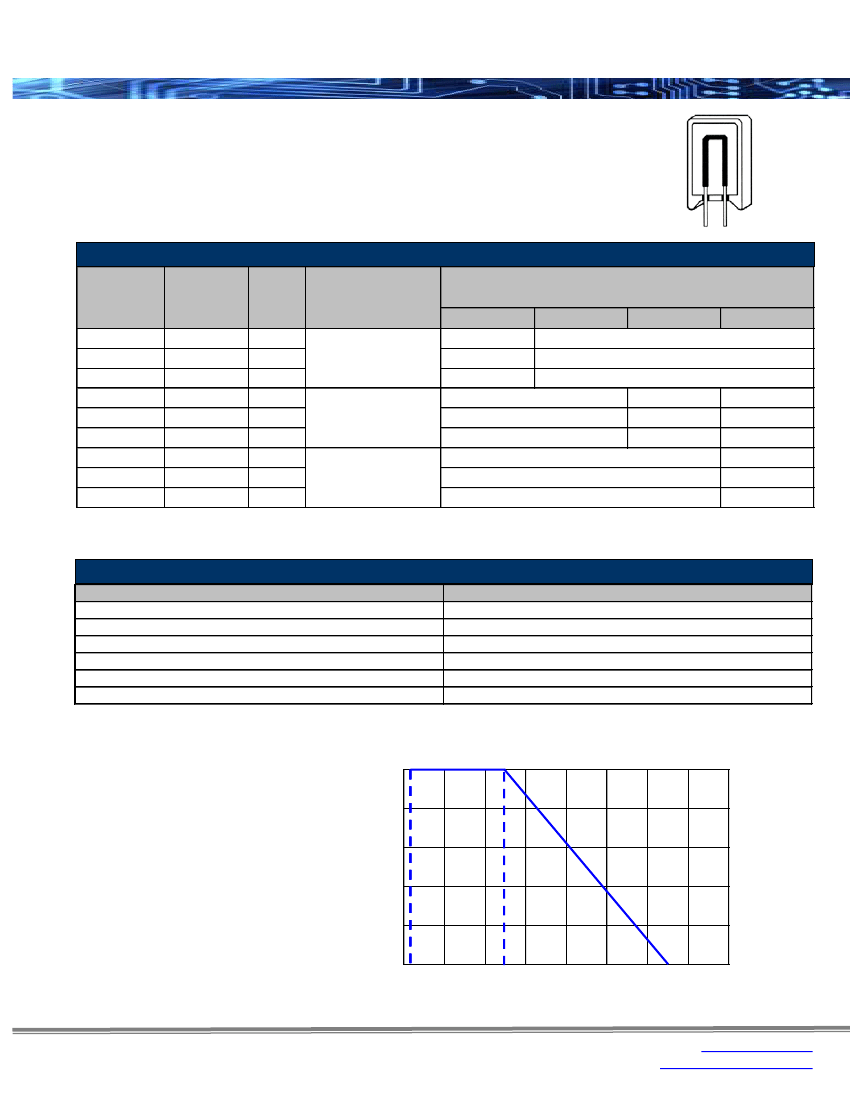

LVM/NVM/WVM Series
Ceramic Housed Vertical Mount Resistor
Features:
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Flameproof inorganic construction
High temperature potting compound
LVM – Low resistance wire or ribbon element
NVM – Non-inductively Ayrton Perry winding
WVM – Precision wirewound element
RoHS compliant / lead-free
Electrical Specifications
Power Rating
Voltage
Type / Code
(Watts) @
Rating
70ºC
LVM5
LVM7
LVM10
NVM5
NVM7
NVM10
WVM5
WVM7
WVM10
5W
7W
10W
5W
7W
10W
5W
7W
10W
√PR
√PR
√PR
350
500
700
350
500
700
TCR (ppm/°C)
0.5%
-
±50ppm to ±400ppm
depending on value
<1Ω=±90ppm
1Ω to 10Ω=±50ppm
>10Ω=±20ppm
<1Ω=±90ppm
1Ω to 10Ω=±50ppm
>10Ω=±20ppm
-
-
-
-
-
0.1 - 5K
0.1 - 8K
0.1 - 8K
Ohmic Range (Ω) and Tolerance
1%
5%
0.01 - 0.1
0.02 - 0.15
0.02 - 0.15
0.1 - 2.4K
0.1 - 3.9K
0.1 - 3.9K
-
-
-
-
-
-
10%
Maximum Working Voltage is limited by √PR unless specified otherwise.
Resistance Temperature Coefficient Standard
Performance Characteristics
Test
Moisture Resistance
Thermal Shock
Load Life @ 70°C - 1,000 hrs.
Resistance to Soldering Heat
Short Time Overload - 5xPn for 5sec
Dielectric Withstanding Voltage
Test Results
± 5%
± 2%
± 5%
± 2%
± 2%
± 2%
Power Derating Curve:
100
-55ºC
70ºC
Percent Rated Power (%)
80
60
40
20
0
-60
275°C
0
50
100
150
200
250
300
350
Ambient Temperature (ºC)
Rev Date: 04/21/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
LVM/NVM/WVM Series
Ceramic Housed Vertical Mount Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

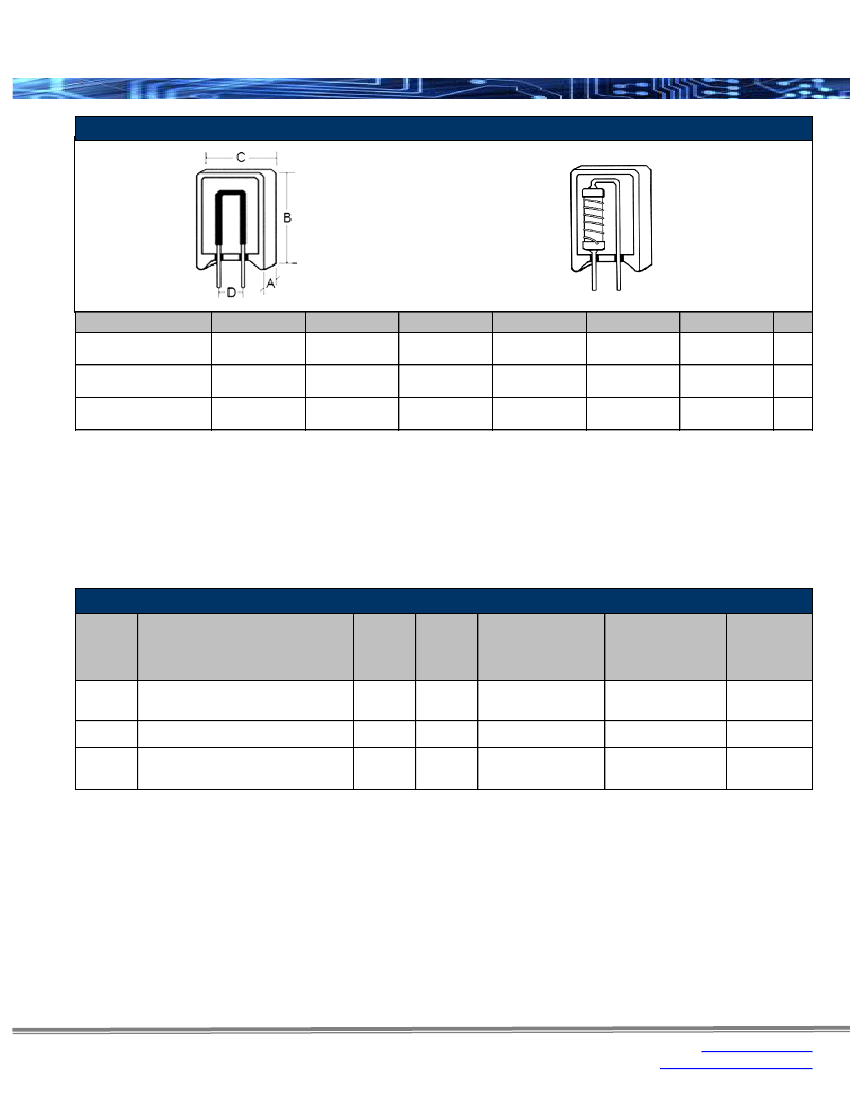

Mechanical Specifications
LVM:
WVM:
Type / Code
LVM5, NVM5, WVM5
LVM7, NVM7, WVM7
LVM10, NVM10, WVM10
A
0.382 ± 0.039
9.70 ± 0.99
0.382 ± 0.039
9.70 ± 0.99
0.480 ± 0.039
12.19 ± 0.99
B
0.988 ± 0.059
25.10 ± 1.50
1.520 ± 0.059
38.61 ± 1.50
1.374 ± 0.059
34.90 ± 1.50
C
0.520 ± 0.039
13.21 ± 0.99
0.520 ± 0.039
13.21 ± 0.99
0.634 ± 0.039
16.10 ± 0.99
D
0.201 ± 0.059
5.11 ± 1.50
0.201 ± 0.059
5.11 ± 1.50
0.299 ± 0.059
7.59 ± 1.50
Lead Diameter
0.031 ± 0.002
0.79 ± 0.05
0.036 ± 0.002
0.91 ± 0.05
0.036 ± 0.002
0.91 ± 0.05
Lead Length
0.138 ± 0.020
3.51 ± 0.51
0.138 ± 0.020
3.51 ± 0.51
0.138 ± 0.020
3.51 ± 0.51
Unit
inches
mm
inches
mm
inches
mm
RoHS Compliance
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to
meet the various regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions
on Hazardous Substances” (RoHS 2). As part of this ongoing program, we periodically update this document with the
status regarding the availability of our compliant components. All our standard part numbers are compliant to EU
Directive 2011/65/EU of the European Parliament.
RoHS Compliance Status
Standard
Product
Series
Description
Package /
Termination
Type
Standard
Series
RoHS
Compliant
YES
YES
YES
Lead-Free Termination
Composition
Lead-Free
Mfg. Effective Date
(Std Product Series)
Lead-Free
Effective Date
Code
(YY/WW)
06/01
Always
06/01
LVM
NVM
WVM
Ceramic Housed Vertical Mount
Low Resistance Resistor
(Ribbon Element)
Ceramic Housed Vertical Mount Wirewound
Resistor (Standard WW)
Ceramic Housed Vertical Mount
Wirewound Resistor
(Precision Wirewound)
Radial
Radial
Radial
100% Matte SN
100% Matte Sn
100% Matte Sn
Jan-06
Always
Jan-06
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region”
of the Eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals
used in the electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible
that the materials and products we supply do not contain metals sourced from this conflict region. As such, we are in
compliance with the requirements of Dodd-Frank Act regarding Conflict Minerals.
Rev Date: 04/21/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
LVM/NVM/WVM Series
Ceramic Housed Vertical Mount Resistor
Compliance to “REACH”
Stackpole Electronics, Inc.
Resistive Product Solutions
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High
Concern) free and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation,
Authorization and Restriction of Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH
Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We
continually strive to improve our effect on the environment. We observe all applicable laws and regulations regarding
the protection of our environment and all requests related to the environment to which we have agreed. We are
committed to the prevention of all forms of pollution.
How to Order
1
2
3
4
5
6
7
8
9
10
L
V
M
5
J
B
R
1
0
0
LVM
NVM
WVM
Product Series
Ribbon Element
Non-inductive
Precision WW
Size
5
7
10
Power
5W
7W
10W
Tolerance
Tol
Code
0.5%
D
1%
F
J
5%
K
10%
Code Description
B
Bulk
Packaging
Size
LVM5, NVM5, WVM5
LVM7, NVM7, WVM7
LVM10, NVM10, WVM10
Quantity
1,000
800
600
Resistance Value
Four characters with the multiplier
used as the decimal holder.
"L" used as multiplier of 10
-3
for any value under 0.1 ohm.
0.01 ohm = 10L0
0.1 ohm = R100
100 ohm = 100R
5 Kohm = 5K00
Rev Date: 04/21/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
