TF202W32K7680R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> TF202W32K7680R

TF202W32K7680R: DescriptionCRYSTAL 32.768KHZ 5PF SMD; CategoryPassive components; File Size295KB，4 Pages; ManufacturerCTS [CTS Corporation]; Environmental Compliance

Download Datasheet Parametric Compare View All

TF202W32K7680R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TF202W32K7680R	-	-	View	Buy Now

TF202W32K7680R Overview

CRYSTAL 32.768KHZ 5PF SMD

TF202W32K7680R Parametric

Parameter Name	Attribute value
type	kHz crystal (tuning fork)
frequency	32.768kHz
frequency stability	-
frequency tolerance	±20ppm
load capacitance	5pF
ESR (equivalent series resistance)	90 kOhms
Operating mode	basic harmony
Operating temperature	-40°C ~ 85°C
grade	-
Installation type	surface mount
Package/casing	2-SMD, no leads
size/dimensions	0.079" long x 0.047" wide (2.00mm x 1.20mm)
Height - Installation (maximum)	0.024"（0.60mm）

Preview

Download Datasheet

View All

TF20 Series

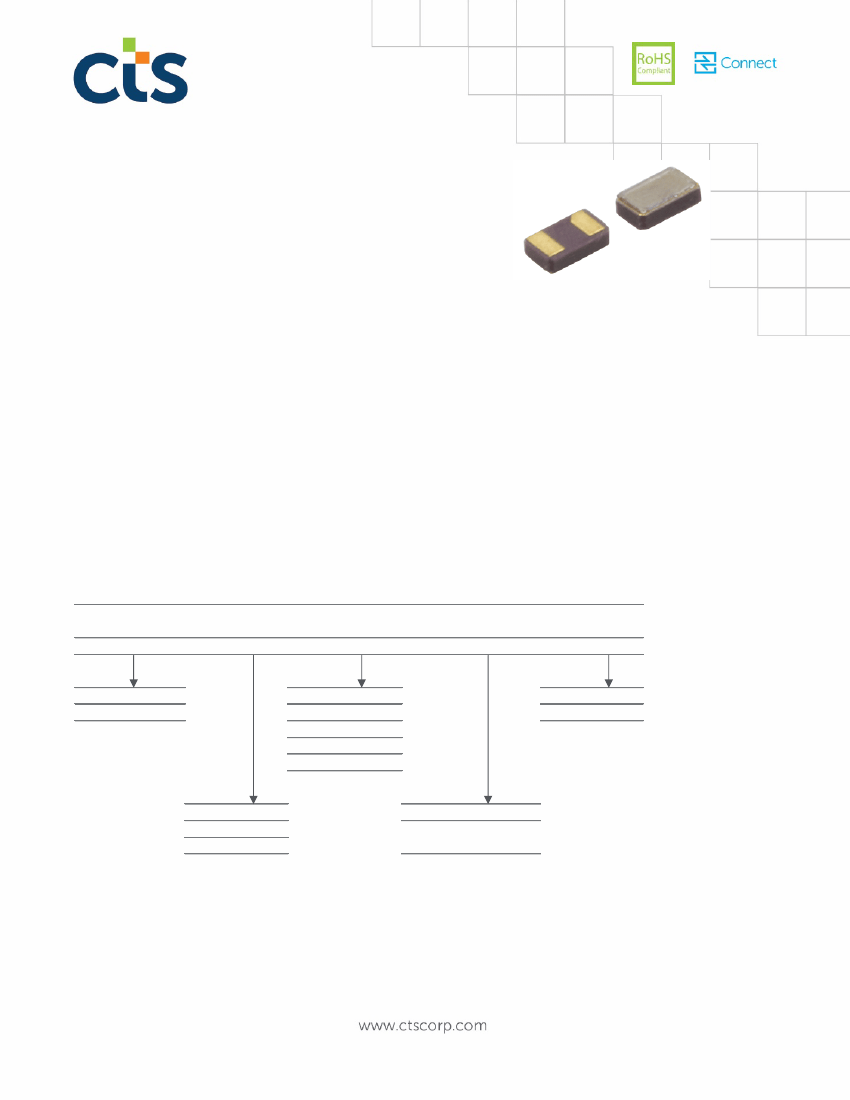

Features



Tuning Fork Crystal

32.7680kHz Frequency Reference

Tuning Fork Crystal Design

Hermetic Ceramic Surface Mount Package

Ideal for High Density Circuit Boards

Frequency Tolerance, ±20ppm Standard

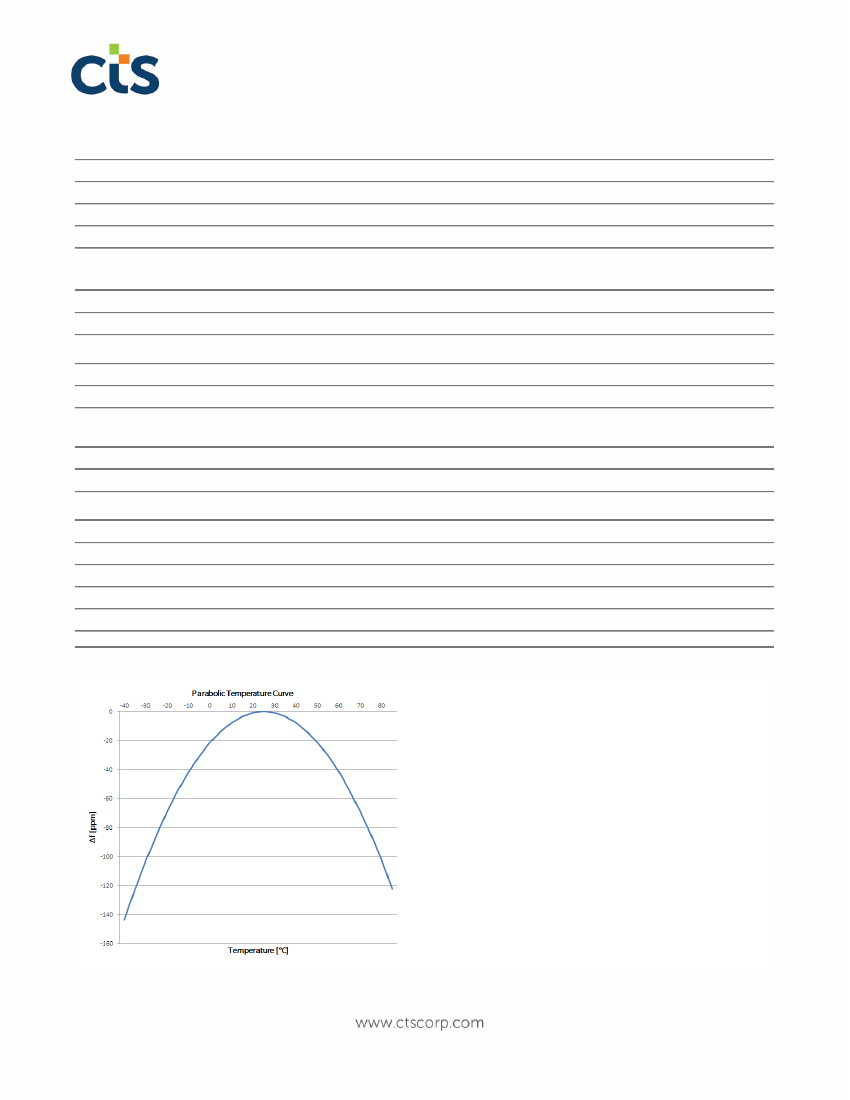

Parabolic Temperature Coefficient

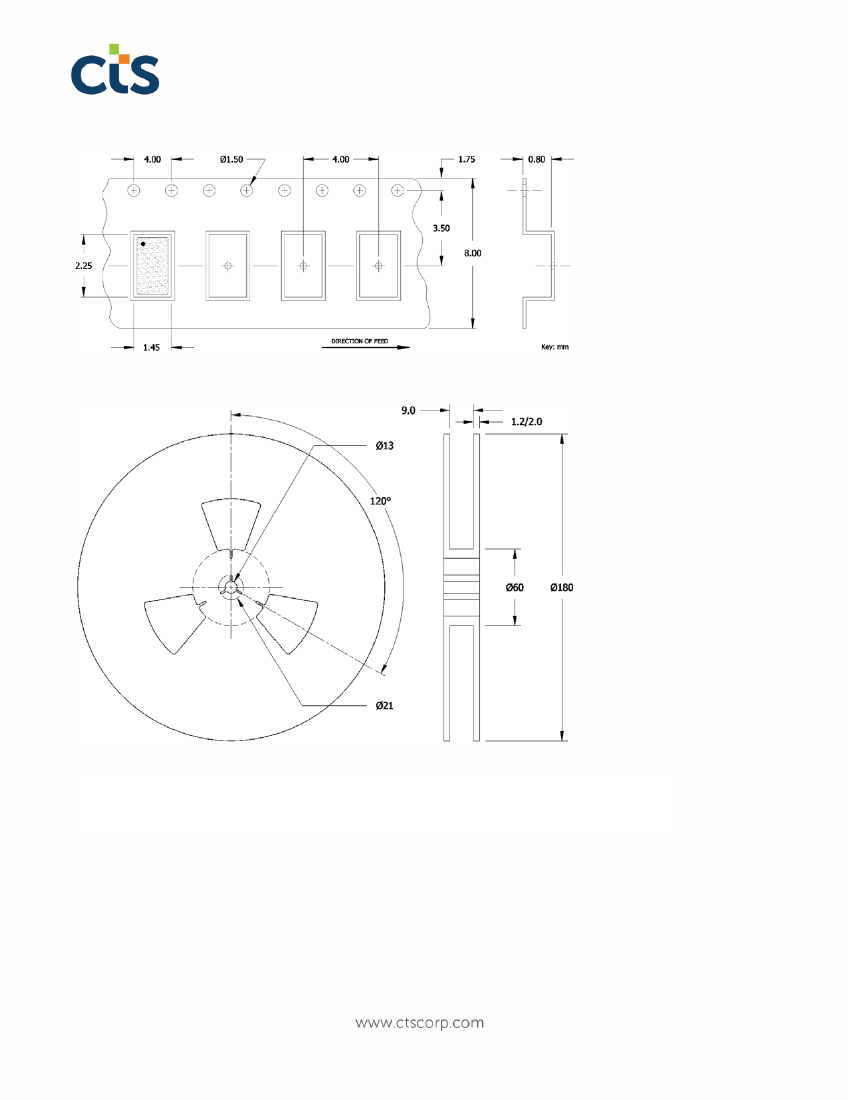

Tape and Reel Packaging, EIA-418

Real Time Clock Reference

FPGAs & Microcontrollers

Wearable Electronics

IoT Applications

Consumer Electronics

Healthcare Devices

Smart Meters

Instrumentation

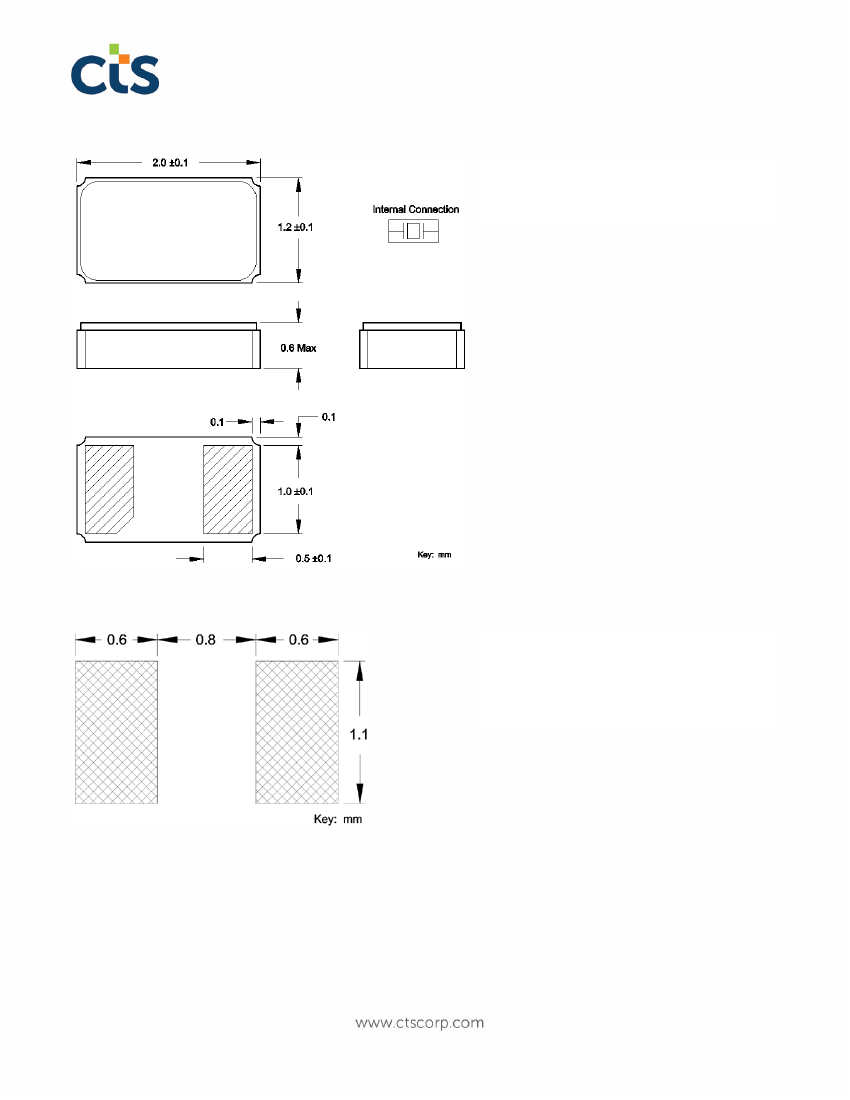

Part Dimensions:

2.0 × 1.2 × 0.6mm

•

4.5926mg

Applications



Description

CTS TF20 Series is ideal for supporting wide range of electronic designs requiring a Real Time Clock reference.

This series will support general commercial and industrial applications.

Ordering Information

Model

Frequency

Tolerance

Load

Capacitance

Frequency Code

[kHz]

Packaging

32K7680

Code

Package

2.0x1.2mm

Code

Capacitance

12.5pF

9pF

7pF

5pF

Packing

Code

3k pcs./reel

Code

@ +25°C

±20ppm

±10ppm

Code

Frequency

Product Frequency Code

Notes:

1] Frequency is recorded with two leading digits before the ‘K’ and 4 significant digits

after the ‘K’ [including zeros].

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied

warranties and liability in connection with any use of this product in any non-commercial applications or in any

application that may expose the product to conditions that are outside of the tolerances provided in its specification.

DOC# 008-0353-0 Rev. E

Page 1 of 4

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.

TF202W32K7680R Related Products

	TF202W32K7680R	TF202V32K7680R	TF202P32K7680R	TF202J32K7680R	TF203P32K7680R	TF203J32K7680R	TF205P32K7680R	TF205J32K7680R
Description	CRYSTAL 32.768KHZ 5PF SMD	CRYSTAL 32.768KHZ 7PF SMD	CRYSTAL 32.7680KHZ 12.5PF SMD	CRYSTAL 32.7680KHZ 9PF SMD	CRYSTAL 32.7680KHZ 12.5PF SMD	CRYSTAL 32.7680KHZ 9PF SMD	CRYSTAL 32.7680KHZ 12.5PF SMD	CRYSTAL 32.7680KHZ 9PF SMD
type	kHz crystal (tuning fork)	kHz crystal (tuning fork)	kHz crystal (tuning fork)	kHz crystal (tuning fork)	kHz crystal (tuning fork)	kHz crystal (tuning fork)	kHz crystal (tuning fork)	kHz crystal (tuning fork)
frequency	32.768kHz	32.768kHz	32.768kHz	32.768kHz	32.768kHz	32.768kHz	32.768kHz	32.768kHz
frequency tolerance	±20ppm	±20ppm	±20ppm	±20ppm	±30ppm	±30ppm	±50ppm	±50ppm
load capacitance	5pF	7pF	12.5pF	9pF	12.5pF	9pF	12.5pF	9pF
ESR (equivalent series resistance)	90 kOhms	90 kOhms	90 kOhms	90 kOhms	90 kOhms	90 kOhms	90 kOhms	90 kOhms
Operating mode	basic harmony	basic harmony	basic harmony	basic harmony	basic harmony	basic harmony	basic harmony	basic harmony
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads
size/dimensions	0.079" long x 0.047" wide (2.00mm x 1.20mm)	0.079" long x 0.047" wide (2.00mm x 1.20mm)	0.079" long x 0.047" wide (2.00mm x 1.20mm)	0.079" long x 0.047" wide (2.00mm x 1.20mm)	0.079" long x 0.047" wide (2.00mm x 1.20mm)	0.079" long x 0.047" wide (2.00mm x 1.20mm)	0.079" long x 0.047" wide (2.00mm x 1.20mm)	0.079" long x 0.047" wide (2.00mm x 1.20mm)
Height - Installation (maximum)	0.024"（0.60mm）	0.024"（0.60mm）	0.024"（0.60mm）	0.024"（0.60mm）	0.024"（0.60mm）	0.024"（0.60mm）	0.024"（0.60mm）	0.024"（0.60mm）
