1N5395 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5395

1N5395: Description1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size127KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1N5395 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5395	-	-	View	Buy Now

1N5395 Overview

1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15

1N5395 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-15
package instruction	PLASTIC, DO-15, 2 PIN
Contacts	2
Reach Compliance Code	unknow
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-204AC
JESD-30 code	O-PALF-W2
JESD-609 code	e2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

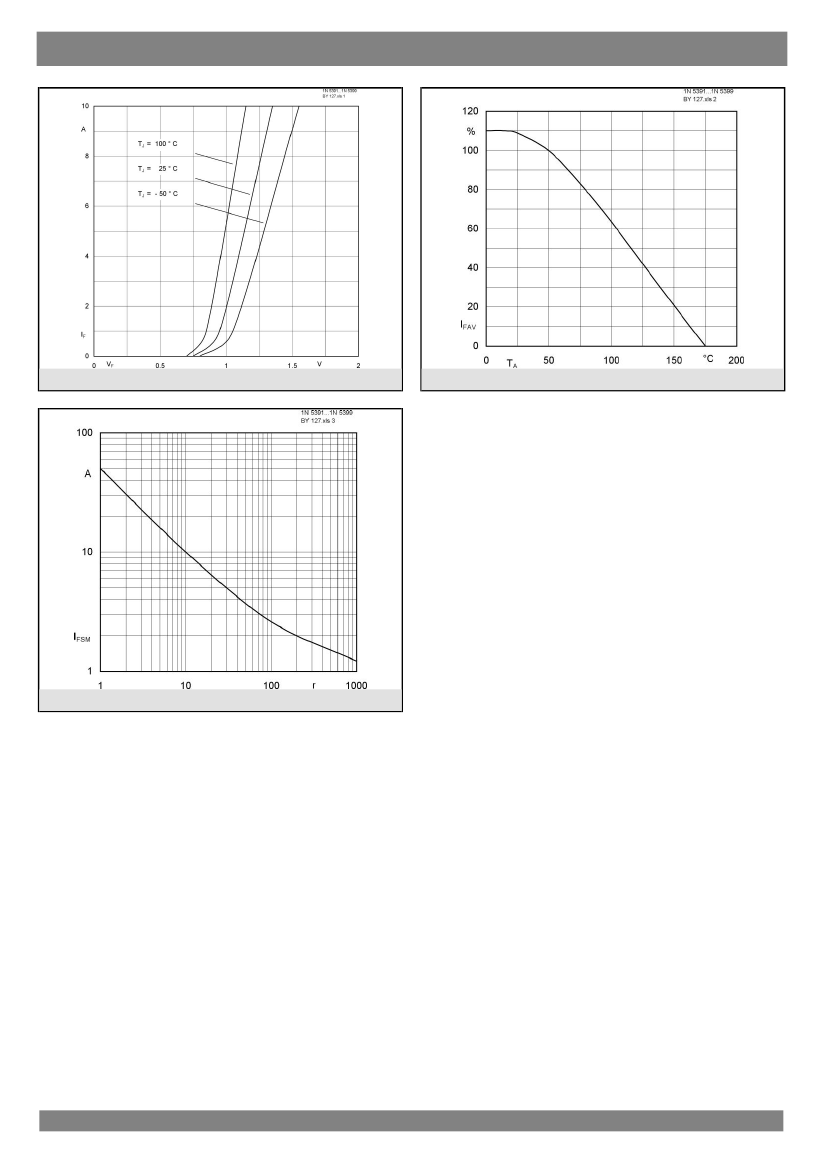

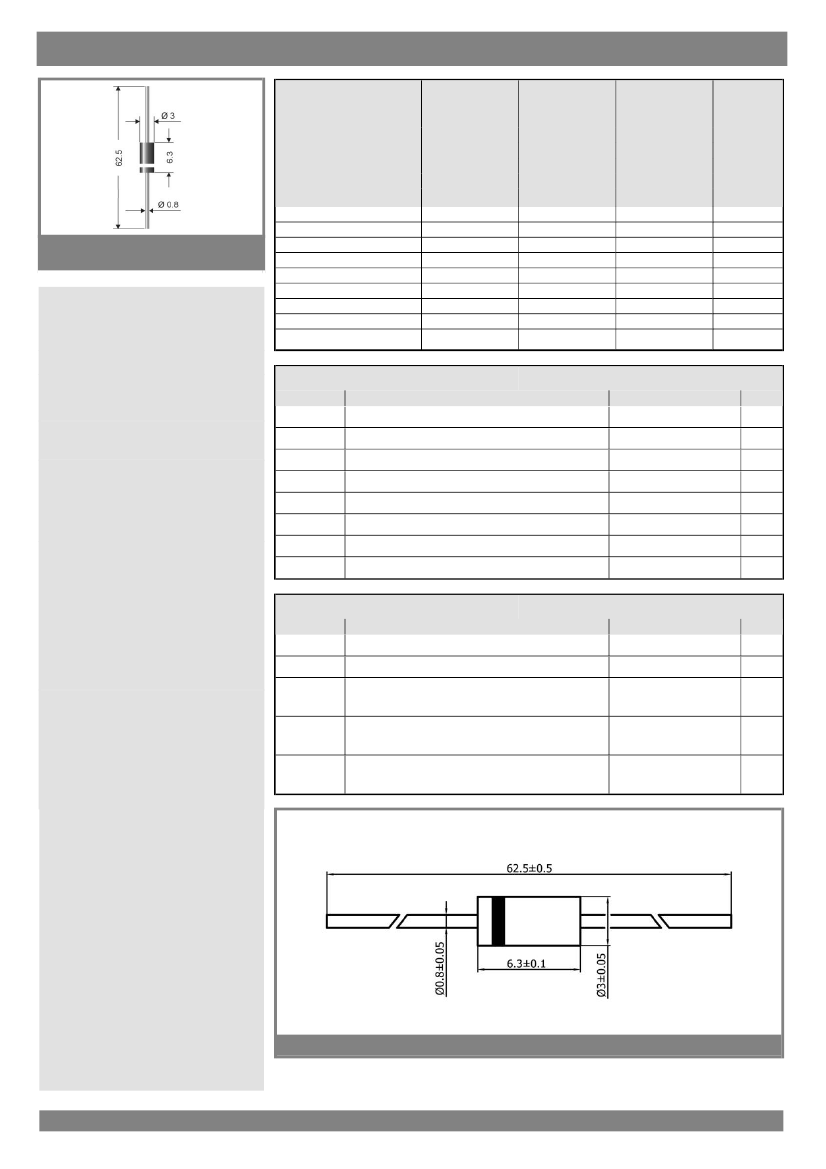

1N 5391...1N 5399

Axial lead diode

Standard silicon rectifier

diodes

1N 5391...1N 5399

Forward Current: 1,5 A

Reverse Voltage: 50 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

10-04-2006 SCT

1N5395 Related Products

	1N5395	1N5391_06	1N5391	1N5392	1N5393	1N5399	1N5398	1N5397	1N5396	1N5394
Description	1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 50 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 50 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 100 V, SILICON, RECTIFIER DIODE, DO-41	RECTIFIER DIODE, DO-15	1.5 A, 1000 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 800 V, SILICON, RECTIFIER DIODE, DO-204AL	1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-41	1.5 A, 500 V, SILICON, RECTIFIER DIODE, DO-204AL	1.5 A, 300 V, SILICON, RECTIFIER DIODE, DO-15
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	DO-15	-	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
package instruction	PLASTIC, DO-15, 2 PIN	-	PLASTIC, DO-15, 2 PIN	PLASTIC, DO-15, 2 PIN	PLASTIC, DO-15, 2 PIN	PLASTIC, DO-15, 2 PIN	PLASTIC, DO-15, 2 PIN	PLASTIC, DO-15, 2 PIN	PLASTIC, DO-15, 2 PIN	PLASTIC, DO-15, 2 PIN
Contacts	2	-	2	2	2	2	2	2	2	2
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
application	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	-	1 V	1 V	1 V	1 V	1 V	-	-	-
JEDEC-95 code	DO-204AC	-	DO-204AC	DO-204AC	DO-204AC	DO-204AC	DO-204AC	DO-204AC	DO-204AC	DO-204AC
JESD-30 code	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e2	-	e2	e2	e2	e2	e2	e2	e2	e2
Maximum non-repetitive peak forward current	50 A	-	50 A	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	-	1	1	1	1	1	1	1	1
Phase	1	-	1	1	1	1	1	1	1	1
Number of terminals	2	-	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	-	175 °C	175 °C	175 °C	175 °C	175 °C	-	-	-
Maximum output current	1.5 A	-	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	-	50 V	100 V	200 V	1000 V	800 V	600 V	500 V	300 V
surface mount	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	WIRE	-	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	-	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
