1N4728C - 1N4764C
Z1110C - Z1300C
V
Z
: 3.3 - 300 Volts
P
D
: 1 Watt
FEATURES :
* Complete voltage range 3.3 to 300 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb / RoHS Free

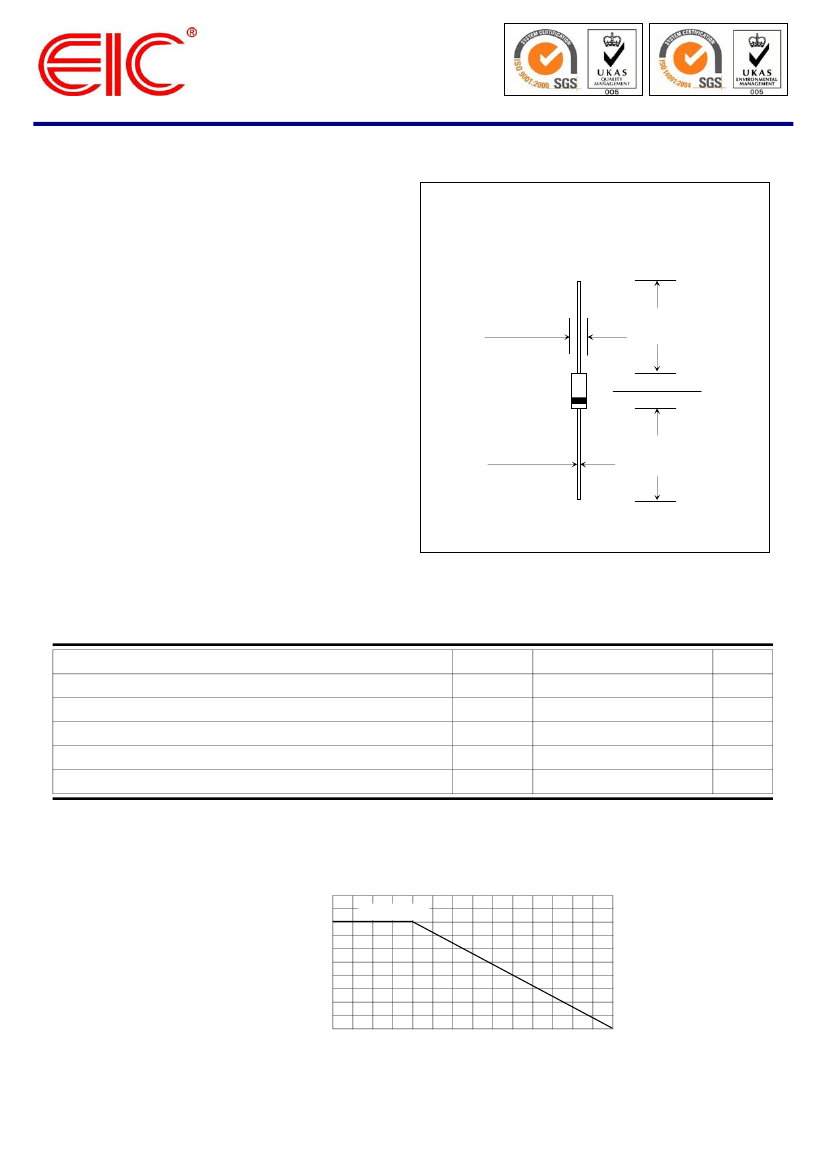

SILICON ZENER DIODES
DO - 41
0.107 (2.7)
0.080 (2.0)
1.00 (25.4)
MIN.
0.205 (5.2)
0.166 (4.2)
MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified.
Rating
DC Power Dissipation at T
L
= 50 °C (Note1)
Maximum Forward Voltage at I
F
= 200 mA
Maximum Thermal Resistance Junction to Ambient Air (Note2)
Junction Temperature Range
Storage Temperature Range
Symbol
P
D
V
F
R
ӨJA
T
J
T
STG
Value
1.0
1.2
170
- 55 to + 175
- 55 to + 175
Unit
Watt
Volts
K/W
°C
°C
Notes :
(1) T
L
= Lead temperature at 3/8 " (9.5mm) from body
(2) Valid provided that leads are kept at ambient temperature at a distance of 10 mm from case
Fig. 1 POWER TEMPERATURE DERATING CURVE
P
D
, MAXIMUM DISSIPATION
(WATTS)
1.25
1.00
0.75
0.50
0.25
0
25
50
75
100
125
T
L,
LEAD TEMPERATURE (
°
C)
150
175
L = 3/8" (9.5mm)
Page 1 of 2
Rev. 04 : May 27, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM
ELECTRICAL CHARACTERISTICS
(Rating at 25 °C ambient temperature unless otherwise specified)
Nominal Zener
Maximum Zener
Impedance
I
ZT
(mA)
76.0
69.0
64.0
58.0
53.0
49.0
45.0
41.0
37.0
34.0
31.0
28.0
25.0
23.0
21.0
19.0
17.0
15.5
14.0
12.5
11.5
10.5
9.5
8.5
7.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.7
3.3
3.0
2.8
2.5
2.3
2.0
1.9
1.7
1.6
1.4
1.2
0.93
0.90
0.82
0.75
Z
ZT
@ I
ZT
(Ω)
10
10
9.0
9.0
8.0
7.0
5.0
2.0
3.5
4.0
4.5
5.0
7.0
8.0
9.0
10
14
16
20
22
23
25
35
40
45
50
60
70
80
95
110
125
150
175
200
250
350
450
550
700
1000
1100
1200
1900
1800
2000
2100
2300
Z
ZK
@ I
ZK
(Ω)
400
400
400
400
500
550
600
700
700
700
700
700
700
700
700
700
700
700
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
6000
6500
7000
9990
8500
9000
9000
9500
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Maximum Reverse
Leakage Current
I
R
@ V
R
(
µ
A)
100
100
50
10
10
10
10
10
50
50
50
50
50
50
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
(V)
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
182.4
190
205
228
Maximum DC
Zener Current
I
ZM
(mA)
276
252
234
217
193
178
162
146
133
121
110
100
91
83
76
69
61
57
50
45
41
38
34
30
27
25
23
22
19
18
16
14
13
12
11
10
9.0
8.6
7.8
7.0
6.4
5.8
5.2
4.7
3.8
3.6
3.3
3.0
Maximum
Surge Current
I
RM(2)
(mApk)
1380
1260
1190
1070
970
890
810
730
660
605
550
500
454
414
380
344
305
285
250
225
205
190
170
150
135
125
115
110
95
90
80
70
65
60
55
50
45
40
37
34
30
28
25
22
19
18
16
15
TYPE
Voltage
V
Z
@ I
ZT
(V)
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
240
250
270
300
1N4728C
1N4729C
1N4730C
1N4731C
1N4732C
1N4733C
1N4734C
1N4735C
1N4736C
1N4737C
1N4738C
1N4739C
1N4740C
1N4741C
1N4742C
1N4743C
1N4744C
1N4745C
1N4746C
1N4747C
1N4748C
1N4749C
1N4750C
1N4751C
1N4752C
1N4753C
1N4754C
1N4755C
1N4756C
1N4757C
1N4758C
1N4759C
1N4760C
1N4761C
1N4762C
1N4763C
1N4764C
Z1110C
Z1120C
Z1130C
Z1150C
Z1160C
Z1180C
Z1200C
Z1240C
Z1250C
Z1270C
Z1300C
Notes :
(1) The type number listed have a standard tolerance on the nominal zener voltage of
±
2 %.
(2) The revese surge current is a non-repetitive, 8.3ms pulse width square wave or equivalent sine-wave superimposed
on I
ZT
per JEDEC Method
Page 2 of 2
Rev. 04 : May 27, 2006
