TECHNICAL DATA SHEET
adaptor
FME plug – N plug
26S153-S00A1

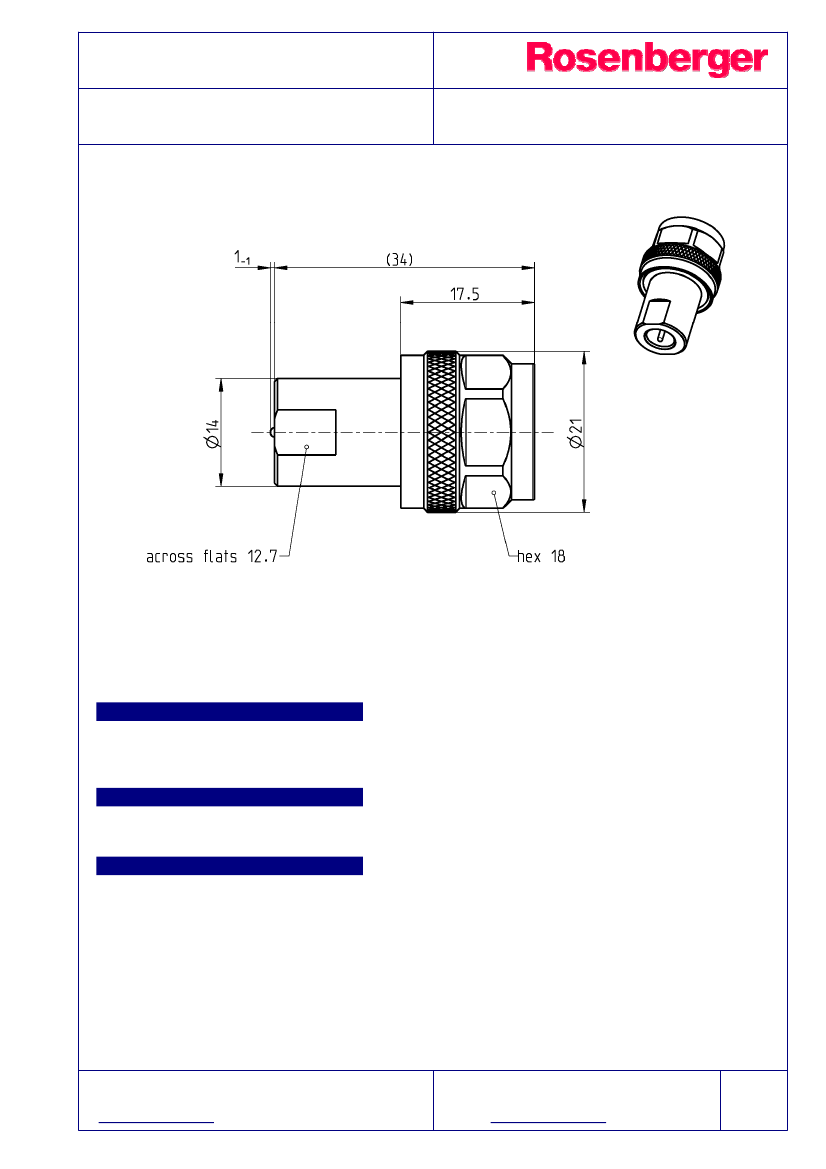

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
FME side:
N side:
N/A
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact FME side
Outer contact N side
Dielectric
Gasket N side
Coupling nut N side
Material
Plating
Brass
Silver, 3-6 µm
Brass
Nickel, 2.5-5 µm
Brass
Flash white bronze over silver(e.g. Optargen®)
PTFE
NeopreneCR 50C6
Brass
White bronze(e.g. Optalloy®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
adaptor
FME plug – N plug
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
26S153-S00A1
50
DC to 3 GHz
25 dB, DC to 1 GHz
15 dB, 1 to 2 GHz
0.1 dB max., DC to 1 GHz
5 x10
3
M
10 m, FME side;
1 m, N side
5 m, FME side;
0.25 m, N side
1000 V rms
500 V rms
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
Coupling test torque
Recommended torque
FME side
min. 300
N/A
28 N
max. 2 Nm
N/A
N side
min. 500
450 N
28 N
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Environmental tests
RoHS
-55°C to +125°C
MIL-STD-202
compliant
Tooling
N/A
Suitable cables
N/A
Weight
Weight
35.5 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
26/07/05
Approved
Sa. Krautenbacher
Date
13.03.14
Rev.
c00
Engineering change number
14-0352
Name
T. Krojer
Date
13.03.14
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
