Bus system connector - SACC-M12FRB-5PL SH IB - 1424677
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

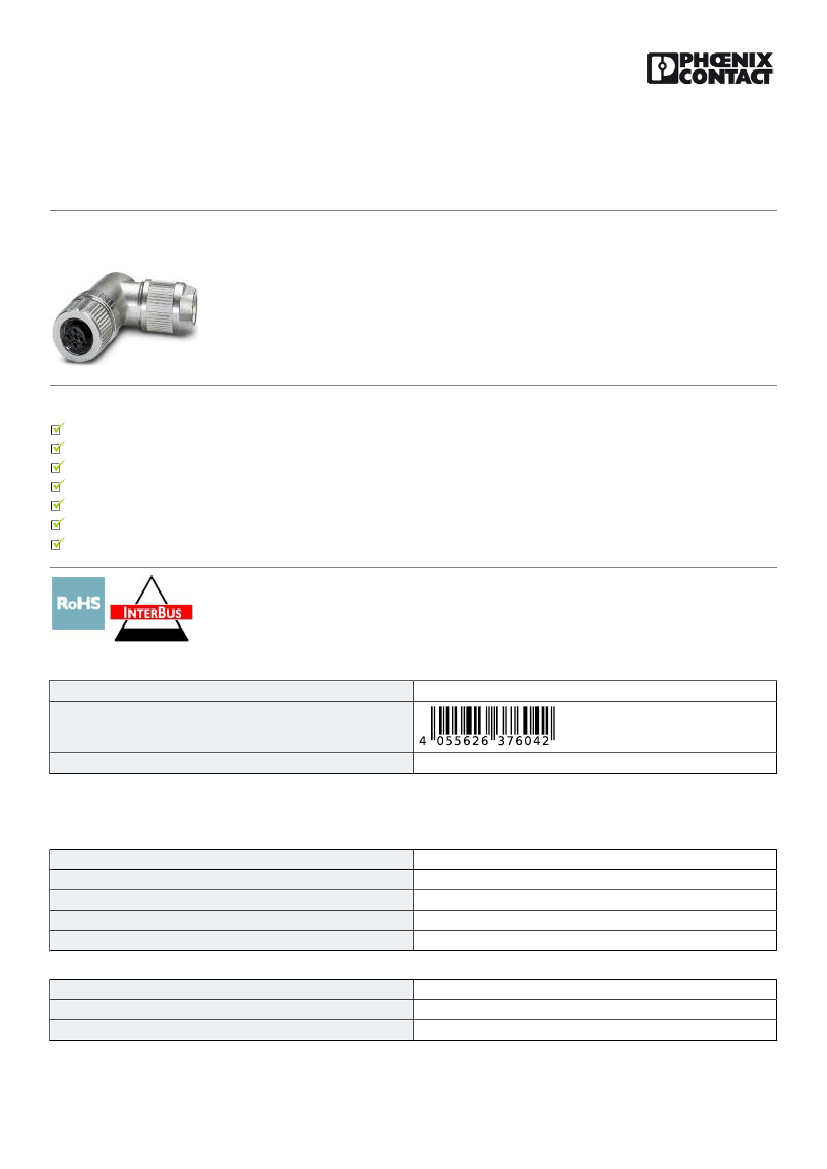

Bus system connector, INTERBUS (500 kbps), 5-position, shielded, Socket angled M12, B-coded, Push-in
connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
Why buy this product
Easy and tool-free connection by means of Push-in Technology
Conveniently connect stranded conductors, thanks to lever
Reliable and quick connection of electric cables
Flexible signal and data cabling
Flexible cable outlets with angled connectors
Easy and tool-free connection by means of Push-in Technology
Quick and easy installation, thanks to Push-in connection technology
Key Commercial Data
Packing unit
GTIN
GTIN
4055626376042
1 pc
Technical data
Dimensions
Diameter housing
Length
External cable diameter
Stripping length of the sheath
Stripping length of the individual wire
19 mm
48 mm
4 mm ... 8 mm
31 mm
8 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C (Plug / socket)
IP65
IP67
09/30/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1424677
Bus system connector - SACC-M12FRB-5PL SH IB - 1424677
Technical data
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Signal type/category
Status display
Overvoltage category
Degree of pollution
Connection method
Conductor cross section
4A
60 V DC
48 V AC
5
≥ 100 MΩ
B - inverse
M12 connector IEC 61076-2-101
Shock, vibration EN 50155:2001
INTERBUS, 500 kbps
No
II
3
Push-in connection
0.14 mm² ... 0.75 mm² (without ferrule)
0.08 mm² ... 0.5 mm² (with ferrule)
0.14 mm² ... 0.75 mm² (solid)
Conductor cross section AWG
Insertion/withdrawal cycles
Torque
26 ... 18 (without ferrule)
28 ... 20 (with ferrule)
≥ 100
0.4 Nm (M12 knurl)
0.8 Nm (Connector with coupling sleeve)
3 Nm (Pressure nut with coupling sleeve)
Assembly instructions
The connector pin assignment can be rotated 45° to the cable outlet
The wires can be connected both with ferrules and without ferrules
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Additional material specifications
V0
CuSn
Ni/Au
PA 6.6
Zinc die-cast, nickel-plated
Zinc die-cast, nickel-plated
NBR
TPE-U (Clamping cage, weight: 1.1 g)
PA 6 (Actuation lever)
Standards/regulations
PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24,
R25, and R26 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
PA 6: Fire protection in rail vehicles - requirement sets R22, R23, and
R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Standards and Regulations
Standard designation
M12 connector
09/30/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1424677
Bus system connector - SACC-M12FRB-5PL SH IB - 1424677
Technical data
Standards and Regulations
Standards/regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
IEC 61076-2-101
Shock, vibration
EN 50155:2001
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

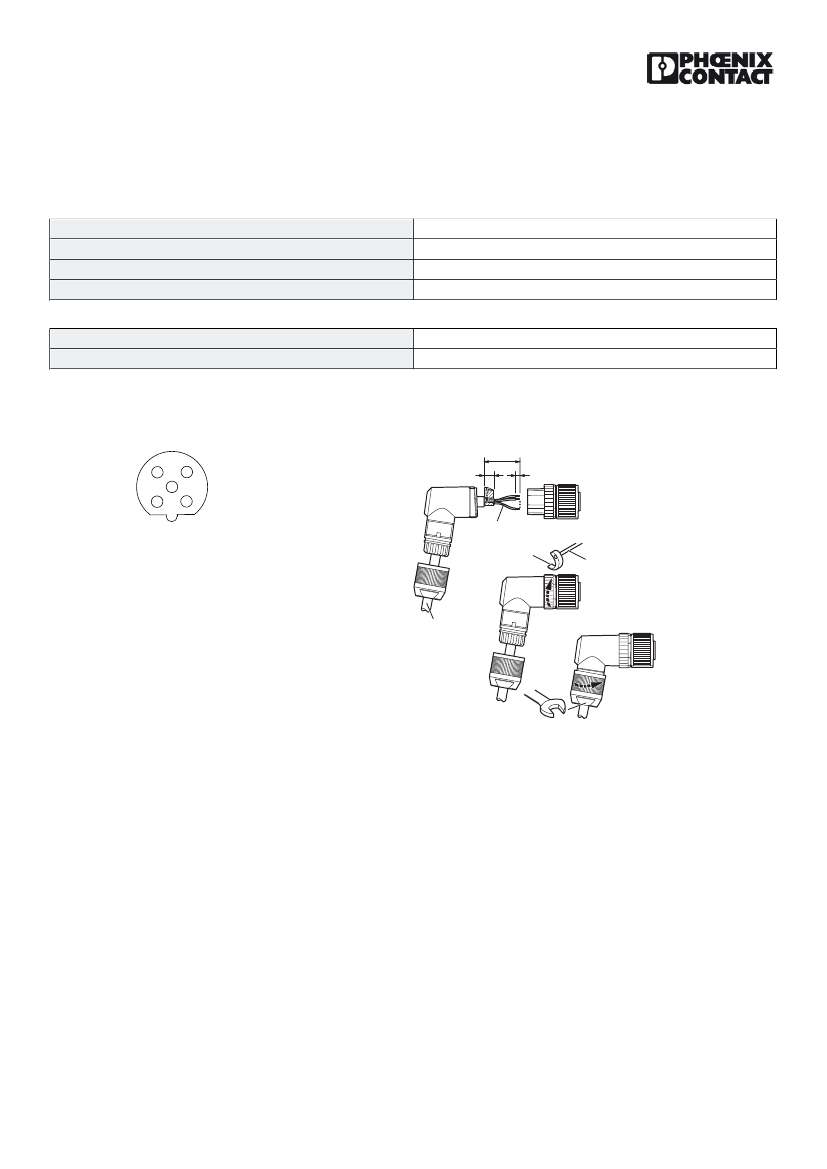

Drawings
Schematic diagram
3
4
Functional drawing
31
12
8
5
2
1
0,14 - 0,75 mm²
Pin assignment M12 socket, 5-pos., B-coded,
female side
1208445
1212597
Ø 4 - 8 mm
0,8 Nm
13
3 Nm
Slide the pressure nut and sleeve housing along the cable, strip the cable, shorten the shield,
strip the single wires, connect the wires, in the case of a straight sleeve housing gently twist the
wires together, stick the shielding foil around the shortened shield, in the case of a cable outside
diameter < 6 mm stick an additional shielding foil around the wire pack, screw the sleeve housing
to the plug insert, screw the pressure nut tight.
09/30/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1424677
Bus system connector - SACC-M12FRB-5PL SH IB - 1424677
Dimensional drawing
Ø19
M12
13
ca. 41
Socket M12-SPEEDCON, angled, shielded
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
ca. 48
EAC-Zulassung
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
09/30/2018 Page 4 / 4
