CD74HC193M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> CD74HC193M

CD74HC193M: DescriptionBINARY COUNTER; Categorylogic; File Size764KB，10 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74HC193M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC193M	-	-	View	Buy Now

CD74HC193M Overview

BINARY COUNTER

CD74HC193M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	SOIC-16
Reach Compliance Code	not_compliant
Is Samacsys	N
Counting direction	BIDIRECTIONAL
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	17000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
propagation delay (tpd)	270 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	24 MHz
Base Number Matches	1

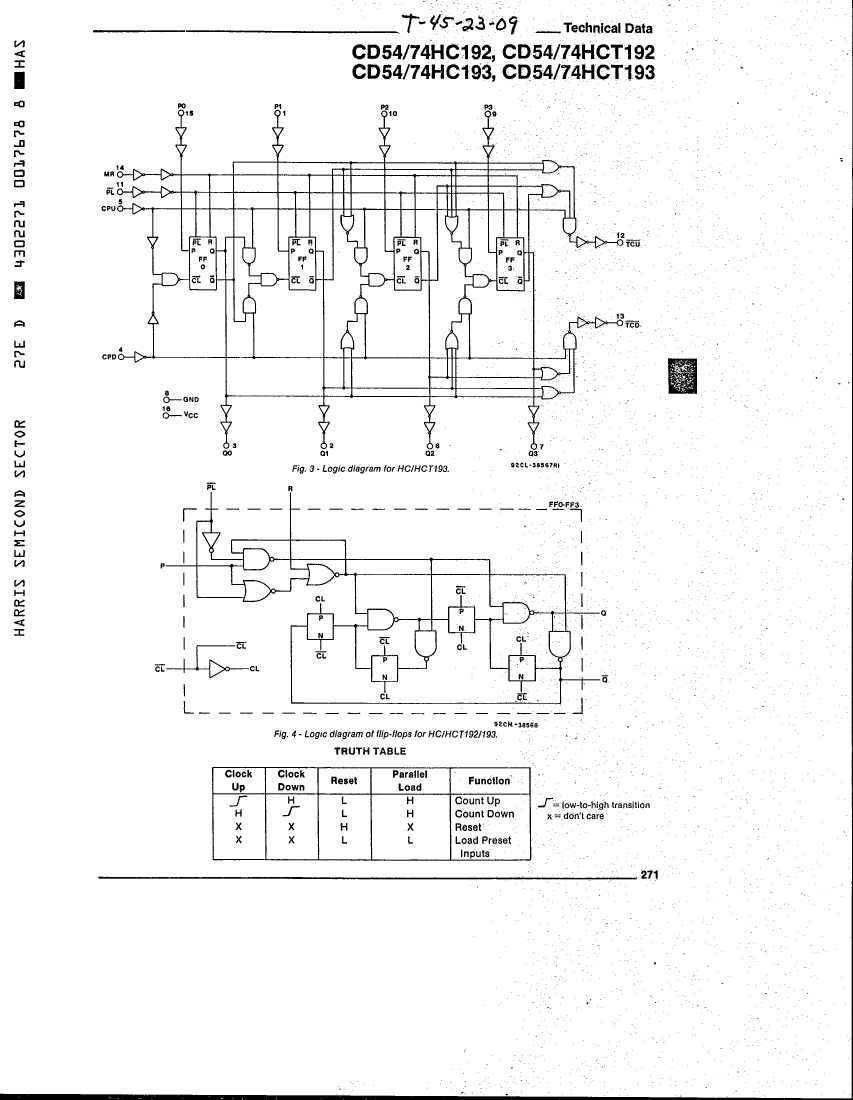

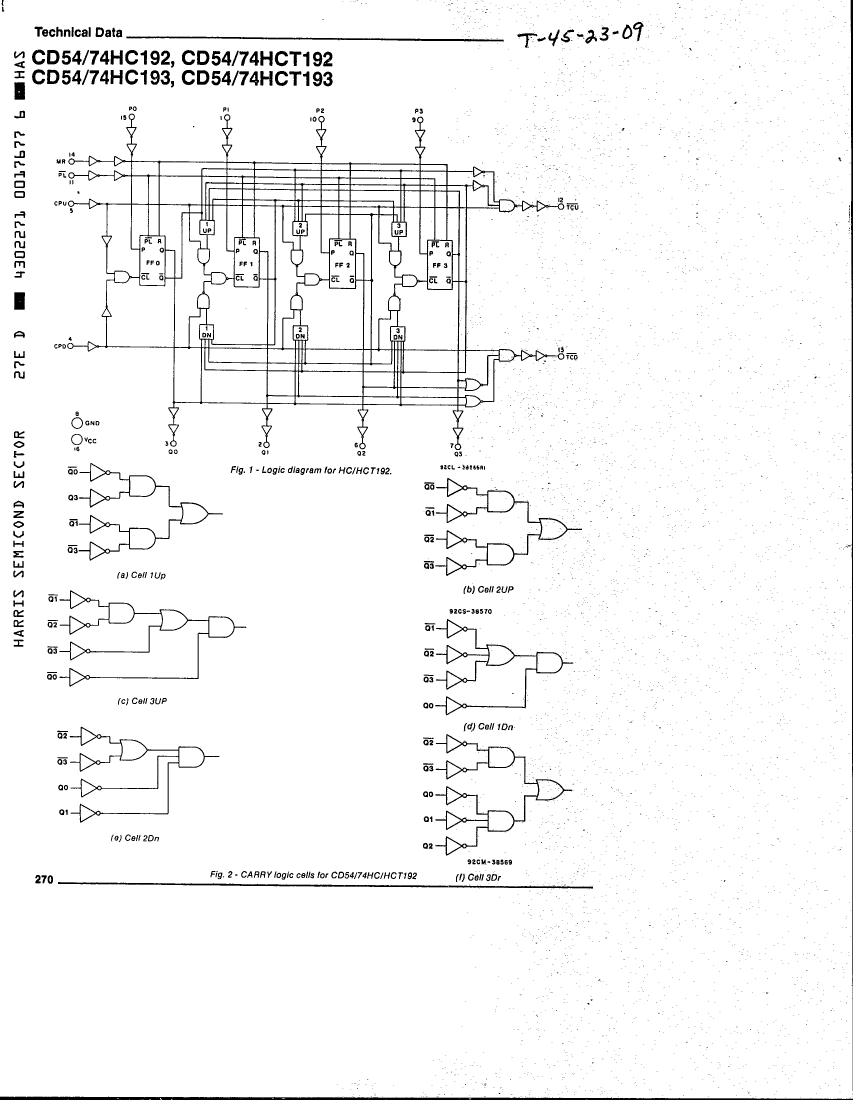

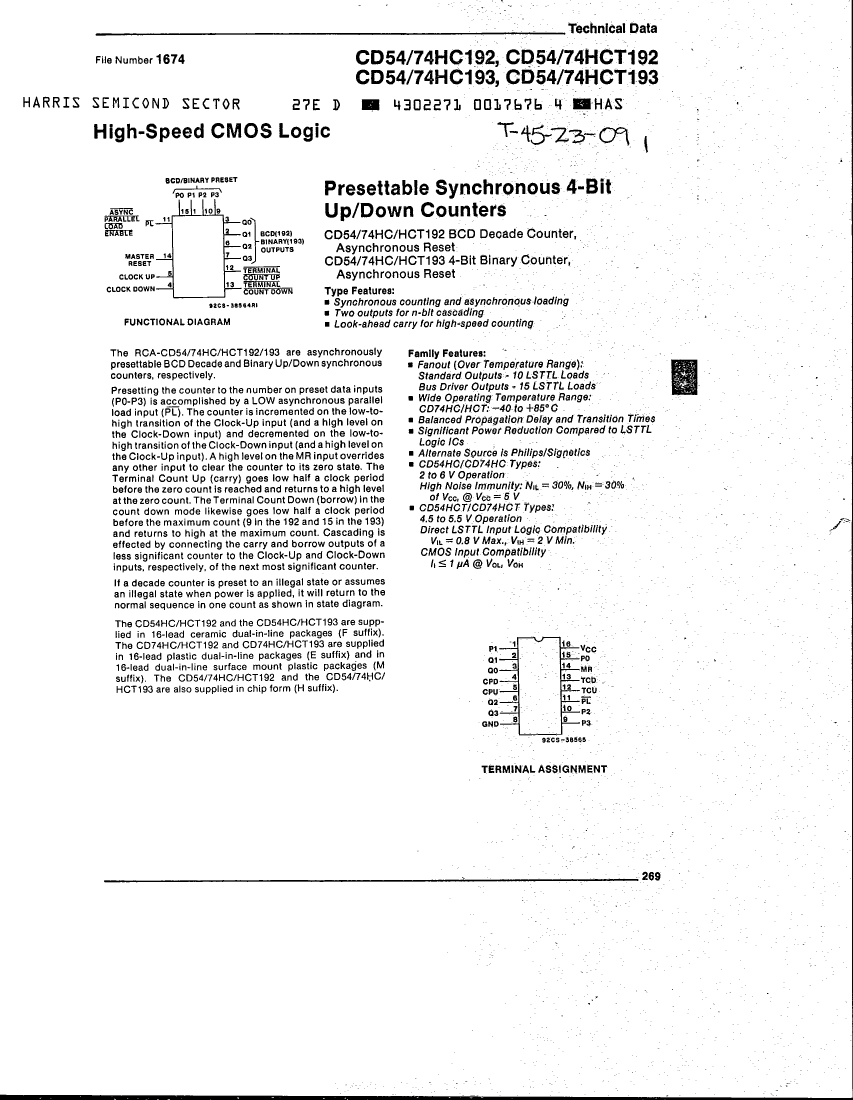

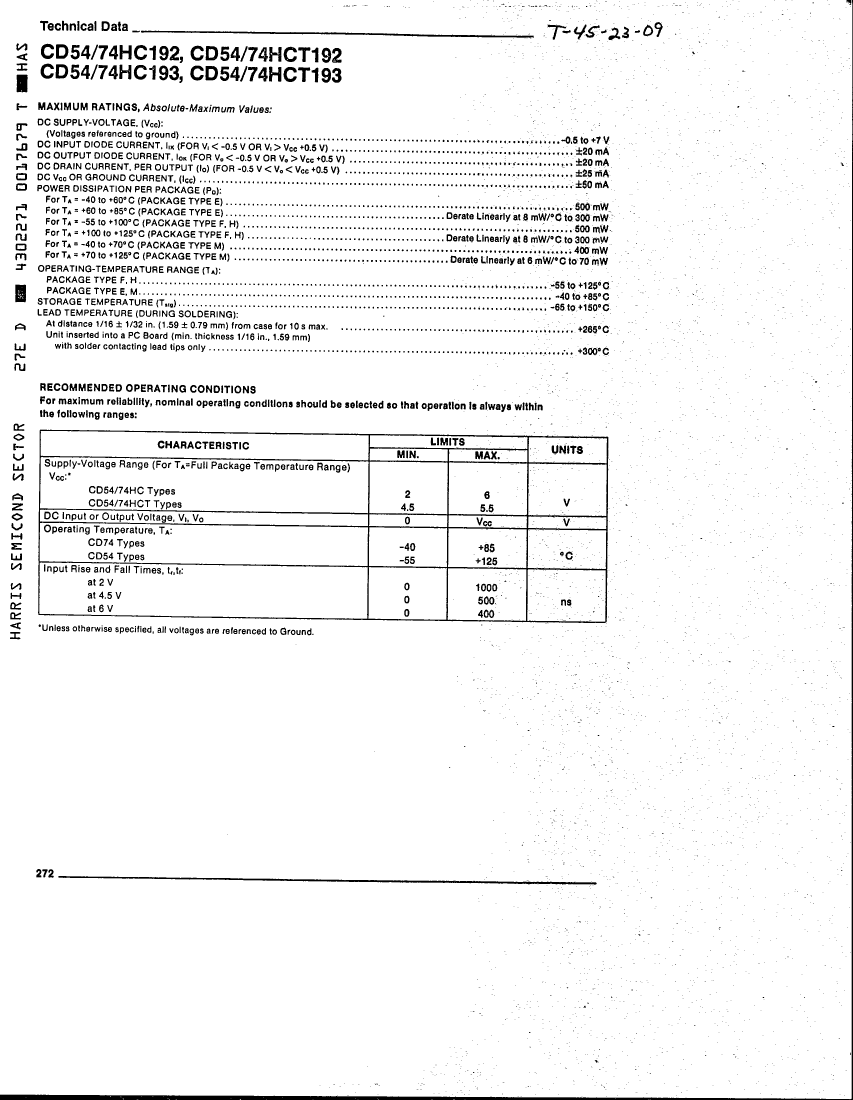

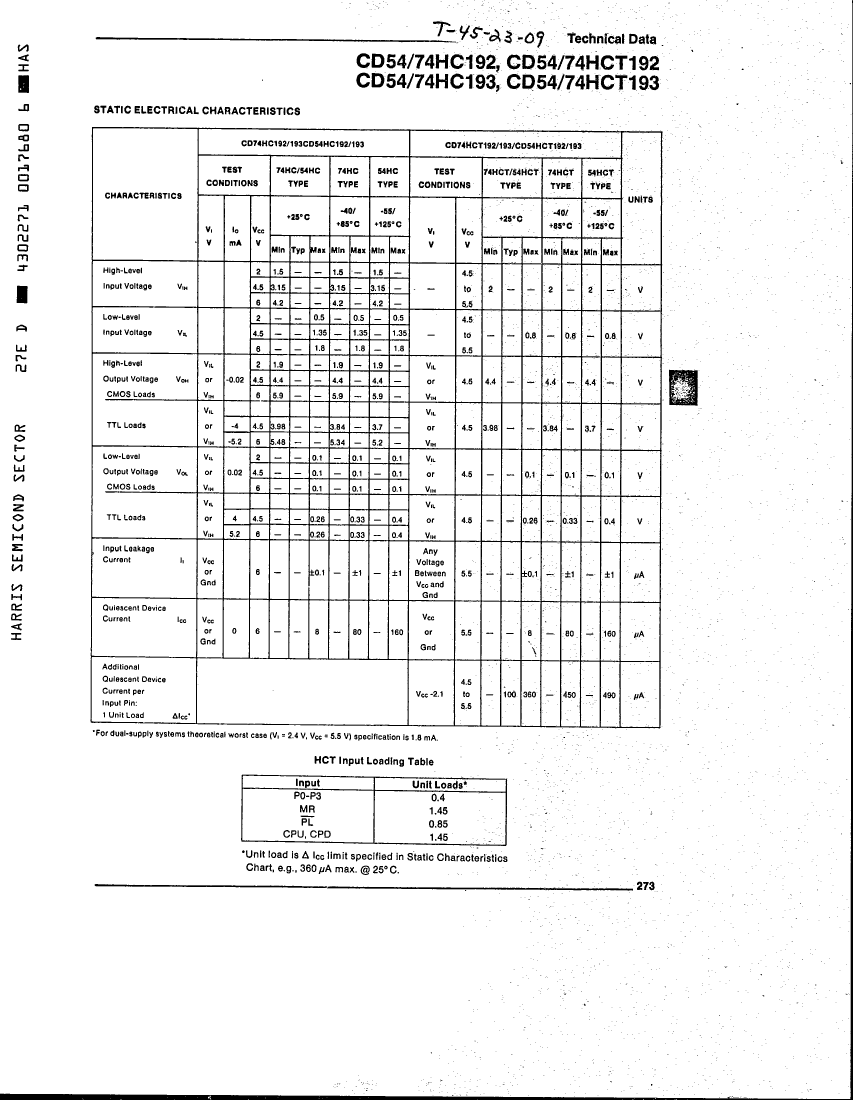

Preview

Download Datasheet

View All

CD74HC193M Related Products

	CD74HC193M	CD54HC192F	CD74HC193M96	CD54HCT193H	CD74HC192H	CD54HC192H	CD54HC193H
Description	BINARY COUNTER	CD54HC192F	BINARY COUNTER	CD54HCT193H	IC,COUNTER,UP/DOWN,DECADE,HC-CMOS,DIE	CD54HC192H	CD54HC193H
package instruction	SOIC-16	DIP-16	SOIC-16	, DIE OR CHIP	, DIE OR CHIP	, DIE OR CHIP	, DIE OR CHIP
Reach Compliance Code	not_compliant	not_compliant	not_compliant	unknown	compliant	unknown	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	DECADE COUNTER	BINARY COUNTER	BINARY COUNTER	DECADE COUNTER	DECADE COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	17000000 Hz	15000000 Hz	17000000 Hz	15000000 Hz	15000000 Hz	15000000 Hz	17000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C
Encapsulate equivalent code	SOP16,.25	DIP16,.3	SOP16,.25	DIE OR CHIP	DIE OR CHIP	DIE OR CHIP	DIE OR CHIP
power supply	2/6 V	2/6 V	2/6 V	5 V	2/6 V	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Nominal supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	5 V	-	-	-
Base Number Matches	1	1	1	1	-	-	-
