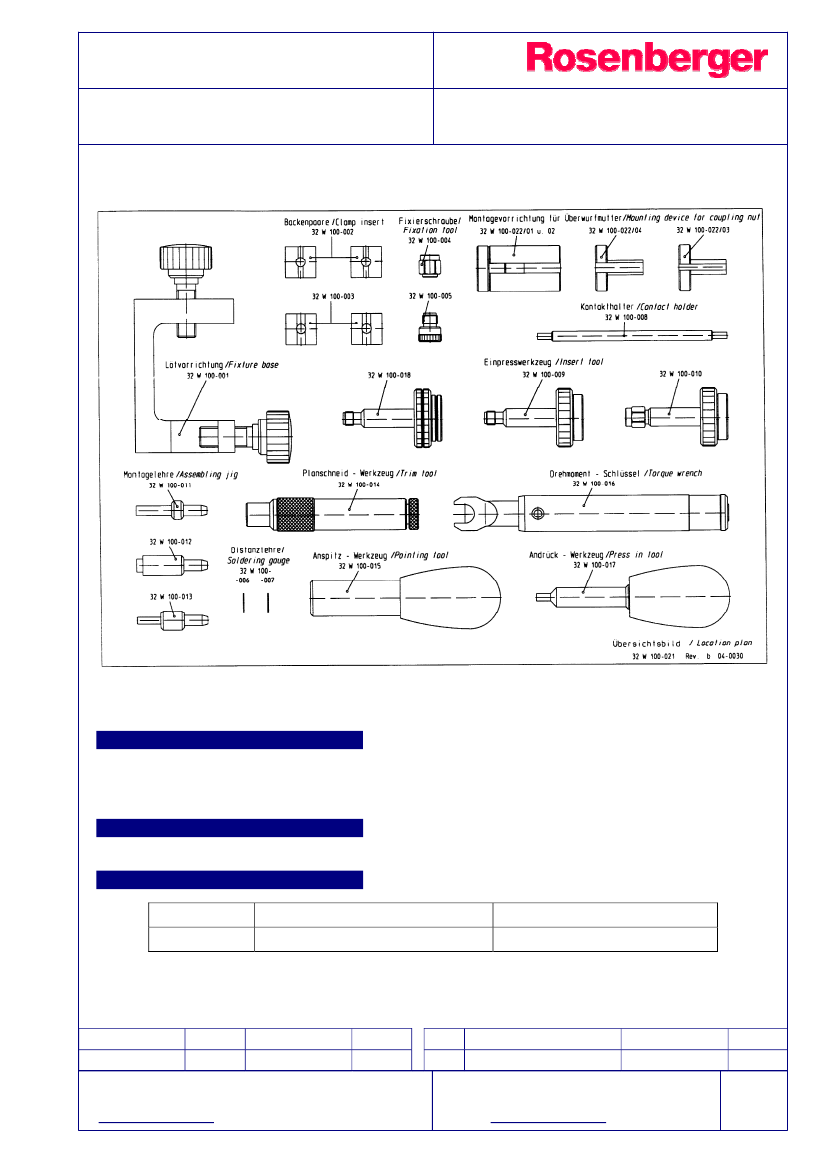

TECHNICAL DATA SHEET
TOOL SET
SERIES SMA – FOR SEMI-RIGID CABLE
32W100-000
Application
Series
Contents
SMA, for semi-rigid cable
see table 1
Weight
Weight
788 g/pce
Contents (Table 1)
Order-No.
32W100-001
Fixture base
Tools
Remarks
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Rong Fang
Date
14/12/05
Approved
Sa. Krautenbacher
Date
17.03.14
Rev.
b00
Engineering change number
14-0352
Name
T. Krojer
Date
17.03.14
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
TOOL SET
SERIES SMA – FOR SEMI-RIGID CABLE
32W100-002
32W100-003
32W100-004
32W100-005
32W100-006
32W100-007
32W100-008
32W100-009
32W100-010
32W100-011
32W100-012
32W100-013
32W100-014
32W100-015
32W100-016
32W100-017
32W100-018
32W100-020
Clamp insert
Clamp insert
Fixation tool
Fixation tool
Soldering distance gauge
Soldering distance gauge
Contact holder
Insulator press-in tool
Insulator press-in tool
Assembling jig
Assembling jig
Assembling jig
Trim tool
Pointing tool
Torque wrench
Dielectric recess tool
Insulator press in tool
Instruction sheet
for plug
see table 2
for cable center conductor
90 Ncm
32W100-000
for RG 405, UT 085
for RG 402, UT 141
jack
plug
0.25 mm
0.4 mm
(for plug and jack)
for plug
for jack
for center contact + insulator
for outer contact + coupling nut
for center contact + insulator
32W100-022/01 Conical sleeve
32W100-022/02 Arrester
32W100-022/03 Fixing tool
32W100-022/04 Fixing tool
slot 2.5 mm
slot 4.0 mm
Mounting device for coupling nut
Documents (Table 2)
Assembly instruction sheets
32 A1
32 A6
32 A3
32 A4
32 A5
32 A23
32 E1
Remarks
Straight plug (without insulator and centre contact) for
RG 402 /U
Straight plug for semi-rigid cable RG 405 /U
Straight plug for semi-rigid cable RG 402 /U
Straight jack for semi-rigid cable RG 405 /U
Straight jack for semi-rigid cable RG 402 /U
Straight plug for semi-rigid and semi-flex cable
Right angle connector for semi-rigid cable
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
