MOD BLOCK - 2X2 Standard
Primary Applications
High Mast
Streetlight
Stadium
Architectural
Canopy
Garage
Portable
High bay
IP67-Rated Module built with Cree XHP50.2 LEDs
Features and Benefits
•
IP67 Protection – Self-contained module
for outdoor applications or other difficult
environments
•
Optical Flexibility – a variety of off-the-shelf
optical patterns are available; built with LEDiL optics.
•
Integrate Further – Easy to add multiple
modules through our interlocking technology
•
Easy Mounting – designed for quick
mounting to a housing or bracket
•
Performance – industry leading lumen
density and lumens per pound
•
Certifications – RoHS compliant
•
Custom - private label or design changes available

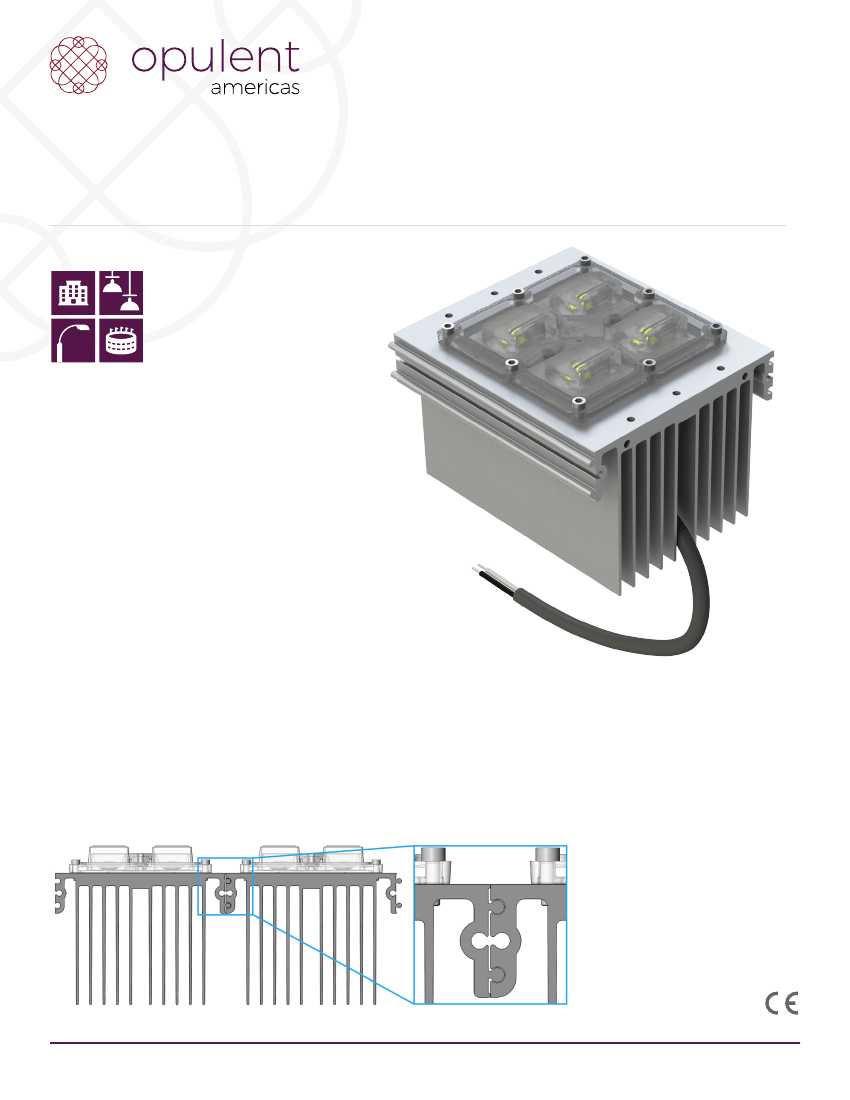

Introducing the Opulent Americas IP67 rated LED heat sink module using Cree XHP50.2 Extreme High Power LEDs.
This Opulent Americas module is engineered to bring high quality lighting systems to market faster with fewer LEDs,
higher reliability, and a lower system cost. This module is a robust, flexible, and versatile building block for any number
of lighting systems such as high bay, low bay, parking, and stadium lighting.
Interlocking Technology to Add More Modules
Last Modified: 11/16/17
RoHS
Opulent-Americas.com
Opulent Americas
• 807 Spring Forest Road, Suite 900 Raleigh, NC 27609 • 919.407.8322 • info@opulent-americas.com
MOD BLOCK - 2X2 Standard Specifications
Order Code Formatting
Series
-
Color
Temperature
27 - 2700K
30 - 3000K
40 - 4000K
50 - 5000K
57 - 5700K
Color Rendering
Index
70 - 70 CRI
80 - 80 CRI
90 - 90 CRI
-
Optic
-
Cable Type
-
Internal
Code
XX
MS22T1 -C22 - XHP50.2 Mod Block
M
W
WWW
T2
T4
T5
DWC
*See Page 5
for Photometric
Distributions
1 - Cable Pigtail
2 - Waterproof
M15 Cable
2
For support on Cree LED Modules, visit Opulent-Americas.com/support
MOD BLOCK - 2X2 Standard Specifications
Ordering Information
Part Number
CCT
5700K
MS22T1 -C22-5770-x
5700K
5700K
5000K
MS22T1 -C22-5070-x
5000K
5000K
4000K
MS22T1 -C22-4070-x
4000K
4000K
CRI
70
70
70
70
70
70
70
70
70
Binning
ANSI
ANSI
ANSI
5-Step
5-Step
5-Step
5-Step
5-Step
5-Step
Forward
Voltage (V)
45.5
45.8
46.1
45.5
45.8
46.1
45.5
45.8
46.1
Current
(mA)
700
1050
1500
700
1050
1500
700
1050
1500
Typical
Luminous
Flux (lm)
4500
6030
7500
4500
6030
7500
4500
6030
7500
Efficacy
Nominal
(lm/W)
141
125
109
141
125
109
141
125
109
Watts (W)
32
48
69
32
48
69
32
48
69
Product performance based on 25°C ambient temperature.
All values shown above are typical.
Ratings
Parameter
Operating Temperature
Weight
Unit
°C
G
Rating
-40 to +40
865
Performance Groups – Chromaticity
Binning
CCT
X
0.3207
ANSI
5700K
0.3376
0.3366
0.3222
Y
0.3462
0.3616
0.3369
0.3243
Binning
5-Step
5-Step
CCT
5000K
4000K
Center Point
X
0.3447
0.3818
Y
0.3553
0.3797
a
0.01400
Major Axis
b
0.00520
0.00550
Rotation Angle (°)
65.0
61.5
0.001420
3
For support on Cree LED Modules, visit Opulent-Americas.com/support
MOD BLOCK - 2X2 Standard Specifications

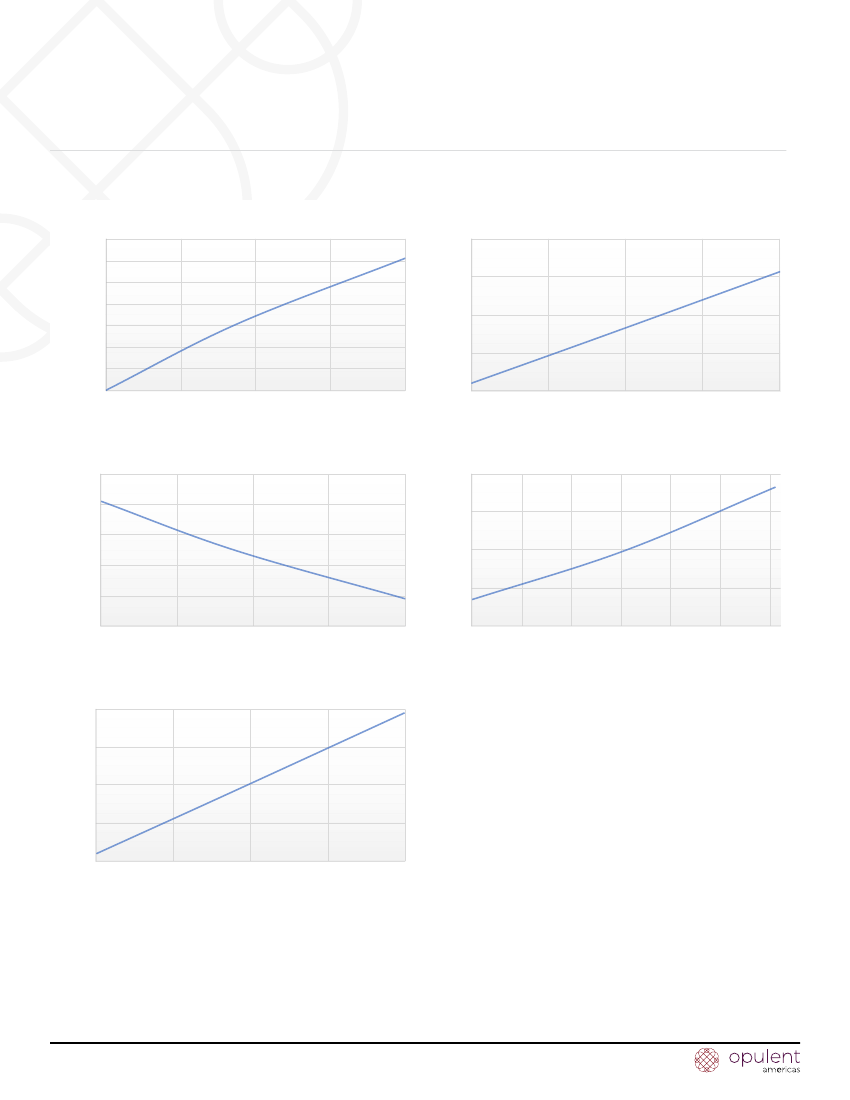

Performance Characteristics
Lumens vs Drive Current
8000
7500
Sol der Point Temp (Tsp)
Tsp vs Drive Current
85
7000
Lumens
75
6500
6000
5500
5000
4500
700
900
1100
Dri ve Current (mA)
1300
1500
65
55
45
700
900
1100
Dri ve Current (mA)
1300
1500
Efficacy vs Drive Current
150
Sol der Point Temp (Tsp)
Tsp vs Lumens
80
140
Effi ca cy (Lm /W)
70
130
120
110
100
60
50
700
900
1100
Dri ve Current (mA)
1300
1500
40
4500
5000
5500
6000
Lumens
6500
7000
7500
Power vs Drive Current
70
60
Power (W)
50
40
30
700
900
1100
Dri ve Current (mA)
1300
1500
*Product performance based on 25°C ambient temperature
4
For support on Cree LED Modules, visit Opulent-Americas.com/support
MOD BLOCK - 2X2 Standard Specifications

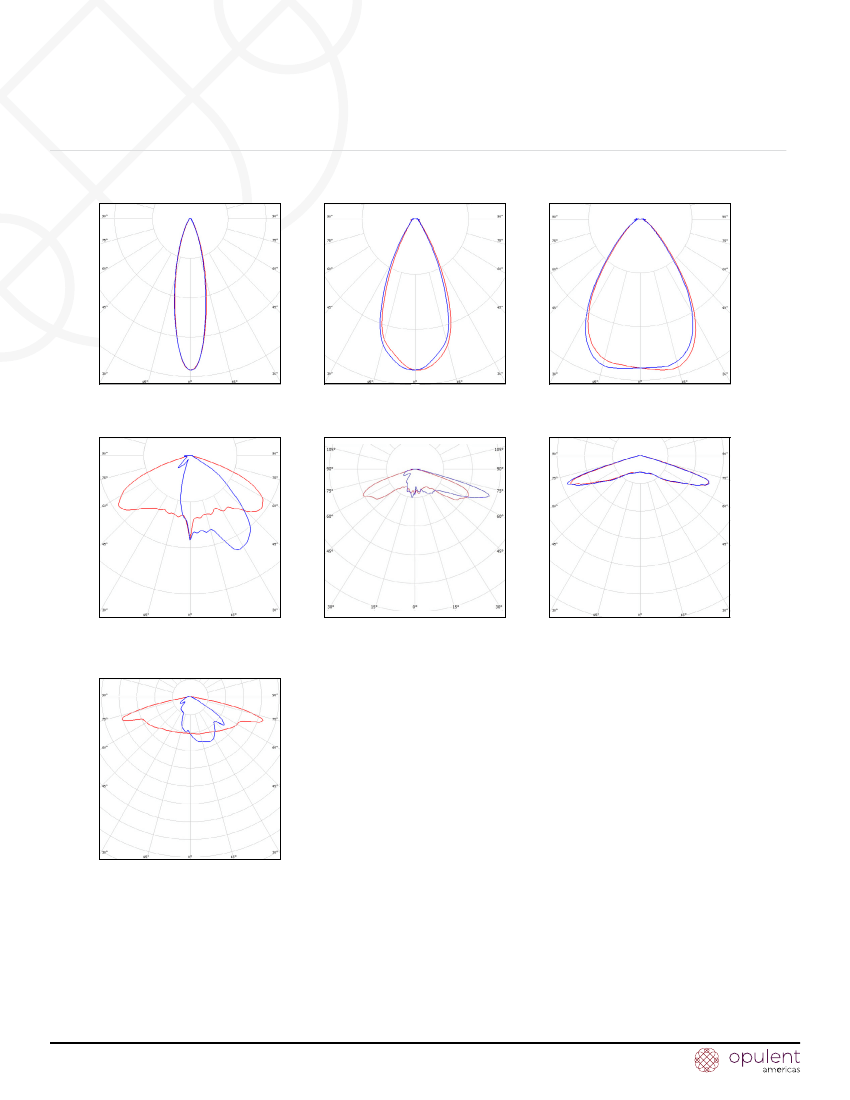

Photometric Distributions
M - Medium
High Bay Series
W - Wide
High Bay Series
WWW - Very Wide
High Bay Series
T2 - IESNA Type II
Roadway Series
T4 - IESNA Type IV
Roadway Series
T5 - IESNA Type V Square
Roadway Series
DWC - Universal Type III Medium
Roadway Series
*Photometric distributions made with LEDiL optics
5
For support on Cree LED Modules, visit Opulent-Americas.com/support
