TW3030 Permanent Mount GPS L1 Antenna
The TW3030 by Tallysman Wireless is a
professional grade, permanent mount GPS L1
antenna, specially designed for professional
precision timing applications.
The TW3030 features a custom high performance,
wide band patch element, a 30dB gain LNA stage
and a high rejection out-of-band SAW filter. It
provides ±10MHz bandwidth centred on 1575.42
MHz and covers the GPS L1, Galileo E1 and SBAS
(WAAS/EGNOS/MSAS) signals. It provides great
axial ratio, excellent circular polarized signal
reception, great multipath rejection and great out-
of-band signal rejection.
The TW3030 is housed in a compact, industrial-
grade weather-proof, domed shaped enclosure. Its
radome is available in dark gray or white, it comes
with a TNC female connector and a L-bracket for
pole mount is available (P/N#23-0040-0).

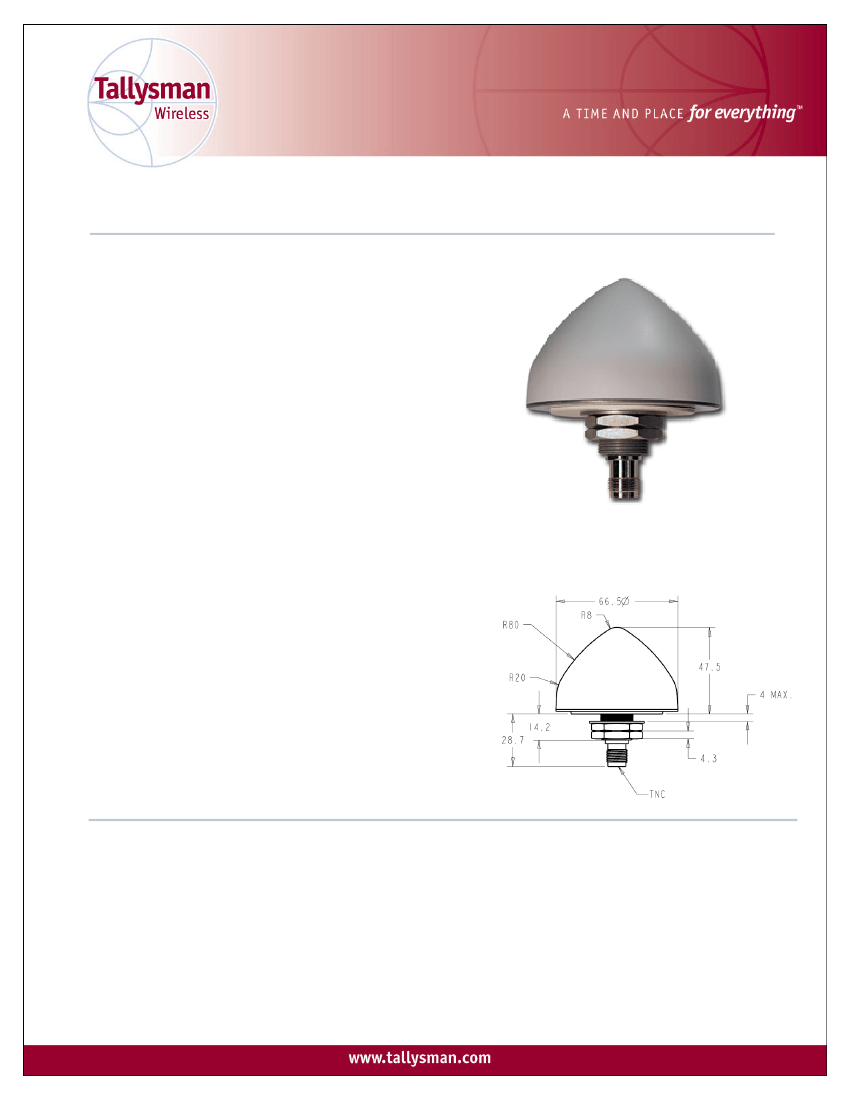

TW3030 Dimensions (mm)
Applications
•
•
•
High Accuracy, Mission Critical GPS Timing
Military & Security
Network Timing and Synchronisation
Features
•
•
•
•
•
•
•
•
Great axial ratio
Low noise LNA: 1 dB
High rejection SAW filter
High gain: 30 dB typ.
Low current: 10 mA typ.
ESD circuit protection: 15 KV
Wide voltage input range: +3.0 to 10 VDC
Weather proof housing: IP67
Benefits
•
•
•
•
•
•
Excellent multipath rejection
Increase system accuracy
Excellent signal to noise ratio
Great out of band signal rejection
Ideal for harsh environments
RoHS compliant
TW3030 Permanent Mount GPS L1 Antenna
Specifications
Vcc = 3V, over full bandwidth, T=25°C
Antenna
Antenna Element Gain (100mm ground plane)
Axial Ratio (over full bandwidth)
4 dBic at 90°
4
dB at 90°
Electrical
Architecture
Frequency Bandwidth
Polarization
Gain
Out-of-Band Rejection
2 stage LNA circuit + a mid section SAW filter.
(Pre-filter option available)
1575 MHz ± 10 MHz
RHCP
30 dB typ. (at 1575.42 MHz)
>42 dB
>31 dB
>45 dB
<1.5:1
1 dB typ.
+3.0 to 10 VDC nominal
10 mA typ.
15 KV air discharge
<1560 MHz
>1600 MHz
>1620 MHz
VSWR (at LNA input)
Noise Figure
Supply Voltage Range
Supply Current
ESD Circuit Protection
Mechanicals & Environmental
Mechanical Size
Connector / Cable
Operating Temp. Range
Enclosure
Weight
Attachment Method
Environmental
Shock
Vibration
Warranty
66.5 mm dia. x 45 mm H
TNC female bulkhead / Custom cable assembly available
-40 to +85 °C
Radome: Dark Gray or White ASA Plastic,
Base: Zamak White Metal
150 g
L-Bracket option: P/N# 23-0040-0
IP67 and RoHS compliant
Vertical axis: 50 G, other axes: 30 G
3 axis, sweep = 15 min, 10 to 200 Hz sweep: 3 G
One year – parts and labour
Ordering Information
TW3030 – GPS L1 antenna, dark gray, TNC connector
TW3030 – GPS L1 antenna, white, TNC connector
Please contact Tallysman Wireless additional information
32-3030-0-00
32-3030-0-01
Tallysman Wireless Inc
106 Schneider Road, Unit 3
Ottawa ON K2K 1Y2 Canada
Tel 613 591 3131
Fax 613 591 3121
sales@tallysman.com
The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be regarded as a
guarantee of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. © 2011 Tallysman
Wireless Inc. All rights reserved.
Doc # 60-0064-0
Rev 1.1
